    New Alienware 17 r4 6700HQ 1070 repaste question...

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Djommar, May 6, 2017.

  1. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    So i just received my new Alienware and the first thing i did was run benchmarks. My cpu temps rose up to 92 Degree's. I was thinking of re pasting but unfortunately grizzly thermal paste's which i ordered will take up to 2 months to come to where im from. I already have Arctic Silver 5 paste. Should i just use this paste in the mean time? Or should i just wait the 2 months? What do you guys think?


    Thanks!

    Djommar, May 6, 2017
    #1
  2. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    AS5 should be fine - what you should really do is check whether 1 or 2 of your cores are getting much higher temps than the others. If so, you have to replace the thermal pad with a thinner one as per @iunlock 's guide.

    don_svetlio, May 6, 2017
    #2
  3. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    Yeah they are about 9 degrees apart. Already ordered thermal pads and paste. Should i just skip the paste and go for the liquid metal? I am somewhat tech savy so applying it will be no problem its just i dont have any experience with it only regular paste. Also thanks @iunlock for that detailed guide without it i would be so lost.

    Djommar, May 6, 2017
    #3
  4. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    If you're somewhat inexperienced - LM may not be the best way to start. LM is highly conductive so if you get any of it in the wrong place you can end up frying the whole thing.

    don_svetlio, May 6, 2017
    #4
  5. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    You are correct I don't want to end up frying my new system. I will try the Artic Silver 5 repaste and post back here my results.

    Thanks for the response! Have a great day

    Djommar, May 6, 2017
    #5
    Vasudev likes this.
  6. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,050
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Even AS 5 is conductive.

    Vasudev, May 6, 2017
    #6
  7. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    Wait, then which Arctic product was non-conductive?

    don_svetlio, May 6, 2017
    #7
  8. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,050
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Arctic Silver Ceramique 2 and Arctic MX4 are non conductive. Some others include Kryonaut, IC Diamond, Gelid Extreme.

    Vasudev, May 6, 2017
    #8
    don_svetlio likes this.
  9. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    I have experience with as5 tho so I'm comfortable using it. Would AS5 be a line or a dot for applying?

    Sent from my SM-G935F using Tapatalk

    Djommar, May 7, 2017
    #9
  10. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,050
    Messages:
    11,278
    Likes Received:
    8,815
    Trophy Points:
    931
    Line for CPU and X or big dot for GPU.

    Vasudev, May 7, 2017
    #10
  11. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16

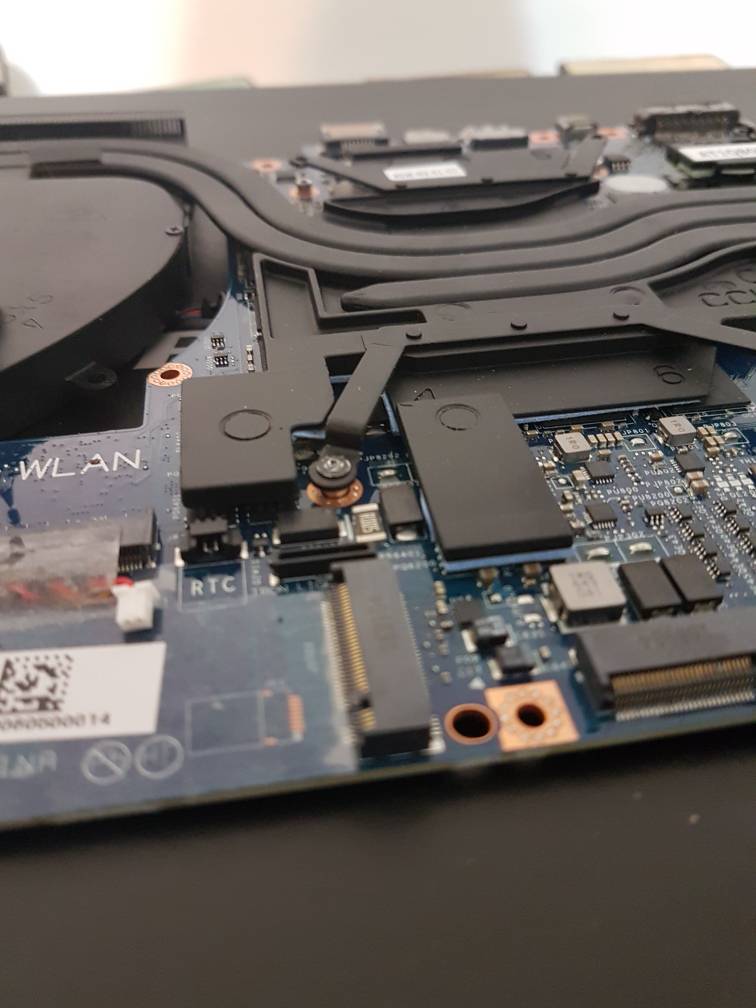

    Managed to get down to the last screw the it got stuck on me ugg.. gotta bring it to the PC shop now to get it taken out... Super fustrating [​IMG]

    Djommar, May 7, 2017
    #11
  12. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    can always return the unit to dell or ask a replacement, they cover the shipping cost :p

    Mobius 1, May 7, 2017
    #12
    Djommar likes this.
  13. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    That would take half a year where I'm from haha. Currently at the PC shop they're taking out the screw ( hopefully) wish me luck

    Sent from my SM-G935F using Tapatalk

    Djommar, May 7, 2017
    #13
  14. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16

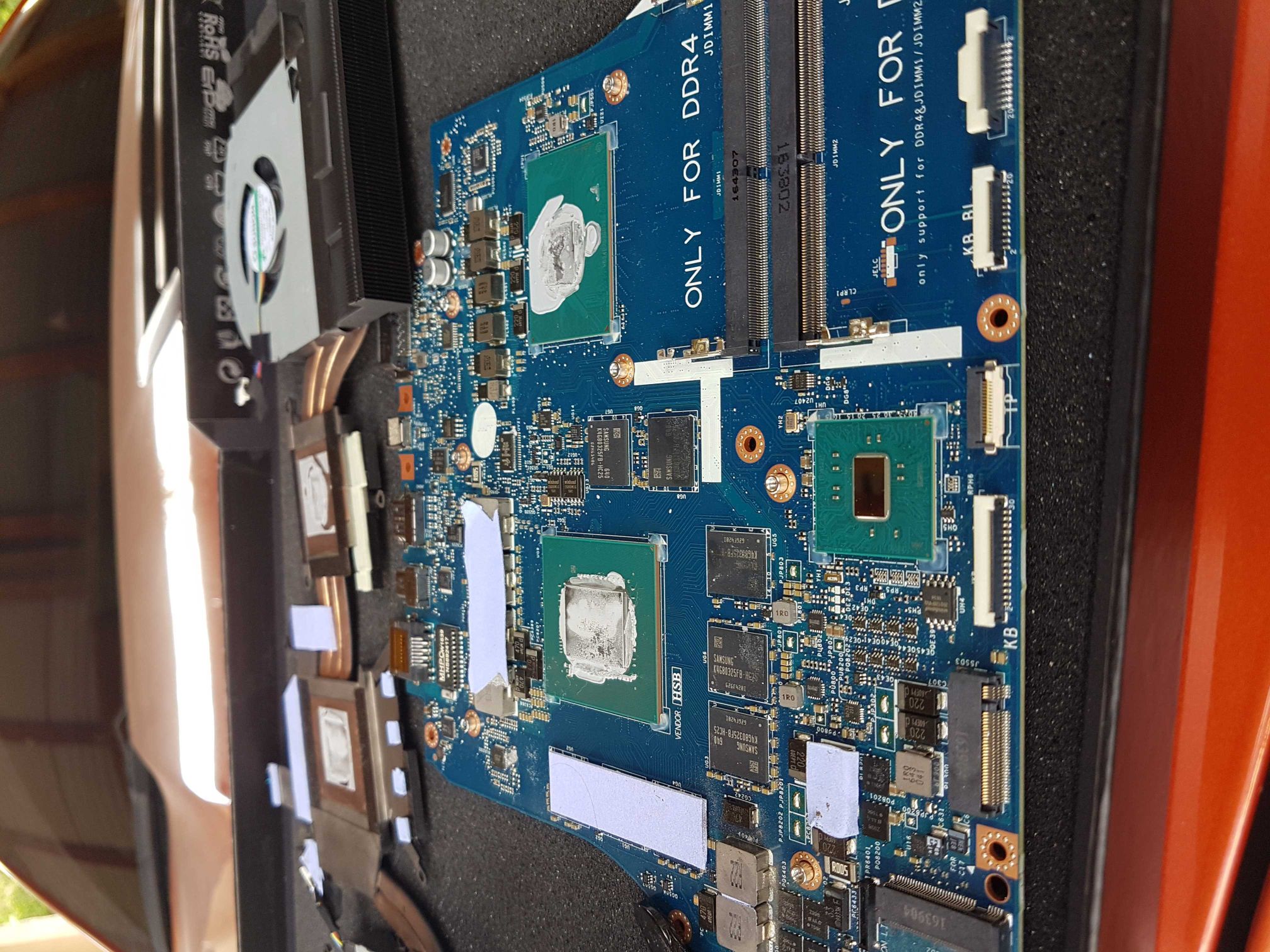

    Success!! I'm home now gonna do a repaste finally! [​IMG]

    Sent from my SM-G935F using Tapatalk

    Djommar, May 7, 2017
    #14
  15. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16

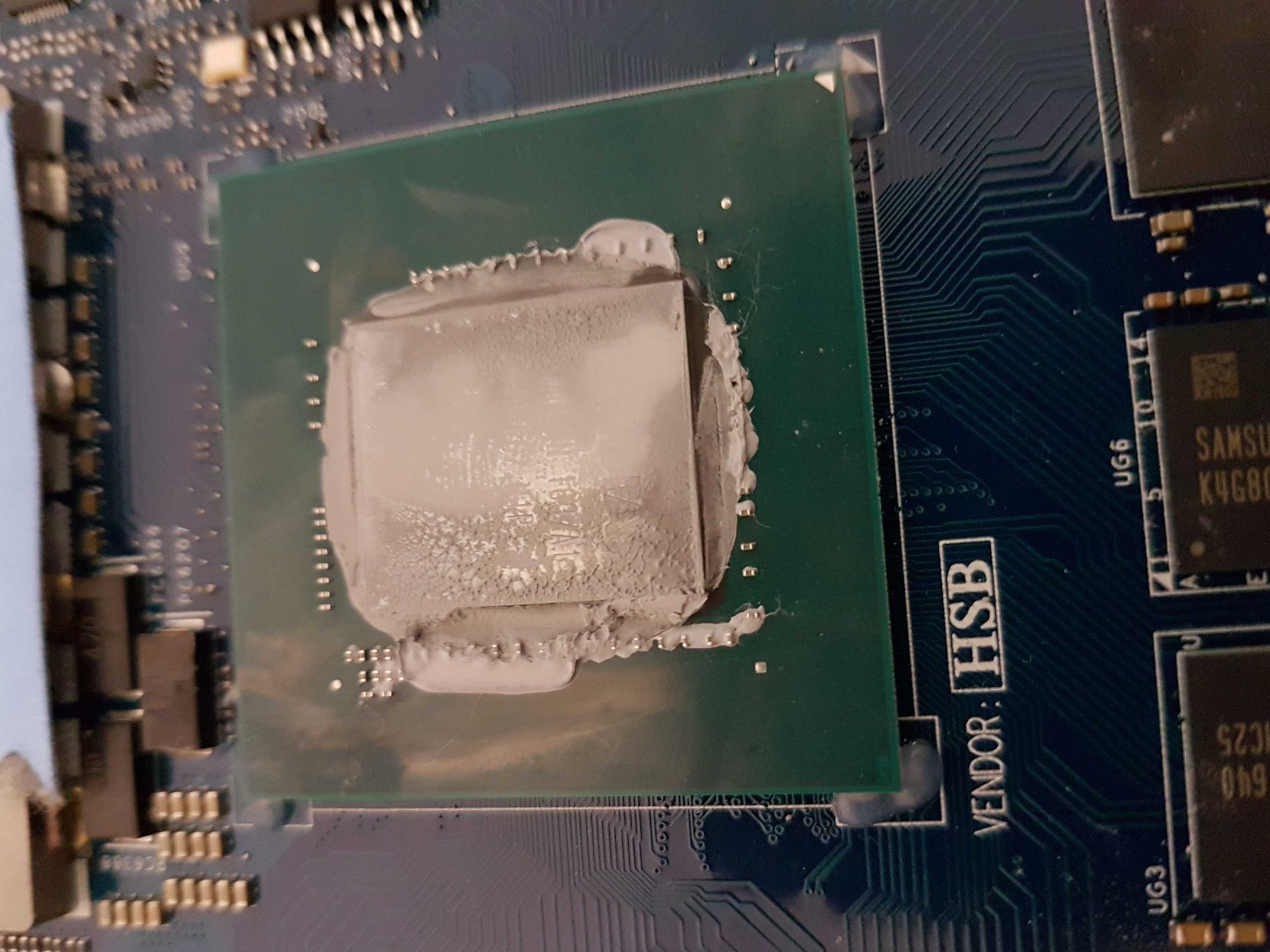

    This paste is absolutely nasty! Glad I went through that trouble. This paste needs to go now! [​IMG]

    Sent from my SM-G935F using Tapatalk

    Djommar, May 7, 2017
    #15
  16. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16

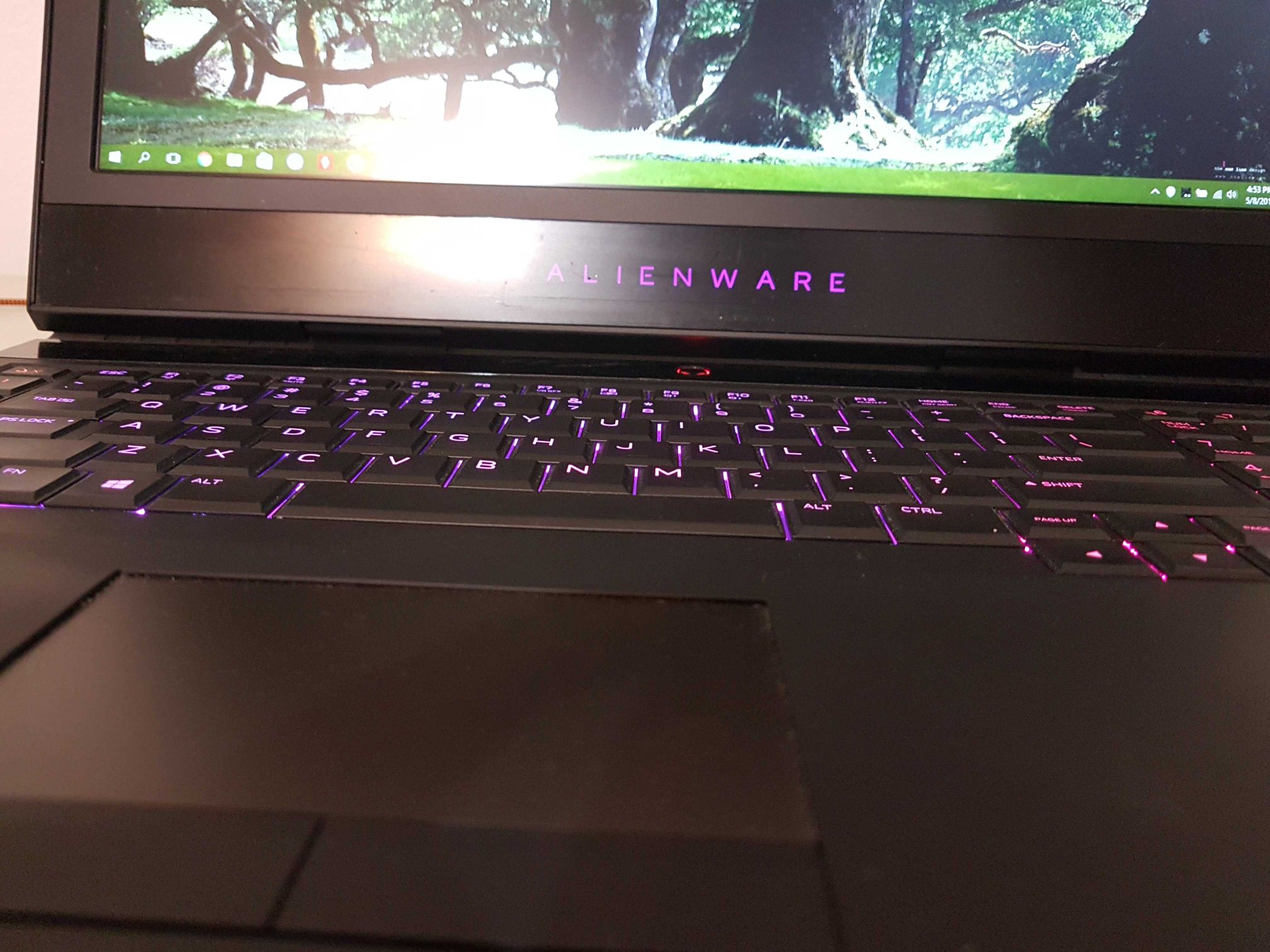

    Repaste done and assembled! Cpu maxed out at 83 after 3 hours of dying light no undervolt. Few issues tho, my touch pad seemed to have stopped working also my brightness control. I made sure all the cables were plugged properly so I'm assuming this is a driver problem? It was working prior to repaste. Any advice?

    Sent from my SM-G935F using Tapatalk

    Djommar, May 7, 2017
    #16
  17. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    check cable, didn't plug in far enough

    Mobius 1, May 8, 2017
    #17
  18. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    Do you know which cable it is? The one behind the ports next to monitor and ports or the one inside the mother board? Or just the ones near the HDD? Haha sorry I'm a newbie

    Sent from my SM-G935F using Tapatalk

    Djommar, May 8, 2017
    #18
  19. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    all near batter

    Mobius 1, May 8, 2017
    #19
    Djommar likes this.
  20. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    Will be checking this right after finals today! Kind of need my laptop for last minute work so I'll post an update tomorrow. Thank you! Have a great day Mobius! [​IMG]

    Sent from my SM-G935F using Tapatalk

    Djommar, May 8, 2017
    #20
  21. Djommar

    Djommar Notebook Enthusiast

    Reputations:
    5
    Messages:
    48
    Likes Received:
    23
    Trophy Points:
    16
    Issue is resolved thank you! I forgot to plug the cable on the motherboard properly. Have a great day!

    Sent from my SM-G935F using Tapatalk

    Djommar, May 30, 2017
    #21
    matt4109 and Vasudev like this.
