    *OFFICIAL* Alienware 17 R2/R3 Owner's Lounge

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Mr. Fox, Dec 10, 2014.

  1. Mickbt26

    Mickbt26 Notebook Evangelist

    Reputations:
    55
    Messages:
    634
    Likes Received:
    37
    Trophy Points:
    41
    Hope you recieve one from a good batch and not a faulty batch like so many on here. Myself included. *Finger crossed*

  2. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    It looks like Dell cripple performance of their laptops on purpose... See what Notebokreview writes about Dell's policy. It is nothing new that Dell cripple the performance on their laptops. Several of Aw owners of the new laptops should write to Dell and complained .. If none criticizes Dell then there will be no change in what they can do in the future. http://www.notebookcheck.net/Face-O...enware-17-vs-MSI-GT72-Dominator.145113.0.html

    [​IMG]

    @Hingjon said:
    I don't like to stress my Alienware too much, it is just nonsense to use your computer on high performance, because of the core clock is being maxed out all the time. If you put it on balanced, it stays idle at 800mhz instead of a constant ~3.3ghz.

    Edit: Balanced vs high performance plan
    CPU speed and utilization are two different things. A processor can run at full speed and have no load. There is no danger with keeping the processor up. If it AFFECTED the lifetime of the CPU, it would only be because there was a defect in the chip or poor cooling as far as I know.
    There is high load, temperature, and poor cooling that stress the processor and not high clock speed in idle or with a small load.

    Last edited: Jun 29, 2015
  3. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    That's not strictly true. If you have your laptop on high performance mode the CPU will still clock down when not being used, mine does anyway. You won't stress it by leaving it on High Performance.

  4. Mickbt26

    Mickbt26 Notebook Evangelist

    Reputations:
    55
    Messages:
    634
    Likes Received:
    37
    Trophy Points:
    41
    Wow. It looks like they had a really bad sample to test on. Mine has never shut down like they describe and it never ever drops to 800mhz on the CPU under load.

  5. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    LoL. Problem also with AW15 and Amd m295x. Amazing that a review page only get crippled Aw laptops for testing from Dell. All with a processor who drop to 800mhz during their tests :D. What you saw in the myriad from Notebookreview is not a onetime event.

  6. reptileexperts

    reptileexperts Notebook Consultant

    Reputations:
    30
    Messages:
    260
    Likes Received:
    86
    Trophy Points:
    41
    Here we go - this is something different for me

    Running Furmark in the background stressing the GPU fully, and running an XTU Stress test (I know its not Prime 95), the monitors showed me the following results. It appears that the GPU is throttling back and forth at a millisecond pace, going from 99% to 15% to 50% and back and forth. While the CPU showed 0 throttling issues overclocked running hard.

    Has anyone seen this? I know the CPU is a common throttle mark, and folks are having issues with the CPU dropping to 800 mhz. Maybe I'm interpeting this wrong. When you see the 99% holds on the graph for GPU usage, this is when the CPU stress test is not running. I ran it twice, for 5 minutes, and 1 minute to plot this graph. The GPU is currently running at 1261 mhz OC the CPU is at 3.757 ghz OC

    GPU Throttle.jpg

  7. Mickbt26

    Mickbt26 Notebook Evangelist

    Reputations:
    55
    Messages:
    634
    Likes Received:
    37
    Trophy Points:
    41
    Actually, Now that I think of it. Ive only ever used the 240w adapter to test on. Perhaps if I had the 180w then I might see similar results to theirs.

    I have just tested mine and it does the same thing. I don't think its anything meaningful though.

    Last edited: Jun 29, 2015
  8. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    (Don't bother using Furmark, I'm surprised that notebookcheck.net use it still, at least they provide other testing methods that are more relevant though. You can't really learn anything from how the GPU behaves when you run Furmark.)

  9. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    Better to use Heaven benchmark and wprime1024 (select 8 treads). This is a better test combination. Furmark is not a good test. This benchmark test is banned by Nvidia and Amd.

  10. sirbevo

    sirbevo Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    2
    Trophy Points:
    16
    Earlier, I posted my CPU getting up to 95°C during Prime95 2 threads and Heaven benchmark. I'm going to try a repaste tonight and post results on here. I only have some Arctic silver 5 but it should be fine.

    Update:

    I chickened out once I got to the keyboard power cable. couldn't figure out the latch for it.

    Last edited: Jun 29, 2015
  11. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    Just for future reference, artic silver is pretty bad nowadays and in some instances has performed worse than stock tim. So probably saved yourself some grief.

  12. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    No, that's not right.

    MQ and QM CPUs without BIOS locks = free TDP control. MX and XM CPUs behave in this way too.
    HQ chips are locked to 57W for ~2.5 minutes and then 47W indefinitely. Some machines are a little varied in this way. Some won't pass 47W. I've even seen one that locks itself to 36W and its short power boost is 47W. That one confused me.

    Please note that any CPU in a machine with BIOS locks can be terrible. TDP throttle in the MSI GT models is annoying in particular; no matter what you set, it acts like a HQ chip and goes to 47W. Of course this was likely due to MSI shoving 120W GPUs and 57W CPUs into a 180W brick system >_>... but you know.

  13. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    Pretty sure my QM CPU is hard locked by intel at a max of 56W (because it doesn't make a difference what BIOS settings I use), it might be different for non-Sandy Bridge QM CPUs. I didn't realise MQ CPUs had an unrestricted TDP (bar any BIOS locks), that's a very commendable quality!

  14. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    It is no wonder that performance enthusiasts choose desktop/Mx/Mq chips. Hq chips should only been for tablet / mini laptops. Have never seen a Hq chips that work as I want...

    Robbo99999 likes this.
  15. Dufus

    Dufus .

    Reputations:
    1,194
    Messages:
    1,336
    Likes Received:
    548
    Trophy Points:
    131
    FWIW even a dual core i7-4600m will pull 90W, thermals are the biggest problem.

  16. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    Isn't that though using your 'trick' to trick the CPU into thinking it's using less Watts than it really is? I remember seeing you were the guy who managed massive overclocks & pulling massive Watts with 4700MQ (something along those lines!).

  17. Dufus

    Dufus .

    Reputations:
    1,194
    Messages:
    1,336
    Likes Received:
    548
    Trophy Points:
    131
    The trick you are on about was to run the CPU into thinking it was using more power than it was just to show no power limiting without having to thermal throttle.

    The dual core power is very real. Running XTU bench at 4.8 GHz and 1.52V using a pakage power of more than 96W

    [​IMG]

  18. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    As far as I know, that's probably a limit of your system itself. I know the M17x R4 locks their CPUs to a max of 67W at a BIOS level and without a properly unlocked BIOS you'll never draw more than that even with a XM CPU.

  19. Hingjon

    Hingjon Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    6
    Well, I had mine on high performance and noticed that my battery was draining quite faster than normal. I investigated it and came to the conclusion that it was because of the clock being maxed out all of the time. After switching it to balanced power state, the laptop started to save more battery life and the core clock returned to 800mhz while ideling.

  20. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    I've got the unlocked BIOS though, and you can set the CPU wattage to 99W in that one (will just double check in BIOS now to see if I remembered right). EDIT: nope, I was mistaken the 99 in my BIOS refers to the time limit you can change.

    Last edited: Jun 30, 2015
  21. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931
    You could still have a board limitation of some kind.

  22. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    Cool, I'm alright with 56W limit, seems that most notebooks aren't allowed to reach 56W or can't dissipate 56W of heat anyway, so that's fine. I agree with you then (until I see proof otherwise) regarding all you've said on the MQ, QM lack of TDP limitations and limitations on HQ (in terms of imposed by Intel limitations).

  23. D2 Ultima

    D2 Ultima Livestreaming Master

    Reputations:
    4,335
    Messages:
    11,803
    Likes Received:
    9,751
    Trophy Points:
    931

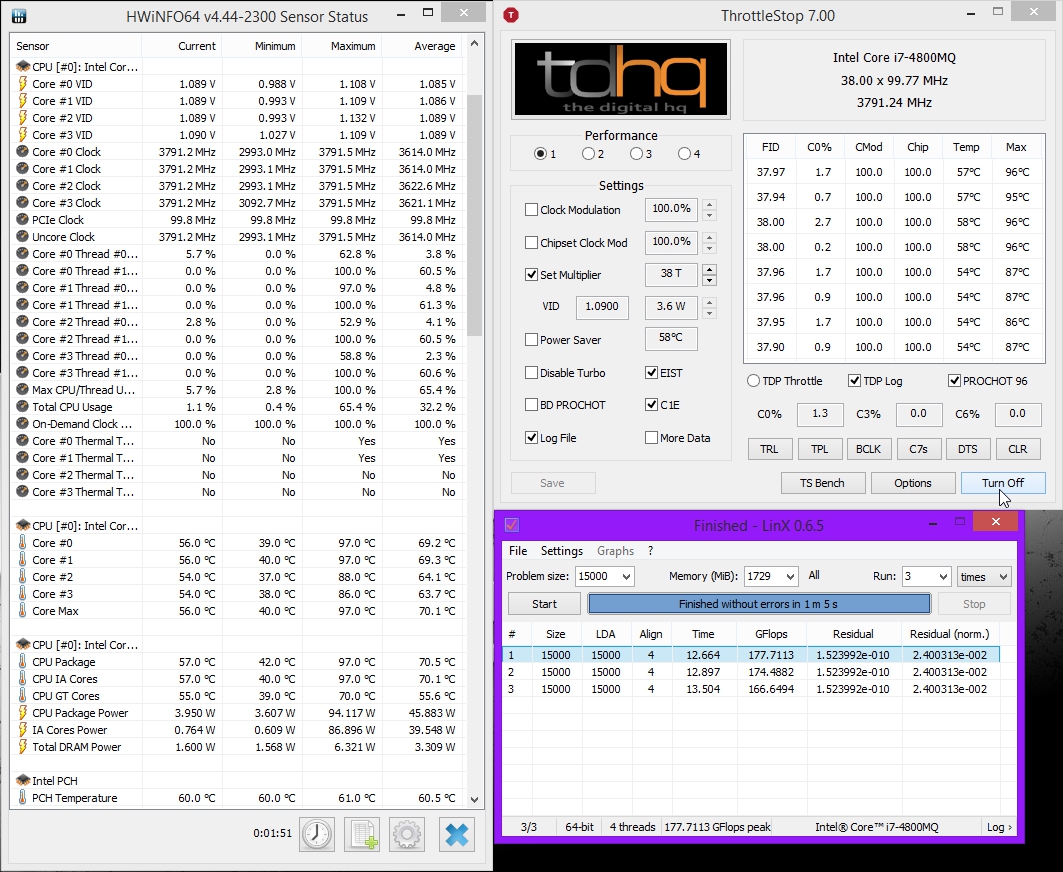

    Yeah. Because from all I've checked, MQ seems to handle high TDP. Hell, one sec. Lemme see. I once did a Linpack run while I'd overclocked my CPU to 3.8GHz... I was hitting current limits (and overheating at one point) but the top TDP should stand.
    [​IMG]

    Papusan and Robbo99999 like this.
  24. Hingjon

    Hingjon Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    6
    I've got Dell to send me my 240 watt power brick, it should be in my hands tomorrow.

  25. Hingjon

    Hingjon Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    1
    Trophy Points:
    6
    Alienware 17 R2 A05 bios is released;
    Fixes & Enhancements
    1.Fix CPU haven't turbo frequency after S3 resume.

  26. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    What does that even mean?

    ickibar1234 likes this.
  27. sirbevo

    sirbevo Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    2
    Trophy Points:
    16
  28. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    Oh I know, but damn that is some screwed up English.

    ickibar1234 likes this.
  29. sirbevo

    sirbevo Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    2
    Trophy Points:
    16
    Yes it is. Makes you wonder what the heck is going on over there at Dell doesn't it?

  30. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    It doesn't inspire the greatest confidence in them.

    ickibar1234 likes this.
  31. galaga13

    galaga13 Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    6
    Trophy Points:
    16
    Hi guys, I've read most of the posts and I feel disappointed by Dell, my expectations were high, now, I found that out of the box the machine is flawed.

    Could you help me with this:

    What will be the best bios for the 240w psu?

    And what will be the best bios for the 180w psu, in case I have to stick with it?

  32. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    240w = A00
    180w = A01

  33. lilw

    lilw Notebook Guru

    Reputations:
    2
    Messages:
    71
    Likes Received:
    10
    Trophy Points:
    16
    I would say OMG, why you are so mean dude :D I run benchmark again with new A05, and the temp report around 85C. I read everywhere that dell team suggest using Fan Control to decrease heat. I love doing it, but when controlling the fan, it causes sound lagging because of high latency each time the fan is spining in period of custom fan control.

    Why don't we who using alienware make a request and sign there, asking them (Dell engineer) to make fan control inside alienware command center or bios settings? with fan control I can make speed to maximum like 5200 rpm, without it, I see it only at 4000 rpm.

    Edit: here is the link to vote, please someone update it in first post or sticky thing, asking people to vote for this, at least. They don't listen, they want to see vote.
    http://www.ideastorm.com/idea2ReadIdea?v=1432006980935&Id=087700000009mDXAAY

    Last edited: Jul 4, 2015
  34. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
    Dellienware going their own way. Today they can't even make a good bios for the new and previous Aw laptops. Dell crippling everything they touch. We have asked Aw reps in several forums for the same question you asking now in almost 2 years. Nothing happens.

  35. lilw

    lilw Notebook Guru

    Reputations:
    2
    Messages:
    71
    Likes Received:
    10
    Trophy Points:
    16
    Yes, because we are individual posting and complaining. What if we sign and make them do it? Follow the link above, I think they should make it real.

  36. zziplex

    zziplex Notebook Consultant

    Reputations:
    17
    Messages:
    183
    Likes Received:
    126
    Trophy Points:
    56
    I see everybody focus on psu issue...what about the m.2.... Is it raid possible? What is the best m.2 for this monster?

  37. mister1abb

    mister1abb Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I would like to see a better fan profile but other than that I guess it is alright for now.

    The laptop fans are mostly silent & useless when I have my 3 external USB fans plugged in. The entire laptop is constantly cooled by the external fans & only in rare cases (under heavy load) the laptop fans actually start winding up.

    When I don't use the 3 external USB fans, the CPU reaches 90+ & the fans have trouble cooling it down to 70 & keeping it there. When the CPU dies in a few years because of heat, they have to replace it for free because of their god awful fan profiles.

    Keep in mind that this was before summer heat. I don't even wanna know what the temperatures would look like now in the heat & with the external fans unplugged.

  38. galaga13

    galaga13 Notebook Geek

    Reputations:
    0
    Messages:
    88
    Likes Received:
    6
    Trophy Points:
    16
    thanks a lot, one more question, should i buy my own 240w psu to finally have it with me rather than waiting for Dell to send me one (2 weeks now, no answer), is there a link you can share from amazon, i tried searching but i got confused and don't want to purchase the wrong one, thanks ahead.

  39. lilw

    lilw Notebook Guru

    Reputations:
    2
    Messages:
    71
    Likes Received:
    10
    Trophy Points:
    16
    I think you should call alienware directly and ask them nicely, they will push the process for you. It took me several days to persuade them send one for me, and only 3 days to get it at my front door.

    Today I'm playing GTA V with BIOS A05, the temperature is awful, the maximum I get is 96C. I think I will stick to Hwinfo fan control for better heating. Deal with the heat, another problem rise, sound issue when using fan control. SO SUPER AWFUL!!!

  40. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    I'm pretty disappointed to continue to hear how bad these new Alienwares are performing. I was all set on getting the 17" since I have almost 30% off in coupons and incentives but I just can't bring myself to deal with the throttling and overheating issues. I'm torn on the Sager 9773 or 9752 since they are obviously superior machines, but I can't afford to be without them for a month if I had to send them in. Alienware has just such superior service that I am tempted to say screw it and just buy one, but their lack of upgrades is also very disconcerting.

  41. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    30% off is a pretty sweet deal though! How does it compare in price after the 30% off to a similarly specced Sager? I don't think all of the A17 R2's overheat - like I don't think the notebookcheck.net test laptop overheated, and not everyone's on this forum. If you get a bad paste job & live in really hot climes then you'll have a problem. I'd be tempted to get the Alienware if you've got 30% off and the better service deal too - but only if you're not fussed about upgrading the CPU or GPU at a later date - I'm assuming those Sagers you listed you can upgrade. If you know you can save some money by upgrading the GPU on the Sager when a new gen comes out (rather than buying a whole new laptop), then I'd pay the extra now for the better performing machine.

  42. Dilanio

    Dilanio Notebook Guru

    Reputations:
    15
    Messages:
    62
    Likes Received:
    20
    Trophy Points:
    16
    The 9752 fully loaded is about $2300 and the 9733 with g-sync is about $2400. The 17 r2 with 980m, 256gb s2, and 16gb would be about $1650.

  43. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    That's a big difference in price, if the specs are the same, then I'd get the Alienware if I knew I wasn't gonna be upgrading the GPU further down the line, but with nearly $800 difference in price I'd probably get the Alienware anyway - seems like a good deal to me.

  44. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,747
    Messages:
    29,856
    Likes Received:
    59,723
    Trophy Points:
    931
  45. lilw

    lilw Notebook Guru

    Reputations:
    2
    Messages:
    71
    Likes Received:
    10
    Trophy Points:
    16
    I surf around here long enough and have some stupid questions. I see many other laptop from Dell has the modded BIOS which enable a lot of things. Is it possible for us making one for Alienware here? We might find a solution for a lot of things that dell engineer denied to help us?

  46. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    I think the problem is something to do with UEFI and Secure Flash. I think this prevents a modified BIOS from being flashed, which is why there is not a modified BIOS for the A17 R1 and A17 R2; M17xR4 was the last one to get a modified BIOS.

  47. echo4papa

    echo4papa Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Is this something that I can simply request, or will I have to "prove" to tech support that it's causing an issue?

    I just ordered a new 17 R2 this weekend (with the 970M though, not the 980M), and I verified that they are still shipping with the 180w psu.

    1 450-AAGU Power Supply : Alienware 180W AC Adapter

    Also, I noticed this listed on the order:

    1 800-BBKV FREE game with purchase of a GeForce GTX 700 GPU-powered desktop

    Does this mean I'm getting a free game, and if so, does anyone know what game is included?

  48. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    To me that looks like you only get to activate that code if you now also buy a desktop computer with a GTX 700 desktop card - which you wouldn't because 700 series is old tech now. Weird, maybe it's a typo type error & you'll get the free game with your laptop - have a look in the box when it arrives, might be a flyer in there explaining.

  49. echo4papa

    echo4papa Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I would have thought the same thing, Robbo, except the quantity shows as "1" and if I didn't qualify for it, there would be no reason to put it on the invoice. Guess I'll find out soon enough though.

  50. Robbo99999

    Robbo99999 Notebook Prophet

    Reputations:
    4,346
    Messages:
    6,824
    Likes Received:
    6,112
    Trophy Points:
    681
    Yes, you've probably got a free game.

← Previous pageNext page →
