    Audio Question

    Discussion in 'Accessories' started by Necromancer90, Mar 14, 2009.

  1. Necromancer90

    Necromancer90 Notebook Consultant

    Reputations:
    76
    Messages:
    155
    Likes Received:
    0
    Trophy Points:
    30
    I bought a surround sound set, and its output connection is analog. Well that's what I call it...I'm not sure if its the right name.. :eek:
    Here is a quick picture that might help explain what I mean.

    http://img395.imageshack.us/img395/2326/glx360cva103sy.jpg
    I'm not even sure if that's a good picture. >_>

    Also the speaker set is the Logitech X-540. I was just wondering if there was a way to convert it, so I could connect it to a optical audio connector. :confused:
    I realize that the X-540 has a "matrix mode" to imitate 5.1 surround sound. I was just wondering if there was any way to connect it, and get real 5.1 surround sound.
    Thanks.

    Necromancer90, Mar 14, 2009
    #1
  2. FoxTrot1337

    FoxTrot1337 Notebook Deity

    Reputations:
    352
    Messages:
    1,042
    Likes Received:
    0
    Trophy Points:
    55
    I have never seen such a cable before, it looks like a HDMI to Component cables, is it?

    FoxTrot1337, Mar 14, 2009
    #2
  3. Necromancer90

    Necromancer90 Notebook Consultant

    Reputations:
    76
    Messages:
    155
    Likes Received:
    0
    Trophy Points:
    30
    I don't really know what the cable is, I just quickly googled for a cable with the 5 analog audio connectors to show for and example...
    There is the A/V component cables (Red, White, and Yellow) but that's not what I mean. I was just trying to find and example of the 5 audio connectors used for surround sound. :eek:

    Necromancer90, Mar 14, 2009
    #3
  4. FoxTrot1337

    FoxTrot1337 Notebook Deity

    Reputations:
    352
    Messages:
    1,042
    Likes Received:
    0
    Trophy Points:
    55
    No manual?

    FoxTrot1337, Mar 14, 2009
    #4
  5. Syndrome

    Syndrome Torque Matters

    Reputations:
    1,765
    Messages:
    1,501
    Likes Received:
    546
    Trophy Points:
    131
    Thats an xbox360 connector, and its component(video).
    [​IMG]

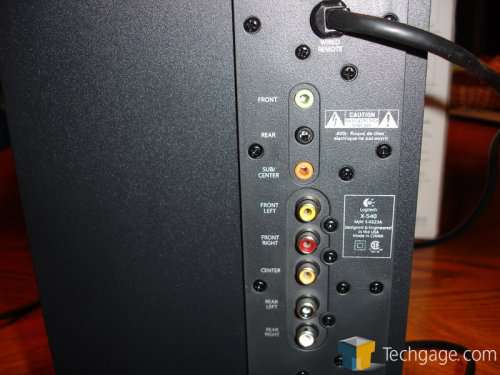

    That is your sub, which is where you plug everything in. The RCA plugs are OUT puts to the speakers. The 3.5mm plugs are the inputs, which come from your computer. So what you need to do is get a 5.1 sound card, creative sells them, turtle beach probably has some too. I personally wouldn't use a creative one, but I'm picky about my sound.

    Syndrome, Mar 15, 2009
    #5
  6. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    Syndrome hit the nail on the head.

    nizzy1115, Mar 15, 2009
    #6
  7. Necromancer90

    Necromancer90 Notebook Consultant

    Reputations:
    76
    Messages:
    155
    Likes Received:
    0
    Trophy Points:
    30
    Thank you for all the replies.
    I guess then I will just have to get a sound card to use it.
    I was looking farther to see if there was a way to connect it to a optical connector. Though it seems you need some sort of digital decoder, and it would end up being costly.
    Thanks again.

    Syndrome +rep

    Necromancer90, Mar 15, 2009
    #7
  8. Syndrome

    Syndrome Torque Matters

    Reputations:
    1,765
    Messages:
    1,501
    Likes Received:
    546
    Trophy Points:
    131
    Some speakers have a S/PDIF input, but even with those you need a sound card with an S/PDIF output. Not sure how that works for a 5.1 system, I only use 2.1/headphones. I personally have a Echo AudioFire 2 sound card and honestly its the best I've listened to.

    Syndrome, Mar 15, 2009
    #8
