    Bluetooth 2.0 + EDR Class 1 USB Adapter

    Discussion in 'Accessories' started by sinstoic, Feb 18, 2008.

  1. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Currently, which is the best Bluetooth 2.0 + EDR Class 1 (>100m) USB Adapter? I found some of these:

    Anycom USB-250 USB Adapter (Part Number: CC3036)

    [​IMG]

    ---

    Asus WL-BTD201M Bluetooth Dongle (Part Number: WL-BTD201M)

    [​IMG]

    ---

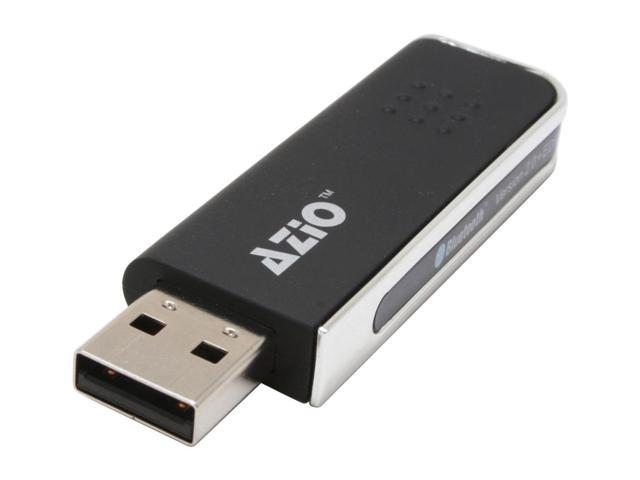

    AZiO BTD603-132 USB 2.0 Bluetooth Adapter (Part Number: BTD603-132)

    [​IMG]

    ---

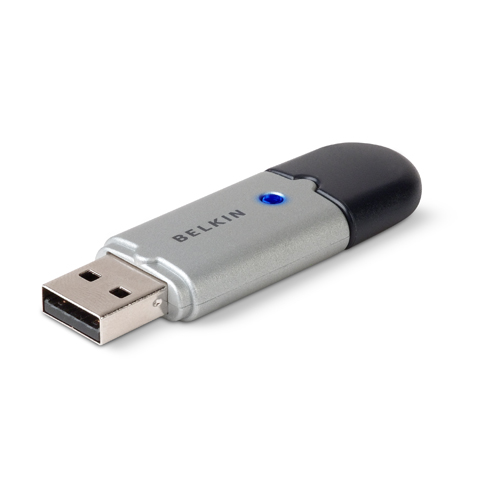

    Belkin Bluetooth USB Adapter (Part Number: F8T012-1)

    [​IMG]

    ---

    Cirago BTA-6060 Bluetooth 2.0 EDR USB Adapter (Part Number: BTA-6060)

    [​IMG]

    ---

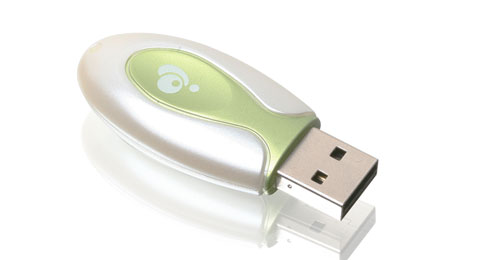

    IOGEAR GBU341W6 Enhanced Data Rate Wireless USB Adapter (Part Number: GBU341W6)

    [​IMG]

    ---

    Jabra A320s (Part Number: A320S, Product Code Number: 100-63200000-21)

    [​IMG]

    Jabra's product looks similar to Anycom's one.

    ---

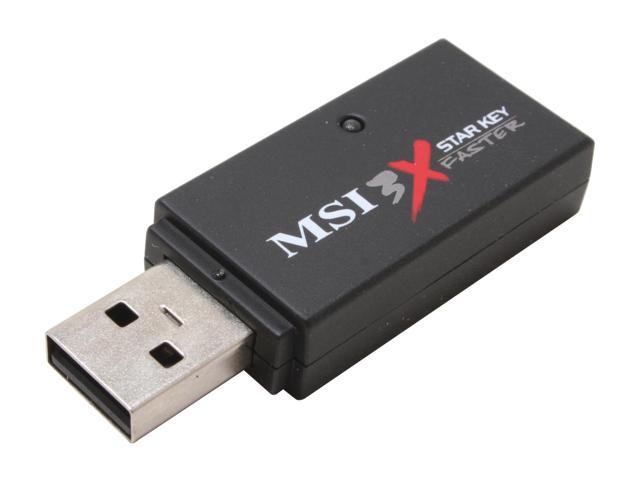

    MSI Star Key 2.0 Bluetooth2.0 + EDR USB Transceiver (Part Number: S78-4200040-CC4)

    [​IMG]

    ---

    TRENDnet TBW-102UB Version 3.0R High Power Bluetooth USB Adapter (Part Number: TBW-102UB)

    [​IMG]

    ---

    Voice Star (Bluespoon VS550) Bluetooth USB Dongle (Part Number: 17-1000[A])

    [​IMG]

    ---
    What do you use or recommend?

    Last edited by a moderator: May 7, 2015
    sinstoic, Feb 18, 2008
    #1
  2. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,745
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

    get one of these, nice and cheap, supports everything look at the specs

    I bought one and it works great

    http://cgi.ebay.co.uk/NEW-Bluetooth...ryZ44999QQssPageNameZWDVWQQrdZ1QQcmdZViewItem

    regards

    John.


    # Chipset: Broadcom BCM2045 EDR
    # Bluetooth Rate: Mbps
    # Bluetooth Profiles: SPP, GAP, HSP, DUN, PAN, LAN, HID, FAX, SYNC, FTP, HCRP, A2DP, AVRCP, BIP, GEOP, SDAP, OPP
    # Transmission Class: Class 1 - 250 Meters
    # Spread Spectrum: 2.4000 Ghz - 2.4835 Ghz
    # Modulation Method: ModulationGFSK-1 Mbps, DQPSK-2 Mbps, and 8-DPSK-3 mBPS
    # Transmitter Power: 18 dBm
    # Receive Sensitivity: -86 dBm
    # Operating Range: 250 Meters - Open Space
    # Operating Temperature: 20°C to +75°C
    # Interface: USB 2.0
    # Weight: 10 Grams
    # Dimensions: 35 mm (W) x 65 mm (L) x 16mm (D)
    # Certificates: CE, FCC, RoHS and BQB

    Tinderbox (UK), Feb 18, 2008
    #2
  3. arlab

    arlab Notebook Evangelist

    Reputations:
    15
    Messages:
    361
    Likes Received:
    0
    Trophy Points:
    30
    If you something really small, try the MoGo Dapter:

    [​IMG]


    arlab, Feb 18, 2008
    #3
  4. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,745
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

    It only has a 9 meter range according to the PDF file.

    regards

    John.



    Tinderbox (UK), Feb 18, 2008
    #4
  5. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    This thread is about Bluetooth 2.0 + EDR Class 1 USB Adapters.

    Class 1 devices have a maximum permitted power of 100 mW (20 dBm) and a range greater than or equal to 100m (328ft).

    The said MoGo Dapter from Newton Peripherals is a class 1 device with a maximum permitted power of 80 dBm and a range of 30 ft.

    Similar devices are also available from Cirago (Cirago BTA-3210 Micro USB Bluetooth Dongle (Part Number: BTA-3210)) and Princeton (Princeton Bluetooth USB Adapter (Part Number: PTM-UBT3S ))

    sinstoic, Feb 18, 2008
    #5
  6. MonsPubis

    MonsPubis Notebook Consultant

    Reputations:
    2
    Messages:
    118
    Likes Received:
    0
    Trophy Points:
    30
    Read before you post. :mad: The OP has even made it clear in the post "...Class 1 (>100m) USB Adapter...". I request the administrators to delete Arlab's post to avoid confusion for other members.

    PS: For all the hype, Mogo Dapter is not yet available for sale. Princenton's PTM-UBT3S is from Princeton Technology, Japan and is not easily available for sale outside Japan. As far as Cirago BTA-3210, it is a poor product and not worth the price or form factor!

    MonsPubis, Feb 18, 2008
    #6
  7. arlab

    arlab Notebook Evangelist

    Reputations:
    15
    Messages:
    361
    Likes Received:
    0
    Trophy Points:
    30
    Yes, I guess I didn't read. I only saw the pictures :)
    My bad...

    arlab, Feb 18, 2008
    #7
  8. Ken Wind

    Ken Wind Notebook Deity

    Reputations:
    229
    Messages:
    1,018
    Likes Received:
    0
    Trophy Points:
    55
    I wouldn't sweat it, arlab.

    I've been pretty happy with my Bluetake Bluetooth USB adapter, but it's an older 1.2 version. Their Class 1, 2.0 + EDR adapters are the BT007SX and the BT007Ex.

    Ken Wind, Feb 18, 2008
    #8
  9. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Members, please state what you use or recommend. We are interested in Bluetooth 2.0 + EDR Class 1 USB Adapters or Dongles which have a range of 100m or 328ft. Thank you.

    sinstoic, Feb 19, 2008
    #9
  10. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Hmm! Is this all we have? I am sure there are more, could you point us to them? Thanks!

    sinstoic, Mar 4, 2008
    #10
  11. Ken Wind

    Ken Wind Notebook Deity

    Reputations:
    229
    Messages:
    1,018
    Likes Received:
    0
    Trophy Points:
    55
    What kind of application will you be using this for?

    Ken Wind, Mar 5, 2008
    #11
  12. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Does it really matter? Anyways, it is not the adapter or dongle but the software that determines what you can use Bluetooth for. Currently software from Widcomm and Bluesoleil are popular.

    sinstoic, Mar 5, 2008
    #12
  13. Hacksaw

    Hacksaw Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Can anyone confirm which of these (from the top of the tread, or some not listed here) come with BlueSoleil 5.0 (if any)

    Hacksaw, Mar 7, 2008
    #13
  14. Hacksaw

    Hacksaw Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Anyone?
    (Bump)

    Hacksaw, Mar 19, 2008
    #14
  15. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Reviving the thread for fresh inputs!

    sinstoic, May 1, 2008
    #15
  16. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Re-reviving the thread for fresh inputs! :) By the way I heard about Bluetooth 2.1 + EDR Class 1 USB Adapter. Anybody?

    sinstoic, Jun 4, 2008
    #16
  17. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    I would get this:
    http://www.engadget.com/2008/04/04/logitecs-bluetooth-2-1-edr-adapter-offers-300-foot-range-and-5x/

    by far the best sounding adapter I have seen and abit future proof, but I do not think its out yet.

    I just personally ordered this one because I am needing a BT connection for my desktop computer to use my Wii Controller and this one is supposed to work.

    http://www.newegg.com/Product/Product.aspx?Item=N82E16833340002
    I will post back how well it works in my Wii Controller guide probably today because its supposed to arrive today.

    ViciousXUSMC, Jun 4, 2008
    #17
  18. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    This is the only good rated adapter with BlueSoleil I could find:
    http://www.newegg.com/Product/Product.aspx?Item=N82E16833343001

    Only version 3.2 tho I think.

    Also free tip: BT 2.0 is EDR. I noticed some items on newegg say BT 2.0 + EDR and some done but any of them have it because EDR is part of the BT 2.0 spec.

    ViciousXUSMC, Jun 4, 2008
    #18
  19. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    sinstoic, Jun 4, 2008
    #19
  20. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Thank you. Updated in the list.

    sinstoic, Jun 4, 2008
    #20
  21. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Most popular stuff I can get on ebay pretty easy, logitec is a big company so there items are pretty easy to get IMO.

    ViciousXUSMC, Jun 4, 2008
    #21
  22. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Hmm! eBay is not for everyone!

    sinstoic, Jun 4, 2008
    #22
  23. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    sure it is :p, if you don't like it that doesn't mean its not there or not an option.

    I have never had any real problems on ebay.

    ViciousXUSMC, Jun 5, 2008
    #23
  24. sinstoic

    sinstoic Notebook Deity

    Reputations:
    214
    Messages:
    1,028
    Likes Received:
    0
    Trophy Points:
    55
    Anycom has released Bluetooth 2.1 + EDR But Class 2 USB Adapter.

    Anycom USB-500 USB Adapter (Part Number: CC3026)

    [​IMG]

    My search is still on for Bluetooth 2.0 and 2.1 + EDR Class 1 USB Adapters.

    sinstoic, Jun 30, 2008
    #24
  25. onlineaddy

    onlineaddy Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    You might want to try this one from BlueRadios. It's BT2.1+EDR and Class 1. However, it's got USB 1.1 instead of 2.0. Don't know if that matters.

    onlineaddy, Sep 12, 2008
    #25
  26. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,745
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

    what about this BELKIN Part # F8T017ng

    I think it`s a broadcom chipset with widdcom software

    * Plugs into your computer for quick and easy Bluetooth connections
    * Uses Bluetooth v2.1 + EDR to provide optimal performance
    * Distance range of up to 330 ft. (100 metres)
    * Data rates of up to 3Mbps
    * Works with most devices enabled with Bluetooth technology
    * Bluetooth Adapter (Class 1)

    http://catalog.belkin.com/IWCatProductPage.process?Product_Id=454513

    Tinderbox (UK), Sep 12, 2008
    #26
