    Fixing mouse cable/wire.

    Discussion in 'Accessories' started by Mobius 1, Jul 6, 2013.

  1. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    The wire on my mouse is damaged, the PC won't read the mouse or it will sometimes short the rightside USB daugtherboard until windows cuts power to it.

    I opened my mouse, this is the USB "connector" for the motherboard.









    What is this cable called? DIN type connectors?

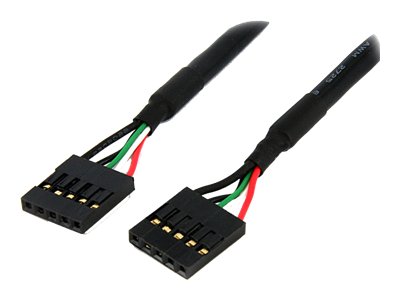

    I have searched in google, this is the closest pic

    [​IMG]


    Thanks in advance

    Mobius 1, Jul 6, 2013
    #1
  2. radji

    radji Farewell, Solenya...

    Reputations:
    3,856
    Messages:
    3,074
    Likes Received:
    2,620
    Trophy Points:
    231
    5-pin Molex. I think it's a 0.1" pin spacing, but you should check the new plug housing before you buy it just to make sure.

    FRYS.com | Pactech

    This is what you want for the housing. The pins will be a separate deal...and you will need the removal tool to get the out without damaging them. If you need to change the pins altogether, then it's also a separate crimping tool to crimp on pins that small.

    radji, Jul 10, 2013
    #2
  3. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Jul 10, 2013
    #3
  4. radji

    radji Farewell, Solenya...

    Reputations:
    3,856
    Messages:
    3,074
    Likes Received:
    2,620
    Trophy Points:
    231
    Perhaps. It's an eBay item so there's no guarantee its gonna work. But from liking at the photos you posted and the photo of the cable, they seem to share the same Molex connector. As long as the pin spacing is the same on both housings, then you're good.

    radji, Jul 10, 2013
    #4
  5. un4tural

    un4tural Notebook Evangelist

    Reputations:
    53
    Messages:
    666
    Likes Received:
    14
    Trophy Points:
    31
    i usually cut the cable resolder wires and tape over it, or hide it inside my mouse if theres enough room... mine usually fail at usb plug or at mouse... depends how tech savvy and picky about looks you are.

    un4tural, Jul 11, 2013
    #5
