    I decided to gut a G35 headset

    Discussion in 'Accessories' started by Vogelbung, Nov 17, 2010.

  1. Vogelbung

    Vogelbung I R Judgemental

    Reputations:
    3,677
    Messages:
    4,067
    Likes Received:
    699
    Trophy Points:
    181
    ... to see what was powering it.

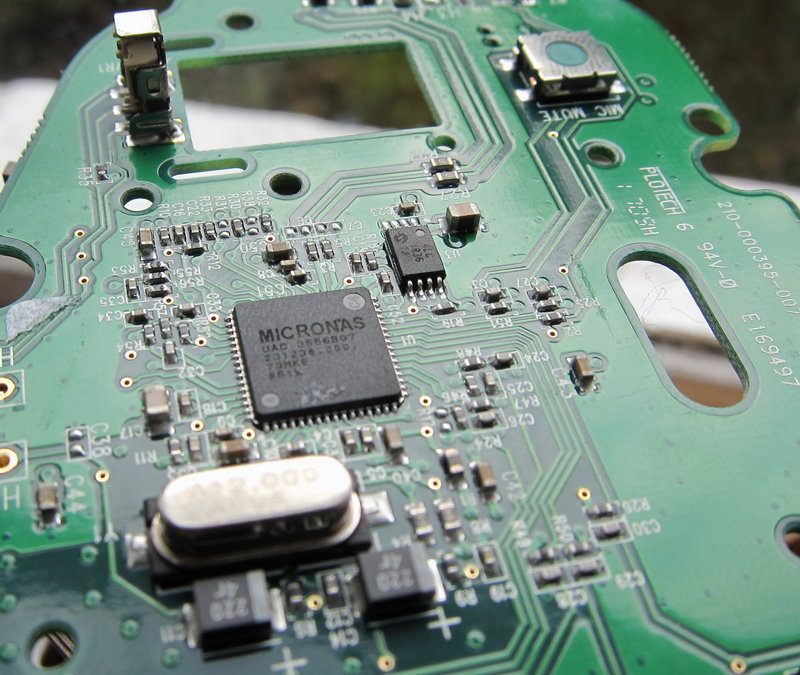

    There's a PCB only on one side - the control side. Everything is wired to it.

    Surprising how sparse it is, isn't it. In fact that single large chip there is pretty much doing all of the work.

    It's the Micronas UAC3556B, and if you Google it you should be able to pick up some PDF schematics - it has some interesting capabilities / specs.


    Attached Files:

    Vogelbung, Nov 17, 2010
    #1
  2. Alcal

    Alcal Notebook Consultant

    Reputations:
    22
    Messages:
    286
    Likes Received:
    0
    Trophy Points:
    30
    Here's the PDF
    http://www.kako.com/neta/2005-009/uac3556b.pdf

    I read part of it, but don't really know what you had in mind when you said "interesting capabilities/specs"

    Care to elaborate?

    PS. mad props for ripping one of these apart. I've always been kinda curious.

    Alcal, Nov 17, 2010
    #2
  3. Vogelbung

    Vogelbung I R Judgemental

    Reputations:
    3,677
    Messages:
    4,067
    Likes Received:
    699
    Trophy Points:
    181
    Well - it's all there in the PDF really. A very comprehensive codec, I think you'll agree.

    Vogelbung, Nov 30, 2010
    #3
  4. D3athRunn3r

    D3athRunn3r Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    I know this is an old topic but could u tell me how you took apart the g35 headset without destroying it? I need to fix my Dolby digital switch because it doesn't toggle anymore at all, the switch just moves freely. If you could give me a step by step i would be really greatful, thank you!

    D3athRunn3r, Apr 3, 2011
    #4
  5. Vogelbung

    Vogelbung I R Judgemental

    Reputations:
    3,677
    Messages:
    4,067
    Likes Received:
    699
    Trophy Points:
    181
    I destroyed it. I have a few to spare.

    Vogelbung, Apr 3, 2011
