    My M1530's cooler (pictures)

    Discussion in 'Accessories' started by aznvnch, Aug 16, 2008.

  1. aznvnch

    aznvnch Notebook Enthusiast

    Reputations:
    7
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    0
    Hi all, I'm new to this forum and spent a lot of time searching for a good notebook cooler for my new M1530(undervolted to 1.000volt,but still hot). lots of infos and ppl talking about the Zalman NC1000 & 2000, NZXT cryo...,(wished to try out one of those), but I think they are too expensive.Like the nc2000, it costs $71.58 shipped and NZXT costs $89.40.
    And since my wallet is kinda sick, I decided to make myself a notebook cooler and wanted to share.
    i got a mess notebook stand from walmart for $9.99 and a thermaltake 80mm 5v usb fan from frys which is also $9.99, so the total was $19.98+tax.

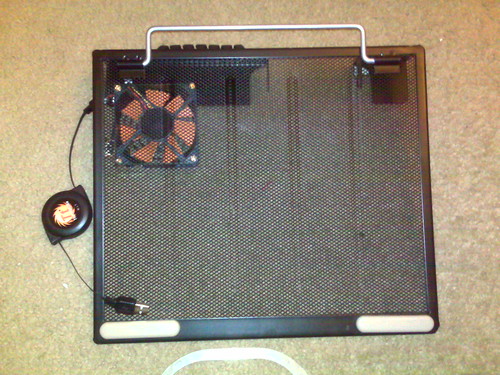

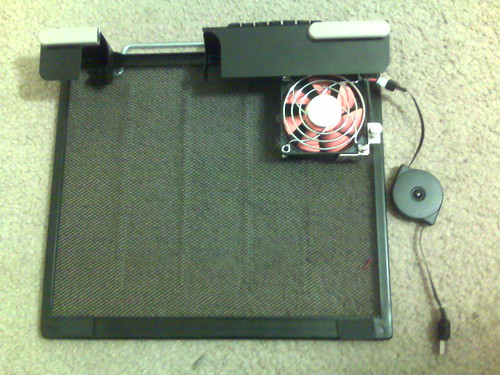

    after 15 mins drilling and screwing, i got this cooler

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    the fan has a speed control and will run max at 3000rpm (47.28 CFM)
    here is some specs:
    minimum speed: 1300rpm
    max speed: 3000rpm
    rated voltage: 5v DC
    noise level: 17dBA @ 1300rpm 31dBA @ 3000rpm (very loud)

    [​IMG]

    my lappy is a bit longer , but no problem, I put the fan blow straight up to where the cpu vent located.

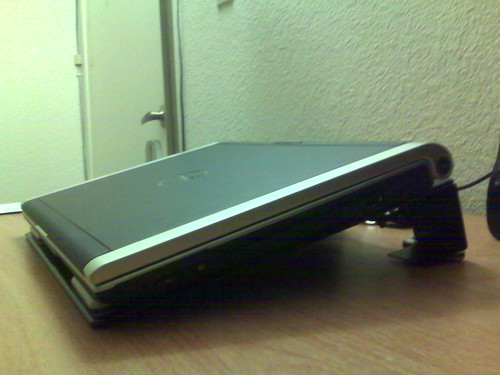

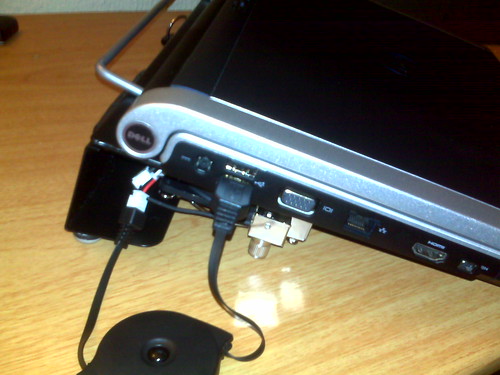

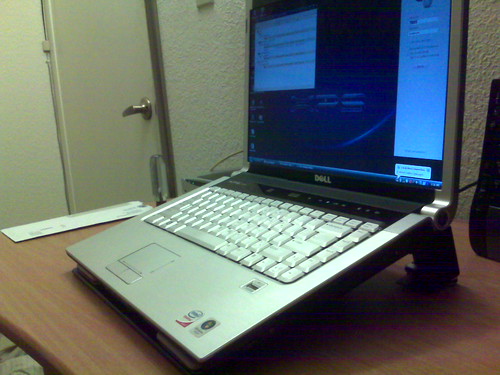

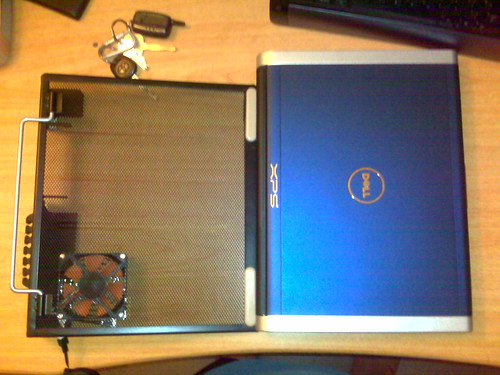

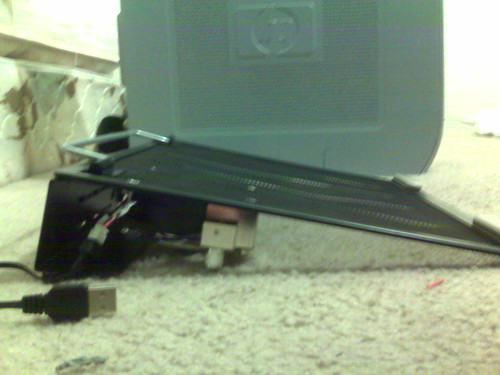

    Here is the rest of the pix that i took

    [​IMG]

    [​IMG]

    [​IMG]

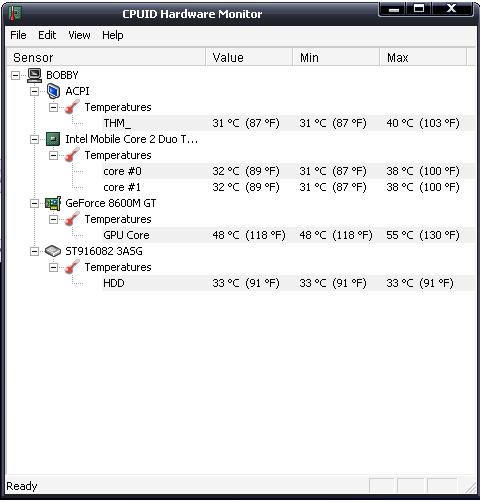

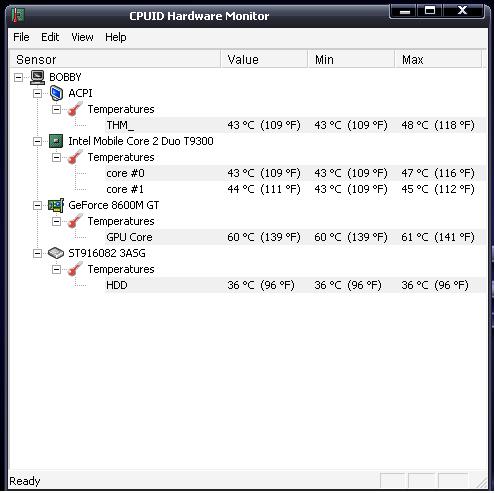

    and these are the temps i got with(on max speed) and without the cooler when idling

    [​IMG] [​IMG]

    sorry for misspelling and pix quality ( i took them with my phone)
    plz give me ur opinions, tell me what u think (how can i make it better)....^o^
    (I'm thinking about install another fan at the bottom of the hdd)^o^
