    Razer Diamondback Plasma (NOS): $1,000+ (and silencing guide)

    Discussion in 'Accessories' started by t456, Jul 9, 2018.

  1. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    Colleague at work brought her own mouse since the office-provided HP thing was deemed abysmal (true), so yadda-yadda-yadda and she mentioned an ancient Razer mouse that is still highly sought after under FPS-ers. A quick search and lo-and-behold; a $70 mouse from 2005 being offered starting at $1K:
    It also got me thinking; I've got one of these things collecting dust :vbsmile: ! Found it in the 'projects pile' and remembered why it was there in the first place; bad cable. Also recalled this was the best mouse I've ever had ... sleek, low-profile, light-weight and superb tracking. So why not, at long last, revive the poor thing and put it to use. Also have a bunch of silent micro-switches (to silence any mouse), so might as well do both mods at once.

    Kailh silent micro switches: ~$0.50/each on Aliexpress.

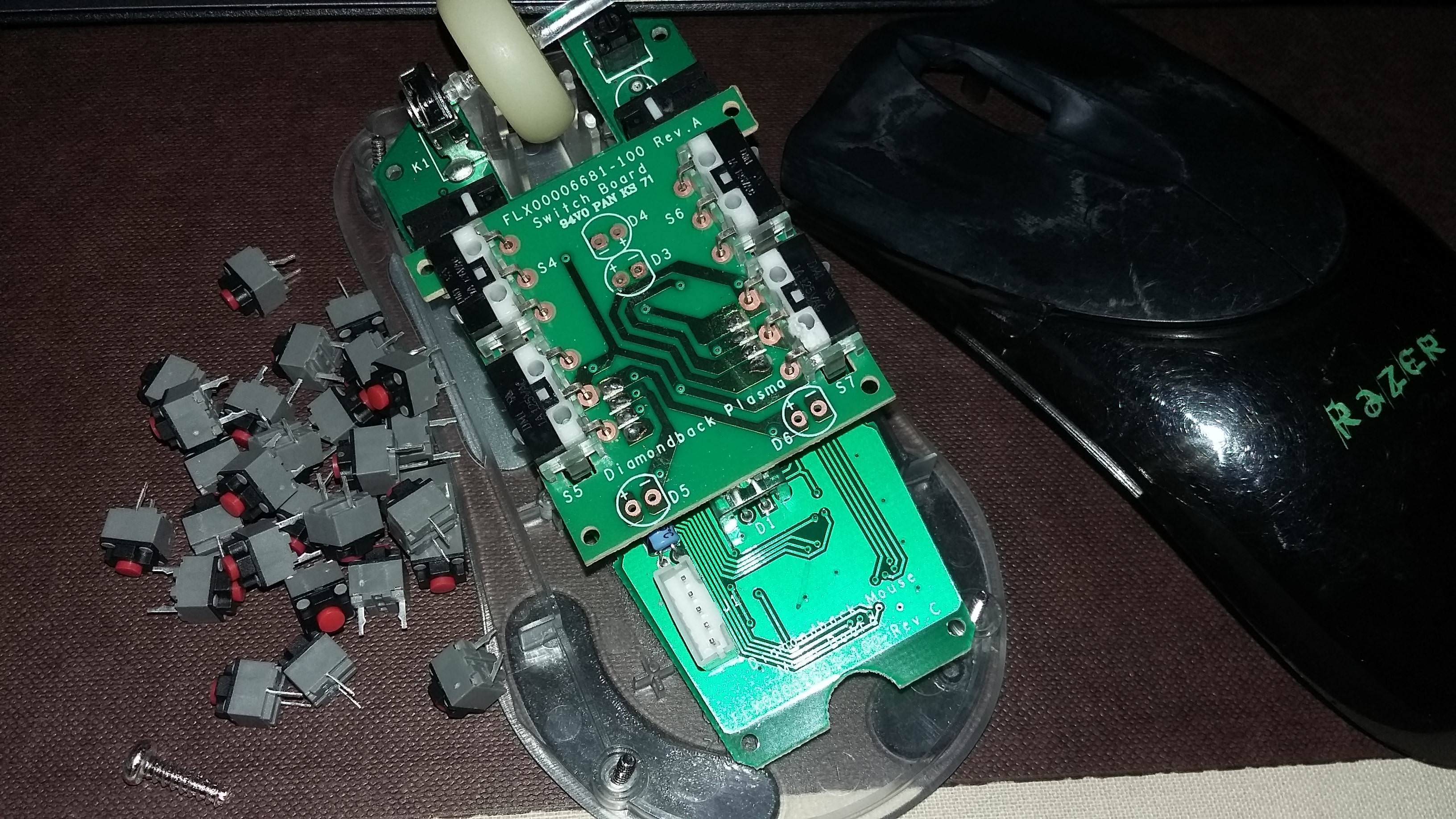

    Easy enough to open it up since it's just a just a single screw. Already removed all the superfluous bling-bling leds ages ago, so that's why the 'D x' footprints are empty:

    [​IMG]

    Fixed the wire using that of a spare Sensei RAW. These cables have a nice textile-like wrap; very sturdy and quite bendable, a big improvement over the Razer's flimsy design:

    [​IMG]

    All switches are two-pin electronically, even if they are mounted as three-pin though-hole. So we can swap the rectangular switches just as well as the square ones with the silent Kailh model:

    [​IMG]

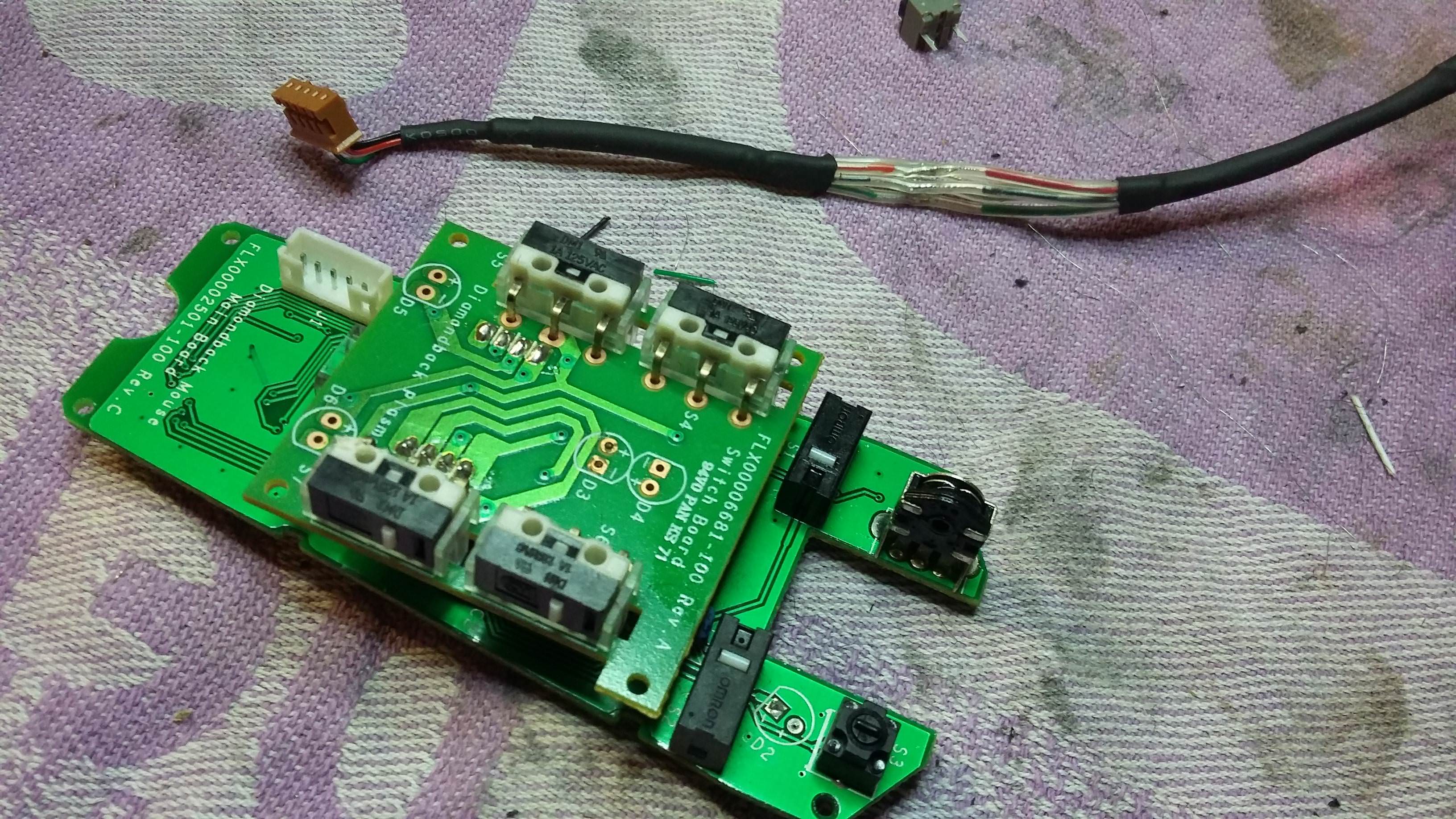

    The top board (with the side-buttons) is soldered to the bottom pcb with two rows of four pins each. A shovel type soldering tip works best, but there's sufficient room to use a regular tip at a 90° angle. With the board removed it's possible to desolder all four angle-buttons and open one up for good measure:

    [​IMG]

    Used the wire from a solid-core cable to furbish the through-hole part for the 'side'-switches:

    [​IMG]

    Re-solder the top board, tuck everything inside and we're about ready. Verify the switches with a multimeter at this stage since all the hassle might've caused a broken connection. These switches are 'make-to-trigger', so keep it pressed and measure resistance between the two pins to verify it's still alright:

    [​IMG]

    Mod completed:

    [​IMG]
    [​IMG]

    USB polling rate of the native driver is only so 125 Hz, so it needs an additional driver to make it function at 250, 500 or 1,000 Hz. Archived the necessary tools, in case anyone's interested:
    HDIUSBF, mouserate checker, remove watermark and RDP.7z

    Anyway, a great mouse indeed. But $1,000 :vbeek: ?!!! Surely there's a worthy successor on the market right now :vbconfused: ?

  2. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,080
    Trophy Points:
    931
    That brings back memories. I had a Diamondback, not sure if it was a Plasma edition or not. But that price is crazy.

    Charles

  3. saturnotaku

    saturnotaku Notebook Nobel Laureate

    Reputations:
    4,879
    Messages:
    8,926
    Likes Received:
    4,705
    Trophy Points:
    431
    I had a Boomslang back in the day when Razer contracted with BFG Technologies (a now defunct NVIDIA board partner) to produce them.

  4. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    The Plasma was not even that great of a mouse.
    I had *TWO* of them.
    It felt good and had a great shape. And that's all I can really say good about it.

    The plastic transparent grip material always melted eventually and became gross.
    And the plasma was nothing more than a "Bugfix" sensor for the BETA Sensor that was released with the Diamondback Salamander Red.
    The sensor that was pre-release but was rushed out by Razer, with a game stopping bug--on the first movement of the sensor, it would skip 2 pixels to the LEFT every time from neutral (but not up, down or to the right). This required a win32.sys patch to compensate as there were no firmware updates back then.

    The Plasma was supposed to be the release version of this sensor with the bug fixed, but this bug was only partially fixed, and I was the first person to even notice it. The bug would STILL occur from a windows fresh boot state if the mouse were left idle, and would fix itself if the mouse were picked up and the sensor reset on the surface by replanting. The bug could also reoccur if the sensor lost tracking strength /resolution on a poor surface, and if that happened, you had to lift the mouse up again to reset the sensor. And it was not that hard to make happen. Yet no one reported this except me (and I remember reporting it on the razerzone forums).

    What's funny is that the ORIGINAL DEATHADDER would also sometimes have the same bug happen to it (usually only after windows first booted up with the mouse waking up after windows loads. The same bug with an initial pixel skip due to the sensor being calibrated to the surface wrong somehow). But it was much harder to happen than on the Plasma. But none were permanent like it was on the original Salmander red.

    I never saw this happen on the later V2 deathadders or the Black Edition or 3.5G.

    t456 likes this.
  5. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    Soaked that and the primary buttons in gasoline overnight to get rid of the dirt and the weird rubbery coating, respectively.

    Too bad about the -2x px offset, but if it's just a one-off after every boot ... meh, will live with that. Shape, feel and profile is what made it great. Sensor is good enough, but being infrared it needs a decent mouse pad as well. So ... wish list: same profile, same primary buttons, programmable, 1,000 Hz natively, laser sensor (bug free) and, optionally, a cloth-wrapped cable. Does something singular like that exist?

    edit:
    Main board says 'Rev. C', but the only pcb pictures online are from A's, so perhaps the firmware issue was fixed on this model. Is there a simple check?

    Dannemand likes this.
  6. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Oh I forgot to remind you.
    The BIGGEST problem with the diamondback and Plasma (original model) series were the CABLE! The cables ALWAYS Eventually got shorts in them.
    This was the most common complaint about them. Rarely did you hear about 'double click' issues. Besides the sensor problem, it was always the cable developing breaks in the internal wires!

    You *HAD* to literally BABY the mouse to stop that from happening.

    Aivxtla and Vasudev like this.
