    Repairing a speaker cable?

    Discussion in 'Accessories' started by JustOneQuestion, Jan 1, 2009.

  1. JustOneQuestion

    JustOneQuestion Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    I managed to break a wire that connects to my laptop speakers.

    These are my speakers.

    Basically, I broke off the tip of a wire. The tip is still inside my "R" speaker input thing. I have been unable to dig it out.

    Is there any reasonable way for me to fix this problem?

    Pictures:

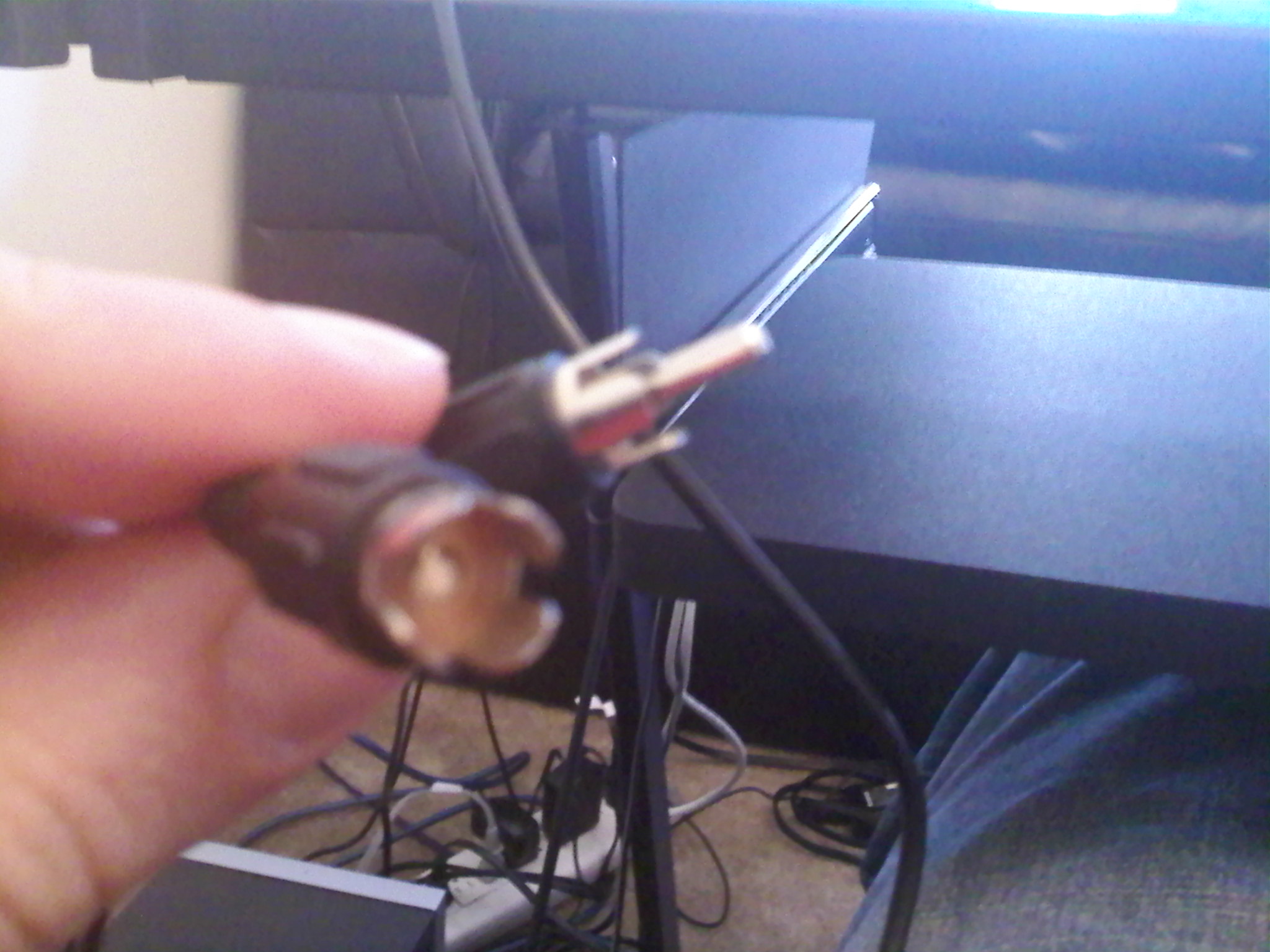

    The one on the left is the broken wire. The one on the right is how it should look.
    [​IMG]

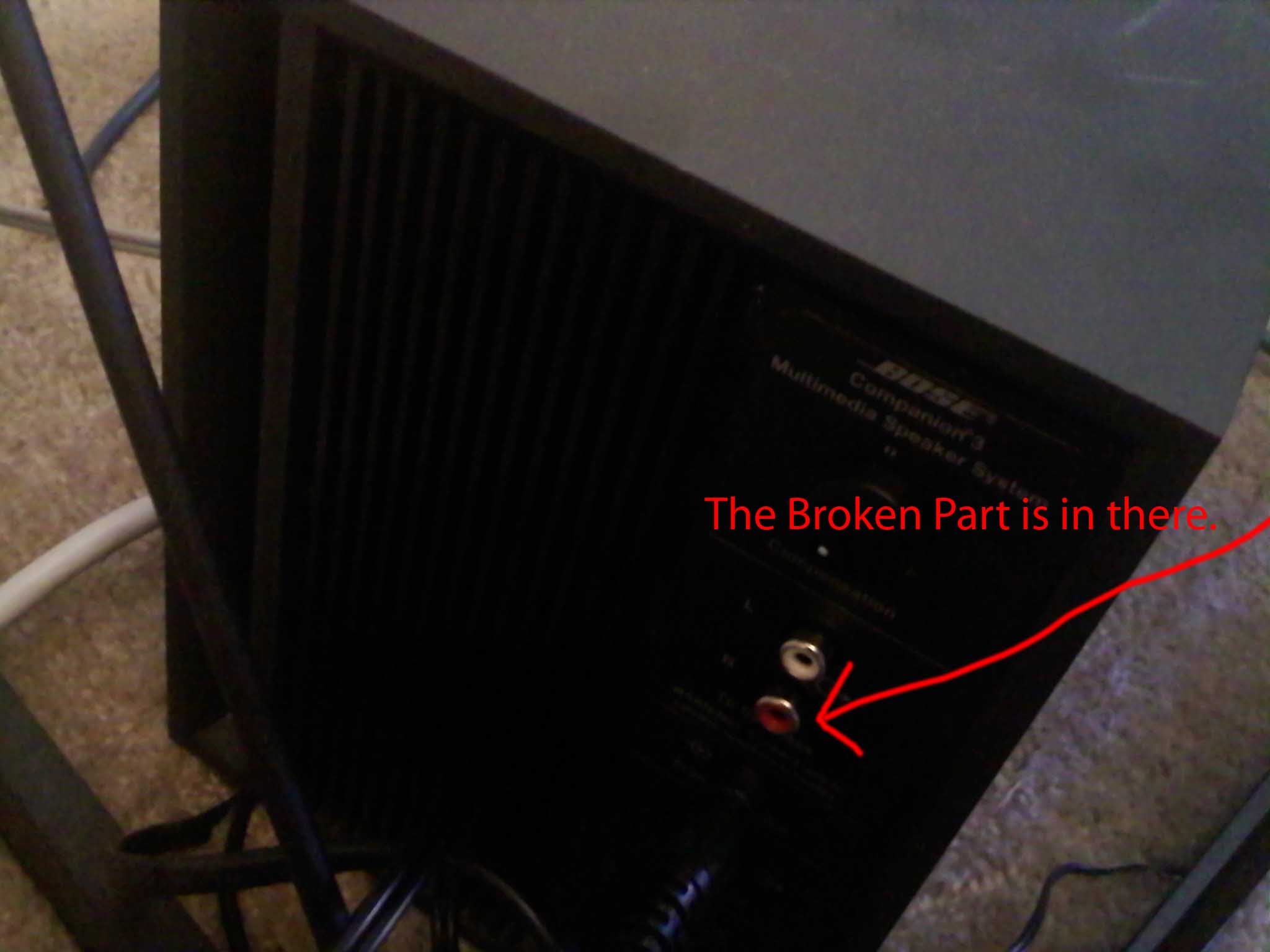

    This is where it broke off at.
    [​IMG]


    Attached Files:

  2. aussiek2000

    aussiek2000 Notebook Consultant

    Reputations:
    52
    Messages:
    201
    Likes Received:
    0
    Trophy Points:
    30
    Cut a plug off of something else and splice it?

  3. Syndrome

    Syndrome Torque Matters

    Reputations:
    1,765
    Messages:
    1,501
    Likes Received:
    546
    Trophy Points:
    131
    So you ripped the center connector of an RCA plug out? And its still in the jack? Well you can always buy a new RCA plug and jack and replace both. Replacing the RCA plug is easy, but it might be easier to get some tweezers and get the piece out of the plug. You can get a new RCA plug from partsexpress.com

  4. AKAJohnDoe

    AKAJohnDoe Mime with Tourette's

    Reputations:
    1,163
    Messages:
    3,017
    Likes Received:
    0
    Trophy Points:
    105
    RCA plugs are easy to come by. If you don't have extra cables around that you can cannibalize, Radio Shack has them.

    Break the cotton tip off a Q-Tip, or use a stiff piece of wire, wrap some transparent tape, sticky side out, tightly around this tool, carefully slide it in against the side of the plug and pull the broken plug tip out.

  5. JustOneQuestion

    JustOneQuestion Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Well, the issue is that I can't just put in a new RCA cable because the ones attached to the speakers don't come out.

    I guess I should have added that in the OP!

  6. PhoenixFx

    PhoenixFx Notebook Virtuoso

    Reputations:
    744
    Messages:
    3,083
    Likes Received:
    0
    Trophy Points:
    105
    Are you referring to the wire that comes out of the satellite speaker ? Then cut off the jack at the end of the cable and connect a new one. There are only two wires, very easy to connect. Some jacks have tiny screws and some only have metal parts that you need to squeeze to hold the cables in , meaning you don't even have to solder anything.

  7. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    ha wow thats weird. i never saw that problem before. were you bending the jack sideways a lot?

  8. Syndrome

    Syndrome Torque Matters

    Reputations:
    1,765
    Messages:
    1,501
    Likes Received:
    546
    Trophy Points:
    131
    Oh yeah, I was referring to re-terminating the cable with a RCA plug(the technical term for the part that broke). Like others have said you can cannibalize a different cable but that looks un-professional. And Radioshack is ridiculously over priced IMO.
