    Show screen to TV?

    Discussion in 'Accessories' started by KarenA, Jul 12, 2008.

  1. KarenA

    KarenA Notebook Evangelist

    Reputations:
    81
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    30
    Is it possible for my Sony Vaio SZ to have a cable to connect to my TV so the TV screen can show my notebook screen? And no I don't mean the kind of new TVs which have hdmi or such, but the TV which only has the yellow red white port. :confused:

    Thanks.

    KarenA, Jul 12, 2008
    #1
  2. Ayle

    Ayle Trailblazer

    Reputations:
    877
    Messages:
    3,707
    Likes Received:
    7
    Trophy Points:
    106
    Look for a svideo to rca cable.

    Ayle, Jul 12, 2008
    #2
  3. c17chief

    c17chief Notebook Consultant

    Reputations:
    0
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    there are vga adapter cables that break out to S video as well as rca if you arent equipped with S-video as well.


    Seems like all 3 of the major video brands (ATI, Intel, nVidia) all make it pretty easy to do the output these days instead of having to fiddle with the right resolution, refresh, etc manually. These days most drivers will auto detect you connecting to a tv and change the output settings automaticly to suit them, with usually an option to turn off, mirror, or extend your laptop display as well. If not done automaticly, its usually as easy as just manually setting a tv mode and switching output to that port somewhere in the driver.

    c17chief, Jul 13, 2008
    #3
  4. Wirelessman

    Wirelessman Monkeymod

    Reputations:
    4,429
    Messages:
    4,401
    Likes Received:
    0
    Trophy Points:
    105
    Do you have HDMI in your laptop?

    Wirelessman, Jul 13, 2008
    #4
  5. KarenA

    KarenA Notebook Evangelist

    Reputations:
    81
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    30
    Thank you for the replies. :)

    My notebook doesn't have HDMI. I think my notebook (SZ440) only has VGA. What is S-Video? I don't think my notebook has it too. :( Does that mean I have to look for VGA to RCA? Is RCA that 3 port on TV which is red, yellow and white? I am confused with all the terms. :confused:

    KarenA, Jul 13, 2008
    #5
  6. Crimson Roses

    Crimson Roses Notebook Evangelist

    Reputations:
    916
    Messages:
    571
    Likes Received:
    0
    Trophy Points:
    30

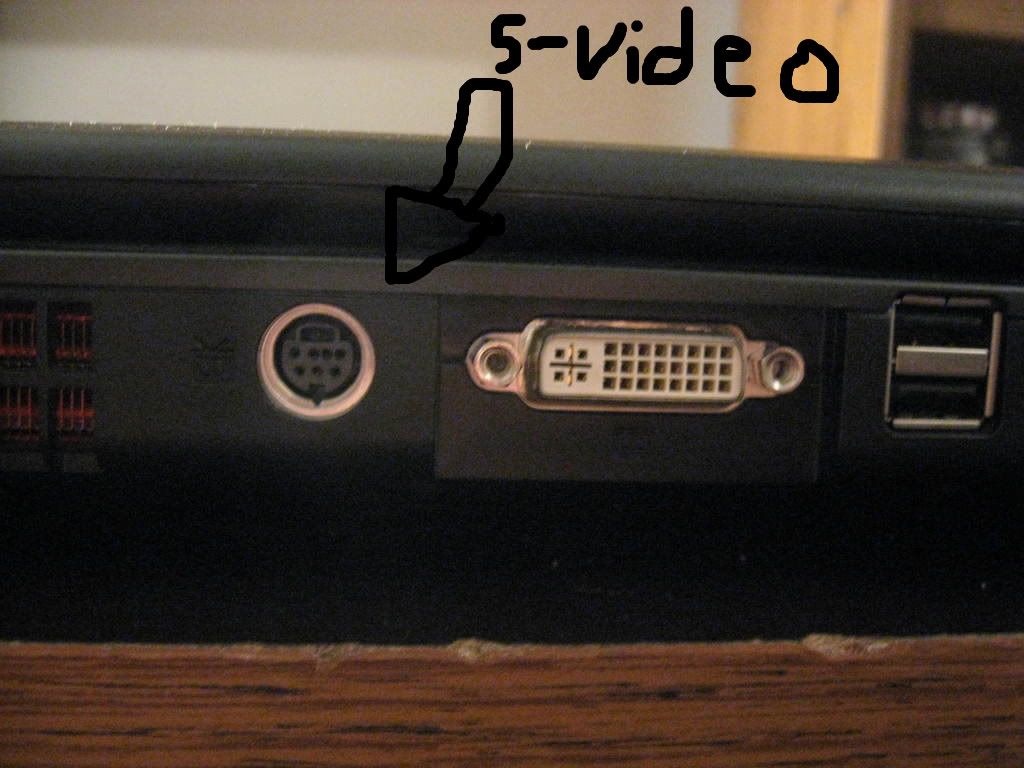

    A picture is worth a thousand words...

    [​IMG]

    Do you have one of those KarenA?

    Last edited by a moderator: Feb 6, 2015
    Crimson Roses, Jul 14, 2008
    #6
  7. KarenA

    KarenA Notebook Evangelist

    Reputations:
    81
    Messages:
    565
    Likes Received:
    0
    Trophy Points:
    30
    No. Nothing like that. I guess only have VGA then? Does it still possible with only VGA?

    KarenA, Jul 14, 2008
    #7
  8. mainak

    mainak Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi, sorry to hijack this thread but I was searching for the exact same thing as KarenA is looking for. I have a XPS 1530 and a S-Video port. I need a S-video to RCA cable for sure. But how many rca's should be there? 2 or 3? In the manual it is mentioned that use a 3.5 mm connector to connect your laptop earphone slot to the TV slot.

    Last edited by a moderator: Feb 6, 2015
    mainak, Jul 18, 2008
    #8
  9. billiam411

    billiam411 Notebook Enthusiast

    Reputations:
    1
    Messages:
    46
    Likes Received:
    0
    Trophy Points:
    15
    @mainak:
    the svideo adapter will only output to one rca plug (yellow) since its a video only connection. the manual is correct in that youll need a seperate 3.5mm audio jack to rca adapter. that will probably have two rca plugs (white and red) assuming the headphone side of the cable will be stereo not mono.
    this is exactly what you're looking for, and will provide both functions with a single cable:
    http://www.monoprice.com/products/p...=10207&cs_id=1020704&p_id=2844&seq=1&format=2
    although youll need a short extension cable for either the svideo or headphone side, since they arent that close together on the m1530

    @KarenA:
    since you only have VGA, youll need a sort of breakout box in order to convert it to s-video. this is because the change in resolutions requires the signal to be manipulated in order to minimize cropping or stretching. obviously this is going to cost a lot more than just a single cable. here's one i found online:
    http://www.datapro.net/products/vga-to-composite-video-converter.html
    you could probably find one cheaper, that was just a quick search on google.

    billiam411, Jul 18, 2008
