Where to buy or how to make USB fan?

I have 2 little fans here want to put inside my laptop, cuz it fits. I wonder where you can get a 3 pin to usb adapter, or any guide on how to mod one?



I think one wire is +, the other - and the thrid is the tach reading wire.
You can leave the tach wire disconnected.

The two outer pins on a USB port are + and -. So just connect your fan to those pins and it should work.

Remember that a USB port can only supply 5V and 500mA.

EDIT: here is a pinout for the fan:
http://www.allpinouts.org/index.php/Motherboard_(CPU)_3_Pin_Fan_Connector

EDIT#2: pinout for USB port:
http://www.allpinouts.org/index.php/USB_-_Universal_Serial_Bus

How small are your fans?



or go here...



Thanks for the link!

Two 60mm fans with LED connected on one 3 pin. Will it over power & burn the usb? I also find there's mini-sized 3 pin connector on my motherboard laptop, but it won't fit.



Cool, I might buy one.



If the fan draws more than 500mA it would cause problems, but I think most fans need much less than 500.
Should be fine.



Which is black and red? There's no color?



Do you have a ~5V battery?

You could test it with a battery to find the + and GND.

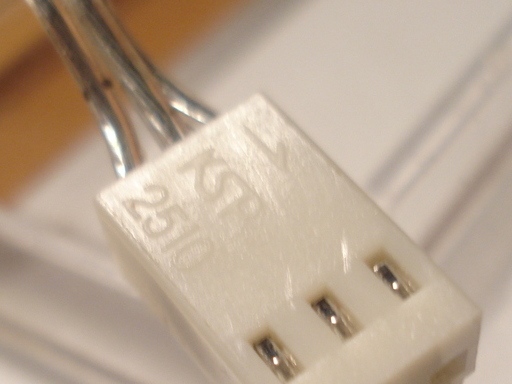

I found it out. The arrow is the black line.



glad to see there is a recent post like this!
I was about to make a thread myself!!
Anyways, the desktop fan that I'm using is 0.3A which is good, but it is 12V. Being the explorer and risk taker I am, I decided to plug that into my USB to see what would happen and my whole laptop turned off. After a few minutes (and after freaking out) I was able to turn it back on.

Would this have done any physical damage to my notebook? I know this only support upto 5V so putting in a 5V fan with less than 0.5 A be good enough to run a DIY cooling pad project?

Thanks!

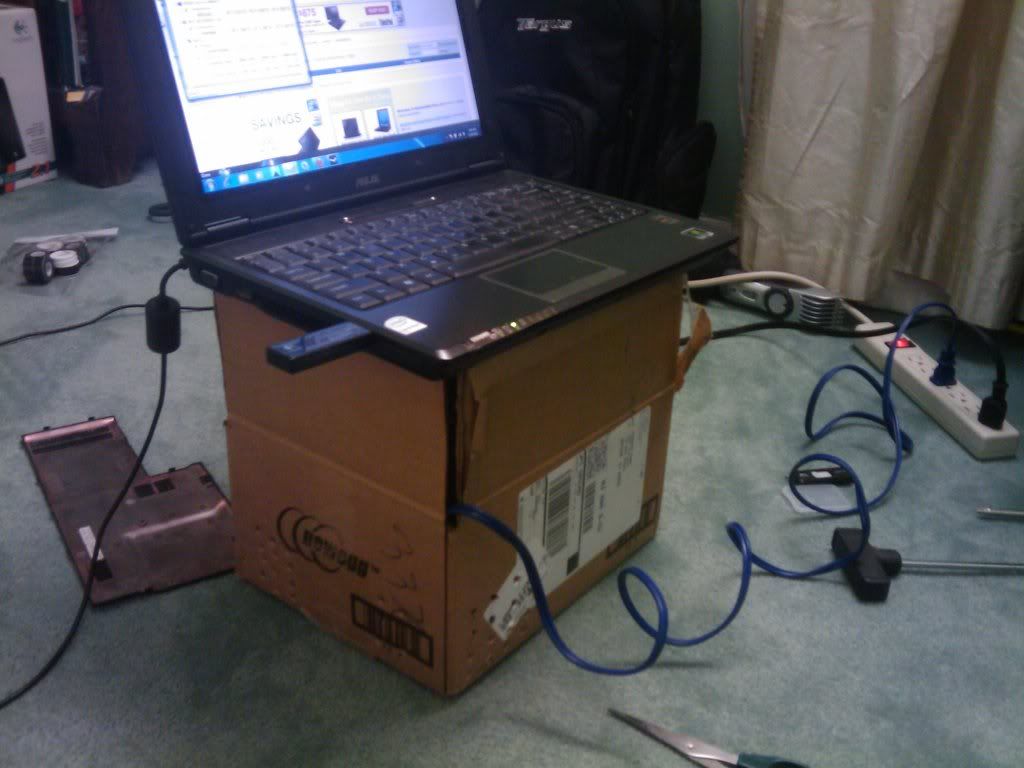

btw, here's the setup I started using recently


:lol:

There's a fan inside the box. With this, I just hit my record lowest in idle temperature! 42 C!! When normally, idle is 60C for this notebook.

And if you can please answer my question above, it'd appreciated



I once shorted out my USB port, after I restarted the notebook, it worked fine.

I also attached a 12V fan to my usb port, the fan didn't spin, but there were no problems.

I don't know if it's bad or not.



I properly insulated the fan, and it works now.
I have another question. About how much of a difference will there be if I connect a 12v fan to a 5v power supply?



It will make the 12V fan to a 5V fan. Less power meaning that it will run at a at lower RPM and probably affects its performance.



5V fans are designed to run at that voltage. Running a 12V fan at 5V will actually get you worse performance.
