Fan control utility

Ok now at least we have all the CPUs that can be read!
test it ...



Alt tab immediately after pulsating, then 30 sec after then 2 min after.



other values ​​...
test it ...

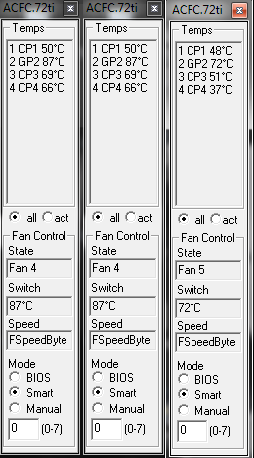

same as before (alt-tab immidiately after pulsation/ 30 sec later/ 2 min later)

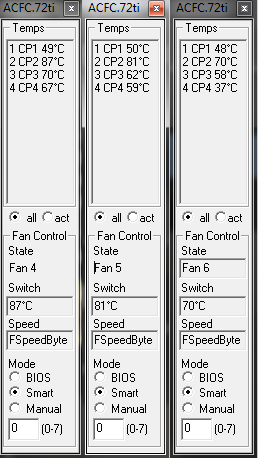

Thanks for your patience Searcher. Your help means a lot to me. This one goes to fan level 6 after a while as you can see.



test it...

:wink:

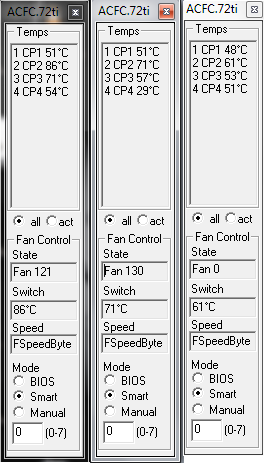

same behavior fan level now in the hundreds ?! lol

If you are bored or tired, we can do this another time. Btw this one is not that stable. The fan goes on and off sometimes.



Based on the. Ini file from my Acer 8942G ...
test it ...

If this does not work, I like to help continue tomorrow ...
I am beginning to understand the ini - file your notebook ...

:wink:

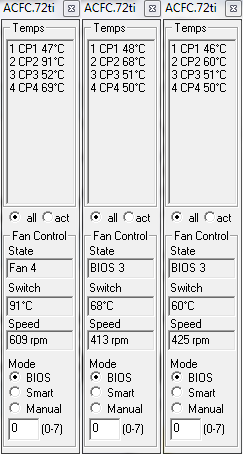

same as before but it was pulsating differently this time, not as consistent. Then 2 min later it continued to pulsate as before.

Strange I see the fan speed in rpm this time and mode is BIOS??



:cry:

Good night and thanks a lot for your help. PM me or something when you are free or just post here.

Thanks a million



test it...

:smile:



still the same but I will do more testing with this one tomorrow and post the results.



Using this ini -. File (V.9) we can make tomorrow more ...

Sleep well with you is already 23.00 clock!

Here are a few more ini -. Files.
test, test test ....

:laugh:



LOL it's 5 am there.. you must be nocturnal or something. Or just plain bored



good night.

:smile:

It was nice!


_____________

Hello 11hani11,

what about now?
Do you have further tests done to V.11?
I'm awake again ....
I now make a hike and look over again tonight with you.

_________________________________________________

good evening

V.12, 13, ...
test it..

greetings from germany :wink:



more...

:GEEK:



Wow.... I will test them later. In the meantime, have some good beer for me

Cheers



more...

:wink:

Hello 11hani11,

First Test "ACFanControl_V.21b.zip" then "ACFanControl_V.20b.zip ",....

Cheers



wow.... i think v.12 did the trick!! stay tuned I will test it with long gaming sessions.

Edit: Okay it seems to work for balanced mode. It works for balanced mode!! The fan does not pulsate at all and it is running at what sounds like a high speed.

BUT when I switch my power plan to high performance the temperature (where it says Switch) goes above 90 or so and it switches to Mode=BIOS and State = Fan 4 at which point the fan starts to pulsate again. By the way, all my previous tests were done in high performance mode but this time I just happened to be on balanced mode and forgot to change it. Once I did change it, the pulsating started again.

So I have a feeling that this Fan 4 state is causing the problem. What do you think?

Thank you

Hani



Yes, you think well with.
Test All ini -. Files...
We come closer to your goal!

greetings from germany :yes:



tested all of them... not good Thanks anyway Searcher

I wonder if the OP can help me.



Hello 11hani11,

Your problem with the pulsating fan seems to do with the Windows Power Options to have.

The appendix contains the original ini -. File with minor changes.
This is likely the best ini -. File now be there for you.

- Improved appearance
- Do not write logfiles
- All CPs are read (CP1, CP2, CP3, CP4)
- Only a Smart Mode

These changes all work!

Change the Windows Power Options and you have no pulsation of the fan more!

Good luck ...

With best regards from Germany :wink:



There was someone asking about Aspire 5715Z, but still without clear answer.
Can you please take a look at my screenshots and help me to get the control right?
As far I found 2 temps under 176 and 177, and I also noticed that under 178 walues 45/50/55/60 are written as the fan incerases the speed.



Would this work on the 4820tg? What is the risk of bricking your laptop and how can it happen, and has it happened to anyone yet?



Hello,

Look at the appropriate ini. File very carefully and to try out different settings.
I can only really good help for the Acer 8942G.

greetings from germany



Hi, I spend hours and tested various records, without success. Hope someone face with this issue and found an optimal solution.
What is strange I cannot find fan speed record and bios control disable/enable.

cheers
sn



can someone help me with 5742g? I tried manual setting from 0-7 and it doesn't effect fan speed, its stuck at 1000rpm, I know it can spin faster because then I update bios it makes it go like 3x faster

I could post the some screenshots of fancontrol if someone wants to help me



I don't understand how to find the offsets. I think I'm doing it wrong

1) I open speed fan to look at the temp of GPU and CPU
2) I open up ACfan press Read EC1
3) After a bit a bunch of numbers appear in the bottom left box

I assume I am supposed to compare the temperature with a number in the list that is the same? How do I know what the offset is, I don't understand.

Edit: I have a Acer 5475DG-7950



@M1ST

(1) let your notebook chill.. press "Read EC1"
(2) stress your notebook! when the fan is going wild press "Read EC2"
(3) press "disp. EC2-EC1" look at those values that increased by an amount similar to your CPU temperature gain.. if your CPU became 20 degrees (celcius) hotter you're looking for a value similar to 20

-------------------------------------------------------------

@all

does someone have experience with the 5951g (/8951g) model?

i found out following:
BIOS control: 0x55
CPU temp: 0x58
fan speed: 0x5C

the thing is there's only one value for the CPU temp whereas there are 4 cores..
additionally there doesn't seem to be a Fan Profile, only the fan speed is available..

and the biggest problem is I'm not able to find a value for the BIOS offset that allows me to change the Fan Speed. i tried all 256 values

does anyone have a clue or an idea what to do next?
or does anyone have a 5951g or a similar model?



Hi!
I have an Acer 5741zg!
Sry my bad english.
I dont know what numbers need to write to the offset after Read EC>Ec1

http://kepfeltoltes.hu/111125/acf_www.kepfeltoltes.hu_.jpg



Hello everyone, i am new here, i've just registrated because of this thread
I have, an AS5750 with I3 and gt540 .. and i have some serious heat problems.. like this : http://dl.dropbox.com/u/19261035/skyrimthrottling.jpg
this screen was taken after 2 hours of skyrim at low graphics and downclocked gpu (as you can see) the temps are "too damn high" And the throttling ruins the gameplay completely
So i've searched for something that can help, i found this thread, downloaded the program, i've wrote 0 after "Active Mode=" .. then started the program, but it can't read my temps, just like the guy above..
Here is a screen of my ACF : http://dl.dropbox.com/u/19261035/ACF.jpg

So the question is: How can i do anything if ACF can't see my temps? And what is the solution?

ps. my english sucks, i know
Thanks



Anyone gotten this working on 3830TG?



Hi all,

I'm with an Acer 5750G, and I want the fan be more active in the interval 60-80 C. When it boots (before bootloader shows up), it runs at max speed, but at the time it loads windows, fan get lower, and my games suffer.

So, I want to increase fan usage; this can be achieved manually set up fan speed, or decreasing thresold values (if I understand correctly).

Today, I discovered only that offset 180 indicates the temperature of the GPU.. nobody knows more?

Thanks



Hello,

Could you please take a look at those screenshots and help me setup it right?

Idle

Stress

EC2-EC1


Im on Acer Aspire 5742g, i5 450M, GF GT 540m

EDIT: Looks like offset 178 is CPU Temp



I'm on 3830T. I'm fine with the fan noise, but when it's really very idle I want that when I'm on facebook and stuff like that..

I can't see the temps in this program. I have cpuid hardware monitor and the temps are 40-42. This model doesn't have a separate GPU. I can't find anything that looks like 40-41-42. If I do that doesn't change when stressed. Then the numbers mostly become less than at idle. The few that aren't those that look like between 0-7 I put them into the read and it turns out they have a random value that goes up to 60...... I can't find anything to lock on. I'm looking at dezimal style, done the idle/stress EC, took several more screenshots, comparing them in photoshop (turning layers on off etc).. But can't find anything useful. Any ideas?



topic death or what?

I also want some information about the 5750g model, can't seem to find the right byte -_-



Wondering is someone can help me... im a little confused here on how to find my temps in this list and what to do after reading the sensor. Here is a pic.
This is idle. EC1

Here is load EC2

ec1 ec2


Thanks.



Hi Folks, I got the aspire 8943G, the problem is that the 'at rest' temp is around 55 degree and only with Chrome/IE/SKYPE opened jump to 65. If I use the software with all the ini posted, the fan is quite but the laptop burn hot and temp jump over 100 then it switch off. Any though? Is 55 at rest normal? It is only 10 months old so I'm skeptical to open it to blow the fan...



is this a laptop ? if its a laptop clean the vents heatsink ect and then apply thermal paste to gpu and cpu . 55 is normal without the fan spinning at all , if the fan starts spinning at level 1 then the heat should be around 45 - 50 at idle. I just applied thermal paste a few hours ago and all my problems are solved. Btw aspire sucks I have a acer 8930 and the paste turned out like sh..ttt after 1-2 years. And 40 percent of its users have shut down issues and cooked gpus as well, its because they used cheap stuff with the cooling system and you dont have control over its fan without this tool. Im currently trying to figure out how to locate the offsets which trigger the fan speeds no success yet.

For thermal paste u can use any of the expensive ones, all will perform well, ı used thermal take tg-1 seems to do well atm. Most people suggest arctic silver but wasnt able to find it at the shack.

Btw if ur planning to use this tool use it with caution because it sais that it writes over the embedded controller which can cause problems if its not managed properly


..........

Ok been working on acer 8930g for hours now if anyones interested

Gpu sensor offset is : 159
Fan control offset is 153 ( control values start from 0 > and ends at 6) High byte is 32

the only thing I need is the bios control > offset ? Now how can I find that ? I need to turn it off because it takes over automatically.



no success I just cant find the offset which disables bios control thats the only downside for now and its not that easy. If your lucky you might find it though but theres too many variables for this atm.



hi everybody! i have an acer 5750G with GT540M, the temp goes up to 95C when i'm gaming...i guess this temp is really dangerous :\ is there someone who can help me?



come on folks, the topic is dead...can anybody help to us? (who has acer 5750g)



You have to clean out the heat sink and apply new thermal paste first, does your fan spin at all ? 85 - 90 should be normal when gaming anyway, dont forget that room temperature also applies in this situation.

figuring out the heat gpu tmp offsets shouldn't be difficult you should be able to figure this out on your own. The problematic part is the bios offset



yeah i know, i figured out the temps in acfancontrol program, but it spent 3 hours to find the fan control offsets... i didn't find it, but i will search it again and again till i found



Hey guys, OP here. I'm currently having a lot of trouble with my laptop, trying to get it fixed. Unfortunately between that and other life commitments means I can't get on here often. But I'll try to help as often as I can.

However, with that said there's not much I can help. Each model probably has different registers and values so really you have to find them yourselves.

Is the tutorial I wrote too confusing/techie? If yes, I'll try to spend time rewriting it.



i found 174 and 175 offsets where the values changing after i run a gpu caps viewer test...and i can't rewrite the values...so these offsets might be the fan speeds? how can i change these values? my laptop is acer 5750g



Hmm, only 2 offsets?

There should be plenty more offsets that will have a change in value. Simply because the CPU cores + GPU temps are also stored in the offsets as well.

What sort of temps did your GPU get while idle/while under stress? Did you find numbers similar to that in the offsets?



i made pictures of the offsets, the first picture is where the CPU/GPU idle, and the second is where they're full load...the GPU temp reached 95 celsius under the GPU caps viewer test , the CPUs were 89-88



Hey Equinox1991!

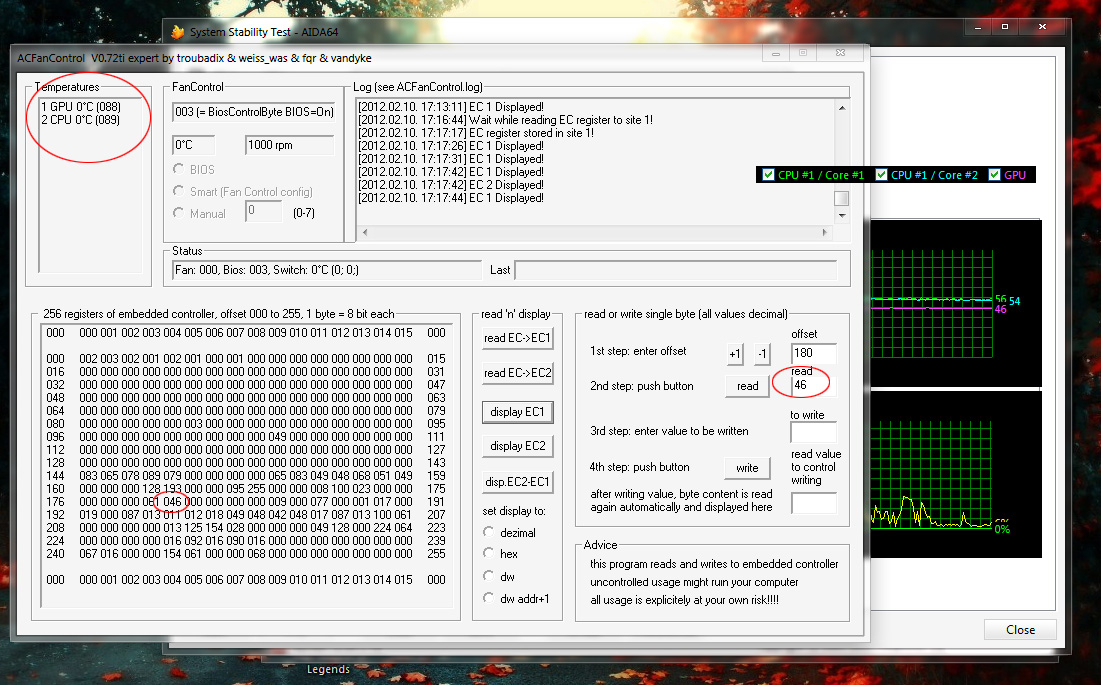

I have as 5750 with I3 and gt540.. when you first started the program the values on the top left side were good? Because mine writes :
1 GPU 0°C (088)
2 CPU 0°C (089)

I found that my gpu sensor has the same offset as yours (180) but i cant find the cpu.. i "read" them one by one.. none of them were good. I put the idle stats in EC1 but none of the values are equal, or close to the real value (56-54). What to do now?

trandoanhung1991 do you have any idea??



laptop 8943G: when the control switch from smart mode to bios mode even if the temp cool down it never revert to smart mode, my settings are:
Level=12 0 03 1
Level=28 255 31 0
Level=40 255 31 0
Level=50 253 31 0
Level=57 1 31 0
Level=62 2 31 0
Level=80 0 03 1


ActiveMode=2

ManModeControl=0
BiosAtManMode=31
ManFanSpeed=0

ManModeExit=72

SmartModeExit=72

any help much appreciated!



I can't find the cpu's temps either, only the GPU's. I thought the 179 offset is the CPU temp...but i'm not really sure, if it is then it's not accurate.
