    How to add Bluetooth to your Timeline 3810T and other interesting tidbits with the machine

    Discussion in 'Acer' started by icase81, Jul 16, 2009.

  1. ym901s

    ym901s Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    1
    Trophy Points:
    6
    Hi Fr3@k

    You have been a great help!

    Thanks a lot for the pics ... a pic speak more than a thousand words indeed lol ;-)

    Btw how's the speed you getting from the Sierra card? Have you tried to test the speed using speedtest.net or speakeasy.net?

    ym901s, Jul 31, 2009
    #51
  2. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5

    To now i´ve only tested the speed with the Qualcomm 3G Card pulled from my Aspire One A150X, with that card i get 4,3Mbit Down and 1,2Mbit UP, ISP is "Mobilkom Austria (A1)"

    I haven´t testet the Sierra Card yet :D

    EDIT:

    With die Sierra Card i´ll getting 3,1Mbit Down an 0,1Mbit Up

    Fr3@k, Jul 31, 2009
    #52
  3. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I asked the thing to local county manager ( since I am an ex-hardware editor, I have some contacts) but he did not reply me yet. It it is available, that would be a nice addition storage for OS, and we can use magnetic HDD for storage only. 64 GiB should be okay for any OS for now.

    By the way did anyone check that SATA connector if it works or not?

    zuhuratbaba, Jul 31, 2009
    #53
  4. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5

    But there is one problem, i´ve not testet the SATA Connector yet but, the connenctor is for an Slim SATA LW which uses an other connector than 2,5" HDDs, i don´t know if there is any adaptor

    Fr3@k, Jul 31, 2009
    #54
  5. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hmm lets look for a suitable drive or for a converter. What is the full name of this kind of connector? Slim SATA LW? Let's look it up.

    zuhuratbaba, Jul 31, 2009
    #55
  6. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Slim SATA i think is the name, the interface is similar to the normal SATA you can connect a common SATA Cable to it but the powerconnector is a bit smaller

    Fr3@k, Jul 31, 2009
    #56
  7. sosorio

    sosorio Notebook Consultant

    Reputations:
    36
    Messages:
    109
    Likes Received:
    0
    Trophy Points:
    30
    so basically are all 3810t confirmed to have sim slot plus extra pci??

    sosorio, Jul 31, 2009
    #57
  8. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Mine (Acer Aspire Timeline 3810T 944G32n) has extre PCIe Slot an Sim Card Reader,function tested with Qualcomm and Sierra Wireless 3G card

    Fr3@k, Jul 31, 2009
    #58
  9. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Awesome info guys. Thanks.

    enigma1406, Jul 31, 2009
    #59
  10. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Awesome, Frank!

    Glad that others are starting to trickle in and this can be the central 3810 mod thread it seems. :)

    icase81, Jul 31, 2009
    #60
  11. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    icase,

    So we need a different cable for the bluetooth module? Mine arrived today but now I don't want to open to machine if it won't work.

    gus6464, Jul 31, 2009
    #61
  12. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    I'd like if you can just verify that it won't work, and its not just my module thats bad if you could.

    icase81, Jul 31, 2009
    #62
  13. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    I'm an impatient one so I ordered the 3810 ebay module as well. Obviously I'll have to wait a while but it shipped yesterday. I hope at least one works!

    enigma1406, Jul 31, 2009
    #63
  14. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Great! I'd imagine the one for a 3810 works in a 3810 :) I need mine to work :(

    icase81, Jul 31, 2009
    #64
  15. clipzed

    clipzed Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    Is this mod work for the 4810T also? I heard it doesn't have a sim slot.. would it have a PCIe slot?

    clipzed, Aug 1, 2009
    #65
  16. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    I believe they use the same motherboard, as the 3810 has a spare SATA slot with power as shown in the pic. I can't imagine why they'd put that in a 3810 since theres no room to use it for anything.

    icase81, Aug 1, 2009
    #66
  17. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    enigma1406, Aug 2, 2009
    #67
  18. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    gus6464, Aug 2, 2009
    #68
  19. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Which? The HD decoder or the SSD? Either way, definitely keep us updated!

    enigma1406, Aug 2, 2009
    #69
  20. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    I am buying the HD decoder. Will also be adding the X25-M G2 SSD in the end of the year when price comes down a slight bit and they can be had at the $200 mark or a bit less.

    icase,
    I'll install the bluetooth module some time this week when I get some time and let you know if it just needs another cable.

    gus6464, Aug 3, 2009
    #70
  21. sosorio

    sosorio Notebook Consultant

    Reputations:
    36
    Messages:
    109
    Likes Received:
    0
    Trophy Points:
    30
    can anyone confirm if the 3810t-8503 has the extra pcie slot?
    Are the first post's pics of that model? thanks!

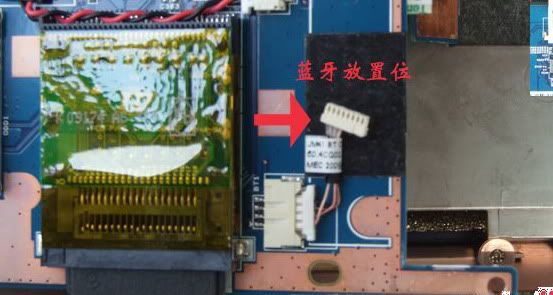

    PS:u sure the cn8 is the right port? this is how the 4810t motherboards bt port (BT1) looks (its not the one pointed)
    [​IMG]

    sosorio, Aug 4, 2009
    #71
  22. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I bought two modules (second one for anyone around me who may need this) from the auction mentioned and I received them today. I picked up one of them and after a whole disassembly I placed the module in its place, and screwed everything back after I checked the module if it was working in semi-assembled mode... Everything works fine! Thanks for the disassembly guide, it was helpful. :)

    icase81, I too think your module was DOA, since I ordered exactly the same part as you and it didn't require me a fixation with the cable. Did/will you get a replacement?

    By the way, for those who will add Bluetooth to their Timeline 3810T, do not panic if Windows Vista with SP2 does not recognize your device (but pops up a new device found warning). This version of Broadcom Bluetooth 2.0 + EDR is not recognized right out of the box by Windows. You should install proper driver (can be found from Acer's website) and it will work fine.

    The good thing is, Bluetooth switch shotcut on keyboard works fine and also it is independent from Wi-Fi switch.

    Take care,

    zuhuratbaba, Aug 10, 2009
    #72
  23. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Hej, the same in my case, i also got my bluetooth module today. after i`ve installed the module and installed the driver i tried to connect with my Blacberry and it worked =)

    Fr3@k, Aug 10, 2009
    #73
  24. arsad

    arsad Notebook Enthusiast

    Reputations:
    8
    Messages:
    26
    Likes Received:
    0
    Trophy Points:
    5
    I am considering adding bluetooth to my 5810TZ and I found this on ebay, I believe that the adapter for the 3810T and 5810T are the same with the 4810T just having a built in cable found this listing on ebay:

    For 3810T and 5810T

    For 4810T

    They appear to use the an 8 pin cable that uses all 8 pins.

    arsad, Aug 10, 2009
    #74
  25. sighie

    sighie Notebook Consultant

    Reputations:
    14
    Messages:
    104
    Likes Received:
    7
    Trophy Points:
    31
    sighie, Aug 10, 2009
    #75
  26. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    Ok I just installed the bluetooth module but windows 7 does not recognize it. Which way does the cable connect? Do you connect it with the cables going on the PC connector far left or far right?

    gus6464, Aug 10, 2009
    #76
  27. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5

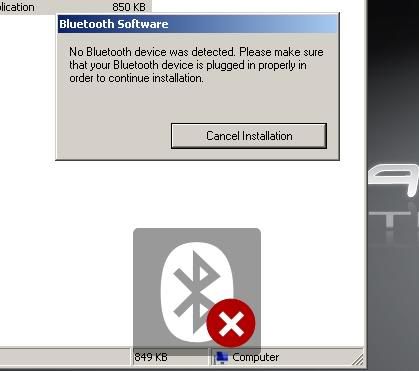

    I tried my BT module from the first ebay link as well and it didn't work. Now I have to wait for the module/cable from the second link to get here.

    I tried upgrading my BIOS to 1.08 & 1.10. I updated Vista to SP2. I rehooked up the module to make sure the connection was good. I did hit the Fn + F3 combo. I tried installing the BT software and got the following (also shows what hitting Fn + F3 does):

    [​IMG]

    To the people that got the first module to work, what version of the 3810t do you have and where are you located?

    icase81, is your laptop from the US? Maybe there is something slightly different about the US models? Mine is a 3810T-8503 from newegg.

    enigma1406, Aug 11, 2009
    #77
  28. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    I think there is physically only one way to connect the cable. Hopefully you can prove me wrong if not...I can't get mine to work either.

    Also, did you try the HD decoder card yet?

    Thanks.

    enigma1406, Aug 11, 2009
    #78
  29. ym901s

    ym901s Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    1
    Trophy Points:
    6
    HD decoder card definitely works!

    ym901s, Aug 11, 2009
    #79
  30. Fr3@k

    Fr3@k Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    0
    Trophy Points:
    5
    Forget it, this is impossible because the Motherboard has only an Mini PCIe Slot Not a Mini PCI Slot, and the PErformance of such a card would be very terrible compared to the Intel GMA 4500 =)

    Fr3@k, Aug 11, 2009
    #80
  31. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I also should say that there is only one way to install module. I am going to update the post with my spare module's photo which is proven to work out-of-the-box so that everybody can get clear on how cables are placed.

    zuhuratbaba, Aug 11, 2009
    #81
  32. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Mine is from Newegg as well. Same as yours. So the 2nd link one worked for you? I guess I'll have to order that instead.

    icase81, Aug 11, 2009
    #82
  33. bjornb

    bjornb Notebook Consultant

    Reputations:
    23
    Messages:
    125
    Likes Received:
    0
    Trophy Points:
    30

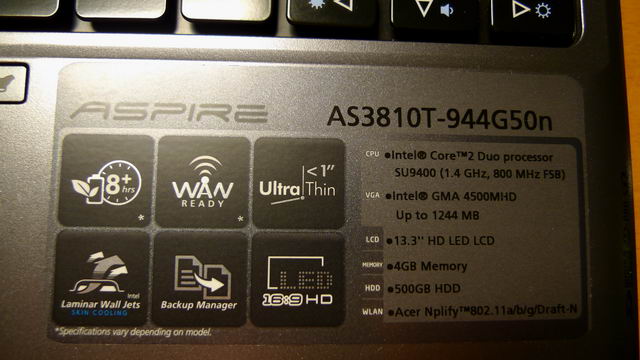

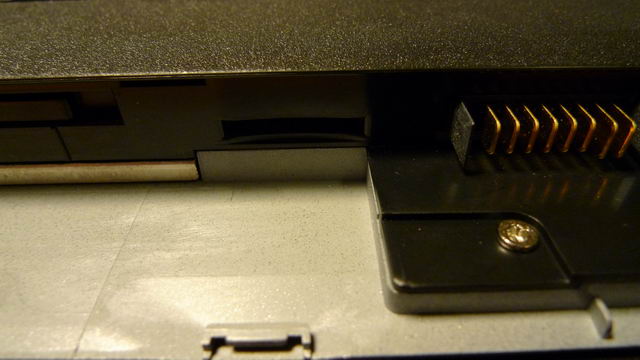

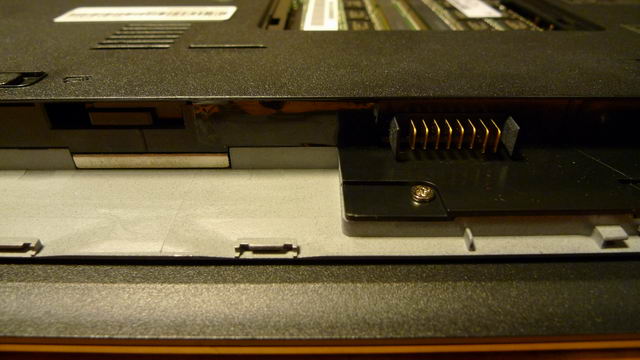

    At first I didnt find any SIM slot on my 3810T (AS3810T-944G50n), but since it does say 'WAN Ready' on the specs sticker I examined it some more. I found the sim slot looking closely, it was covered with a black sticker. See attached images (image below with sticker reattached, it was harder to see at first).


    Attached Files:

    bjornb, Aug 11, 2009
    #83
  34. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    No, not yet! I haven't received the second one yet. I'll let you know...

    enigma1406, Aug 11, 2009
    #84
  35. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    I ordered the HD accelerator last weekend and got the shipping notification 2 days ago. Hopefully I should have it by the end of the week if all goes well.

    gus6464, Aug 12, 2009
    #85
  36. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Just got my second module today and it DID work. Visually (and looking at part numbers) it looks like the same module with the only difference between the two being the 4 and 8 cable.

    enigma1406, Aug 13, 2009
    #86
  37. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Cool...I'm still unsure if I want to get it. I might wait for the flash update to come out and then consider it...it's not like I'm going to hook up an external bluray player or anything.

    enigma1406, Aug 13, 2009
    #87
  38. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    Well the bluetooth module does not work. I am guessing it is the cable. Is there a way to order the 8 pin cable instead of the 4 pin?

    gus6464, Aug 13, 2009
    #88
  39. enigma1406

    enigma1406 Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    I think icase81 contacted the seller via email and got him to ship a cable but I'm not too sure. The best bet would be to try and talk to the seller...I have no idea where else to get such a tiny cable.

    enigma1406, Aug 14, 2009
    #89
  40. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    4-pin cable works for me. No problems at all.


    [​IMG]
    The other identical module like one I am using right now.​

    By the way, that internal port works as an USB port and USB works with 4 pins (Maybe 4+2, with more ground pins), but not with 8 pins. Some of the cables might be defective ( wrong-ordered pins or non-fuctional) but they are not less capable than required.

    zuhuratbaba, Aug 14, 2009
    #90
  41. icase81

    icase81 Notebook Guru

    Reputations:
    105
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Mine was definitely the cable. The seller sent me a new 8 pin cable, which showed up yesterday. The module works fine now. Not saying 4 pin isn't enough, but the cable I received was definitely not the correct cable. The ebay seller made good on his deal and word that it would work. Much more than I expected from an anonymous Chinese ebay seller to be honest.

    icase81, Aug 15, 2009
    #91
  42. gus6464

    gus6464 Notebook Consultant

    Reputations:
    0
    Messages:
    137
    Likes Received:
    6
    Trophy Points:
    31
    So did the ebay seller charge you anything for the new cable? I guess I am going to have to contact him now.

    gus6464, Aug 15, 2009
    #92
  43. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    icase81, it is good to hear that your problem is solved. Well, there is sure a problem with bundled cables. Some of them work and some of them do not.

    By the way should we keep a track of 7 and 21 Mbit 3G mini PCI Express cards that work with integrated SIM slot?

    zuhuratbaba, Aug 17, 2009
    #93
  44. clipzed

    clipzed Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    where is ur sim slot? i have a 4810T and behind the battery a piece of plastic was covering something, i took off the tape and there was a slot, but it was too big for a sim card and it would have just fallen straight thru if i put it in. what is that?

    clipzed, Aug 17, 2009
    #94
  45. der_mali

    der_mali Weihnachtsmann

    Reputations:
    545
    Messages:
    1,156
    Likes Received:
    1
    Trophy Points:
    56
    It's the opening for a sim-slot that isn't populated. You would have to mod the board and add a sim holder to use it.

    der_mali, Aug 17, 2009
    #95
  46. clipzed

    clipzed Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    oh ok so if i bought a 3g modem a sim wouldnt slot into the actually modem? what mod would i have to do?

    clipzed, Aug 17, 2009
    #96
  47. der_mali

    der_mali Weihnachtsmann

    Reputations:
    545
    Messages:
    1,156
    Likes Received:
    1
    Trophy Points:
    56
    You would most likely have to add the mini-PCIe slot too and maybe other missing components. I remember the effort Tankgrl had to go through with her 3G Mod in the Aspire One. Your best bet(and the cheapest solution) would be to just use an external 3G USB dongle. If you find a free internal USB connection you could mod it inside the case.

    der_mali, Aug 17, 2009
    #97
  48. clipzed

    clipzed Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    15
    the timeline comes with a mini pcie slot, which as far as i know is right next to the hole i found.

    clipzed, Aug 17, 2009
    #98
  49. der_mali

    der_mali Weihnachtsmann

    Reputations:
    545
    Messages:
    1,156
    Likes Received:
    1
    Trophy Points:
    56
    That's cool :)
    Then you could just buy a mini-PCIe 3G with integrated SIM holder. You could eventually borrow one of the Wifi antennas and use it for 3G.
    JKK did such Mods often.
    jkkmobile.com

    der_mali, Aug 17, 2009
    #99
  50. zuhuratbaba

    zuhuratbaba Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    SIM card slot with a card inserted looks like this. I have an usable connector but no HSDPA card to use it at the moment.

    [​IMG]​

    zuhuratbaba, Aug 17, 2009
    #100
← Previous pageNext page →
