    Just got my Kingston HyperX 2133MHz 8GB kit today. verified running @ 2133 in my R2

    Discussion in 'Alienware 14 and M14x' started by shnarf, Dec 5, 2012.

  1. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    Hi everyone, just wanted to let everybody here know the Kingston HyperX 2133 8GB kit runs @ its full rated speed in my M14x R2 w/ 3820QM. Just got em today and was hesitant as they had no reviews anywhere but if you were waiting for someone to post about them first, go for it! it looks like they are now the fastest modules that one can put in this laptop. WEI went from 7.9 to 8.1 in windows 8.

    shnarf, Dec 5, 2012
    #1
  2. digitalmo

    digitalmo Notebook Consultant

    Reputations:
    9
    Messages:
    220
    Likes Received:
    0
    Trophy Points:
    30
    wonder which processors support this?

    digitalmo, Dec 6, 2012
    #2
  3. Mastaa

    Mastaa Notebook Consultant

    Reputations:
    9
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    None yet, I believe...

    Mastaa, Dec 6, 2012
    #3
  4. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    I am running this kit @ 2133 without problems with a 3820QM in my r2. I did set it to 2133 in the bios so im not sure if it would autoclock to 2133 but it does run fine at full speed and i have verified its clocks in multiple programs.

    shnarf, Dec 6, 2012
    #4
  5. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    ^ I'm sure you forgot to mention PnP , because only PnP supports up to 1866 , 2133.

    mine will arrive tomorrow :D

    iPhantomhives, Dec 6, 2012
    #5
  6. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    thanks iPhantomhives, i did indeed forget to mention it is the PNP kit, Kingston SKU# KHX21S12P1K2/8
    I should also mention that the Corsair 16GB 1866 kit is also PNP, however I did have to set it in the bios to 1866 because for some reason it was only doing 1600 in my machine.

    shnarf, Dec 6, 2012
    #6
  7. Alienware-Luis_Pardo

    Alienware-Luis_Pardo Guest

    Reputations:
    1,141
    Messages:
    1,459
    Likes Received:
    8
    Trophy Points:
    56
    Great stuff shnarf, thanks for sharing! +1

    Alienware-Luis_Pardo, Dec 6, 2012
    #7
  8. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Hey shnarf , I was wondering which bios ver you are using?

    iPhantomhives, Dec 12, 2012
    #8
  9. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    I currently have Bios A09 installed

    shnarf, Dec 12, 2012
    #9
  10. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Oh Thanks , I seem having problem running 2133 ram I got , KHX21S12P1K2/8.

    Randomly Black Screen while starting the machine , graphic shuttering randomly lol.

    I took some test on the ram its seem passed all test , I still receive random black screen. will trying figure it out what's going on....

    They also lower the quality of the ram build , it was a piece of metal plate on 1866mhz , the 2133 set came with piece of sticker lol
    [​IMG]

    1866.jpg 2133.jpg

    iPhantomhives, Dec 12, 2012
    #10
  11. Alienware-L_Porras

    Alienware-L_Porras Company Representative

    Reputations:
    3,658
    Messages:
    6,874
    Likes Received:
    969
    Trophy Points:
    281
    Is it exactly the same kit ?

    Alienware-L_Porras, Dec 13, 2012
    #11
  12. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    looks like the same kit I got. I also have the HyperX 8GB 1866 kit which does have the heat spreader. apparently they quit doing heat spreaders due to the added thickness making them incompatible with some laptops. I did set mine to run @ 2133 in the BIOS, but used auto timings. I can verify it runs @ 2133 in my r2 once I set the speed. not sure if it would have ran without setting it to 2133 because i had it manually set to 1866 for the ram i was replacing. on first boot with the new ram I went into the bios and changed the speed from 1866 to 2133 instead of changing it back to auto. I have head different things regarding processor compatibility for 1866/2133 ram. I have the 3820qm which works at full rated speed with either 1866 or 2133, once set in the bios. I have used both HyperX and Vengeance 1866 and HyperX 2133 and have hit rated speeds on all of them once set in the bios.

    shnarf, Dec 13, 2012
    #12
  13. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Yea , left 2133 , right 1866.

    Yea , I have 3820qm too , that's why I did too , when running both 2133 my screen keeps shuttering , i took the screenshot asap lol , after that boot as black screen again , haha I did reset cmos & flashed few bios ver dose not help , I'll try again xD

    iPhantomhives, Dec 13, 2012
    #13
  14. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Just tested everything I got , it only work when i set 1866 or lower in bios , if I'm on 2133/auto it will just blank screen. Not sure if window ultimate cause the problem?

    iPhantomhives, Dec 15, 2012
    #14
  15. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    im running Ultimate too and i have had zero problems with mine @2133. might have just got a bad set possibly?
    lets try to sort this out
    i have the following hardware...
    3820qm
    2G 650m
    Corsair Force GT 240 & Mushkin Atlas 240 in raid 0
    1600x900
    Killer 1202
    and 8GB kingston 2133 obviously.

    do you have anything different in your setup that you think might be related?

    shnarf, Dec 16, 2012
    #15
  16. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    I don't these are related , my spec in my siggy.

    iPhantomhives, Dec 16, 2012
    #16
  17. shnarf

    shnarf Notebook Consultant

    Reputations:
    38
    Messages:
    145
    Likes Received:
    2
    Trophy Points:
    31
    I wouldn't think most of it these specs would be related either. its just that we already went through the basics and i didnt see any hardware differences i would think could have been the cause. I feel bad for starting a thread on this ram working at 2133 and the second person to try it has problems.

    if you can think of anything else you want me to check on my end let me know. the only thing I see is the optical hdd swap in yours, though i agree it doesnt sound like the kind of thing that would cause an issue with ram.

    shnarf, Dec 17, 2012
    #17
  18. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Haha no worry , let's hope for the 3rd person try it.

    iPhantomhives, Dec 17, 2012
    #18
  19. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31
    double post

    littlecx, Apr 5, 2014
    #19
  20. littlecx

    littlecx Notebook Deity

    Reputations:
    24
    Messages:
    783
    Likes Received:
    20
    Trophy Points:
    31

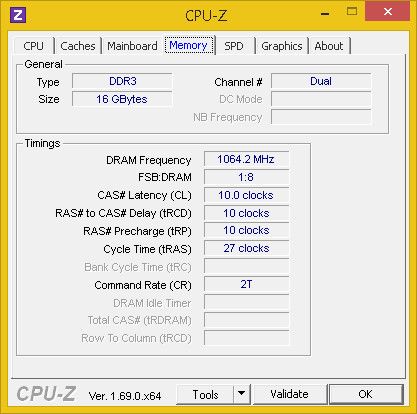

    i am running samsung ram 1600 at 2133 CL10
    [​IMG]

    littlecx, Apr 5, 2014
    #20
