[DONE] TUTORIAL and How to Fix Problem M17x R3 Graphic Card GTX 560M Upgrade to GTX 660M

Hello Guys, thanks for viewing my little threads here..

Today i wanna share to all of you about i'm facing a problem since upgrade Graphic Card Nvidia GTX 560M to GTX 660M..
Because i made all by myself, so very late to me to make this Tutorial for all people in this forum..
what i wanna share is,
- first i'm having a problem while 7 Beep is coming out when i start my lappy
Fix when i replace back on VRAM thermal pad around all that items

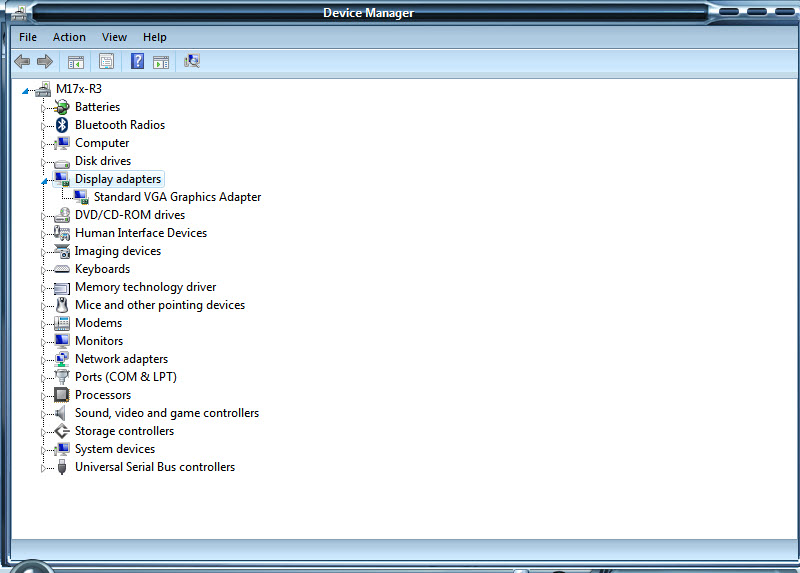

- after that, problem with GPU Drivers.. i run into VGA Mode, while looking for correct driver for Nvidia GTX 660M...
From a BIOS, it tell i'm running in Discrete Graphic Display = Nvidia GFX
that's mean.. My Graphic Card was ok, the problem is about Driver..




to Check Your Graphic Card Driver & Version, please using this Link :
NVIDIA Driver Downloads - Automatically Detect NVIDIA Products

For me, it's detected Nvidia GTX 660M .. and time to Download the Driver x64 Bit Version..
Link : http://uk.download.nvidia.com/Windows/310.90/310.90-notebook-win8-win7-winvista-64bit-international-whql.exe

GeForce 310.90 Driver
Version 310.90 - WHQL
Release Date Sat Jan 05, 2013
Operating System Windows 7 64-bit
Windows 8 64-bit
Windows Vista 64-bit
Language English (UK)
File Size 214.99 MB

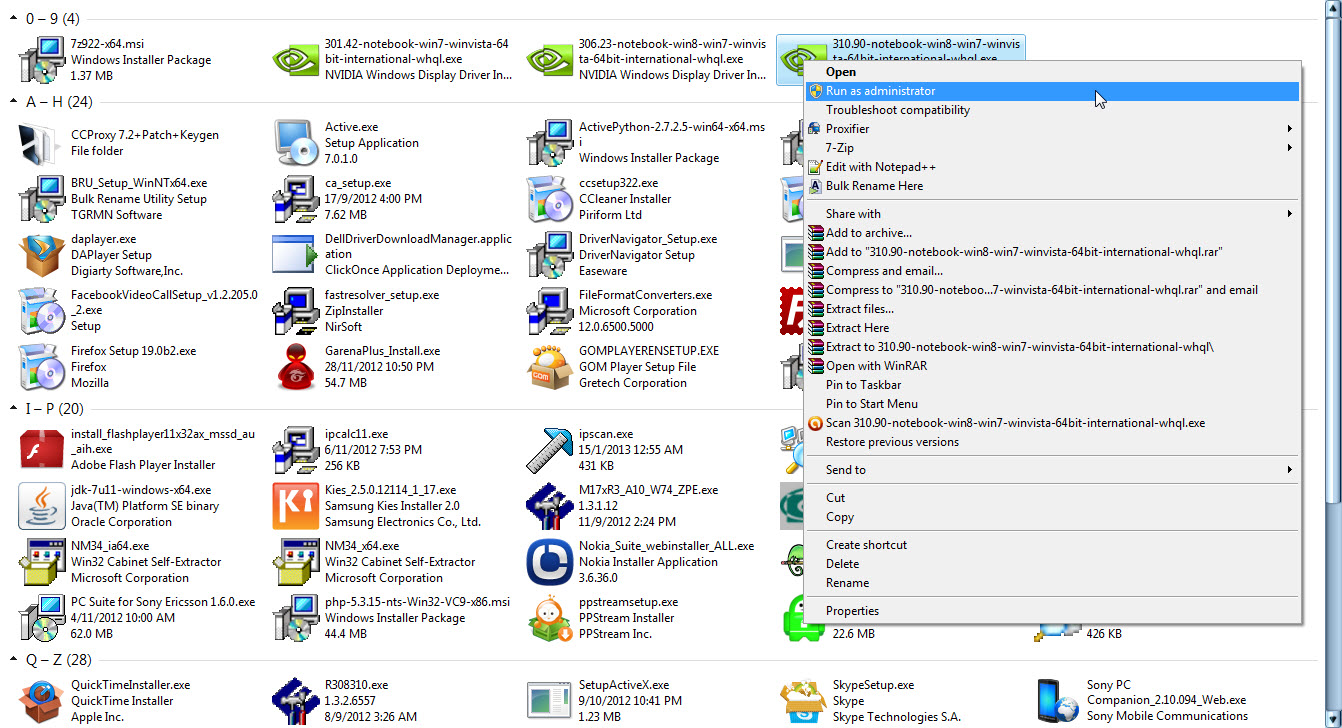

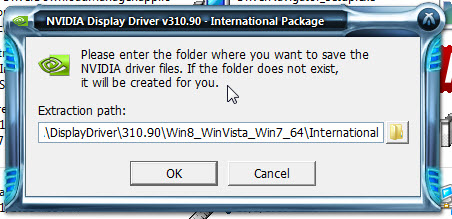

After Done Download, It auto Extract this things into this path :
C:NVIDIADisplayDriver310.90Win8_WinVista_Win7_64\International










Before replacement a small file, you need to download this file for GTX 660M Only ..
http://forum.notebookreview.com/attachments/alienware-m17x/90701d1358631577-help-alienware-m17x-r3-gtx-560m-upgrade-gtx-660m-problems-please-help-me-nvdm-m17xr3-gtx660m-v310.90.zip

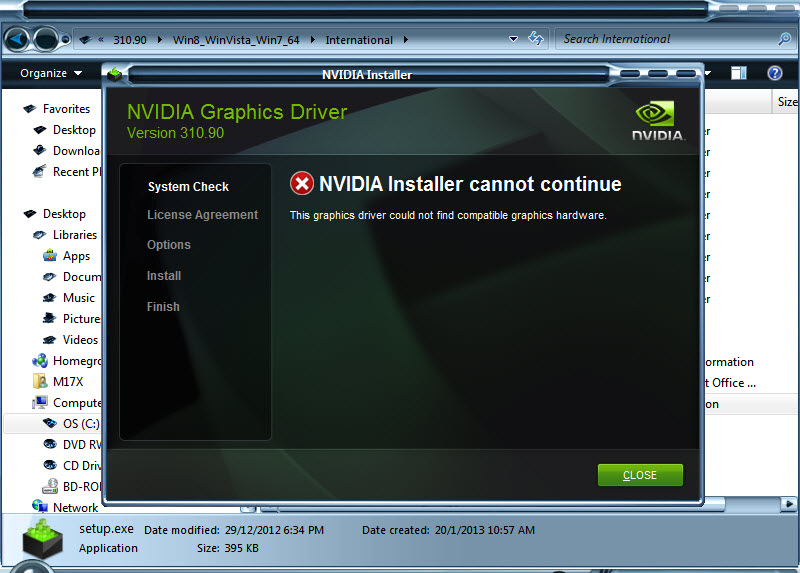

If you not replace the original file, what will you faced is .. you can't install this latest driver...
so it become like this .. :

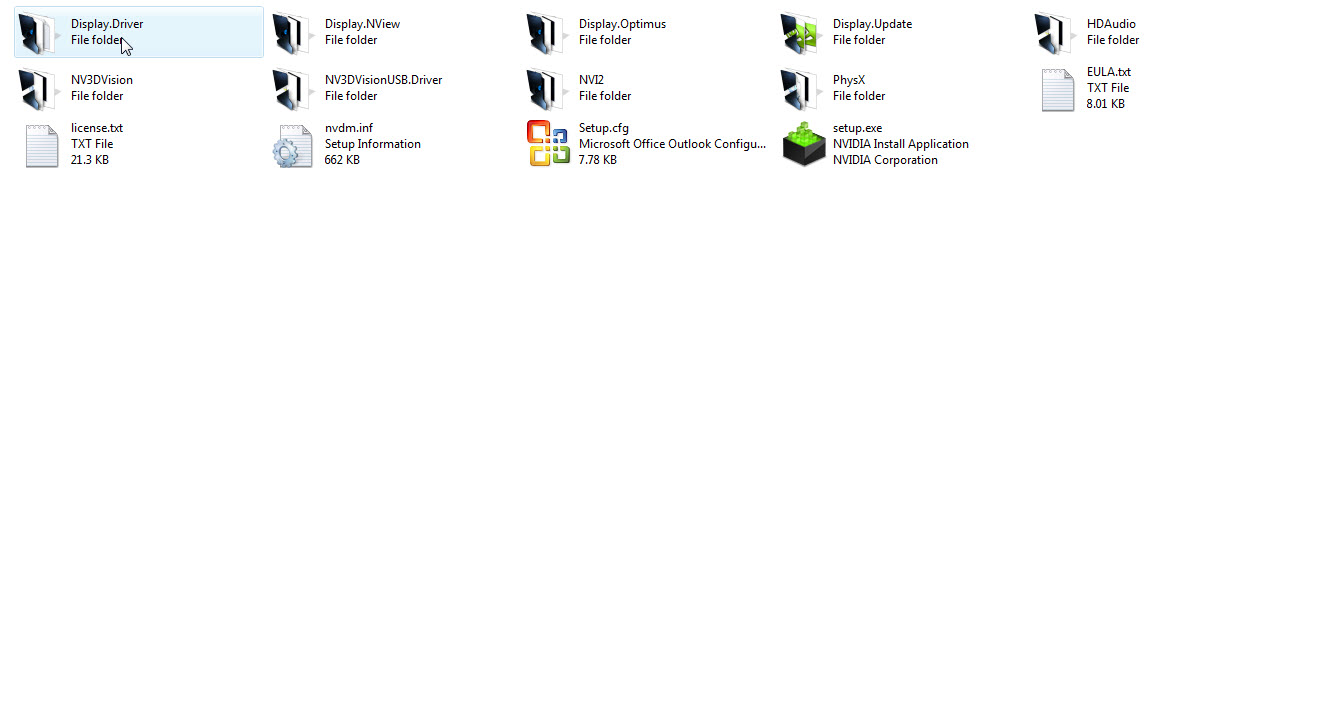

What You Need is .. go to your nvidia directory path .. >> C:\NVIDIA\DisplayDriver\310.90\Win8_WinVista_Win7_64\International

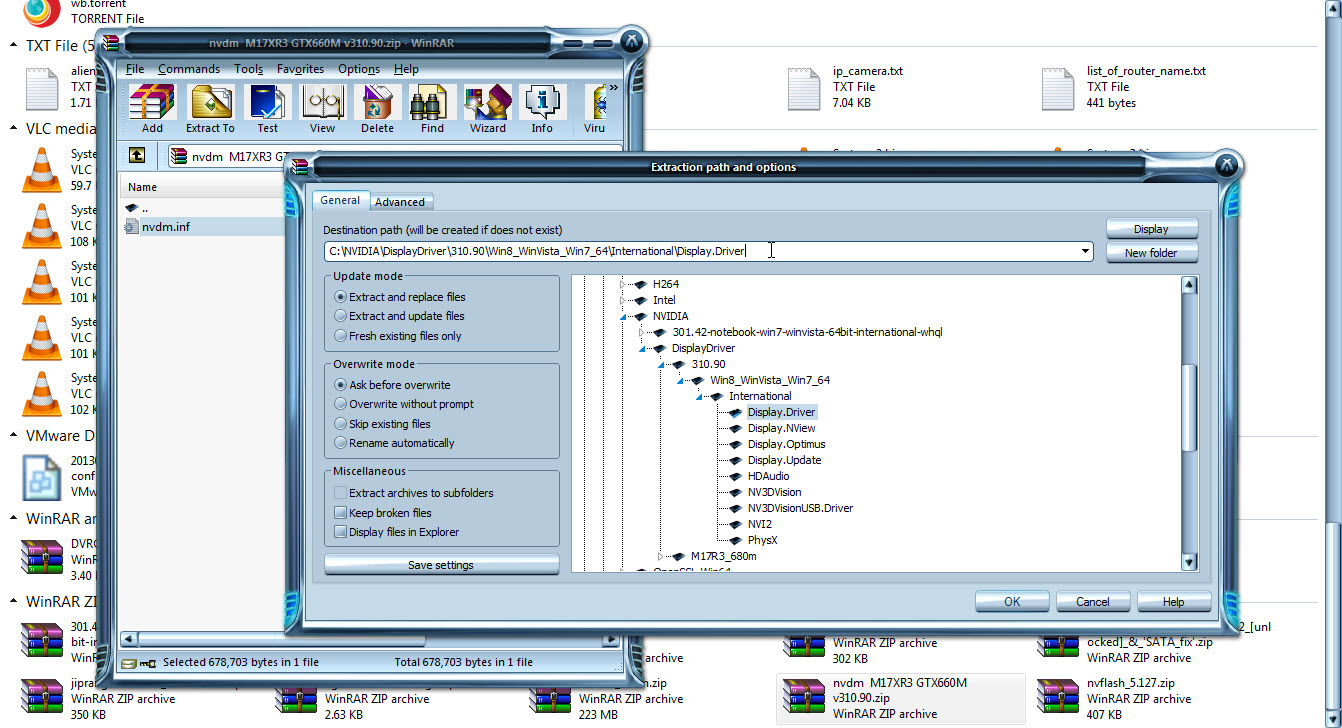

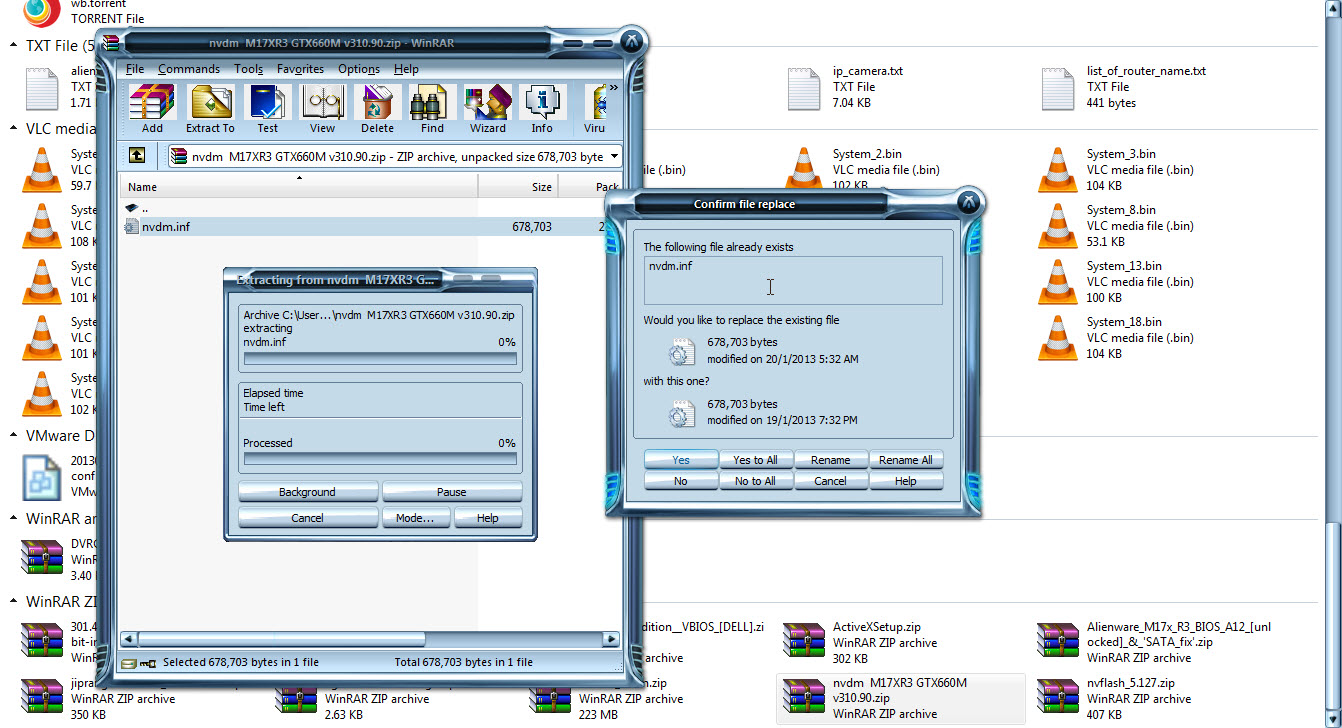

and then open up this DIR >> C:\NVIDIA\DisplayDriver\310.90\Win8_WinVista_Win7_64\International\Display.Driver

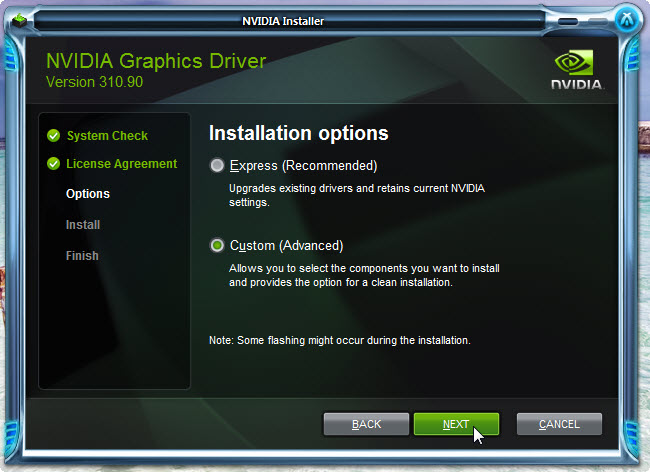

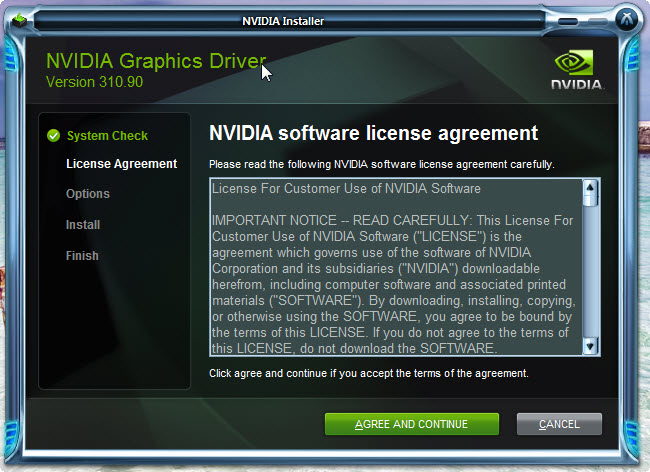

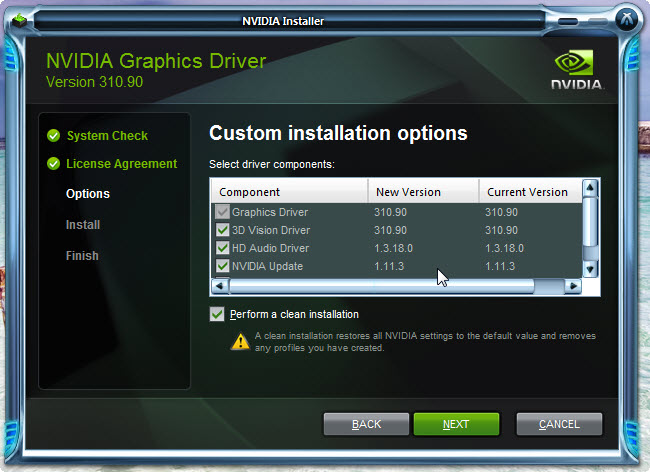

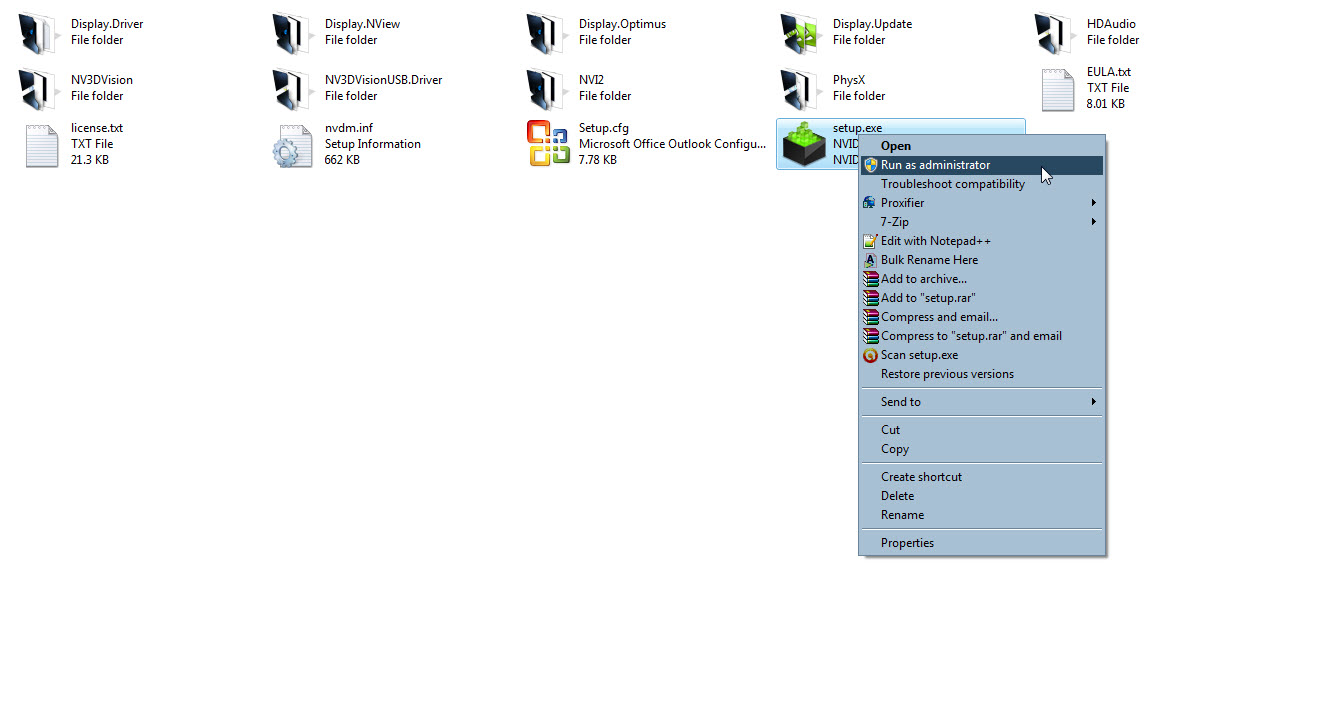

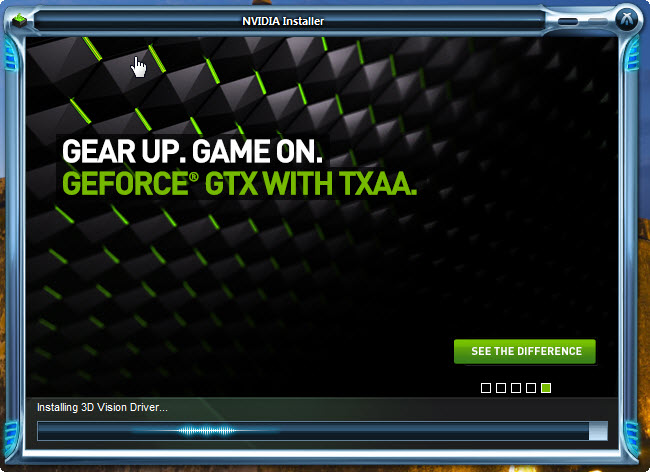

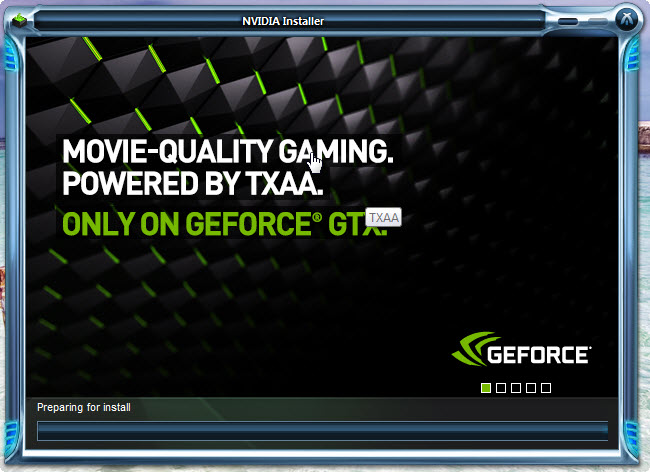

screen goes :

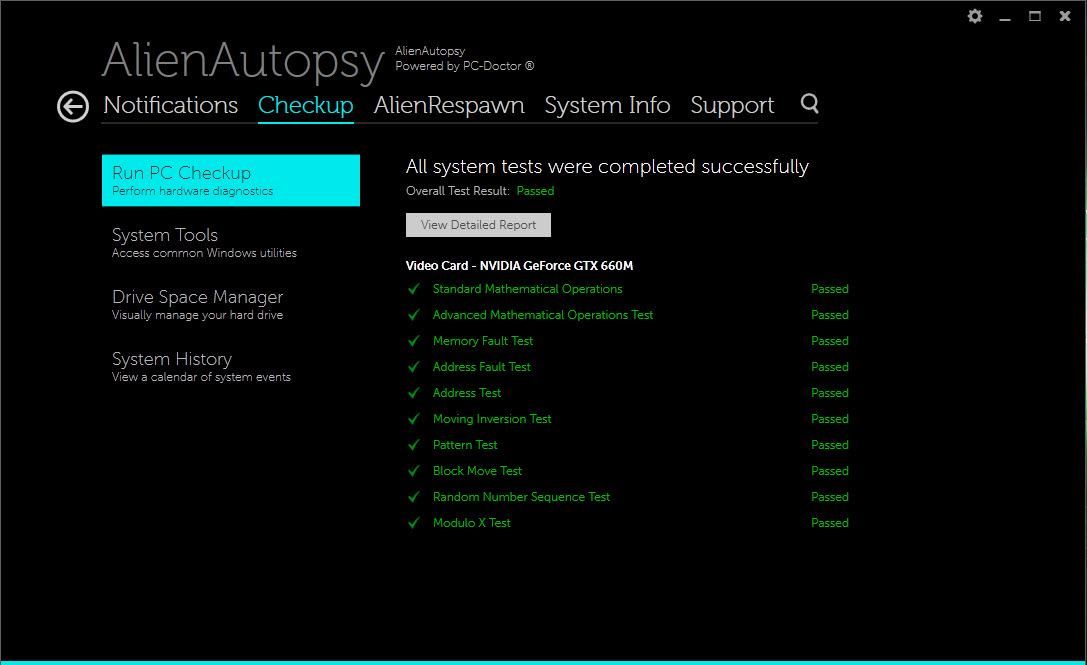

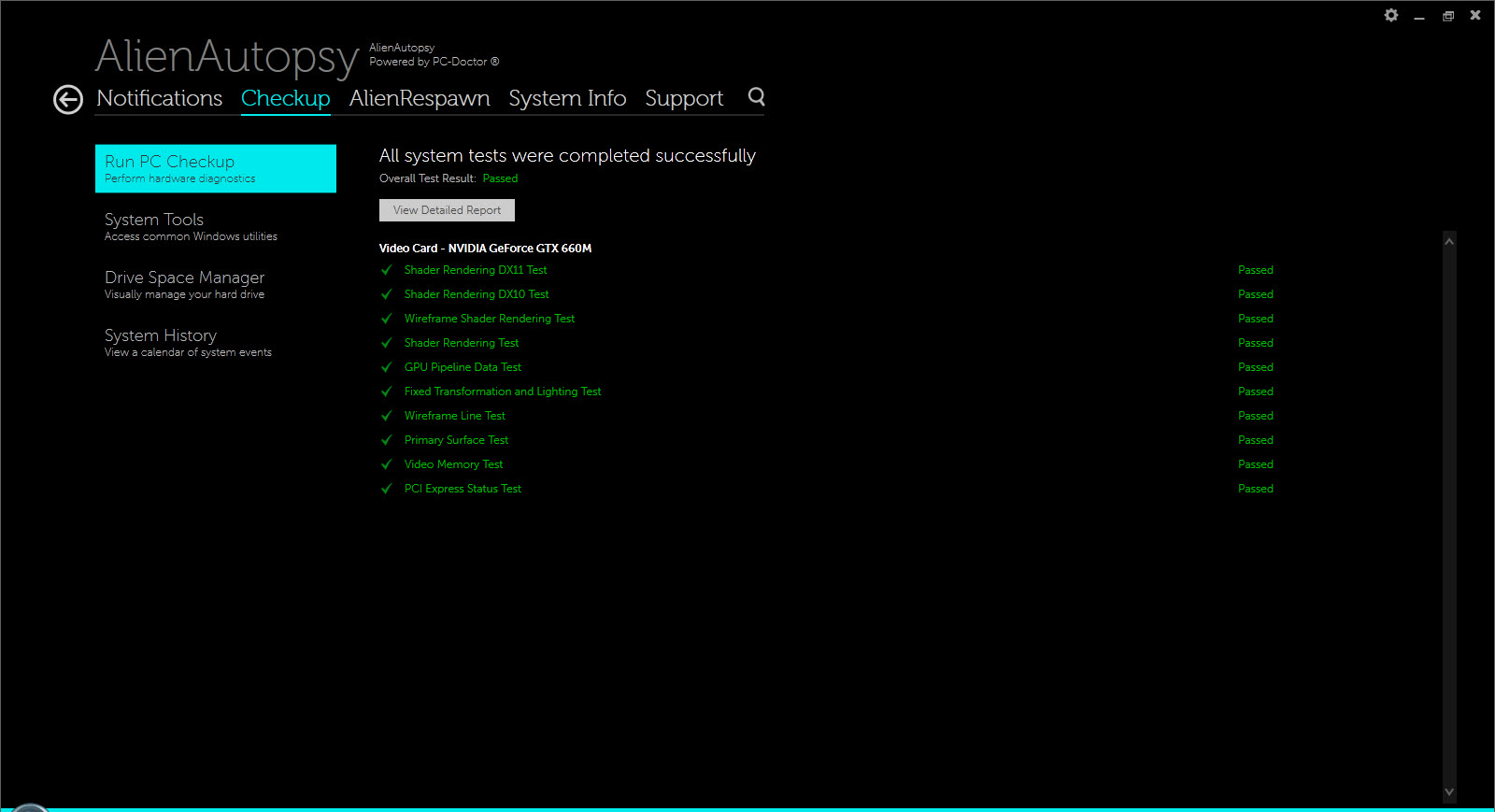

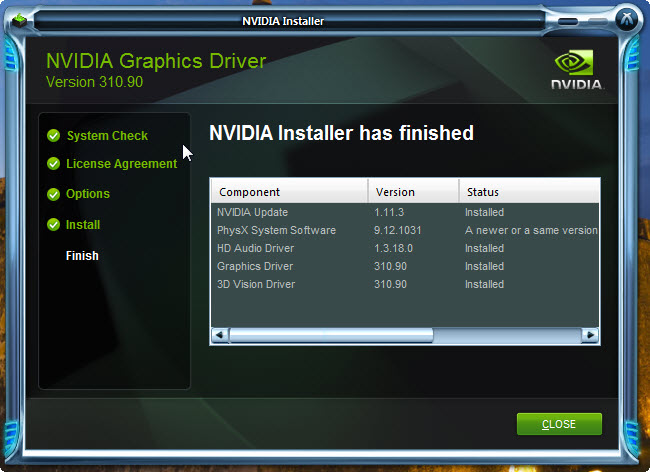

FINAL RESULT :










This Kind of Things Credit Goes to My Friends :
- bigtonyman
- MickyD1234
- Zenoru
- Joe85
- j95

Done by Me.. thanks for Viewing ..



Nice guide, but I suggest you resize your images so the guide itself is easier to read.



haha.. ok, but how to resize ? cause i print screen by using a region snap ...so the size will become depend on the box appear..it fitted to the box.. hehehe



Hello. I'm new here but I do need some help. I have a m17x r3 and I'm trying to get i running with a 660m card. I get 8 beeps with this card. Pads are placed correct, but still nothing happens. The fan is running, I have removed cmos battery, it works with the old 560 card. Bios is also updated and PEG is selected.



First off welcome to NBR!!!

It sounds like your mobo isn't detecting the new card. Have you tried a power drain? I had a similar issue when I first got my 6990m to replace my 460m. Dell replaced my mobo for a separate reason, and the new one read the card just fine. Never did figure out the problem.



Great quality guide. thanks for sharing +1 Rep!



almost welcome .. sharing is caring
