    512GB Crucial m4 2.5-inch SATA 6GB/s

    Discussion in 'Alienware 17 and M17x' started by Tone-Bone, Jul 29, 2011.

  1. Tone-Bone

    Tone-Bone Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I was wondering if anyone has any experience with SSD with capacity over 256GB on the M17xR2. I was looking thru the Crucial web site and came across this.

    512GB, 2.5-inch Solid State Drive, upgrades for Alienware M17xR2 Laptop/Notebook, CT1899642 from Crucial.com

    It reads that it's guaranteed to work with the notebook. Dell says that the max capability is 256GB (could be that this is all they sell). If one was to purchase; do you (anyone) know if the 512 is truly compatible? Any info would be really appreciated...

    Blessings,
    Bone

  2. livid

    livid Notebook Consultant

    Reputations:
    62
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    $900..... :eek2: :eek2: :eek2:

    Anyone accepting kidney donations at this current time? :twitchy:

    The R3 can't take advantage of S-ATA III devices as it uses a dated ICH-8/9 controller.

  3. ewitte12

    ewitte12 Notebook Evangelist

    Reputations:
    50
    Messages:
    367
    Likes Received:
    0
    Trophy Points:
    30
    R3? Even the first port? Its not off the SB chipset?

  4. Josh2

    Josh2 Notebook Geek

    Reputations:
    18
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    I thought the R3 had sata III speeds?

  5. adrian5683

    adrian5683 Notebook Evangelist

    Reputations:
    11
    Messages:
    382
    Likes Received:
    10
    Trophy Points:
    31
    Same here, was under the impression it's Sata 3.0 capable...

  6. Josh2

    Josh2 Notebook Geek

    Reputations:
    18
    Messages:
    86
    Likes Received:
    0
    Trophy Points:
    15
    I am almost positive it is.

  7. ewitte12

    ewitte12 Notebook Evangelist

    Reputations:
    50
    Messages:
    367
    Likes Received:
    0
    Trophy Points:
    30
    Think its a typo as the OP was talking about R2

  8. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
  9. livid

    livid Notebook Consultant

    Reputations:
    62
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    Even though the HM67 claims to be SATA 6Gbit compliant, the ICH8M-E/ICH9M-E controller is not. I'll have to look into this some more.

  10. KillerBunny

    KillerBunny Notebook Evangelist

    Reputations:
    207
    Messages:
    683
    Likes Received:
    0
    Trophy Points:
    30
    Livid is probably talking about the r2. The r3 is definitely SATA III capable.

  11. ewitte12

    ewitte12 Notebook Evangelist

    Reputations:
    50
    Messages:
    367
    Likes Received:
    0
    Trophy Points:
    30
    Hmm the manual would be lying then it says both ports support 3/6 and isn't port 0 part of SB?

  12. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    yeah its sata 3 for sure

  13. NateN34@gmail.com

    [email protected] Notebook Consultant

    Reputations:
    20
    Messages:
    187
    Likes Received:
    0
    Trophy Points:
    30


    Nah, I think it definitely can.

    Just needs to be plugged into the secondary bay.

  14. livid

    livid Notebook Consultant

    Reputations:
    62
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    F's sake guys, I'm talking about the R3. Stop going off of Dell's supposed specs and look at Intel's.

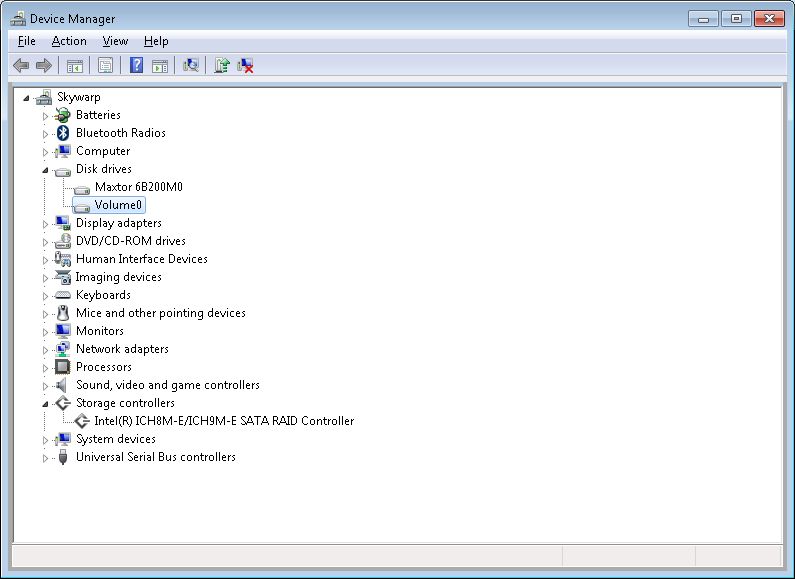

    A look at the Device Manager on my own R3 tells me that I have the older ICH8/ICH9 controller.

    Edit: I just installed Intel's RST 10.6.0 driver, seeing that I was still using the base 8.6.2 driver from Windows 7 SP1. Now to see if I'll be eating my Nike's....


    Attached Files:

  15. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    well thats law suit material for us then, because thats massive miss advertising

  16. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    ???

    secondary being the one that is empty if you only order one hard drive? are you sure about this?

  17. NateN34@gmail.com

    [email protected] Notebook Consultant

    Reputations:
    20
    Messages:
    187
    Likes Received:
    0
    Trophy Points:
    30
    Yeh, the empty bay. This one is faster than the first one.

  18. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    hmmmmm. interesting thanks, do you have a source?

  19. livid

    livid Notebook Consultant

    Reputations:
    62
    Messages:
    284
    Likes Received:
    0
    Trophy Points:
    30
    Apparently the stock driver from Windows 7 sees the controller as being an ICH8/9M-E. Installing Intel's RST Tools corrects this problem. I guess I'll being having Nike's for dinner. :twitchy:

  20. james_2k

    james_2k Notebook Evangelist

    Reputations:
    69
    Messages:
    424
    Likes Received:
    0
    Trophy Points:
    30
    tomato sauce with that? ;)

  21. Cloudfire

    Cloudfire (Really odd person)

    Reputations:
    7,279
    Messages:
    10,304
    Likes Received:
    2,878
    Trophy Points:
    581
    Nevermind. Glad it worked out :)
