    99C on CPU after using ICD 24

    Discussion in 'Alienware 17 and M17x' started by Chaos92, Nov 25, 2011.

  1. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    As the title says, I am getting upto 99C on my CPU after doing a repaste using ICD 24. My gpu temp has decreased though. Earlier it would constantly hit 77C now it hovers around 71C.

    I think I did the paste correctly. I mean, how hard is it.. Just apply a small amount in the center and make sure not to apply too much.

    PROPER PIC-- http://img208.imageshack.us/img208/2724/highcputemp.png
    Any ideas on what to do now?

    Chaos92, Nov 25, 2011
    #1
  2. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Well for the i7, the die is rather long so I would suggest a line method.

    widezu69, Nov 25, 2011
    #2
  3. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Your link is to small to see anything in it.

    DR650SE, Nov 25, 2011
    #3
  4. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    Yeah i used a line method on the cpu..

    Chaos92, Nov 25, 2011
    #4
  5. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    Putting up a better link..

    Chaos92, Nov 25, 2011
    #5
  6. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    also, my max fps on furmark is 20.

    Chaos92, Nov 25, 2011
    #6
  7. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    That's normal, FurMark is very intensive.

    widezu69, Nov 25, 2011
    #7
  8. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    Hmm, so should I do the repaste again?

    I have ordered fujipoly thermal pads for gpu.. Maybe I'll do it when they get here.

    Could there be any other reason other than a bad paste job??


    Btw, dell tech had come to replace my touchpad and for some reason he also removed the heatsink of cpu and gpu.. Only thing is he didnt remove the screws in proper order giving only half a turn each time.. He removed them randomly , one whole screw at a time.. Could that have caused some permanent damage?

    Chaos92, Nov 25, 2011
    #8
  9. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    99c? ya, repaste again.

    Download 2 apps, prime95 and HWINFO64

    Run prime95 8 threads mixed test and monitor your temps with HWINFO64

    my temps after 17 mins with prime95 pushing my CPU 100% is:

    71-73-72-72

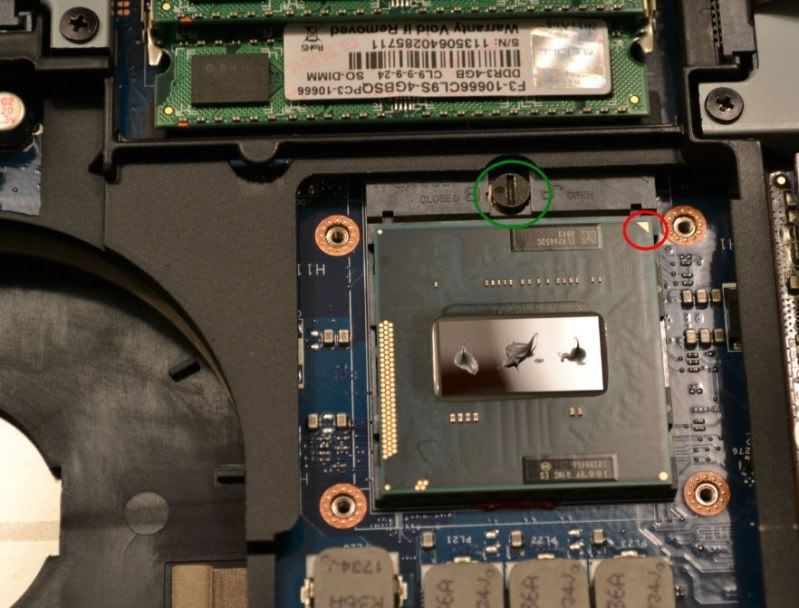

    here is how i applied my PK-1 paste:

    [​IMG]

    SlickDude80, Nov 25, 2011
    #9
  10. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    I don't know, perhaps the tech ruined the screw and it's not holding the heatsink down firmly. Call and complain and you'll probably get a replacement CPU.

    widezu69, Nov 25, 2011
    #10
  11. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    @slickdude- PK 1 not available in India even imported from ebay.Yes I am using prime95 and hwinfo64.

    @widezu- yeah gonna do that i guess..

    Should I go for Arctic Silver MX-4 instead?

    Chaos92, Nov 25, 2011
    #11
  12. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    ALSO...VERY IMPORTANT

    Don't overtighten the screws when you put the heatsink back on. Follow the numbers (1-2-3-4) so that when you put the heatsink, it goes on flat. Do a half turn at each number until all screws are on snug. The idea is similar to how you put a tire back on the car...you want to form a X pattern

    SlickDude80, Nov 25, 2011
    #12
  13. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    i'd go MX-4 if you cant get PK-1

    SlickDude80, Nov 25, 2011
    #13
  14. Chaos92

    Chaos92 Notebook Consultant

    Reputations:
    138
    Messages:
    272
    Likes Received:
    1
    Trophy Points:
    31
    Ok! So am gonna call up Dell and complain.. And order MX 4 and do a repaste too.

    Thanks guys! Once again.

    Chaos92, Nov 25, 2011
    #14
  15. Geekz

    Geekz Notebook Deity

    Reputations:
    613
    Messages:
    974
    Likes Received:
    2
    Trophy Points:
    31
    Chances are the heatsink may not be seated or locked properly or not screwed down enough that air may be getting in between the proc and heatsink.



    Sent from my HTC Vision using Tapatalk

    Geekz, Nov 25, 2011
    #15
