    Alienware 17 R1 No Power No Light On Power Button

    Discussion in 'Alienware 17 and M17x' started by Baqir, Mar 31, 2020.

  1. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    Hello,again everyone i know i have posted alot of problem. I was changing power button cable and keyboard cable then i tried turning on laptop its not working i have chekced multiple times the wires are connected properly and power jack seems fine after testing so what could be the problem.

    Baqir, Mar 31, 2020
    #1
  2. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Was it working before you changed both cables?

    senso, Mar 31, 2020
    #2
  3. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    Yes it was i tried with old cables it doesn't work now

    Baqir, Mar 31, 2020
    #3
  4. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Did you do the replacement of parts with the battery removed and no charger connected to the laptop?

    Have you already removed the CMOS battery, laptop battery and charger and let it sit a bit and then try to power it up using AC only?

    senso, Mar 31, 2020
    #4
  5. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    Actually i don't have a battery of course i removed everything else but don't know what happened there.

    Baqir, Mar 31, 2020
    #5
  6. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Can you post photos?
    Maybe something not well seated, or upside down.

    senso, Mar 31, 2020
    #6
  7. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    It gave power for 5 seconds then it went off.

    Baqir, Mar 31, 2020
    #7
  8. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    5 Beeps is the CMOS battery. Just make sure that it's seated properly. Sometimes just restarting it a few times will get rid of this error.

    Maxware79, Mar 31, 2020
    #8
  9. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    I don't have 5 beeps it doesn't start after pressing power button.

    Baqir, Mar 31, 2020
    #9
  10. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    Oh sorry, I read it wrong.

    It's possible that you damaged the ribbon cables. They are quite fragile so take them out and check the ends that go into the connectors. If any of the gold tips are damaged then it could be causing your issue

    Maxware79, Mar 31, 2020
    #10
  11. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    I did check they are fine as new just got them today 2 pairs but same issue no power

    Baqir, Mar 31, 2020
    #11
  12. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31

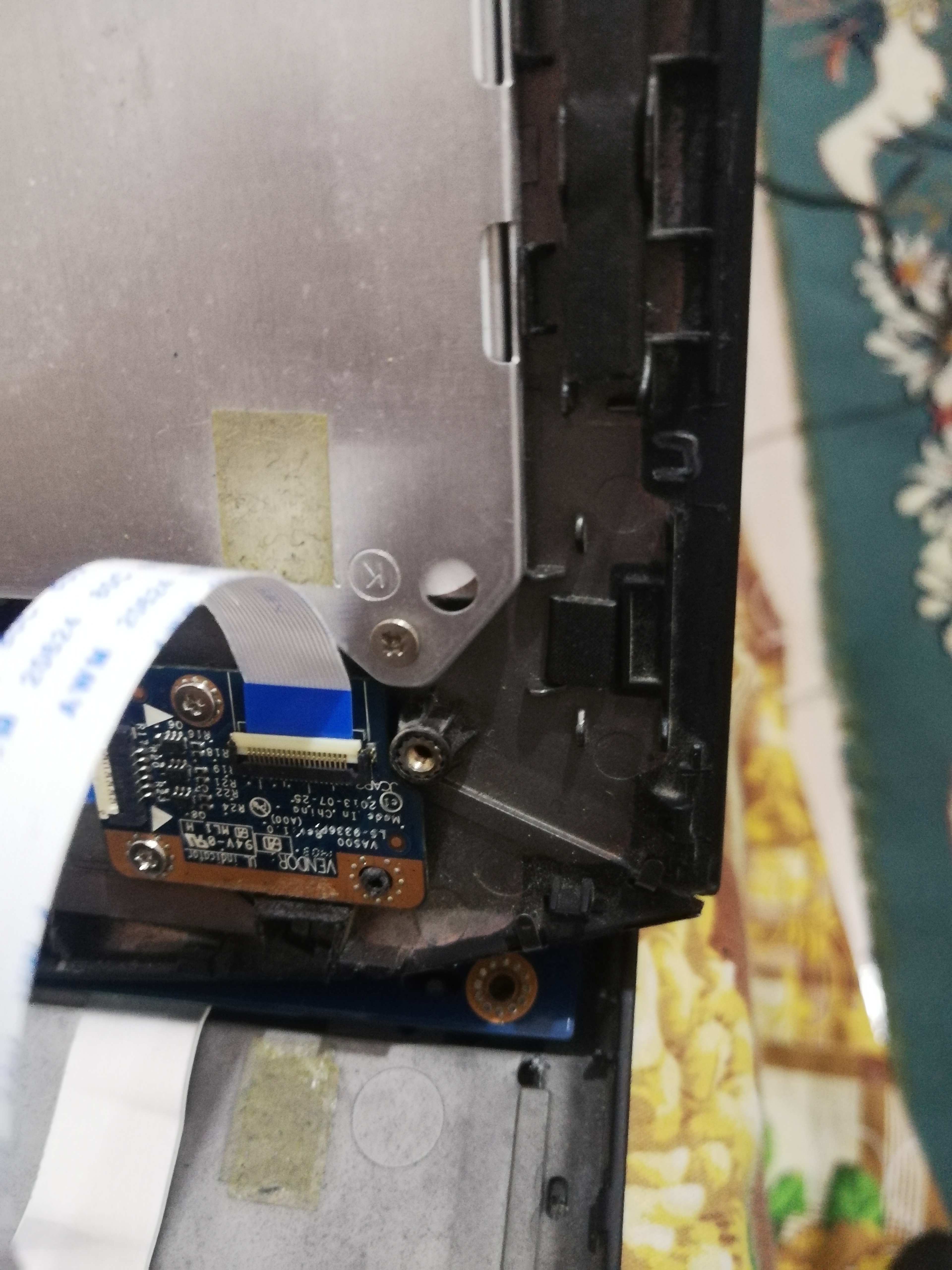

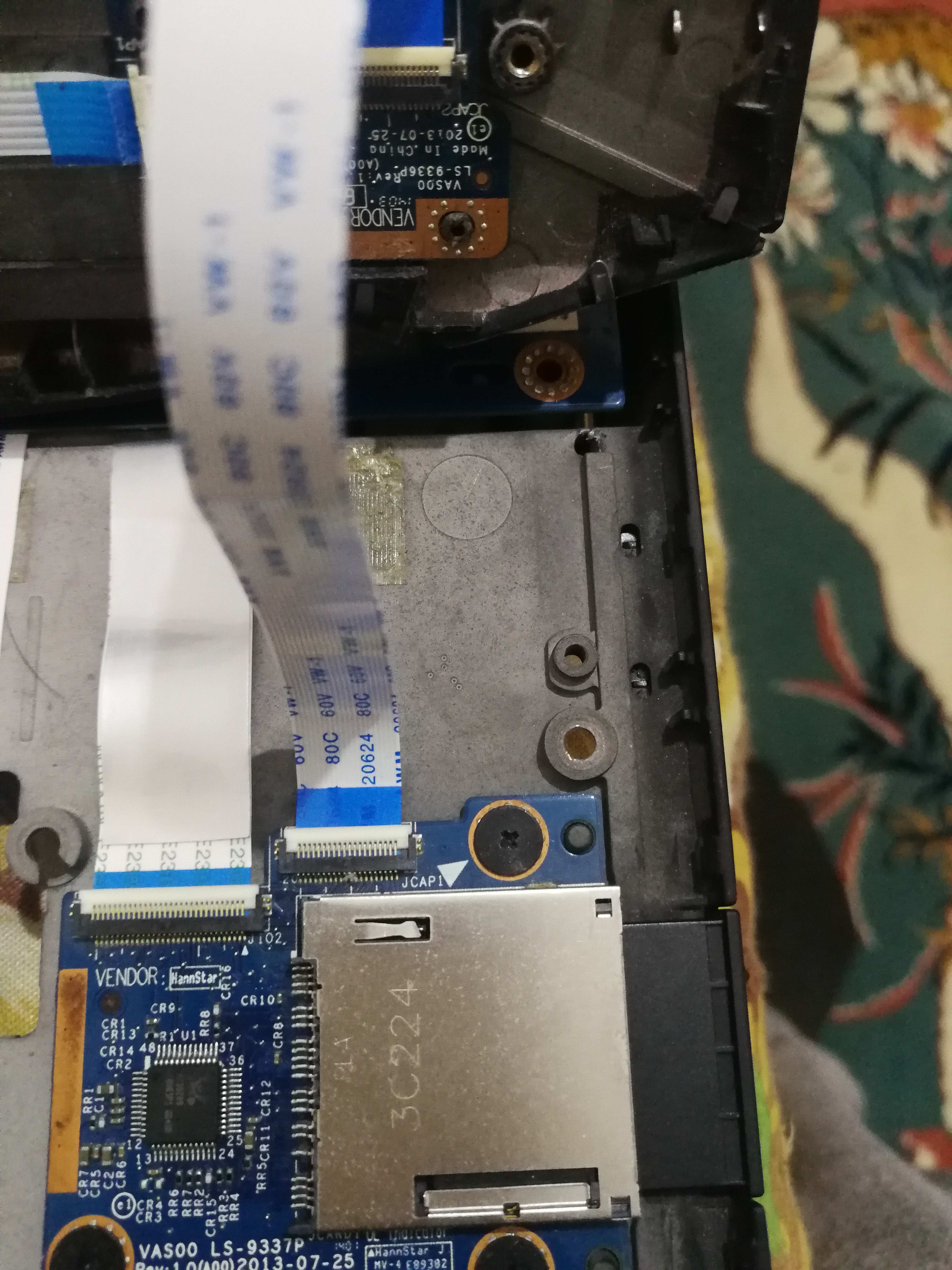

    Attached Files:

    Baqir, Mar 31, 2020
    #12
  13. Baqir

    Baqir Notebook Evangelist

    Reputations:
    0
    Messages:
    318
    Likes Received:
    24
    Trophy Points:
    31
    turns out that the motherboard has a short circuit that also fried some part of keyboard so i had to replace motherboard again

    Baqir, Apr 7, 2020
    #13
