Alienware M17xR3 GPU Upgrade

I apologize in advance for my english
if hildren parts suitable for m17x-R3
BiosA12Unlocked SATA
power supply 240W
GPUat the moment GTX460M

serious doubts about the heatsink radiator ,
this seller information
DELL Original Part # MT1DN
Replacement 100W Graphics Card Heat Sink For Alienware M17x R3 And R4 Model Laptops

If this is really suits for R3?

read a lot about that but perhaps missed some pitfalls. thanks in advance

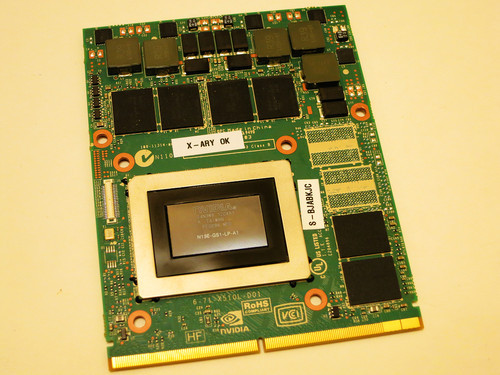

NVIDIA GeForce GTX 670M GDDR5 MXM 3.0 Graphics Card N13E-GS1-LP-A1


Alienware Nvidia Video Graphic Card M17x R3 R4 Heat Sink 100W 580M 675M GTX580m



Hi, that heatsink looks fine - even has the pads/paste/putty in place (in the pics!) but there may be some slight differences between the heatsinks for diferent cards. You must get the x-bracket with the new card as this is matched to the height of the core.

I would look for a 580m if you can afford it - better performance and you won't have to work at getting the driver to install. If dell did not supply a model with a specific card you want to use then driver modding is usually required. Not too difficult but can be avoided



thanks for the reply
compatibility problem known from here
gtx 580m be established in the future,for it takes 100W heat sink

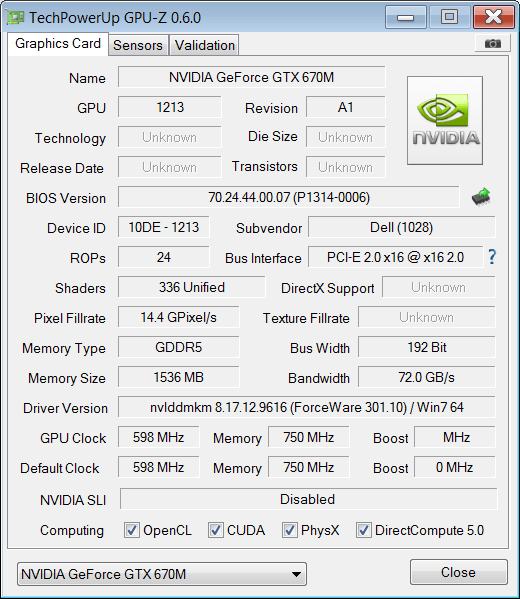

was reached as version 70.24.44.00.07?
this factory firmware VBIOS version?
