    Are these GPU clocks correct? pics included

    Discussion in 'Alienware 17 and M17x' started by insertcreativity, Jan 9, 2012.

  1. insertcreativity

    insertcreativity Notebook Guru

    Reputations:
    1
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    15
    I'm not sure but this doesn't seem right to me. I don't think gaming performance is that bad, 100-160 fps in Cod5 max settings but 30-40 fps max settings GTA 4.

    EDIT: I am using regular A08 bios which I was told downclocks the system. This is why I posted this mainly for conformation. Thanks again guys!

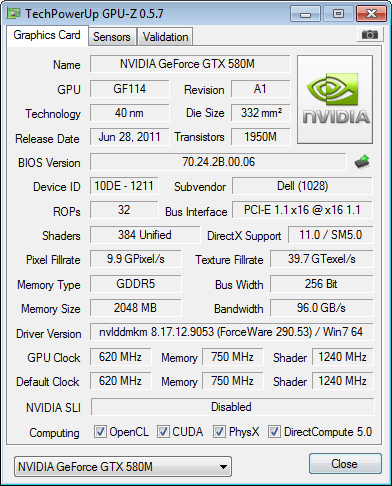

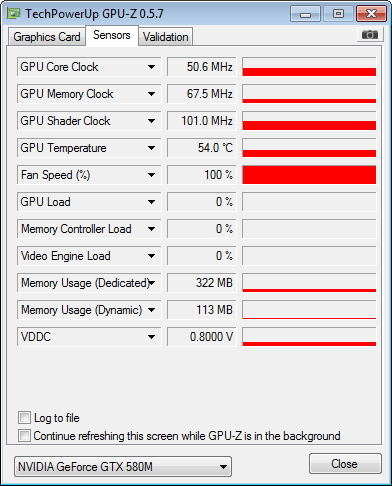

    Here are pics:

    [​IMG]

    [​IMG]

    insertcreativity, Jan 9, 2012
    #1
  2. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    yeah they are

    maxheap, Jan 9, 2012
    #2
  3. insertcreativity

    insertcreativity Notebook Guru

    Reputations:
    1
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    15
    Alright thank you! Does this mean I am not being underclocked at all by A08 bios? Just wondering thank you again.

    insertcreativity, Jan 9, 2012
    #3
  4. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    Have no idea if A08 downclocks the system, I am also using A08, I guess even widezu is using A08 (but unlocked :))

    maxheap, Jan 9, 2012
    #4
  5. ryan_calif

    ryan_calif Notebook Consultant

    Reputations:
    0
    Messages:
    120
    Likes Received:
    0
    Trophy Points:
    30
    Those look like idle clock freq's. That's normal.

    Once optimus detects a full-screen game running, it should step the clock rates up to regular freq's. You can check this on the fly with an application like MSI afterburner using on-screen display.

    ryan_calif, Jan 10, 2012
    #5
  6. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    I don't think they are related to optimus directly, they are the current frequencies of GPU, so if it is not using it will show 50ish, if it is using it will show somewhere 600ish (core clock speaking)

    maxheap, Jan 10, 2012
    #6
  7. ryan_calif

    ryan_calif Notebook Consultant

    Reputations:
    0
    Messages:
    120
    Likes Received:
    0
    Trophy Points:
    30
    Good point. I wonder if changing the "power management" option in the nvidia control panel from adaptive to high performance would have any effect.

    ryan_calif, Jan 10, 2012
    #7
  8. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
    Those are stock clocks for the 580M, with the GPU-Z Sensors tab reflecting that the card was in idle state (P12).

    [​IMG]

    The Revelator, Jan 10, 2012
    #8
