    Checking MY GPU Details?

    Discussion in 'Alienware 17 and M17x' started by terrin11391, Sep 29, 2011.

  1. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Hi guys, so i've recently got my M17x r3
    and so far, im in love with it.
    But somehow i got a question about my GPU.
    coz i ordered a 6990M version of it. im new to Window 7 and display card stuff

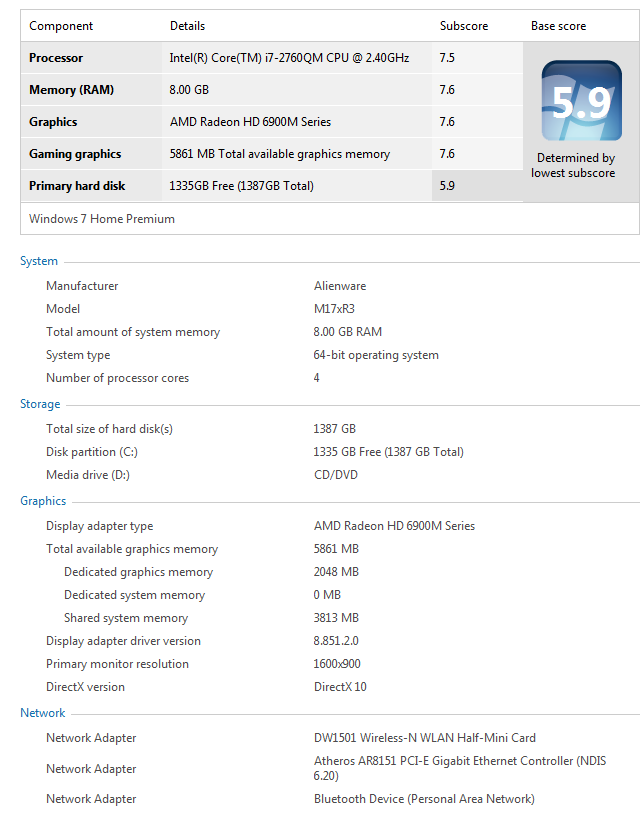

    so when i check with my window index status i got this

    [​IMG]

    The img above show my GPU as 6900 Series
    I am not sure if either which 6900 card it is using currently
    so this is the question.
    Is it currently running as 6990M but it only shows as 6900 Series?
    Hmm Will i be able to check Which 6900m Series card im using now?

    Becoz if i hv data backed up, i can call Dell 24/7 and ask their Tech Guy to come to my home and switch it for me, Since i hv the order list right here.

    Thank you Guys~

    terrin11391, Sep 29, 2011
    #1
  2. TurbodTalon

    TurbodTalon Notebook Virtuoso

    Reputations:
    1,392
    Messages:
    3,147
    Likes Received:
    158
    Trophy Points:
    131
    HWInfo tells me that I have a 5870 specifically. Everything else I use says '5800' series as well. Give that a try.

    TurbodTalon, Sep 29, 2011
    #2
  3. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thx for replying :)
    but what is HWInfo? a online detail website?
    thx

    terrin11391, Sep 29, 2011
    #3
  4. TurbodTalon

    TurbodTalon Notebook Virtuoso

    Reputations:
    1,392
    Messages:
    3,147
    Likes Received:
    158
    Trophy Points:
    131
    It is a temperature monitoring program. Free download, just search for it on the web.

    TurbodTalon, Sep 29, 2011
    #4
  5. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15

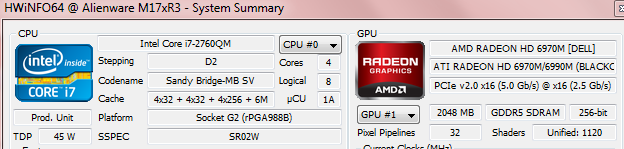

    Just download and checked
    i got this result
    does this mean i hv 6970 or 6990??
    [​IMG]

    Thx :)

    terrin11391, Sep 29, 2011
    #5
  6. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Use GPU-Z. If your GPU clocks are 715/900 with 1120 unified shaders than you have a 6990M. If the clocks are 680/900, with 960 unified shaders, than you have a 6970M.

    DR650SE, Sep 29, 2011
    #6
  7. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thx for replying~
    Does that mean i dun own a 6990M Display card but a 6970?
    Plz answer me @@ Coz if that so i will contact Dell directly

    terrin11391, Sep 29, 2011
    #7
  8. TurbodTalon

    TurbodTalon Notebook Virtuoso

    Reputations:
    1,392
    Messages:
    3,147
    Likes Received:
    158
    Trophy Points:
    131
    Download GPUz and see what it says under 'shaders'.


    Attached Files:

    TurbodTalon, Sep 29, 2011
    #8
  9. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15

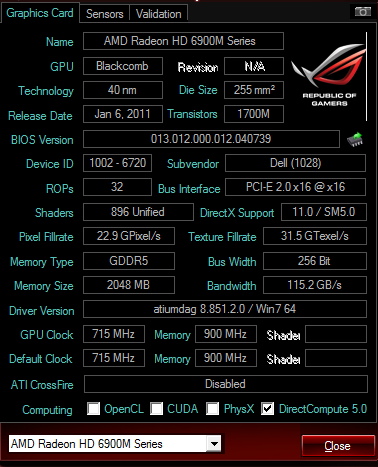

    IT said

    [​IMG]

    oH God... I hv 6970m????
    :(

    terrin11391, Sep 29, 2011
    #9
  10. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    A lot of people have reported their 6990m's showing as 6970m's. It's normal. As long as your GPU-z reading are 1120 shaders and 715/900 clocks.

    Make sure you install the ordinary version, not the ROG version. The ROG version, which is the one you have reads the shaders wrong. Looks like you do have a 6990m from the clock speeds :)

    widezu69, Sep 29, 2011
    #10
  11. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    It is when i use HWinfo, and it said....
    Video Chipset as ATI RADEON HD 6970M/6990M (BLACKCOMB XT/XTX/PRO)
    Video Card as AMD Radeon HD 6970M [Dell]
    Should i contact the stuff direct and ask what's going on@@?

    terrin11391, Sep 29, 2011
    #11
  12. Harryboiyeye

    Harryboiyeye Notebook Deity

    Reputations:
    216
    Messages:
    718
    Likes Received:
    36
    Trophy Points:
    41
    In your HwInfo Picture it showed 1120 Unified Shaders, in your GPUz it shows lower because you are using the RoG version of GPUz which does not read shader numbers correctly.

    You have the 6990M.

    Harryboiyeye, Sep 29, 2011
    #12
  13. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
    That's a 6990M. All versions of GPU-Z 0.5.5 return the reduced number of unified shaders for the 6970M and 6990M. This is what my 6990M looks like in the current version of GPU-Z. Exactly like yours. Chill out. :D

    [​IMG]​

    The Revelator, Sep 29, 2011
    #13
  14. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    like others have said...you have a 6990m based on the 1120 shader count

    SlickDude80, Sep 29, 2011
    #14
  15. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    the weird thing is that mine shows correctly in .5.5...that is, 1120 shaders and 715/900. I'll post a pic up later tonight

    SlickDude80, Sep 29, 2011
    #15
  16. terrin11391

    terrin11391 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Thxall!!
    Im very greatful for all of your replys, and comments
    i've contact Dell lastnight *24 Hrs Hotline @@
    and using Dell Connect - Online Laptop Linkage and found out that i hv 6990m
    he helped me to download the driver on dell web for 6990m and it has no problem at all.

    Then the problem is, he assume that the display error on the data.

    Thx guys

    terrin11391, Sep 30, 2011
    #16
  17. Megatony73

    Megatony73 Notebook Consultant

    Reputations:
    37
    Messages:
    298
    Likes Received:
    1
    Trophy Points:
    30
    Has there been a confirmed case of the dummies at dell actually putting the wrong card in a laptop someone ordered?

    This seems unlikely to me for some reason...seems like they wouldnt screw that up. I am not sure why, as they can sure screw up alot of things...

    Megatony73, Sep 30, 2011
    #17
