    Cpu crappin' out

    Discussion in 'Alienware 17 and M17x' started by wolfman2585, Jan 21, 2012.

  1. wolfman2585

    wolfman2585 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    0
    I have an ES 2960XM. I don't know if it's on it's way out or what. When I bench at stock multi's of 37,36,34,34 I get better scores than when i crank it up to 45x4. 40x4 is the point when if I go over that the performance drops way off.I have repasted with MX4 and checked that the cpu was seated properly and tightned the screws 2 turns at a time. Any help?

    wolfman2585, Jan 21, 2012
    #1
  2. YodaGoneMad

    YodaGoneMad Notebook Deity

    Reputations:
    555
    Messages:
    1,382
    Likes Received:
    12
    Trophy Points:
    56
    At the higher speeds you might be exceeding the max on your power supply. Keep in mind that processor eats 100 watts alone, and depending on GPU and settings that will eat 100-150 watts. You only have 240 watts total.

    YodaGoneMad, Jan 21, 2012
    #2
  3. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    In your bios change PriPlane to 900 (core current limit to 125A on Intel XTU) and Flex to 5. You have to keep your temps in check otherwise it'll throttle

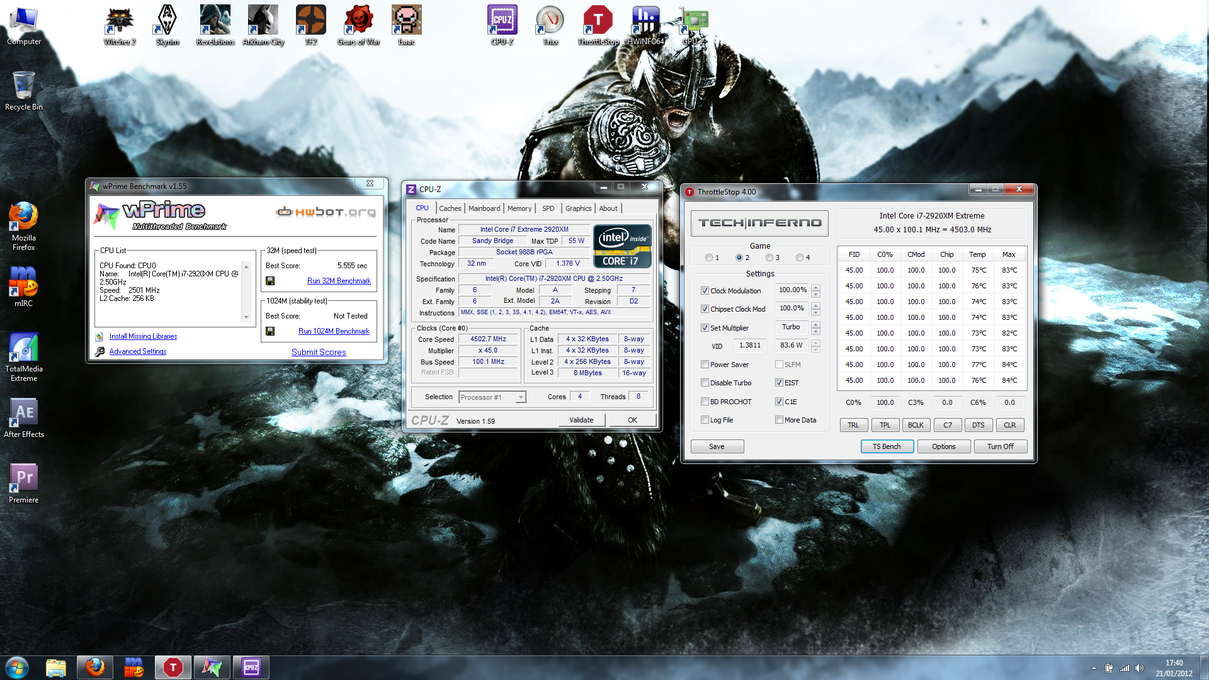

    I'm on 4.5Ghz atm and it's pretty damn fast... 5.555 seconds for 32M test in wPrime 1.55

    Check this out:

    :D

    GeoCake, Jan 21, 2012
    #3
  4. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
    Your problem is probably either insufficient TDP to support the higher multipliers and/or insufficient current (Amps). Try setting TDP (Long Duration Power Limit and Short Term Power Limit) to 85W and Package Current Limit to 110A (i.e., set Primary Plane to 880). That should give you enough headroom to play at the top end. Also keep an eye on temps.

    @GeoCake -- Nice. What kind of cooling are you using? What CPU temps are you seeing in Vantage at 42X or above?

    The Revelator, Jan 21, 2012
    #4
  5. wolfman2585

    wolfman2585 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    0
    GeoCake you mean .0125A?

    wolfman2585, Jan 21, 2012
    #5
  6. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Nope, 110 like Revelator said or 125.. 110 is enough for 44x

    Stock, I would sit outside but it's not 0C or minus yet :( And pretty much low 90s (says TS, but Hwinfo says very high 80s) at 44x

    45x run I got a BSOD on the second vantage cpu test ;-;

    GeoCake, Jan 21, 2012
    #6
  7. wolfman2585

    wolfman2585 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    0
    Where is the Flex setting?

    wolfman2585, Jan 21, 2012
    #7
  8. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Don't mess with that just yet. It's somewhere in performance options..

    110A is enough for 44x

    GeoCake, Jan 21, 2012
    #8
