    DC Port Issue

    Discussion in 'Alienware 17 and M17x' started by yogesh12, Feb 15, 2017.

  1. yogesh12

    yogesh12 Notebook Consultant

    Reputations:
    0
    Messages:
    105
    Likes Received:
    1
    Trophy Points:
    31
    Hi.

    So far i never had issues. Lately my lap doesnt recognizes my 240w adapter unless i plug it in different direction. It does moves up and down easily.

    I hope you guys got it. DC Port does moves if i shake my Ac Adapter pin. Do you think i need to replace my DC Port or its apadpter issue?

    yogesh12, Feb 15, 2017
    #1
  2. Spunky424

    Spunky424 Notebook Consultant

    Reputations:
    14
    Messages:
    228
    Likes Received:
    11
    Trophy Points:
    31
    that is the common sign that the port needs to be replaced, BUT also check the power supply male adapter portion as mine just went bad on my 240w power supply. i changed the laptop power port twice to realize it wasnt the power port but the power supply.

    Spunky424, Feb 17, 2017
    #2
  3. kosti

    kosti Notebook Virtuoso

    Reputations:
    596
    Messages:
    2,162
    Likes Received:
    466
    Trophy Points:
    101
    If it still delivers power but the BIOS throws you adapter warnings, chances are the center pin is damaged, either on the adapter or the jack in the laptop.

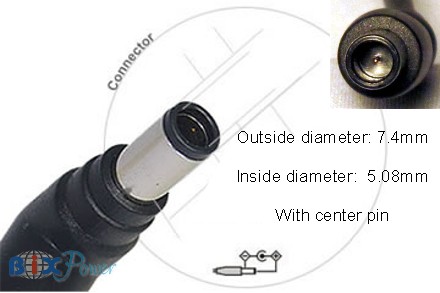

    The pic below shows the plug. The outer barrel is negative, the inner sleeve of the barrel is positive and the center pin is used to communicate data between the adapter and the BIOS.

    [​IMG]

    kosti, Feb 17, 2017
    #3
  4. yogesh12

    yogesh12 Notebook Consultant

    Reputations:
    0
    Messages:
    105
    Likes Received:
    1
    Trophy Points:
    31
    I tried plug and twist the cable in few direction and it works. Confused! Any Suggestion on this?

    yogesh12, Feb 17, 2017
    #4
  5. yogesh12

    yogesh12 Notebook Consultant

    Reputations:
    0
    Messages:
    105
    Likes Received:
    1
    Trophy Points:
    31
    Hi All.

    This Turned out to be Adapter issue. I got it fixed by replacing adapter.

    Thanks all!! Love you Guys!!!!!

    Last edited: Mar 6, 2017
    yogesh12, Mar 5, 2017
    #5
    MogRules likes this.
  6. yogesh12

    yogesh12 Notebook Consultant

    Reputations:
    0
    Messages:
    105
    Likes Received:
    1
    Trophy Points:
    31
    Is there any way to determine what kind of processors i can upgrade on my lap and ram?

    yogesh12, Mar 6, 2017
    #6
  7. MahmoudDewy

    MahmoudDewy Gaming Laptops Master Race!

    Reputations:
    474
    Messages:
    1,654
    Likes Received:
    744
    Trophy Points:
    131
    Based on the machine in your signature you can upgrade to the following: 4900MQ, 4910MQ, 4930MX or 4940MX with a maximum of 32 gigs of DDR3 1600.

    Also, note that you have 4800MQ not MX as there is no processor called 4800MX.

    MahmoudDewy, Mar 6, 2017
    #7
