    Dual Intel 330 SSD installed in M17XR3 and both running in SATA 2 at 3Gb/s. Looking for the best way to obtain SATA 3 speeds !

    Discussion in 'Alienware 17 and M17x' started by STARION6, Nov 24, 2012.

  1. STARION6

    STARION6 Notebook Geek

    Reputations:
    2
    Messages:
    78
    Likes Received:
    27
    Trophy Points:
    26

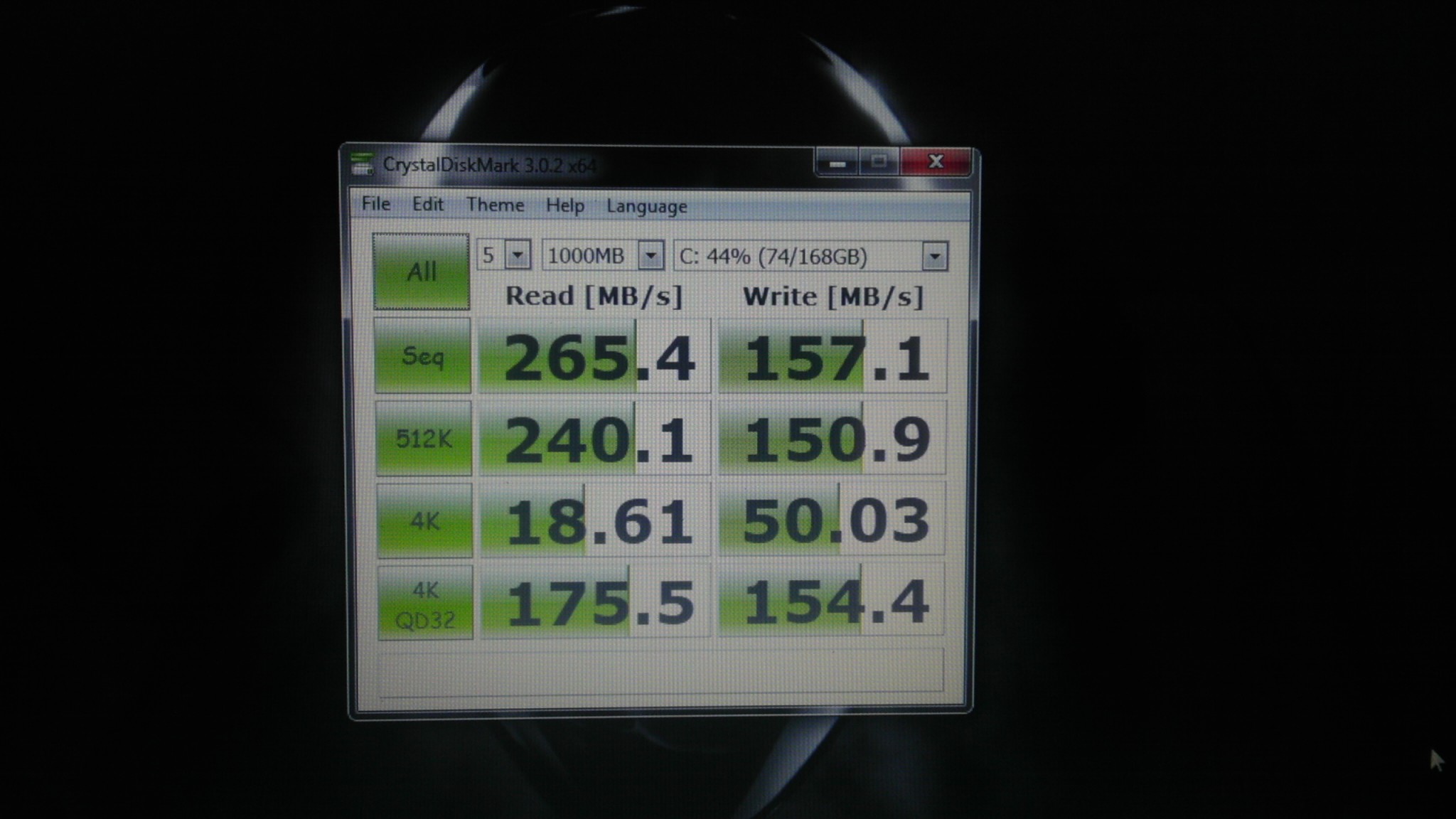

    Hey guys, I just know that more then a few m17xr3 owners have had to deal with this issue! I already gave up my raid 0 set up and now I can't get sata 3 on port 0 or port 1. I really do not want to flash back to bios A08. I would appreciate any advice on the best solution to this problem. I would at least want 6Gb/s on my boot SSD. Here my most current CrystalDiskmark score!


    Attached Files:

    STARION6, Nov 24, 2012
    #1
  2. vic_doom69

    vic_doom69 Notebook Consultant

    Reputations:
    87
    Messages:
    248
    Likes Received:
    0
    Trophy Points:
    30
    there is only one sata 3 port. the other is sata 2. there is an unlocked latest bios that will make sata behave like a08

    Downloads

    all credit there goes to svl7

    vic_doom69, Nov 24, 2012
    #2
  3. STARION6

    STARION6 Notebook Geek

    Reputations:
    2
    Messages:
    78
    Likes Received:
    27
    Trophy Points:
    26
    Thanks for the reply. I am not sure what an unlocked bios is or where to get it or how risky they are. At this point I will be glad to get sata 3 on just one port for my boot ssd!

    STARION6, Nov 24, 2012
    #3
  4. vic_doom69

    vic_doom69 Notebook Consultant

    Reputations:
    87
    Messages:
    248
    Likes Received:
    0
    Trophy Points:
    30
    i edited my post above ^
    installing it is easy just double click the installer

    vic_doom69, Nov 24, 2012
    #4
  5. STARION6

    STARION6 Notebook Geek

    Reputations:
    2
    Messages:
    78
    Likes Received:
    27
    Trophy Points:
    26
    Thank you! I will try flashing A12 unlocked and post the results!

    STARION6, Nov 24, 2012
    #5
  6. bigtonyman

    bigtonyman Desktop Powa!!!

    Reputations:
    2,377
    Messages:
    5,040
    Likes Received:
    277
    Trophy Points:
    251
    should fix your issue, that's what I got running on my system right now with SATA III speeds on my Crucial M4. ;)

    bigtonyman, Nov 25, 2012
    #6
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    I just wish intel would stop this nonsense of only 2 SATA III ports. :/

    Meaker@Sager, Nov 25, 2012
    #7
  8. STARION6

    STARION6 Notebook Geek

    Reputations:
    2
    Messages:
    78
    Likes Received:
    27
    Trophy Points:
    26
    Well, I did the following: Flashed A08 and the RTS did show 6Gb/s. However benchmark scores improved marginally. So I set bios to AHCI and reinstalled. Windows, all drivers, and all updates. Scores improved but still not outstanding. I guess 180 GB just to small to get high benchmark scores. Will wait for prices to come down a bit more and grab a Samsung 840 pro 256gbs.

    STARION6, Nov 25, 2012
    #8
  9. MickyD1234

    MickyD1234 Notebook Prophet

    Reputations:
    3,159
    Messages:
    6,473
    Likes Received:
    1,165
    Trophy Points:
    331
    They did! :) The ivy bridge chipset on the R4 has 6 available. dell chose to use 4 of them for the fast-usb ports (R3 only has 2) and the remaining 2 on the drive bays. this is why the mSata port is only sata 2.

    MickyD1234, Nov 26, 2012
    #9
