    GPU Repasted...Questions

    Discussion in 'Alienware 17 and M17x' started by nayilalien, Jan 9, 2012.

  1. nayilalien

    nayilalien Notebook Evangelist

    Reputations:
    125
    Messages:
    472
    Likes Received:
    0
    Trophy Points:
    30
    Max TS2 shader goes to 82.5 deg C. I've seen 89 deg C before (on stock paste).

    I used prolimatech PK-1, now did I do something wrong or is this the best a repaste can do?

    GPU z max on GPU 3 (GPU 3 is what gets the hottest) shows 75 deg C.

    So again, did I miss something?

    is there a burn in period?

    nayilalien, Jan 9, 2012
    #1
  2. CptXabaras

    CptXabaras Overclocked, Overvolted, Liquid Cooled

    Reputations:
    1,024
    Messages:
    1,335
    Likes Received:
    236
    Trophy Points:
    81
    I'm running my cards with MX-4 my temps top @ 74 degrees across all temp sensors but the shader one that usually is 4 - 5 degrees higher than the others, sometimes less, it depends by the game. Both cards the same

    CptXabaras, Jan 9, 2012
    #2
  3. zoolian982

    zoolian982 Notebook Deity

    Reputations:
    143
    Messages:
    883
    Likes Received:
    1
    Trophy Points:
    30
    Could you tell us the method of placement of the paste?

    zoolian982, Jan 9, 2012
    #3
  4. nayilalien

    nayilalien Notebook Evangelist

    Reputations:
    125
    Messages:
    472
    Likes Received:
    0
    Trophy Points:
    30
    rice bead like size at the center...and I just slapped the heat sink on.
    I did clean everything before reapplying.

    nayilalien, Jan 9, 2012
    #4
  5. Serephucus

    Serephucus Notebook Deity

    Reputations:
    205
    Messages:
    1,002
    Likes Received:
    6
    Trophy Points:
    56
    Then you did it right. You could look into a better paste - IC Diamond or something - but you're only going to see, maybe, a 2°C improvement.

    Serephucus, Jan 9, 2012
    #5
  6. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Paste doesn't affect memory temps or shader temps, that's what thermal pads are for..

    (I think, correct me if I'm wrong)

    GeoCake, Jan 9, 2012
    #6
  7. CptXabaras

    CptXabaras Overclocked, Overvolted, Liquid Cooled

    Reputations:
    1,024
    Messages:
    1,335
    Likes Received:
    236
    Trophy Points:
    81
    wrong :)

    Mem IO and Shader sensors are on die not on the memory modules, so yes, paste will effect them ;)

    CptXabaras, Jan 9, 2012
    #7
  8. xeroxide

    xeroxide Notebook Deity

    Reputations:
    487
    Messages:
    1,390
    Likes Received:
    1
    Trophy Points:
    56
    yeah memio refers to the memory controller i think, which is on the chip itself.

    shader and memio temps tend to be the hottest (at least for me) by around 5*C or so

    xeroxide, Jan 9, 2012
    #8
  9. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    PK1 is better than ICD7. Its the paste that I recommend when asked

    in fact avoid ICD7 on lidless CPUs and GPUs (like our laptop chips) because the diamond particles in it will severely polish the copper heatsink contact and potentially scratch the lidless dies. ICD7 is more meant for desktop CPU's that have metal lids on the dies


    There isn't really a burn in period with PK1...you might drop a few degrees, but it isn't much.

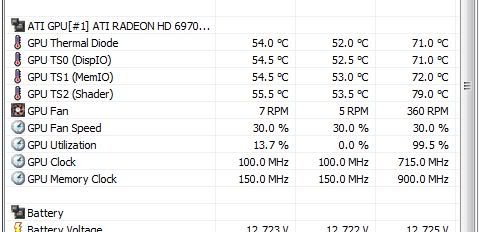

    To compare, here are my GPu temps after i repasted the GPU. This is during a Vantage run. This is with a 6990 so it is a close comparison but not an apples to apples

    [​IMG]

    SlickDude80, Jan 9, 2012
    #9
  10. nayilalien

    nayilalien Notebook Evangelist

    Reputations:
    125
    Messages:
    472
    Likes Received:
    0
    Trophy Points:
    30
    perfect Slick!!! I played battlefield for an hour last night and my temps look like the temps you displayed!!

    usually the TS2 shader MAX would go up to 84.5 deg C with an hour or more of battlefield 3 (on stock paste).

    :D

    I did it right.

    nayilalien, Jan 9, 2012
    #10
  11. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    perfect info from slick again :) congratz man, 15C drop in temp is great achievement, also consider book-mod, drops the temps a further 10C for me, BF3 max is 65 right now with the book-mod :)

    maxheap, Jan 9, 2012
    #11
