    GTX 560m disappeared from my system

    Discussion in 'Alienware 17 and M17x' started by ElSerch, Jan 23, 2014.

  1. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    I just did a fresh install of OS7, and use all the current drivers available on dell support for my specific unit tag.
    But the video card is disappearing from my system. I have to reinstall the OS, I have using this version of driver: 332.21-notebook-win8-win7-64bit-international.
    Every time the display adapter disappear, i have to remove all the drivers using DriverSweeper.
    But the issue keep doing the same thing.

    I am not sure what I did wrong
    I use this post to load the drivers: http://forum.notebookreview.com/ali...install-ssd-instructions-recommendations.html
    and of course i am using the drivers for my current unit
    any ideas?

  2. Hackintoshihope

    Hackintoshihope AlienMeetsApple

    Reputations:
    308
    Messages:
    1,042
    Likes Received:
    227
    Trophy Points:
    81
    When it disappears does it vanish from bios as well? Also this sounds like a failing video card.

  3. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    Not from the bios, because if I go on safe mode, I am be able to see the display adapter as GTX 560, but not on normal mode.

  4. Alienware-L_Porras

    Alienware-L_Porras Company Representative

    Reputations:
    3,658
    Messages:
    6,874
    Likes Received:
    969
    Trophy Points:
    281
    Are you using the DELL version of the drivers for the Intel and nvidia cards?

  5. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    Nop, the currente dell version is: v.269.03, A01, I decide to use upgraded version: 314.22-notebook-win8-win7-64bit-international. I was using this version for long time, before to upgrade my SSD, that I did on the 2-3 past days

  6. Hackintoshihope

    Hackintoshihope AlienMeetsApple

    Reputations:
    308
    Messages:
    1,042
    Likes Received:
    227
    Trophy Points:
    81
    Does it work with the Dell version? If you install it.

  7. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    I will try tonight, I will remove and install the oficial dell version.

  8. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    I still with same issue, my video card is not visible in the system.
    I am already did 3 clean installation, I am using all the valid drivers for my current unit tag.
    Al this issue start after I try to install a new SSD. Any ideas?
    I am attaching pics of the screen with the last 4 events, the last event was with the installation of the video card driver

    Regards

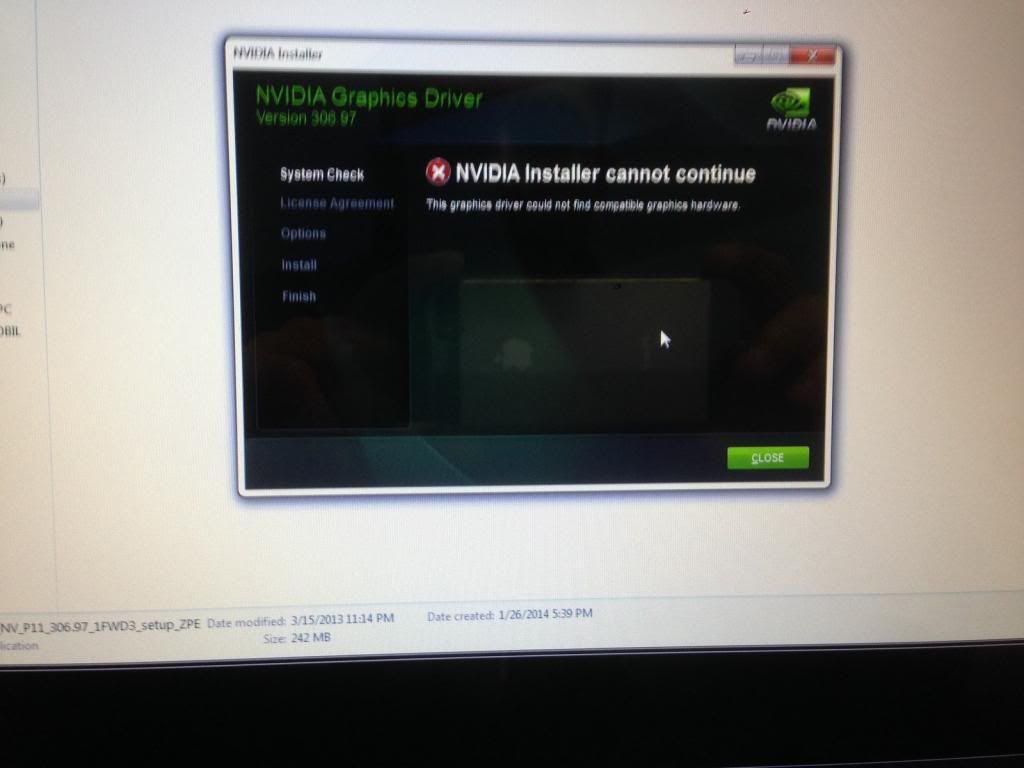

    Video Card installation

    [​IMG]

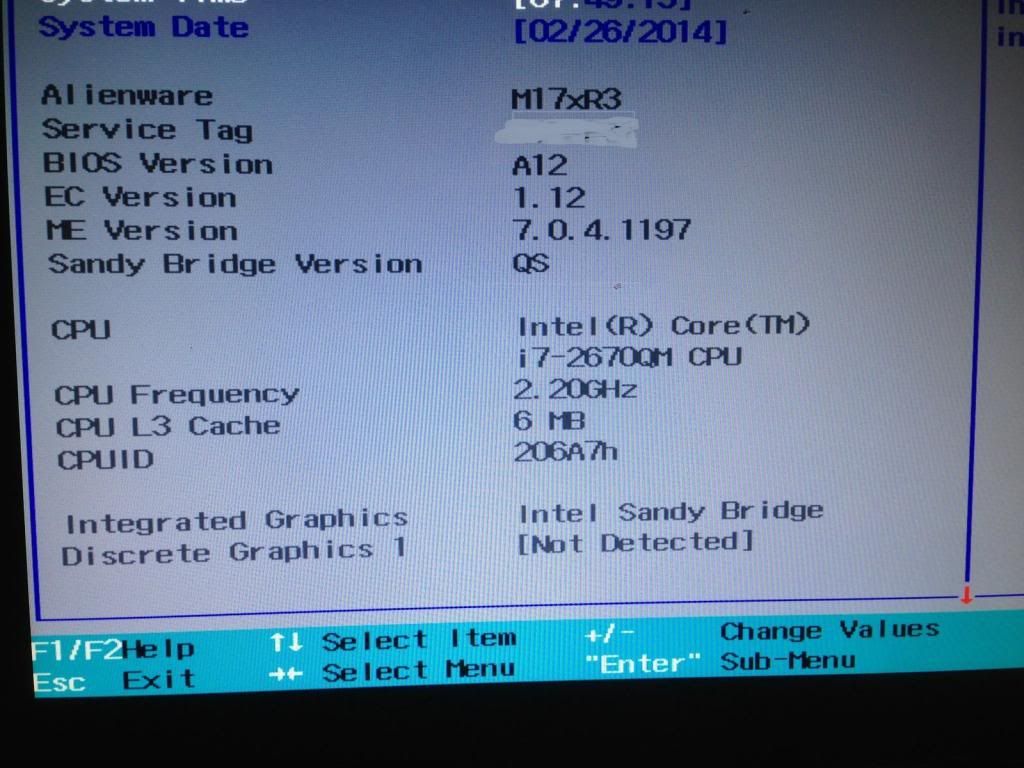

    Video Card is not visible in the bios
    [​IMG]

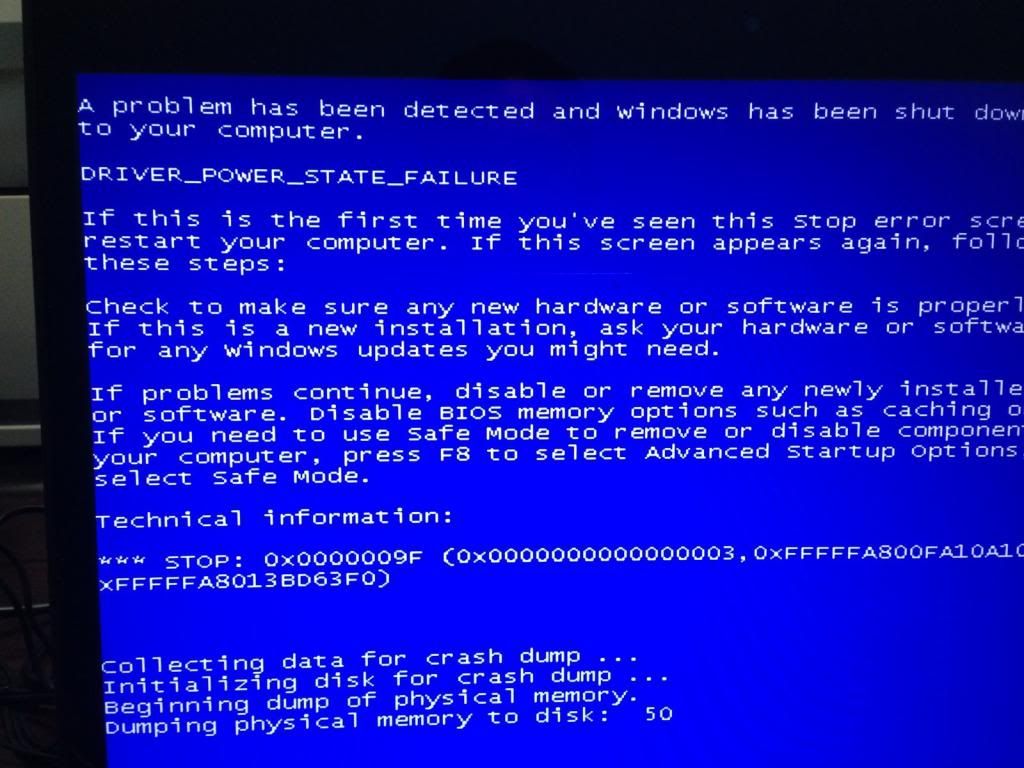

    Blue Screen 1
    [​IMG]

    Blue Screen 2
    [​IMG]

  9. MickyD1234

    MickyD1234 Notebook Prophet

    Reputations:
    3,159
    Messages:
    6,473
    Likes Received:
    1,165
    Trophy Points:
    331
    In safe mode the card is running in VGA compatibility mode so is way less stressed.

    What does device manager say is installed when the error happens?

    I'd try removing it altogether and making sure it all runs fine. Putting it back might make a better connection if that is all the problem is.

    Otherwise it does sound like a card going bad :(

    Robbo99999 likes this.
  10. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    Well last night I went in safe mode and the system does not show the discret video card option

    nothing, just the Intel display adapter

    I will try to open and remove the video cards and clean up and see what happen after

    Regards

    MickyD1234 likes this.
  11. MickyD1234

    MickyD1234 Notebook Prophet

    Reputations:
    3,159
    Messages:
    6,473
    Likes Received:
    1,165
    Trophy Points:
    331
    Cool, it's quite straightforward. Just three screws to pop the fan and another two to release the card and heatsink as a single unit :D.

    Good luck.

  12. ElSerch

    ElSerch Notebook Consultant

    Reputations:
    18
    Messages:
    125
    Likes Received:
    2
    Trophy Points:
    31
    I did, I removed the back cover and I pull out the card, i cleaned using a small brush and I put back. Now seems that is working fine. I install the lattes oficial video driver. But I would like to use the current version from nVidia.But look like is not working on all systems
    Regards

  13. MickyD1234

    MickyD1234 Notebook Prophet

    Reputations:
    3,159
    Messages:
    6,473
    Likes Received:
    1,165
    Trophy Points:
    331
    That's good news :D

    All the drivers after 314.22 have been giving problems. The latest one is very much a step backwards looking at all the people having problems :(. The latest one is working fine for me so it's worth a try. Get yourself some benchmark data (in-game benchmarks?) and then update it to see if it offers anything? Unlikely though (maybe a few FPS) since performance hikes are targeted at the latest cards...

    Good luck ;)

    ElSerch likes this.
