    Guide: Flash your GTX 580M to GTX 675M in the R3!

    Discussion in 'Alienware 17 and M17x' started by GeoCake, Apr 12, 2012.

  1. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    [​IMG]

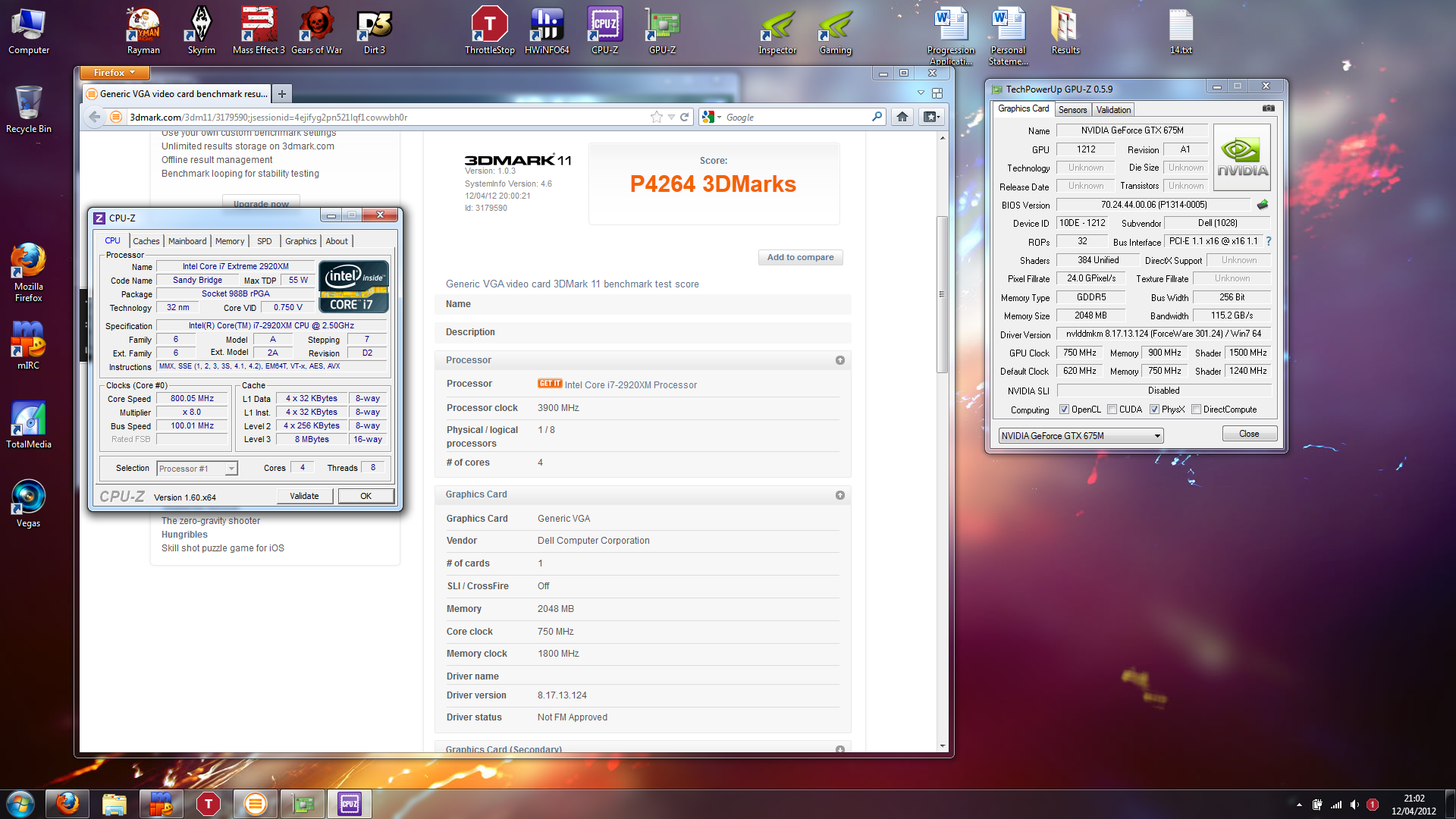

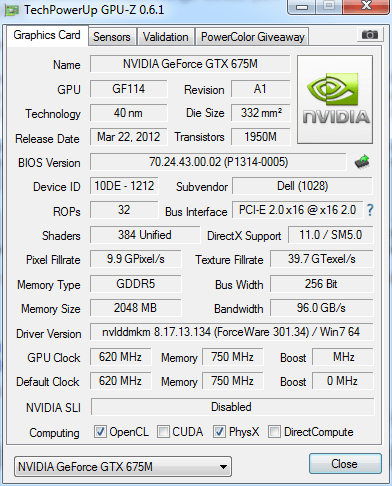

    Stock clocks (620/750) and voltage: Generic VGA video card benchmark result - Intel Core i7-2920XM Processor,Alienware M17xR3 score: P3593 3DMarks

    Overclocked at 750/900 and stock voltage:

    Generic VGA video card benchmark result - Intel Core i7-2920XM Processor,Alienware M17xR3 score: P4264 3DMarks



    CPU @ 40/39/37/37

    ---

    I can confirm that it is 101% safe to flash a 580M to a 675M, so go ahead folks! :)

    One will need a modded .inf file since Nvidia does not support the 675M just yet. Also bear in mind that this does not fix the 78C throttle, as every single Nvidia card will throttle at that temp in the R3.

    ---

    Drivers and modded .inf files: Drivers | drivers for mobile cards and laptops | laptopvideo2go.com
    I suggest the latest WHQL certified drivers.

    The following vbios are Dell in nature and have been dumped from a Dell GTX 675M from a M17x R4.

    0.87v vbios: 675m.rom

    0.92v overvolted vbios: 675m92v.rom
    Do NOT use Furmark or any other stress tool with this vbios, it will kill your card. Ensure you keep your card as cool as possible - this vbios is for benchers and extreme overclockers only.

    Use this guide by widezu69 to flash your card: [Guide] 580m GTX throtting fix. No need to modify system Bios.

    ---

    Thanks to:

    Little Washu for the Dell GTX 675M vbios
    svl7 for overvolting the vbios
    pau1ow for the original Clevo GTX 675M vbios
    widezu69 for his flashing guide
    Me for testing all vbios and confirming that they work perfectly. :)

    GeoCake, Apr 12, 2012
    #1
  2. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Not bad. I can actually spoof the card name using only an inf mod :)

    widezu69, Apr 12, 2012
    #2
  3. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    You know what GEO, for your bravery, you deserve rep...as soon as i can lol :D

    And just incase anyone is wondering, throttle is still present

    SlickDude80, Apr 12, 2012
    #3
  4. blink_c

    blink_c Notebook Consultant

    Reputations:
    182
    Messages:
    288
    Likes Received:
    3
    Trophy Points:
    31
    Well, Geo said that the power throttle is still there. Geo, wrap your laptop in some blankets or something and get it to 78C to see if it throttles :)

    blink_c, Apr 12, 2012
    #4
  5. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    Geo, on my way to rep you bro, as soon as it lets me :)

    maxheap, Apr 12, 2012
    #5
  6. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    The 78C throttle is still present. :(

    GeoCake, Apr 12, 2012
    #6
  7. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Wait wait wait whaaaa??!?!?!?!? Commendable effort buddy!

    widezu69, Apr 12, 2012
    #7
  8. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56

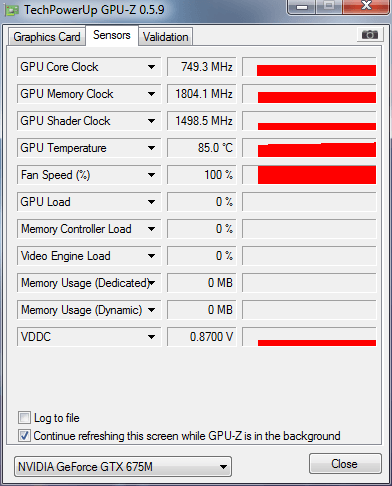

    It wasn't under that much load though. Just turned off all fans and stuff lol.

    GeoCake, Apr 12, 2012
    #8
  9. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    yes, i stand corrected :D

    hmmmm...interesting. GEO, i have a feeling that many many people are going to be IM'ing you now, asking how you updated the bios lol

    SlickDude80, Apr 12, 2012
    #9
  10. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    PM to me now please :)

    widezu69, Apr 12, 2012
    #10
  11. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    GEO!!! WHAT?!!! I can envision every 580m user in this forum flashing their cards this weekend, and Geo your rep will grow exponentially :D

    maxheap, Apr 12, 2012
    #11
  12. katalin_2003

    katalin_2003 NBR Spectre Super Moderator

    Reputations:
    14,958
    Messages:
    5,671
    Likes Received:
    1,518
    Trophy Points:
    331
    katalin_2003, Apr 12, 2012
    #12
  13. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Ah ok sorry missed that thanks!

    Also @Geo, my question to you, in nvidia inspector, how may p-states are there?

    widezu69, Apr 12, 2012
    #13
  14. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    The P1 state has the lower voltage but the card didn't go to that state, so it didn't throttle on me. :eek:

    4 p-states. P0 is max performance, P1 lower voltage, P8 and P12 lowest voltage.

    GeoCake, Apr 12, 2012
    #14
  15. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Alright sweet, I'll ask the guys over at mvktech to do a bit of digging then I'll make a thread about it. Possible merging it with my current throttling fix one.

    widezu69, Apr 12, 2012
    #15
  16. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    SICK! i take my hat off to you, oh GEO of the R3 clan

    SlickDude80, Apr 12, 2012
    #16
  17. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Geo, the god of Geforce. I bow to you master :D

    widezu69, Apr 12, 2012
    #17
  18. Table21

    Table21 Notebook Consultant

    Reputations:
    261
    Messages:
    146
    Likes Received:
    5
    Trophy Points:
    31
    I got a 7970 in my m15x but I need some drivers to test it. If anyone has a 7970m driver let me know. I want to see how it does against the green team :)

    Table21, Apr 12, 2012
    #18
  19. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Hey Table, stick it in an R3, I know you got one lying around :)

    widezu69, Apr 12, 2012
    #19
  20. maxheap

    maxheap caparison horus :)

    Reputations:
    1,244
    Messages:
    3,294
    Likes Received:
    191
    Trophy Points:
    131
    And Geo fixed the throttling issue before Dell did :D

    where did you get it?? :err:

    BTW talking about trying to steal the thunder :D

    maxheap, Apr 12, 2012
    #20
  21. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    if you want to test it in a m17x R3, i'm near by ;)

    well, like i said many times previously, the members on here know their stuff. BUt lets do some testing first and see if there is any longevity to the throttle fix and that there are no issues before we raise our hands completely :D

    This is a great day for 580m owners though...finally a ray of hope

    SlickDude80, Apr 12, 2012
    #21
  22. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Once I get some response from the guys over at mvktech, I'll get it all set up easy for everyone to do. Credit will be given where appropriate,. Lets not forget pau1ow for the bios :)

    widezu69, Apr 12, 2012
    #22
  23. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Lmao, I'm just a guinea pig more than anything. But... bad news!

    Tested it in a game and it throttled at 78C. It seems like anything identified as an Nivida card in the bios, will throttle at that temperature.

    Oh well.

    GeoCake, Apr 12, 2012
    #23
  24. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    this means the throttle is being applied at a device ID level. Is there a way to spoof that?

    SlickDude80, Apr 12, 2012
    #24
  25. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Lol. Gotta give Dell credit for a flawless throttle mechanic!

    GeoCake, Apr 12, 2012
    #25
  26. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Now if we can spoof it and make the bios think it is a AMD card... :D

    widezu69, Apr 12, 2012
    #26
  27. SlickDude80

    SlickDude80 Notebook Prophet

    Reputations:
    3,262
    Messages:
    4,997
    Likes Received:
    3
    Trophy Points:
    106
    ya bro...i wasn't kidding about that. how can we spoof the device id on the card?

    SlickDude80, Apr 12, 2012
    #27
  28. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    GeoCake, Apr 12, 2012
    #28
  29. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    Awesome job, any performance boost by any chance?

    littleone562, Apr 12, 2012
    #29
  30. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Well I have posted benches for stock clocks and overclocked clocks so you decide based on the GPU scores!

    GeoCake, Apr 12, 2012
    #30
  31. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131

    If you can post a screenshot of the device manager with the opened "display adapter" window showing the "details" tab and the "hardware ids" in the dropdown menu I might be able to mod you a driver.

    svl7, Apr 12, 2012
    #31
  32. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    Does this one still push into P1 state during high load like the 580M?

    littleone562, Apr 12, 2012
    #32
  33. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    It didn't for me, but the 78C throttle was still there. :(

    GeoCake, Apr 12, 2012
    #33
  34. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    Very awesome and interesting.

    littleone562, Apr 12, 2012
    #34
  35. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Just for laughs. See attached image. All hacks were done on a driver level. I'm still using the 580m vbios, not a single bios flash was used, driver mod only.


    Attached Files:

    • gpuz.gif
      File size:
      23.1 KB
      Views:
      568
    widezu69, Apr 12, 2012
    #35
  36. blink_c

    blink_c Notebook Consultant

    Reputations:
    182
    Messages:
    288
    Likes Received:
    3
    Trophy Points:
    31
    My funny picture post disappeared :( And the rep tied to it, lol

    blink_c, Apr 12, 2012
    #36
  37. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    The 675m vbios is quite a bit different to the 580m VBIOS (Dell and Clevo). There are still huge parts which are identical, but they changed more than I expected.


    Lol, that's NBR... what did you expect :D

    svl7, Apr 12, 2012
    #37
  38. katalin_2003

    katalin_2003 NBR Spectre Super Moderator

    Reputations:
    14,958
    Messages:
    5,671
    Likes Received:
    1,518
    Trophy Points:
    331
    That's because
    Exactly, this is not a chat board.

    katalin_2003, Apr 12, 2012
    #38
  39. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Can you elaborate on this?

    Interesting to know what has changed, etc.

    GeoCake, Apr 12, 2012
    #39
  40. pp_ph

    pp_ph Notebook Consultant

    Reputations:
    81
    Messages:
    148
    Likes Received:
    6
    Trophy Points:
    31
    Nice... rep added!

    I'm hoping I could upgrade 6970M -> 680m if it is kepler on my R3 . Sounds like good news to me.

    pp_ph, Apr 12, 2012
    #40
  41. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    widezu69, Apr 12, 2012
    #41
  42. GeoCake

    GeoCake http://ted.ph

    Reputations:
    1,491
    Messages:
    1,232
    Likes Received:
    2
    Trophy Points:
    56
    Thanks babe! :D

    Defo going overvolted. :)

    GeoCake, Apr 12, 2012
    #42
  43. svl7

    svl7 T|I

    Reputations:
    4,719
    Messages:
    3,758
    Likes Received:
    134
    Trophy Points:
    131
    @widezu: Just wondering... is this the one I just created and put on MVKtech?



    Hard to say, I only took a quick look at it. Lots of differences there. What you might notice at sometime is that they made some very slight changes to the clock domains.

    svl7, Apr 12, 2012
    #43
  44. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Yep. Credit goes to svl7.

    widezu69, Apr 12, 2012
    #44
  45. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    hows it working?

    littleone562, Apr 12, 2012
    #45
  46. tetsussaiga

    tetsussaiga Notebook Evangelist

    Reputations:
    563
    Messages:
    381
    Likes Received:
    1
    Trophy Points:
    31
    This is awesome. Subscribed and +rep to Geo and widezu for being such daredevils!

    tetsussaiga, Apr 12, 2012
    #46
  47. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Hahaha you're welcome LUVR. Gotta love British ban'a!

    Edit: For those who want to, there is a much easier way of soft modding your 580m into a 675m. I have attached an inf file. You must go into C:\NVIDIA\DisplayDriver\301.24\WinVista_Win7_64\International\Display.Driver and replace it with this new one, if you aren't overwriting something, you're going it wrong. Reinstall the driver This doesn't affect performance or throttling or anything. It just changes the device name in GPUz :D
    http://www.mediafire.com/?kegelc6k2rq98d3

    widezu69, Apr 12, 2012
    #47
  48. pau1ow

    pau1ow Notebook Deity

    Reputations:
    1,336
    Messages:
    1,181
    Likes Received:
    84
    Trophy Points:
    66
    Any good Geo with the o/v vbios ?

    pau1ow, Apr 13, 2012
    #48
  49. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    What command did you use to flash it in nvflash Geo?

    littleone562, Apr 13, 2012
    #49
  50. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Use the guide in my throttling fix. It is the same principle, but use the 67m.bin instead of the 580m.rom.

    widezu69, Apr 13, 2012
    #50
 Next page →
