    Installing intel ultimate 6300 into M17x R3 HELP PIC !

    Discussion in 'Alienware 17 and M17x' started by Emm3, Oct 15, 2012.

  1. Emm3

    Emm3 Notebook Evangelist

    Reputations:
    37
    Messages:
    530
    Likes Received:
    3
    Trophy Points:
    31

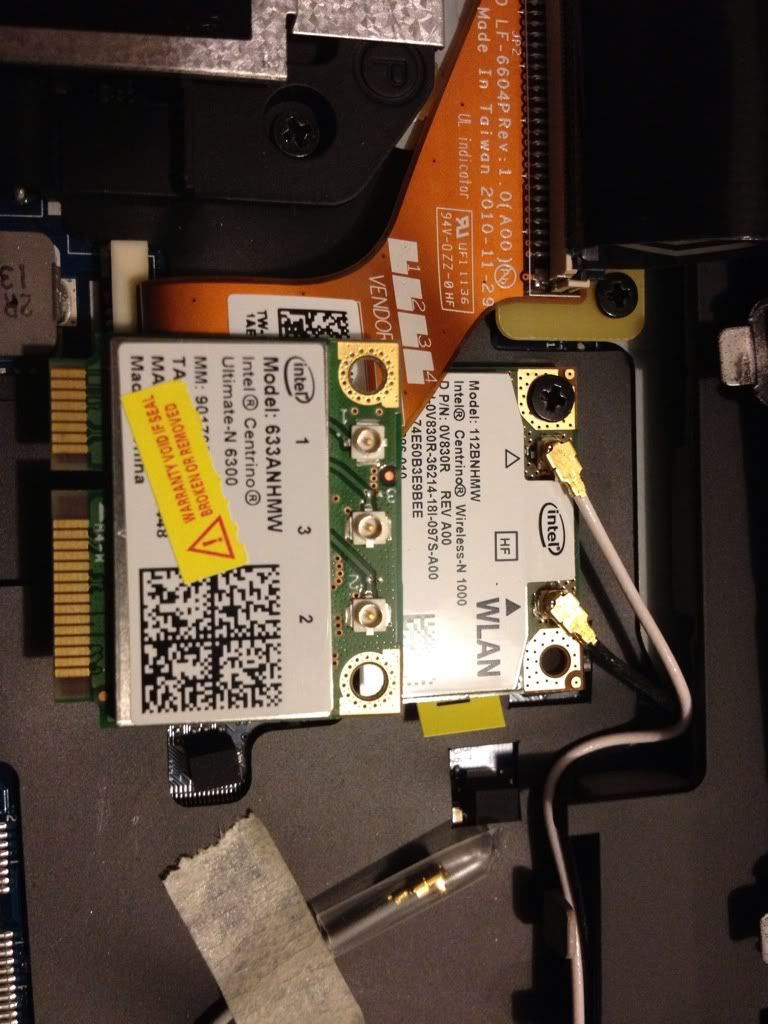

    Wanted to ask just to be sure but which wife's go where in the 6300? They are numbered but not color coded.

    [​IMG]

    Emm3, Oct 15, 2012
    #1
  2. lucas14.27

    lucas14.27 Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    0
    Trophy Points:
    5
    Have you figured it out?

    lucas14.27, Feb 15, 2013
    #2
  3. Shnogger

    Shnogger Notebook Consultant

    Reputations:
    58
    Messages:
    109
    Likes Received:
    2
    Trophy Points:
    31
    Shnogger, Feb 15, 2013
    #3
  4. Jubei Kibagami

    Jubei Kibagami Notebook Consultant

    Reputations:
    13
    Messages:
    282
    Likes Received:
    4
    Trophy Points:
    31
    I got my Intel 6300 wireless card from Dell to work in my m18x-r2. The whole installing process was very easy and the card installed the driver automatically. The white wire goes on the left side, black wire goes to the right side, and the gray wire goes in the middle. Good luck man.

    Jubei Kibagami, Feb 16, 2013
    #4
  5. steviejones133

    steviejones133 Notebook Nobel Laureate

    Reputations:
    7,172
    Messages:
    10,077
    Likes Received:
    1,122
    Trophy Points:
    581
    White = 1
    Black = 2
    Grey = 3

    steviejones133, Feb 16, 2013
    #5
  6. guerriero

    guerriero Notebook Enthusiast

    Reputations:
    0
    Messages:
    25
    Likes Received:
    0
    Trophy Points:
    5
    where is located wireless card on m17x r4? i dont find any video :(

    guerriero, Feb 16, 2013
    #6
  7. Joe85

    Joe85 Notebook Deity

    Reputations:
    587
    Messages:
    1,024
    Likes Received:
    4
    Trophy Points:
    56
    Joe85, Feb 16, 2013
    #7
  8. Alienware-L_Porras

    Alienware-L_Porras Company Representative

    Reputations:
    3,658
    Messages:
    6,874
    Likes Received:
    969
    Trophy Points:
    281
    This is correct.

    Alienware-L_Porras, Feb 18, 2013
    #8
