Lowered my temps with 25°C Alienware M17X R5 (GTX 880M)

Hello all, i just made a brand new account after reading all over the internet for weeks and figuring everything out on my new laptop i bought second hand. After i've had allot of help in old tutorials and people on the forums and reading there posts i tried my best to get my temprature's down.

First of all, Sorry for my english since it isn't my native language.
Second, i have a degree in IT and a microsoft silver certificate plus a Aries PC Technican degree.

I will make an overview at the end of the post with all my findings for the people who aren't intressted in the How i did this.

Just to let you all know, i just started with a simple idea to get the temperatures down so i didn't document it all since it started out small and i just kept going. But now seeing the results i've got i decided to post about it here so i can help other people out and as a thank you for all the information i've found on this forums.

I've used HWinfo64 for the results i will post.

So after i've bought this laptop second hand and it is my first Alienware laptop, i had to look around allot to see what model etc etc i had since i just bought it for the specs. Since i'm still not sure it's an R5 (i believe so since it had the newer case and its from april 2014) i'll just post my specs here.

The laptop i worked on is a M17X With 16GB ddr3 or ddr4 (cant quiet remember and not in the mood to open up my case again)

Intel I7 4700MQ 2.4GHZ
Nvidia GTX 880M (8GB) single card
2X Hard drive (1 SSD and 1 HDD)

All the stuff is default since otherwise said further down in this post.


Items i've used so far: (replaced means i used it but threw it out again)

2X Shark 120MM Red led Fans
1X Molex Adapter 12 watt (hdd adapter)
1X Notepal 3U Notebook cooler by cooler master
1X Artic Silver 5 (replaced)
1X Cooler master essential IC E1 (replaced)
1X Gelid GC Extreme
1X Phobya XT Thermal pad 7W/mk (1.0)
1X Can of compressed air
1X rubbing alcohol and a whole load of tissues and clean rags to help clean it all out.
1X Zalman fan controller.


First i've did was cleaned the laptop out and the fans. The GPU fan is still old an crappy by the looks of it and i'm looking at a replacement but it does the job. This part doesn't really need an explanation except if people are asking for it, then i will happily oblige to give it.

After the laptop was clean i removed the CPU and the GPU heatsink and removed the old thermal paste with rubbing alcohol. The way it was on there from the factory was a disgrace to say the least. I still couldn't even get it all of the chips since it was everywhere. Luckily i cleaned it out really good and the DIE and the Heatsink where all clean and shiny.

Cooler master Thermal paste
I first started out with the Cooler Master thermal paste. Since the CPU has and akward rectangle shape the pea size drop didn't seem like a good way to cover it all. So i did the spread it out method with a nice laminated poker card.

DISCLAIMER: Since i've done ALLOT (100+) Repaste's in the last 6 years this is something i have experience with but isn't something i recommend to first starters on repasting something like this. I've you're really eager to learn, try it out a few times and make sure you have rubbing alcohol and just test it by pasting it, screw down the heatsink and then open it up after a few minutes and just see how it hold up. After that just clean it and do the same approach again if it worked out, if it didn't change methods and rinse and repeat.

The GPU i did with a pea size drop like we've seen as the best method on desktop computers.
After booting it up my temperatures dropped some lower but say about 1-3 degrees maximum which still was 95 degrees at maximum load. (celcius, i'm an european and i can't get around the fahrenheit system) So after cleaning and repasting with the same stuff for 3 more times and then booting up and loading a game i gave up on this thermal paste. It didn't cut it



DISCLAIMER: ARTIC SILVER 5 is Conductive, which means it can screw your system up if you don't know what you're doing or just mess a little bit!!

Artic Silver 5
The next day i started out with Artic Silver 5, after cleaning it all i used the same method of spreading it since i wanted to make sure i have the same test results. My GPU idled at around 50 degrees and average of 80 degrees in a game according to HWINFO 64 with a maximum of 91 degrees. Still i wanted to get it below de 85 degrees at maximum. The CPU though went to a maximum of 58 degrees with the artic silver 5 so it did a really good job at this part, Just not at the GPU.


Gelild GC Extreme
So after reading around i decided to go with the Gelid GC extreme after seeing allot of people recommend this brand and i've never used this particular brand so its was a more shot in the dark call.

After cleaning all the Artic silver from the GPU (i stopped messing with the CPU since it was acceptable low and i didn't wanted to remove it again, maybe later on) i repasted with the Gelid GC extreme, Now after testing for more then an hour my GPU won't go any higher then 83 degrees at which point i just laid it down and let it be with the thermal paste since i'm pretty sure i can't go lower with just thermal paste.

So at this part i've only cleaned out the laptop and repasted it several times to find the best way and sticked with the GC Extreme on the GPU and Artic silver 5 still on the CPU. My Temps are at 83 degrees at the GPU and around 61-62 degrees at the CPU.

Cooling pad MOD + Thermal pads change.

After this i've decided to see "How low can it go" without drastic mods towards the laptop.
Me best idea was to go with a cooling pad and just get the airflow more going since i couldn't replace the HDD since every slot if full. I decided to go with the Cooler master Notepal U3 after reading allot of it online.
When i received it i just tried it out and temperatures didn't change that much, maybe 1-2 degrees and it cooled down faster after gaming but under full load it just stayed the same.

Then i got a light bulb, and just got the best red led fans i could get (since the alienware is red and i didn't wanted to go with server fans since dustbunnies are always on the lookout for nice laptops and fans) i went with the Aerocool Shark Fan 12cm Devil Red Edition, Case fan. Which outputs at around 82.6 cfm at around 26 DB at maximum RPM of 1500. A molex adapter of 12 watt (2amp) and 12 volt which directly goes to an electrical outlet of 230 volt (europe) since i didn't wanted to use USB and the output of usb isn't enough for the 2 fans and a controller.

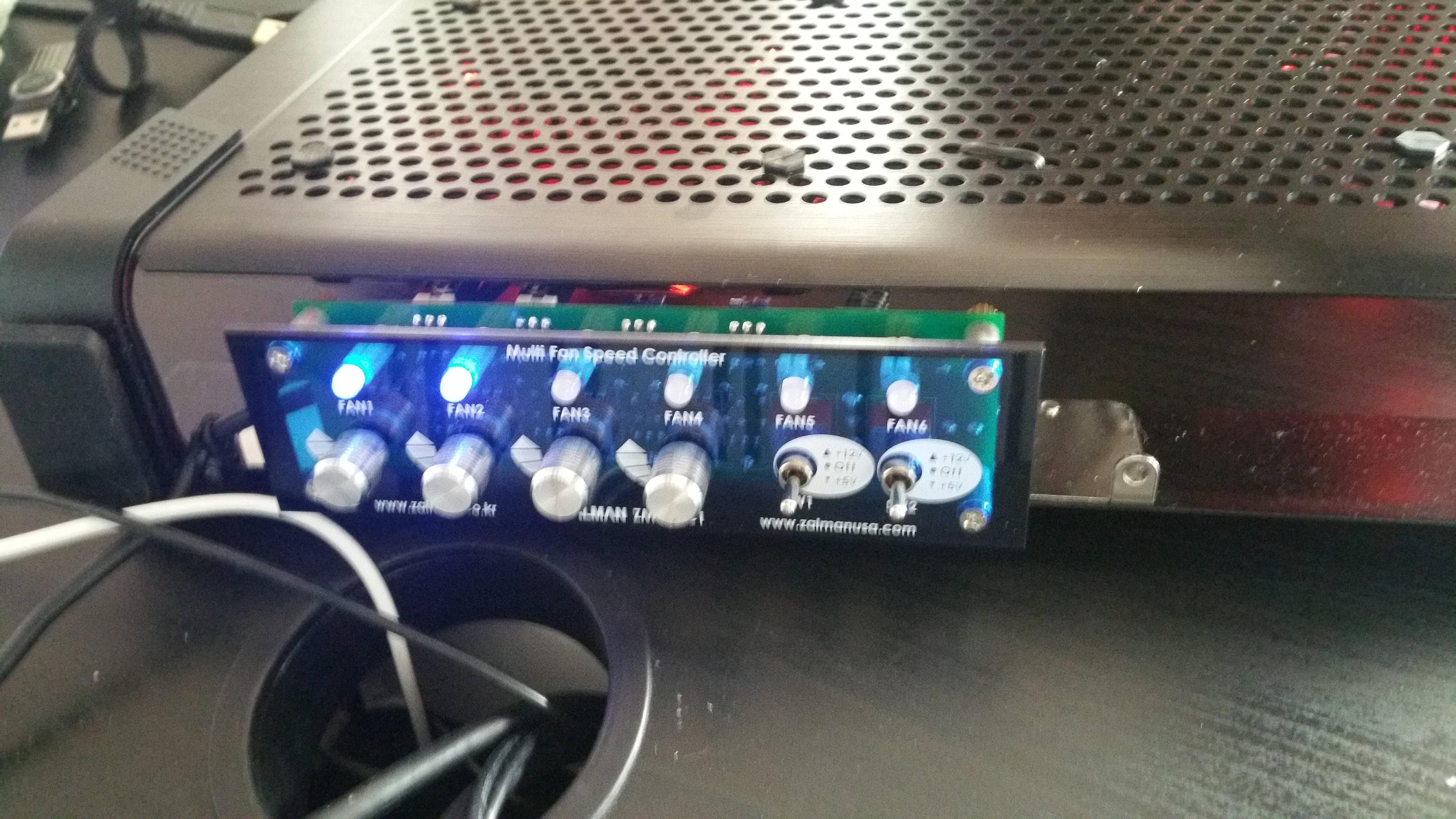

So i've placed the 2 Controllers under the notebook cooler and threw out the old fans plus usb thingy, I've mounted the fan controller on the back side of the notepad with a little bending and
The fans are placed in a way so that a quarter overlaps the fan inside the laptop and the rest of the fan is used to cool the surrounding of the

While i was busy with this i also decided to replace the Thermal pads on the GPU with the Phobya 7MT thermal pads this also shaved off about 2 degrees at maximum load without the notepad cooler.

Now my temperatures don't got above 71/72 degrees and mostly stays at around 70 maximum. After i alt tab the game the temperatures directly go down in a few seconds with 10-20 degrees till an idle at around 40/50 depending on how long it's been idle after the game.

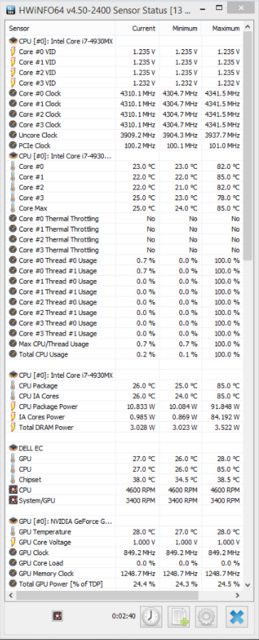

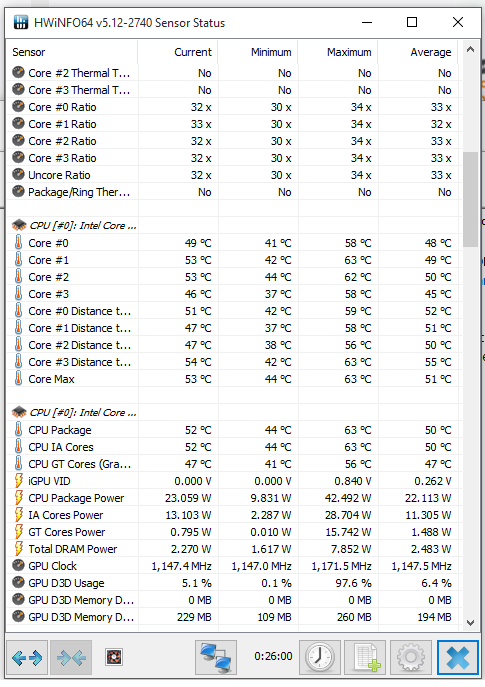

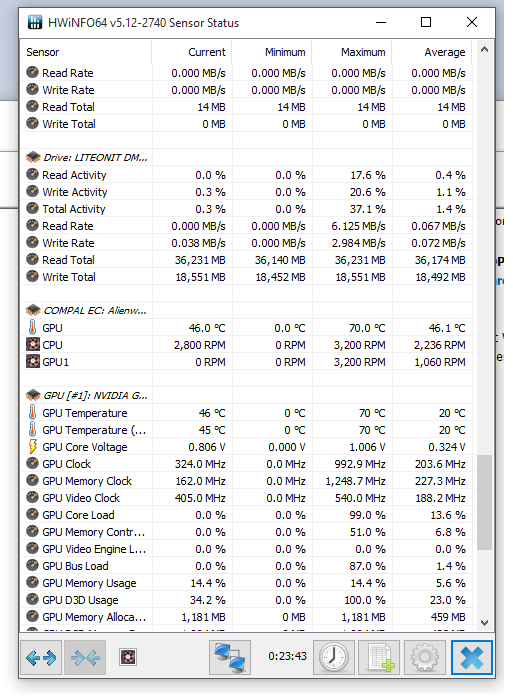

Since i didn't make photo's or screenshots since i wasn't planning on posting this i only have the end results which is pretty nice to see. i wanted to share this since there are allot of people having problems with there temps on this video card.






If there are any questions, i will try to answer them to the best i can and if there is really a need for more pictures i will definitly see what i can do.

Sorry for spelling errors and formatting, i'm not a big fan of making threads but i thought i owned this 1 to you guys.


Summary:
Replaced thermal pads, Thermal paste on GPU with Gelid GC extreme and CPU has Artic Silver 5 as thermal paste. Made a notebook cooler MOD with 2X 86 CFM fans. And now from high 90's to around 71/72 degrees on the GPU.

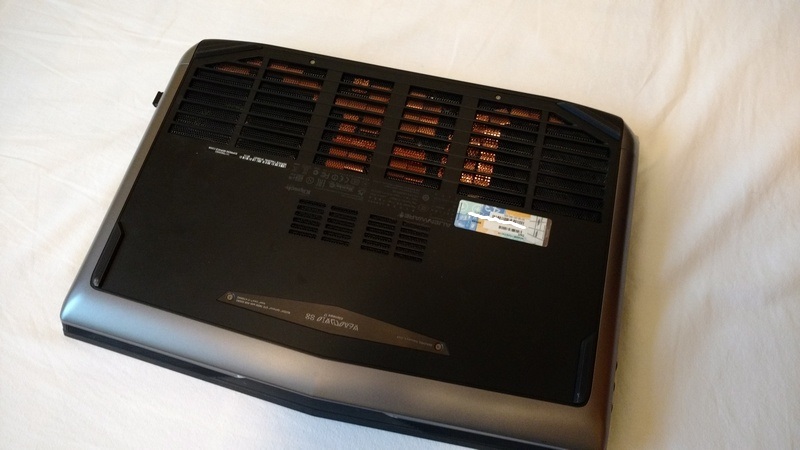

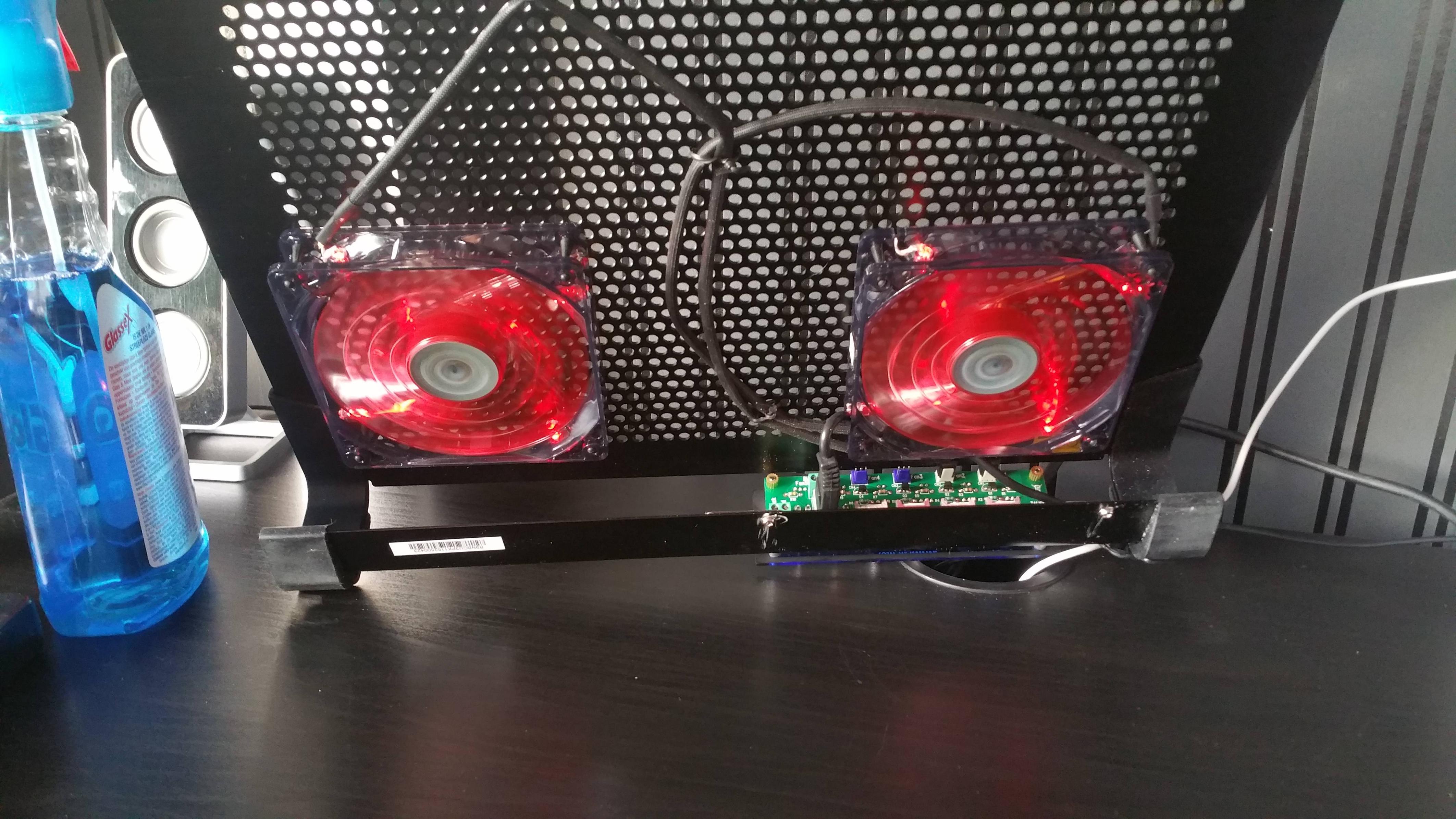

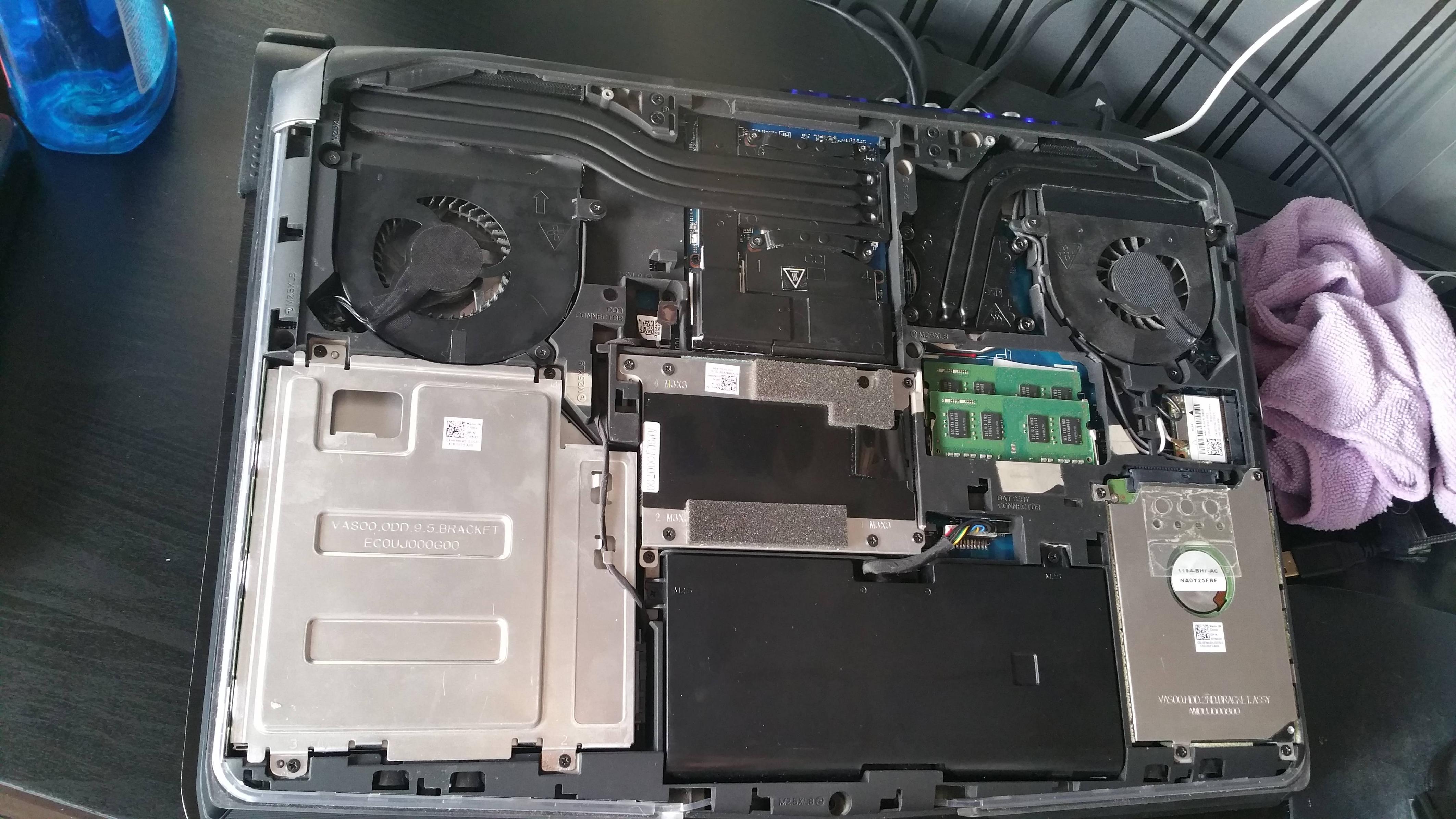

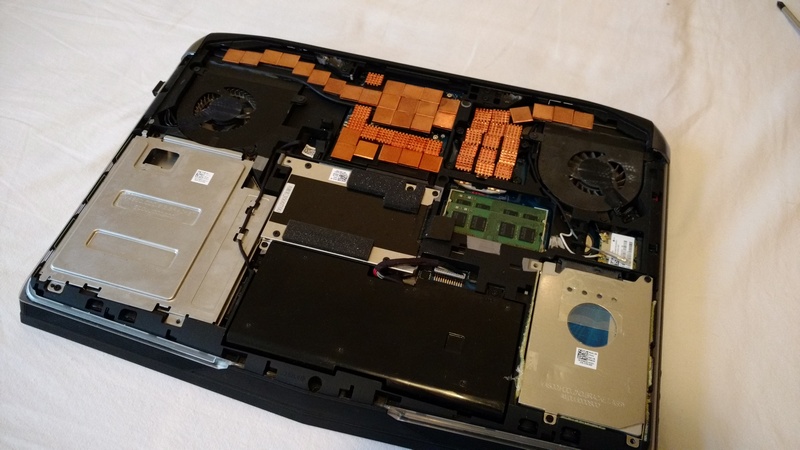

Also pictures of the Notepad Cooler (with the aftermarket fans) and the still old crappy GPU fan so you guys can see that the internals are still the same, just cleaned out.

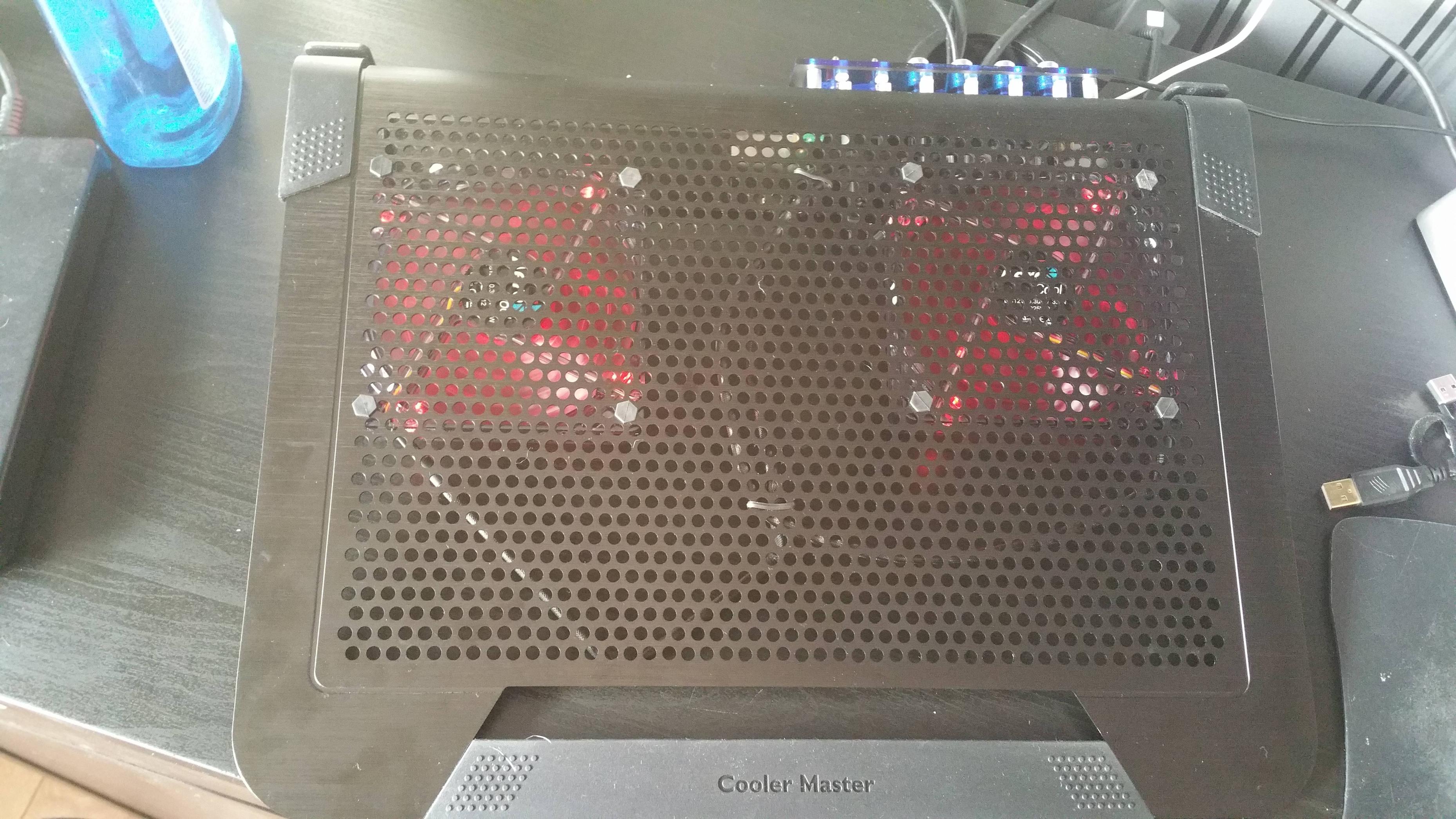

And the Notepad cooler








The 1 white and extra black cabel are from the speakers btw, not the notepad cooler. The Cooler actually has just 1 wire going to the wall outlet and thats it.
