    M17x (R1) memory upgrade issue

    Discussion in 'Alienware 17 and M17x' started by tyranus7, Jun 21, 2014.

  1. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    Hi everybody,

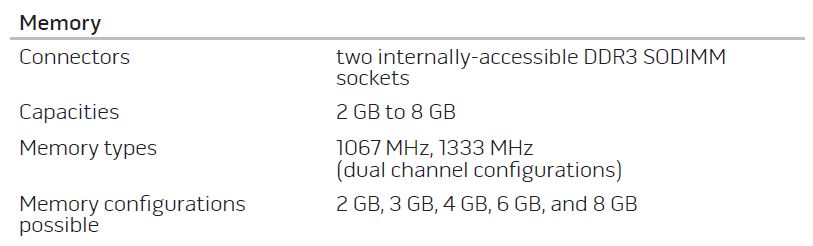

    So long since I was here. The thing is I buught a 2x4GB DDR3 1333 Mhz pack, the problem is the laptop won't boot, I get a BSOD in windows loading screen. In the official Customer Service manual Dell states that the M17x supports up to 8GB running at 1333 MHz:


    [​IMG]

    So why is the Corsair 8GB (2x4GB) RAM DDR3 SODIMM Memory CMSO8GX3M2A1333C9 not compatible?

    Anyhow I can sell those ram cards. But what 1333 MHz memory is compatible with the M17x R1.?

    tyranus7, Jun 21, 2014
    #1
  2. V3curonium

    V3curonium Notebook Geek

    Reputations:
    1
    Messages:
    84
    Likes Received:
    10
    Trophy Points:
    16
    Did you try to boot with 1 stick? You could run memtest too.


    Verzonden vanaf mijn iPad met behulp van Tapatalk

    V3curonium, Jun 21, 2014
    #2
  3. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    Well I tried all configurations, with two sticks , with only one stick, with the other stick only and always got the BSOD. Plus the sticks came new mint in sealed box, so I think this is some kind of incompatibility issue.. though I don't know what's the root of the problem.

    tyranus7, Jun 21, 2014
    #3
  4. J.Dre

    J.Dre Notebook Nobel Laureate

    Reputations:
    3,700
    Messages:
    8,323
    Likes Received:
    3,820
    Trophy Points:
    431
    So, it may have nothing to do with the memory?

    J.Dre, Jun 21, 2014
    #4
  5. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Run memtest on both sticks overnight.

    Tsunade_Hime, Jun 21, 2014
    #5
  6. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    tyranus7, Jun 21, 2014
    #6
  7. V3curonium

    V3curonium Notebook Geek

    Reputations:
    1
    Messages:
    84
    Likes Received:
    10
    Trophy Points:
    16
    Seems the answer is in that thread :)


    Verzonden vanaf mijn iPad met behulp van Tapatalk

    V3curonium, Jun 22, 2014
    #7
  8. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    That thread implies that the M17x R1 does not support 1333 MHz sticks, though some member in the same thread states that he was running sticks @ 1333 MHz, plus Dell states that the M17x R1 supports 1333 MHz RAMs. :confused:

    tyranus7, Jun 22, 2014
    #8
  9. V3curonium

    V3curonium Notebook Geek

    Reputations:
    1
    Messages:
    84
    Likes Received:
    10
    Trophy Points:
    16
    Do a memtest first. That rules a RAM problem out


    Verzonden vanaf mijn iPad met behulp van Tapatalk

    V3curonium, Jun 22, 2014
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    Try each stick by itself and manually set the timings.

    Meaker@Sager, Jun 22, 2014
    #10
  11. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    I don't have the option to set timings in BIOS, the only thing I can do about RAMs is to change the clock rate.. I tried downclocking the ram to 1066 with no success

    tyranus7, Jun 22, 2014
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    With both sticks each running by themselves they behave the same?

    Meaker@Sager, Jun 22, 2014
    #12
  13. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    Not exactly the same:

    RAM1 + RAM2 => Windows freeze at starting windows screen (stays freeze forever)

    RAM1 only => Windows go to BSOD at starting windows screen

    RAM2 only => Windows go to BSOD at starting windows screen

    As an aditonal informatin I tried an Ubuntu live cd and I get an error before Ubuntu go to the desktop, I guess is the linux equivalent to the windows BSOD.

    tyranus7, Jun 22, 2014
    #13
  14. tyranus7

    tyranus7 Notebook Evangelist

    Reputations:
    137
    Messages:
    511
    Likes Received:
    16
    Trophy Points:
    31
    Well I went to a local store and bought a couple of 4GB sticks. A 1333 MHz samsung and a 1600 MHz kingston, and it works!!! Now I have 8 GB of RAM memory running at 1333 MHz.. :D

    It seems like corsair doesn't really work well on this machine.

    tyranus7, Jun 23, 2014
    #14
  15. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Well that's why motherboards try to test out specific RAM modules (QVL) and only say XX or YY RAM is supported. The Corsair in "theory" should have worked but sometimes machines can just reject certain brands/models of RAM.

    Tsunade_Hime, Jun 23, 2014
