    M17x R4 Screen upgrade

    Discussion in 'Alienware 17 and M17x' started by TFK, Apr 18, 2014.

  1. TFK

    TFK Notebook Consultant

    Reputations:
    29
    Messages:
    244
    Likes Received:
    57
    Trophy Points:
    41
    Hey there, i'll get straight to the point. I have an M17x R4 & an M18x R1 and was wondering if it's worth upgrading the screen of the R4 with the 3D enabled screen. I saw that the M18x R1 screen is gorgeous compared to the R4 which looks washed out and pale in comparison but I have heard from several sources that the 3D screens are of much higher quality. Can anyone chime in?

    Basically I'm looking for specs. Contrast ratios, Color accuracy, sRGB coverage, etc

    TFK, Apr 18, 2014
    #1
  2. J.Dre

    J.Dre Notebook Nobel Laureate

    Reputations:
    3,700
    Messages:
    8,323
    Likes Received:
    3,820
    Trophy Points:
    431
    It's definitely possible, but I doubt it will be easy to find those parts now.

    I can say with confidence that the 120Hz panel is definitely nice, and noticeably better than the standard screen. I've owned a few different systems with the 3D panel. Always enjoyed them very much. The main sacrifice is battery life.

    J.Dre, Apr 18, 2014
    #2
  3. destinationsky

    destinationsky Notebook Evangelist

    Reputations:
    157
    Messages:
    368
    Likes Received:
    31
    Trophy Points:
    41
    There is another screen that isn't official but it is 100% compatible which covers the sRGB color spectrum much better, even better than the 3D screen. I forget the model # though, maybe somebody can help.

    destinationsky, Apr 18, 2014
    #3
  4. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    The M17x R3 3D display has better color coverage. The R4 3D screen is also very good. Both are better than the standard 1080p. There is the benefit of 120Hz. The R3 display wont work in the R4 machine (I have tried) and both will need a nvidia GPU and the relevant cable for the plug on the motherboard as it is different to the regular one.

    widezu69, Apr 19, 2014
    #4
  5. j95

    j95 Notebook Deity

    Reputations:
    2,461
    Messages:
    1,475
    Likes Received:
    1,308
    Trophy Points:
    181

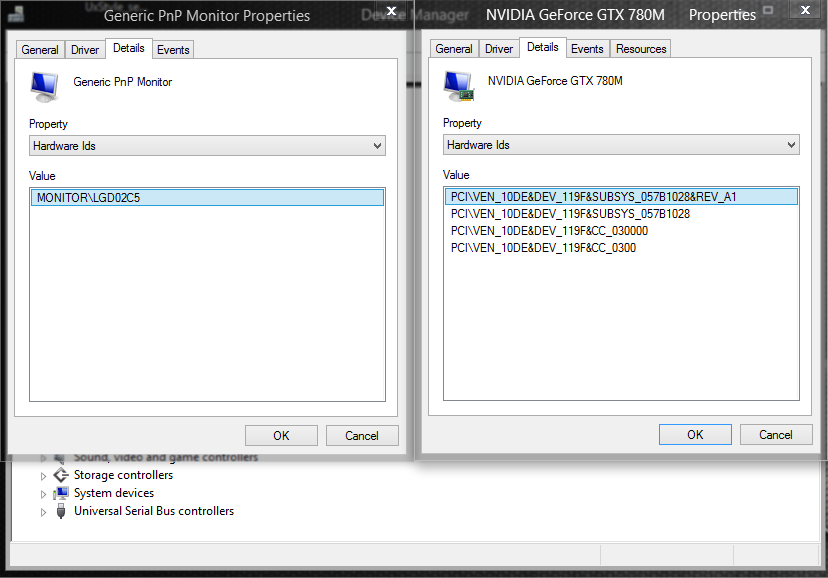

    Yes it works, you need the R3 cable/connector too (50 pin)

    [​IMG]

    j95, Apr 19, 2014
    #5
  6. widezu69

    widezu69 Goodbye Alienware

    Reputations:
    3,079
    Messages:
    4,207
    Likes Received:
    168
    Trophy Points:
    131
    Hmm strange. Didn't work with me for some reason and I had all the right cables.

    widezu69, Apr 19, 2014
    #6
  7. j95

    j95 Notebook Deity

    Reputations:
    2,461
    Messages:
    1,475
    Likes Received:
    1,308
    Trophy Points:
    181
    j95, Apr 19, 2014
    #7
  8. TFK

    TFK Notebook Consultant

    Reputations:
    29
    Messages:
    244
    Likes Received:
    57
    Trophy Points:
    41
    Thanks a lot for this guys. I will start saving up and see if I can bite that bullet :)

    TFK, Apr 20, 2014
    #8
