    New Alienware M17X owner with Questions

    Discussion in 'Alienware 17 and M17x' started by TIMTA, Oct 20, 2018.

  1. TIMTA

    TIMTA Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi Everyone

    I picked up a used Alienware M17X at Auction and have a few questions.
    I used Dell's website to scan the computer it say's it's a M17X the model number under the battery is P01E
    I see there are R1, R2, R3, R4. I am trying to figure out the correct model before buying parts. I am assuming
    it's just a plain M17X.

    It did not come with a charger so I used a charger from another Dell and it worked for the most part. after reseating the Ram I got the system to boot. The battery won't charge, it's listed as unknown. Assuming this is because the charger is not the original? Otherwise the system works fine.

    The display screen " glass " has a lot of scratches the lcd is fine. Will my model need a new lcd/glass? I watched a video were the bezel was " slid off " and he installed a new one without changing the lcd.
    any advice would be appreciated.

    TIMTA, Oct 20, 2018
    #1
  2. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    What are the specifications of the laptop? That usually helps for us to find out the model number, although P01E seems to indicate the original M17X R1 with the C2Q/C2D
    The battery is likely long gone, and thats why its not charging

    Mastermind5200, Oct 20, 2018
    #2
  3. TIMTA

    TIMTA Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    it's a core 2 Duo, 4gig ram, I think the display is " around " 1440x990

    Thanks

    TIMTA, Oct 20, 2018
    #3
  4. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Yep, thats the M17X R1

    Mastermind5200, Oct 20, 2018
    #4
  5. TIMTA

    TIMTA Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thank you!. Looking for a battery and can't find any. Looks like I will have to rebuild the one I have. Should be fun getting the case open.

    TIMTA, Oct 21, 2018
    #5
  6. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Please inform us on the process, I too have a M17x R1 with a dead battery, none have been available to purchase since 2014.

    Raidriar, Oct 21, 2018
    #6
  7. TIMTA

    TIMTA Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    My dremel broke so I sacrificed a soldering iron tip, got the battery open. The cells are LGDBB18650 9 of them, can't find any or even a datasheet
    anyone know a equivalent battery?

    TIMTA, Oct 21, 2018
    #7
  8. Reciever

    Reciever D! For Dragon!

    Reputations:
    1,525
    Messages:
    5,349
    Likes Received:
    4,338
    Trophy Points:
    431
    18650 is pretty common actually. I use those on my vaporizer, no idea how diverse it gets in that form factor though...

    Reciever, Oct 21, 2018
    #8
  9. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    18650 form factor yes, but we need cells that match current and voltage ratings exactly. I could not find anything for what OP has posted, closest name I could find is LGDBB31865, not sure if the ratings are the same as what is needed in M17x R1/R2 cells

    LGDBB31865 is rated at 3.70V x 3 cells would make 11.1V if wired in series, which matches rated spec of the original battery pack voltage rating, but the mAh/Whr is lower. What could possibly be done is to rip a m17x R3/M17x r4 original battery pack and steal the batteries from those, since the voltage is also rated at 11.1V, but 90Whr

    Last edited: Oct 21, 2018
    Raidriar, Oct 21, 2018
    #9
    Rengsey R. H. Jr. likes this.
  10. True Debreuil

    True Debreuil Notebook Consultant

    Reputations:
    5
    Messages:
    173
    Likes Received:
    31
    Trophy Points:
    41
    True Debreuil, Oct 22, 2018
    #10
  11. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Raidriar, Oct 22, 2018
    #11
  12. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Yes, so M17X R1, the model in question

    Mastermind5200, Oct 22, 2018
    #12
  13. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Wrong. I own M17X R1, I do not own M17 or Area-51 M17x. M17x R1 and R2 use the same batteries.

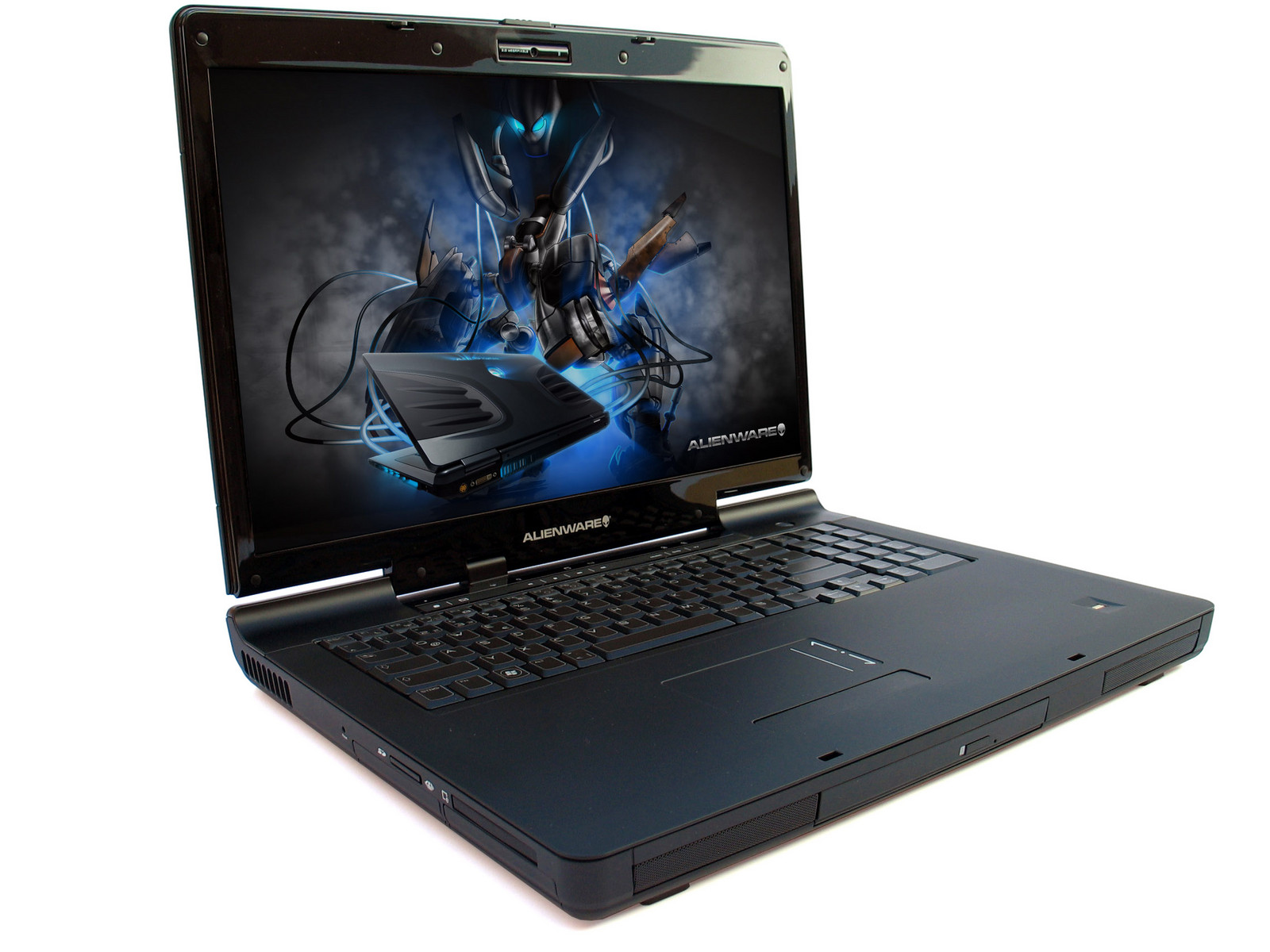

    Alienware M17 (Dell owned, Clevo design): [​IMG]

    Alienware Area-51 M17x (dell owned, Clevo design):
    [​IMG]

    Alienware M17x R1 (Dell owned, Dell design):
    [​IMG]

    Last edited: Oct 22, 2018
    Raidriar, Oct 22, 2018
    #13
