    New Hyper-X Memory not running at 1600

    Discussion in 'Alienware 17 and M17x' started by LVNeptune, Mar 29, 2011.

  1. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Probably has something to do with A03 update? I remember reading other people with the same issue.

    I set the frequency in BIOS to 1600 and set XMP Profile 1...Still shows in CPU-Z at running at 667Mhz instead of 800Mhz...

    Any ideas?

    LVNeptune, Mar 29, 2011
    #1
  2. DaneGRClose

    DaneGRClose Notebook Virtuoso

    Reputations:
    1,805
    Messages:
    2,550
    Likes Received:
    30
    Trophy Points:
    66
    I always had to use Profile 2 to get 1600mhz when I tested out the HyperX in my system, have you tried profile 2?

    DaneGRClose, Mar 29, 2011
    #2
  3. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    I guess it's not possible with a03 anymore
    Just use xmp2

    kunekaden, Mar 29, 2011
    #3
  4. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Profile 2 didn't work either same speed...

    LVNeptune, Mar 29, 2011
    #4
  5. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    set speed to auto and xmp to 2
    if you mod anything with cpu then you have to redo memory changes btw

    what are you checking with?

    kunekaden, Mar 29, 2011
    #5
  6. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    I was checking with CPU-Z

    Anything else that is better?

    LVNeptune, Mar 30, 2011
    #6
  7. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    aida64

    whenever i check in cpu-z it says max speed 1333, at any setting.

    kunekaden, Mar 30, 2011
    #7
  8. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Just ran AIDA64

    Memory Speed DDR3-1333 (667 MHz)

    LVNeptune, Mar 30, 2011
    #8
  9. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    if it's set to xmp 2 in bios and running at 1333, you either purchased or were shipped the wrong memory.
    Can't hurt to set it to xmp 1 though just to be sure.

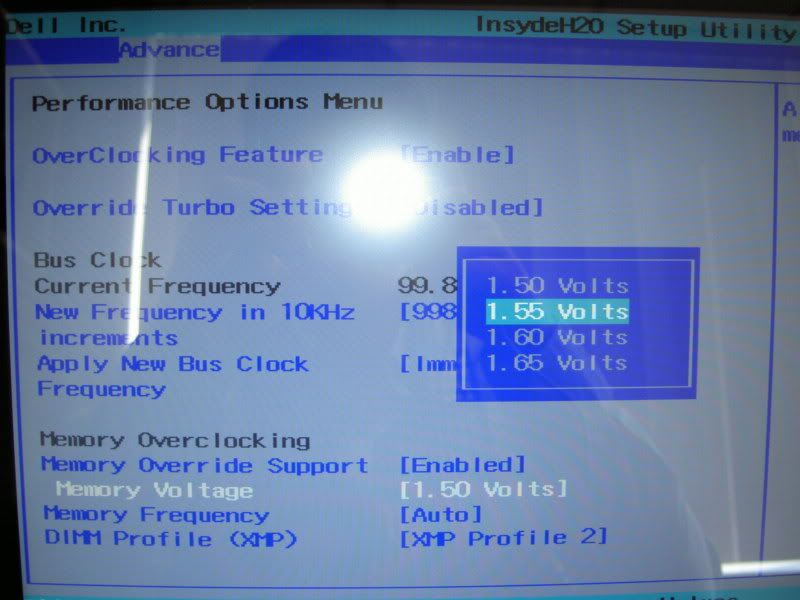

    here's my settings for 1600 c9 (IGNORE the 1.55v part, I use 1.50 and you should too!)
    [​IMG]

    kunekaden, Mar 30, 2011
    #9
  10. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Tried both and memory is fine, the specs report it as having XMP-1333 and XMP-1600

    It reports this for the XMP-1600 profile for the settings: @ 800 MHz 9-9-9-27 (CL-RCD-RP-RAS) / 37-128-0-5-12-6-6 (RC-RFC-CR-RRD-WR-WTR-RTP)

    Are you on A03? Like I said there was a few threads a week or so ago with the same issue...

    LVNeptune, Mar 30, 2011
    #10
  11. jywang

    jywang Notebook Evangelist

    Reputations:
    203
    Messages:
    517
    Likes Received:
    0
    Trophy Points:
    30
    I use Memory Voltage of 1.5, Auto Freq, and XMP Profile 2.

    Here are my CPU-z screenshots for you to compare.

    Make sure all of your slots say the same thing about your memory...


    Attached Files:

    jywang, Mar 30, 2011
    #11
  12. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Actually mine looks like that. Had to upgrade to 1.57 to see the Memory page...Mine is at 797.5 for whatever reason but that's close enough. Not sure why the SPD page is reporting 1333 as well as AIDA64 ?

    LVNeptune, Mar 30, 2011
    #12
  13. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    I am using A03 with those settings.
    Updating to A03 seemed to raise my WEI from 7.6 to 7.8 btw (random after-though)

    edit: it's <800 because your CPU is underclocked. bump the bclk to 100.19 or 100.21 (which is really 100) or whatever sticks around that mark.

    kunekaden, Mar 30, 2011
    #13
  14. Typecast

    Typecast NBR's Tamed Zombie

    Reputations:
    1,757
    Messages:
    1,322
    Likes Received:
    1
    Trophy Points:
    55
    Anyone here with the 2630qm and the a03 bios? Mine does not work.

    Typecast, Mar 30, 2011
    #14
  15. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    2630 does not run above 1333, IIRC.

    LVNeptune, Mar 30, 2011
    #15
  16. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    I have 2630 and A03 running 1600 c9
    (specs in sig are replacement that isn't even bulit yet)

    kunekaden, Mar 30, 2011
    #16
  17. Typecast

    Typecast NBR's Tamed Zombie

    Reputations:
    1,757
    Messages:
    1,322
    Likes Received:
    1
    Trophy Points:
    55
    It does. Thru xmp.
    Thanks. It should run perfect later. :)

    Typecast, Mar 30, 2011
    #17
  18. LVNeptune

    LVNeptune Notebook Virtuoso

    Reputations:
    648
    Messages:
    2,195
    Likes Received:
    140
    Trophy Points:
    81
    Maybe it was a different model, I remember warnings being posted everywhere about it.

    Anyway, CPU-Z once again shows 667 after rebooting asn seeing 100.19 >_<

    EDIT: Fixed

    Apparently it reset the XMP profile. Set back to 2 now it's sitting at 800.6 :)

    Still not sure why the other apps show 1333 but if this says 800 I think I'll take that



    Now /me goes back to waiting for the 485M

    LVNeptune, Mar 30, 2011
