*OFFICIAL* M17x Benchmark Thread - Part 3

Welcome to the next installment of the Alienware M17x 'All Powerful' Benchmark thread here on NBR. Mandrake will be keeping a running tally of whose system is rocking the #'s. Thanks Mandrake!

We have enjoyed two previous threads which can be found here:

M17x Benchmark Thread - Part 1

M17x Benchmark Thread - Part 2

There are several apps which can be used to benchmark your system. Following is a short list of some which are typically used. There are others and the core benchmarking members will have plenty of suggestions - so ask away.

•
  FutureMark Benchmark Apps
• PCMark Vantage
• 3DMark Vantage
• 3DMark 06

  Component Benchmark Tools
• POVRay v3.7 (multi-threaded version)
• Fritz 9 Chess Benchmark - standalone
• SuperPi Mod v1.5
• HDTune
• Everest Ultimate - Trial Version
• HWiNFO32
• MaxxPI²

  Game Benchmark Tools
• S.T.A.L.K.E.R.: Call of Pripyat benchmark
• Resident Evil 5 Benchmark
• Unigine Heaven
• Crysis Benchmark Tool v1.05

A word of caution concerning benchmarking... While benchmarking / number chasing can be quite a bit of fun, please be aware that benchmarking your system is pushing your system to its limits. It can and will stress your components. Do so at your own risk - nobody is responsible for this but you.

Finally, as with all threads here on NBR, please remember the forum rules when posting. Any images posted which cause page scrolling will be removed. Repeat offenders will receive infractions. There is no reason you cannot take a moment to resize or use thumbnail previews. Thanks for your understanding and cooperation with this.

Have fun folks and lets see how far you can push the M17x!



M17x "All Powerful" Benchmarking Scores!!!

FOR UPDATED SCORES PLEASE GO HERE!!!

Top 5 M17x "All Powerful" - Vantage

• 5150Joker - M17xR2 - 16681
• Mandrake - M17xR2 - 16027
• TheCodeBreaker - M17xR2 - 15031
• Rengsey R. H. Jr. - M17xR2 - 14409
• 5150Joker - M17xR2 - 14260

Top 5 M17x "All Powerful" - 3DMark06

• Mandrake - M17xR2 - 22335
• Rengsey R. H. Jr. - M17xR2 - 21987
• TheCodeBreaker - M17xR2 - 21503
• Mandrake - M17xR2 - 21206
• claxdog - M17xR2 - 21154

M17xR1 - Vantage

• scook9 - QX9300/ATI 4870XF - P14044
• Mandrake - QX9300/ATI 4870XF - P14020
• Rengsey R. H. Jr. - QX9300/ATI 4870XF - P13666
• DR650SE - QX9300/ATI 4870XF - P13495
• rubyboy79 - QX9300/ATI 4870XF - P13201

M17xR1 - 3DMark06

• scook9 - QX9300/ATI4870XF - 18686
• Rengsey R. H. Jr. - QX9300/ATI4870XF - 18540
• Mandrake - QX9300/ATI4870XF - 18428
• DR650SE - QX9300/ATI 4870XF - 18051
• rubyboy79 - QX9300/ATI 4870XF - 18045

M17xR2 - Vantage

• 5150Joker - i7-940XM ES/ATI 5870XF - 16681
• Mandrake - i7-920XM/ATI 5870XF - 16027
• TheCodeBreaker - i7-920XM/ATI 4870XF - 15031
• Rengsey R. H. Jr. - i7-920XM/ATI 4870XF - 14409
• 5150Joker - i7-920XM/ATI 4870XF - 14260

M17xR2 - 3DMark06

• Mandrake - i7-920XM/ATI 5870XF - 22335
• Rengsey R. H. Jr. - i7-920XM/ATI 4870XF - 21987
• TheCodeBreaker - i7-920XM/ATI 4870XF - 21503
• Mandrake - i7-920XM/ATI 4870XF - 21206
• claxdog - i7-920XM/ATI 4870XF - 21154

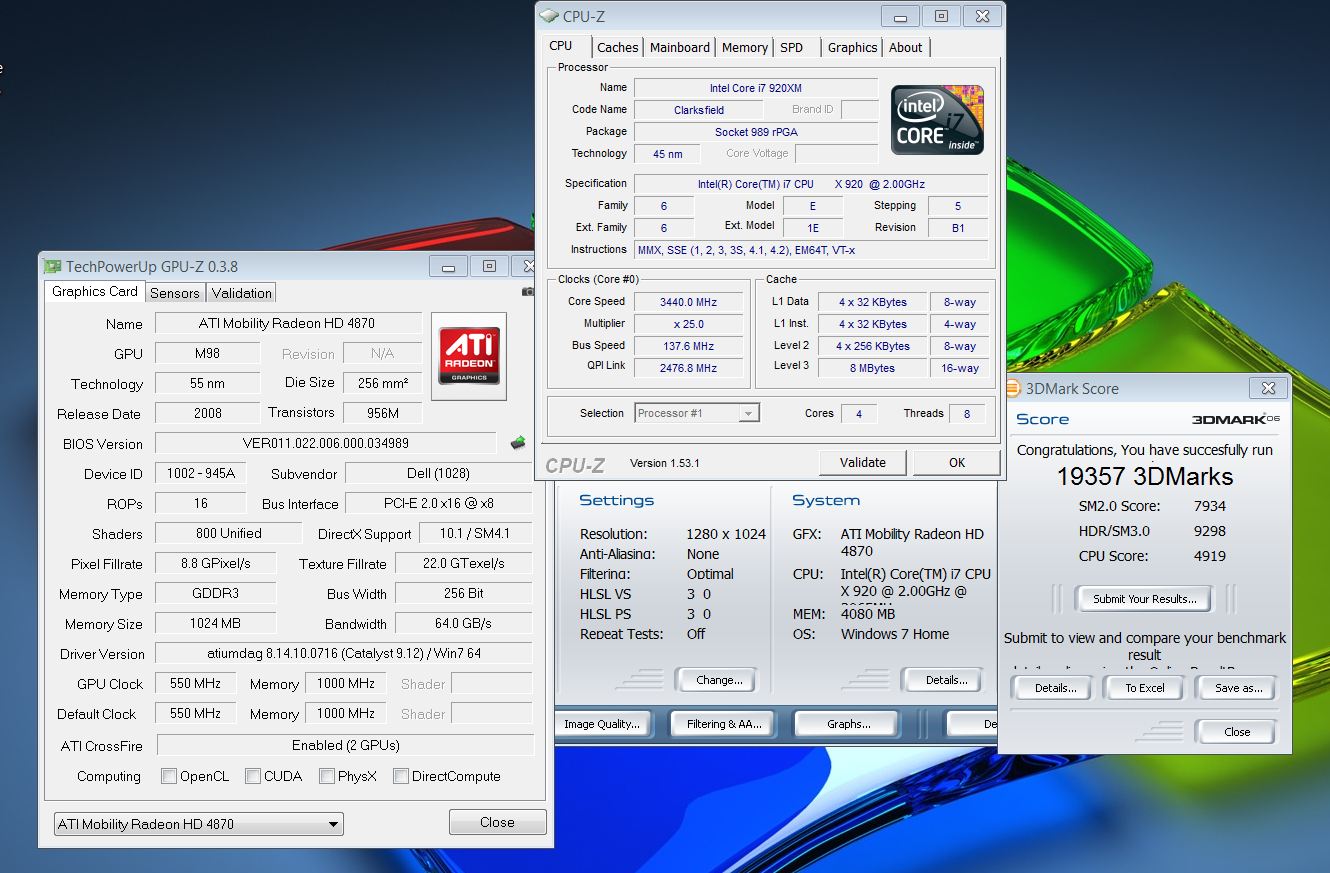

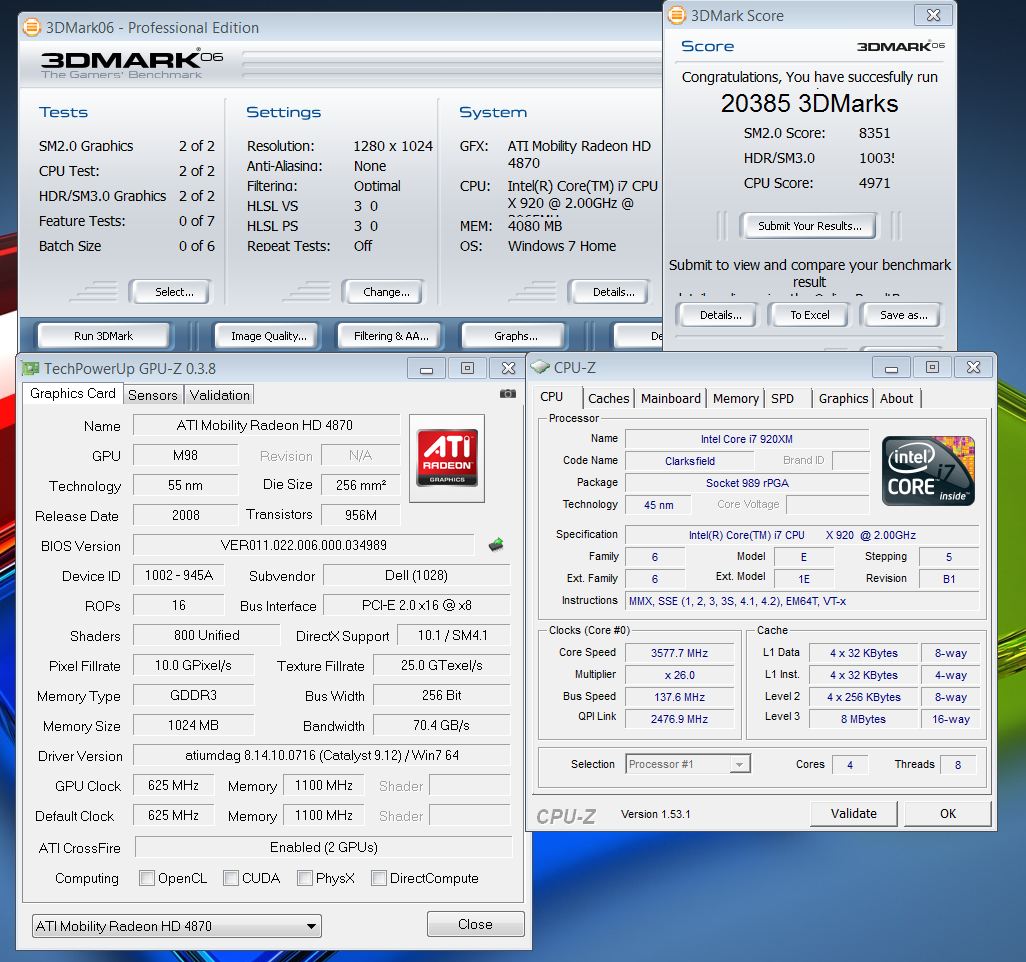

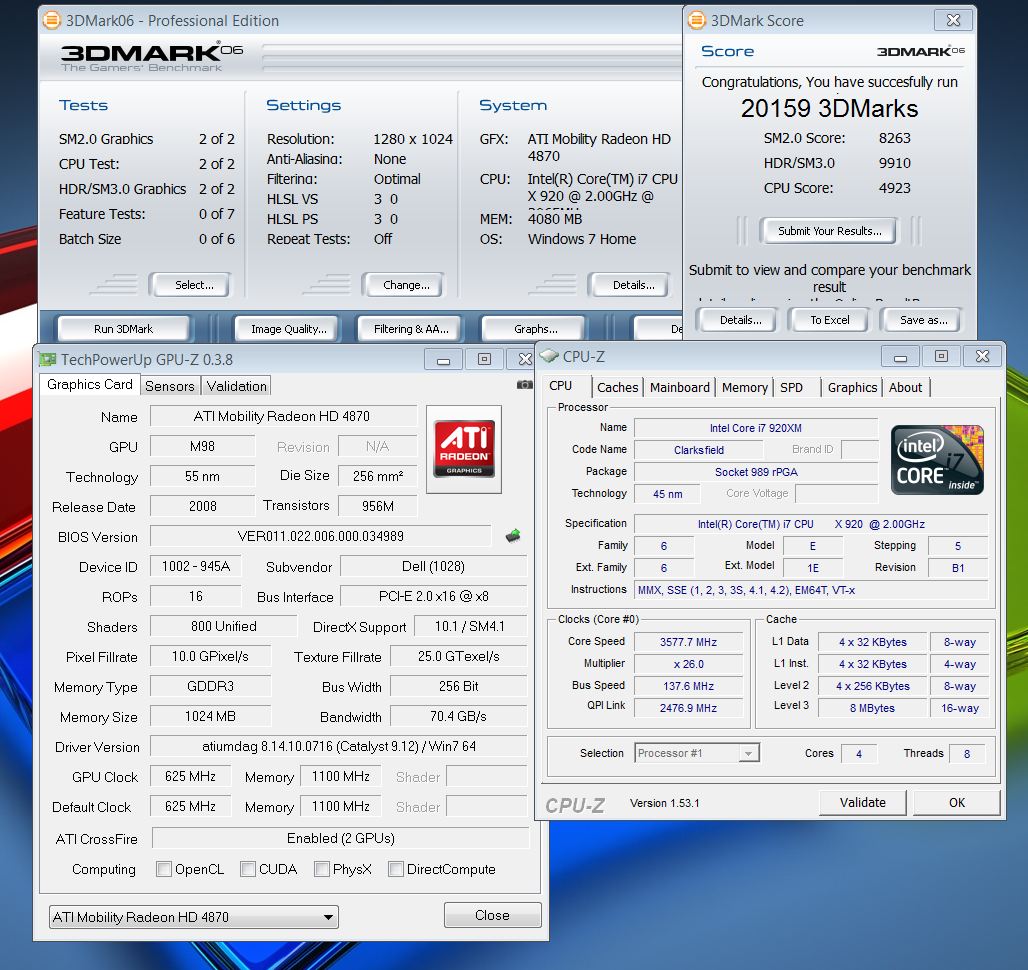

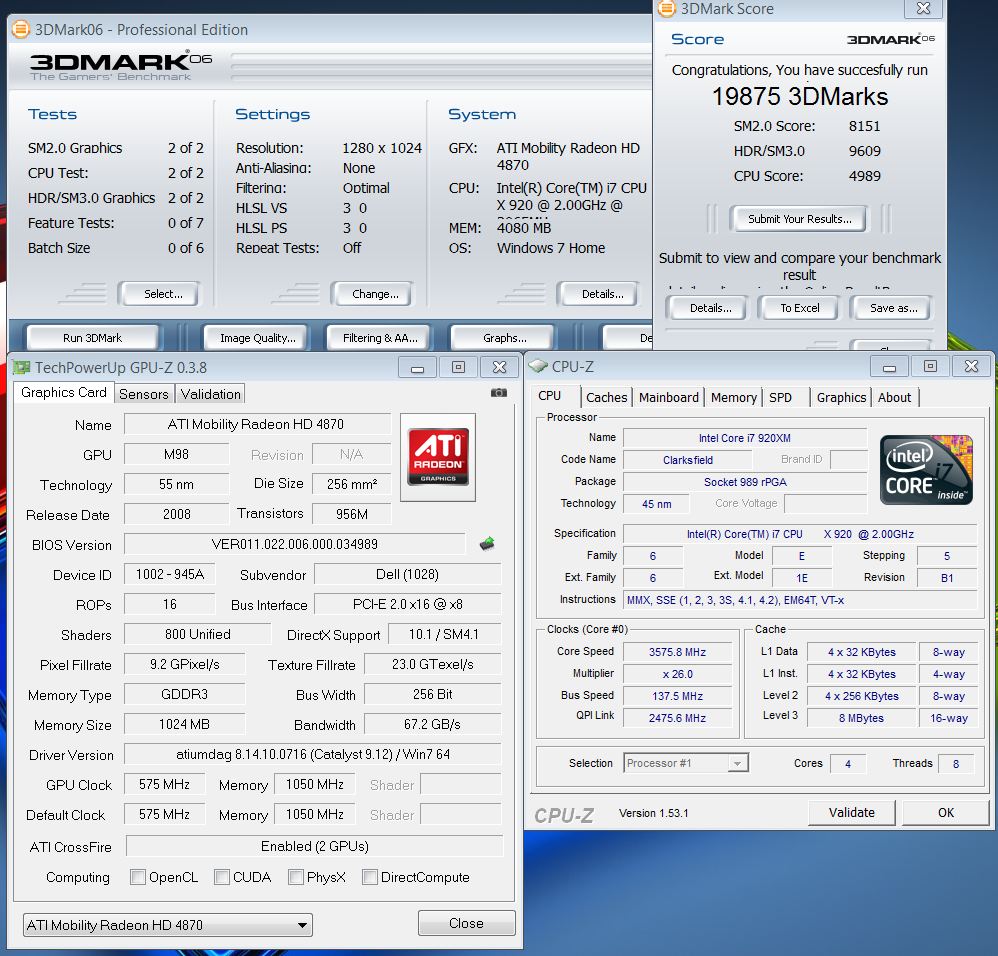

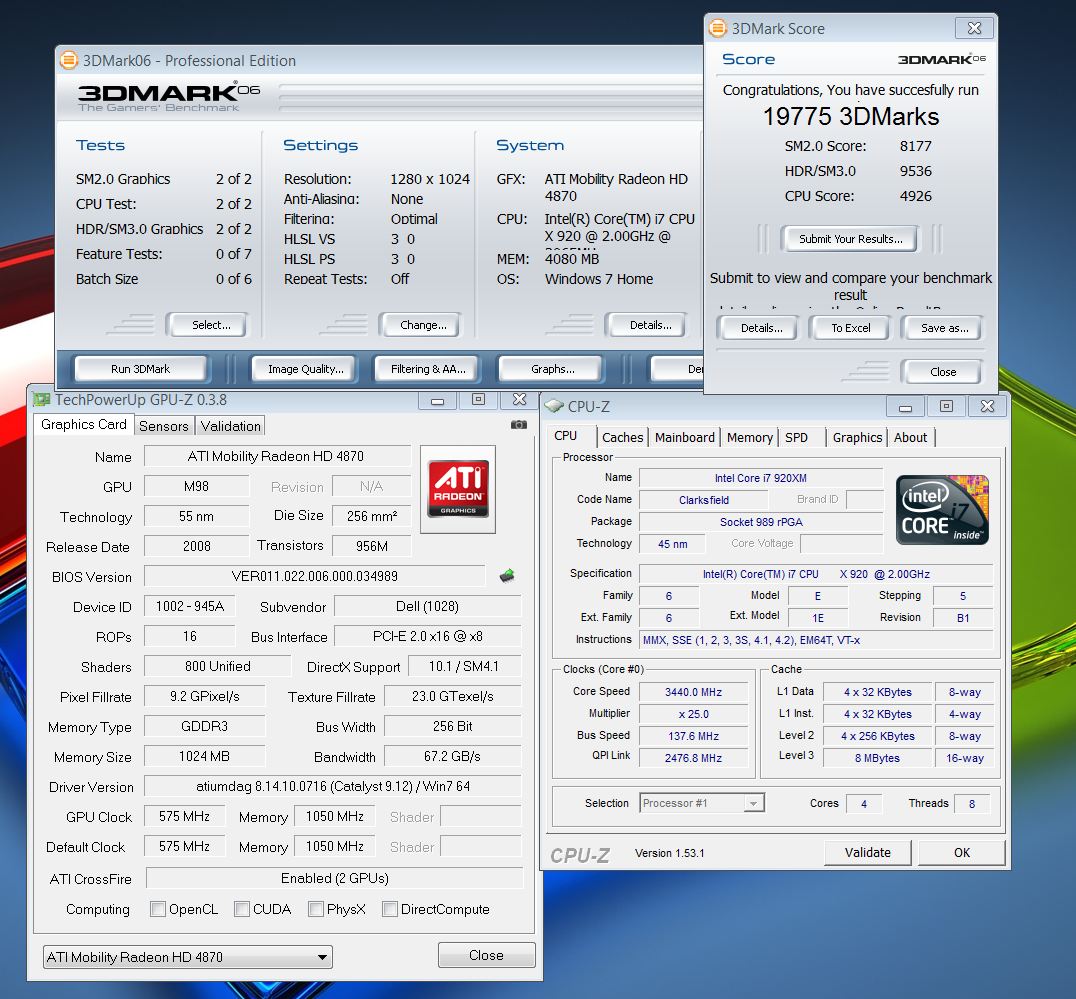

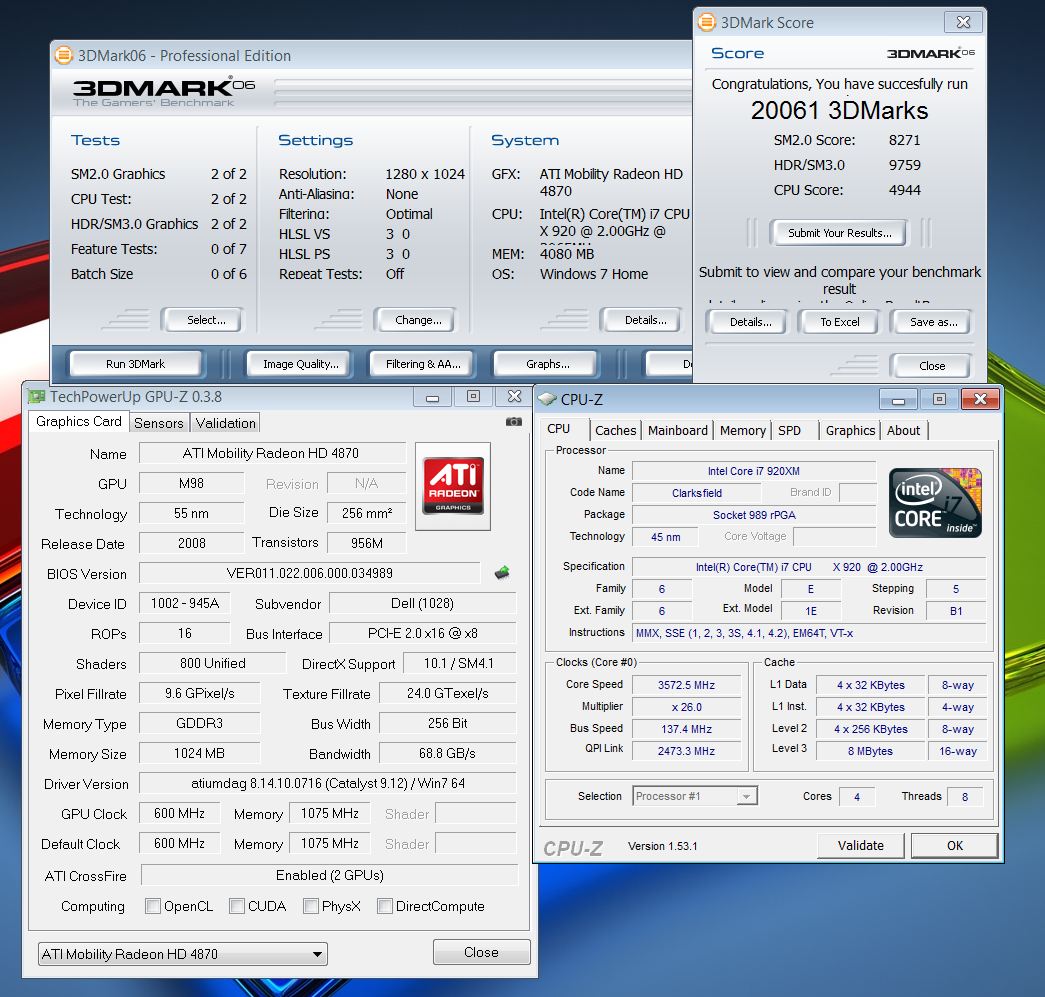

From this point going forward, please provide a screen shot of your total score along with gpu-z and cpu-z in the picture. Take a look at my screen shots if you don't understand. Please provide a link to an attached screen shot OR an image share site like imageshack.us to have your score posted ( how to post a pic with imageshack). I will only post the top 5 scores in each category so you must "earn" your spot on the this . I will do my best to find the screen shots of the best score. If you believe you belong in the top 5 in one of the categories, post the screen shot and I will add it. This should be fun.....

M17xR2 - 3DMark06



:: M17x-R2 Rengsey Edition ::​

3DMark06
21987



Vantage
P14409


Single
P8852

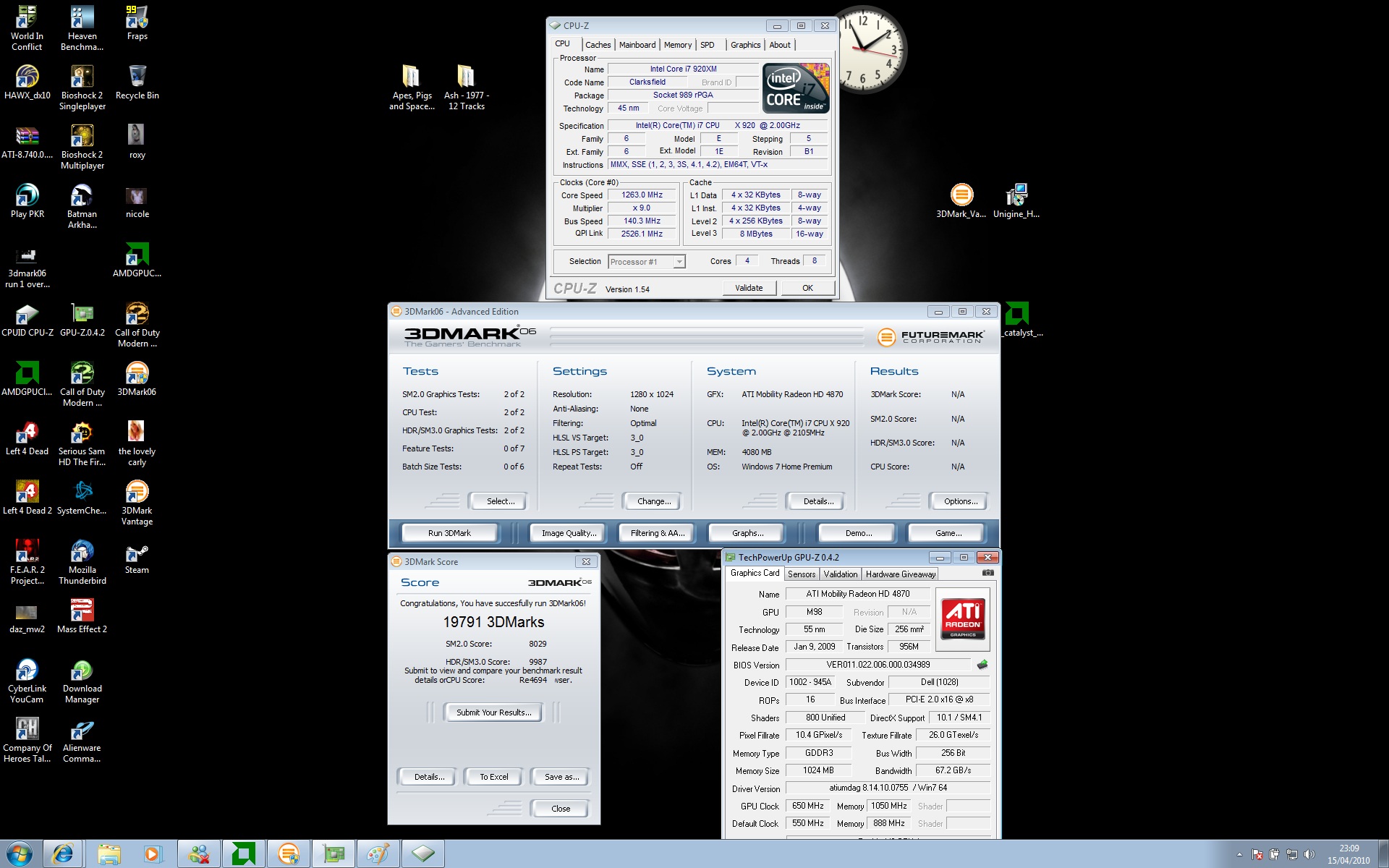

OK Here i am. First run overclocked. 19791 3dmarks



Nice job on the thread, props to Mandrake for assuming responsibility. +1

Updated to post my best benchmarks thus far, still need to rerun a lot of them.


Check out the GPU score
Vantage: P19838
GPU: 19478
CPU: 21004


3DMark06 : 23720 3DMarks
SM 2.0: 9150
SM3.0: 11579
CPU: 6414




3DMark11
P5246


DR650SE's Alienware M17x R2 Benchmarks.

GPU Benchmarks

5870M Dual GPU
3DMark Vantage: P19838 Marks
3DMark06: 23720 Marks
3DMark05: 31672 Marks
3DMark03: 80002 Marks
3DMark2001 SE: 50975 Marks
Unigine Heaven DX9: 1459.12 Marks
Unigine Heaven DX11: 927 Marks
AquaMark: 168065 Marks
----

5870M Single GPU

3DMark Vantage: P11163 Marks
3DMark06: 18040 Marks
3DMark05: 27381 Marks
3DMark03: 50893 Marks
3DMark2001 SE: 52426 Marks
Unigine Heaven DX9: 1295.37 Marks
Unigine Heaven DX11: 466.95 Marks
AquaMark: 191609 Marks
----

CPU Benchmarks

i7 940XM:
CPU-Z: 4261.03MHz
Pifast: 21.72sec
SuperPi 1M: 10.311sec
SuperPi 32M: 9Min 47.669sec
wPrime1024: 4Min 59.305sec
wPrime32: 6.958sec

i7 920XM
CPU-Z: 4248.15MHz
Pifast: 21.33sec
SuperPi 1M: 10.223sec
SuperPi 32M: 9Min 40.636sec
wPrime1024: 3Min 44.858sec
wPrime32: 6.599sec

i7 Q720M
CPU-Z: 3406.38MHz
Pifast: 26.16sec
SuperPi 1M: 12.449sec
SuperPi 32M: 11Min 17.821sec
wPrime1024: 6Min 39.918sec
wPrime32: 12.870sec

i5 540M
CPU-Z: 4102.03MHz
Pifast: 23.03sec
SuperPi 1M: 11.404sec
SuperPi 32M: 10Min 36.138sec
wPrime1024: 7Min 3.307sec
wPrime32: 13.221sec

i5 520M
CPU-Z: 3850.45MHz
Pifast: 24.98sec
SuperPi 1M: 12.448sec
SuperPi 32M: 11Min 26.697sec
wPrime1024: 8Min 18.406sec
wPrime32: 15.691sec
---

Referance Clock Benchmark for M17x R2
178.35MHz on FSB of i5 540M

Full System Benches

PCMark04: 11364 Marks
PCMark05: 18577 Marks
PC Mark Vantage: 18181 Marks



my stock M17X-R2 runs
http://img188.imageshack.us/img188/2885/17202312.png
http://img194.imageshack.us/img194/3203/vantage.png



mandrake i tough i was in the top 5



Post it. I sure as heck didn't go through ALL the threads/posts.



where will i lie?

you also need nvidia gpu's even though there isn't going to be alot soon.



I guess we are not distinguishing between nvidia and ati scores anymore?

there went my claim to fame (that is, until I actually bench these ATI cards )



Something tells me there are no nVidia systems in the top 5. Prove me wrong.



Nope, I am posting ATI or nVidia in the scores but I doubt we see any nVidia in the top 5. So only a R1, R2 distinction.



is here on the main thread http://forum.notebookreview.com/showthread.php?t=424518



i'll try to while i can but there should a little top 3 or more for nvidia.



Look how I'm posting the scores. I need the screen shot.



will you accept ORB links like I usually do? That is the least fakable form of submission



Yes. If you can see the clocks it's good.



for ATI cards the GPU clocks will show as what the VBIOS is set to, so if you use a software to OC it will not show

I am using bios to overclock though so I should be ok



Until proven otherwise the only way to OC the ATI cards is through the vbios anyway.



Ill frequent here a bit... not into benching anymore, but I can help squeeze every ounce of power out of theses systems...


Dont sleep on my skills.



Since you'll have a system with dual 4870s you need to jump back in.



Top 5 3dMark06 are there now. If you have a higher score please post it.



1 last spot for the top 5 in Vantage. Who has it??



not me. But there wanst alot of benchmarkers with 4870. weveryoone had the 280m gtx sli. And if so it would be scook9......

let see what monday brings to my plate.



Scook has the ATI cards. He needs to post a new score.



true. Scook9 stop hiding your results and show us...



He obviously is holding back until he passes 14K.



lol. He might wait to long and someone else will do it.



Once I get started again... I wont stop. thats what im afraid of...

Thats also why I didnt build a "benching" system... just got what I needed for gaming and working.



I am not hiding anything

Sadly I have not had a chance to do any runs yet outside of stock ones

The system does not like overclocking inside, so I need to get it outside to cool it down



I sat mine in front of an AC when benching, although not sure if it really made much of a differance. Just wish I had more time with my system, I was shooting to take down both Mandrake and Rengsey. Guess it'll be a while.

Oh, and be kind to your SSD when you take it outside



excuses again.

it's been 2 years now you said you were going to run fc2.... I did it stock gpu so you won't have a problem there.



My replacement SSD should arrive next week lol

Lesson learned. Let it warm up slowly and powered OFF for a few hours between inside and outside time lol



Yeah there should not be any excuse. I did not have to go outside to get my scores. I did it all at room temperature. It does not even get cold in Norther Cali at that time.



well fine!

I will run some dam tests!

lol



bout time.



well mine is coming in next week and we shall see how it scores. I quickly become very bored with benching and i will try and see what i get but my enthusiasm will quickly fade.

BTW if anyone can find a 920 in the 600-700 range lemme know



You can get ES models from ebay $600.00 shipped. search 920xm.



Well to shut you all up.....I have some preliminary runs

3DMark06: 18686
3DMark Vantage: P13616
GPU: 13873
CPU: 12902

The cpu score was weak on the vantage run, I have gotten 13600 on CPU before at similar clocks, that would have put the overall past P14k

Since the GPU clocks are not showing properly in ORB, the clocks were 665/1100. I will be sure to take screenshots for you in the future.

YOU ALL HAPPY NOW?!



about time. lol. jk. great job.



Someone found the "secret" to 3DMark06.



i want the secret to 3dmark06...



I dunno what it is....he kept asking and I kept saying I dunno. lol

That knocks major81 from a top 5 spot. I know he lurks, need to start up again major81. We need to see handshake also. He's been gone for a while.



Great job scook. All you need was just a " lil " push.



No secret, just tired of listening to all you fools talking down at me lol

Now someone make me actually try this time

I need some challenge!



I think don is the only one left with a system.



What, I don't count? lol



My comment was a response to your comment meaning besides you.



Bench against your self ?
