    Power button for M17x R2

    Discussion in 'Alienware 17 and M17x' started by Toraj32, Apr 1, 2013.

  1. Toraj32

    Toraj32 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I own an Alienware mx17 r2. Does anyone know what the plastic piece the power button connects to is called? My connector from the computer to that piece won't lock and it isn't turning on now. I'd appreciate any help.

    Toraj32, Apr 1, 2013
    #1
  2. katalin_2003

    katalin_2003 NBR Spectre Super Moderator

    Reputations:
    14,963
    Messages:
    5,671
    Likes Received:
    1,521
    Trophy Points:
    331
    Hello, Toraj, welcome to NBR.
    Are you referring to the white latch with a brown lock?
    If that's the broken part, you should look at replacing the media bar (touch strip).
    I'll come back with a link and the part number in a few minutes.

    In the mean time you can check parts-people.com (look under Alienware M17x or M17x R2, they're the same) if they have any in stock. I even saw them once selling only the PCB (the electrical part without the plastic bar).

    katalin_2003, Apr 2, 2013
    #2
  3. Alienware-Luis_Pardo

    Alienware-Luis_Pardo Guest

    Reputations:
    1,141
    Messages:
    1,459
    Likes Received:
    8
    Trophy Points:
    56

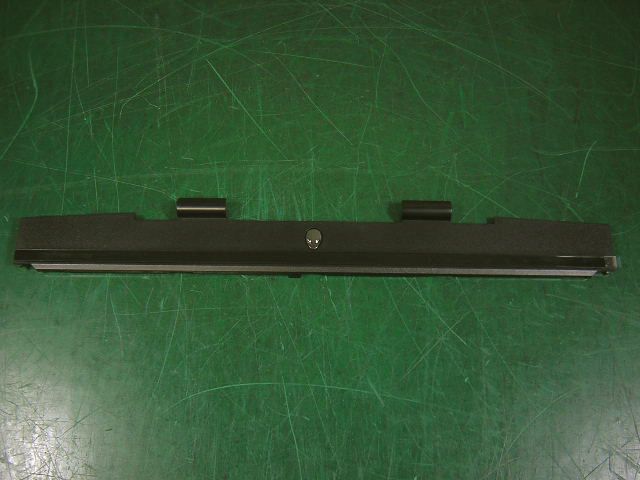

    This is the media bar or indicator cover

    WKTJ9 - ASSY,CVR,INDICATOR,M17X10

    [​IMG]

    In case you need the cable too you want to order this

    FD86P - ASSY,CBL,FFC,MEDIA-BTN,M17X

    Alienware-Luis_Pardo, Apr 2, 2013
    #3
  4. Toraj32

    Toraj32 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Sorry for the delayed response forgot my login stuff. All fixed.

    Toraj32, Feb 16, 2015
    #4
