    Thermal pad thickness 970m

    Discussion in 'Alienware 17 and M17x' started by Duck W, Sep 16, 2019.

  1. Duck W

    Duck W Notebook Consultant

    Reputations:
    40
    Messages:
    103
    Likes Received:
    80
    Trophy Points:
    41
    Hello guys,

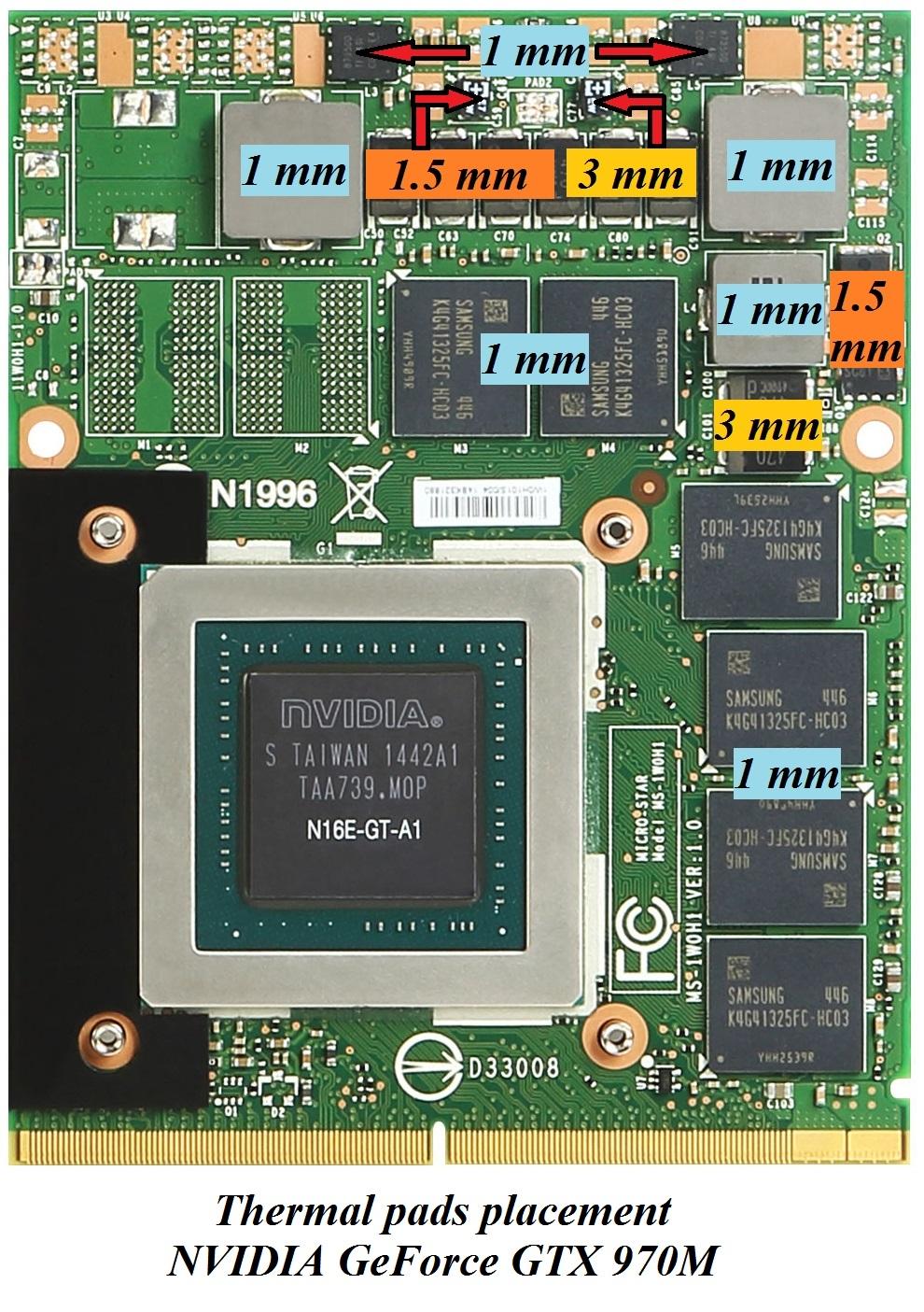

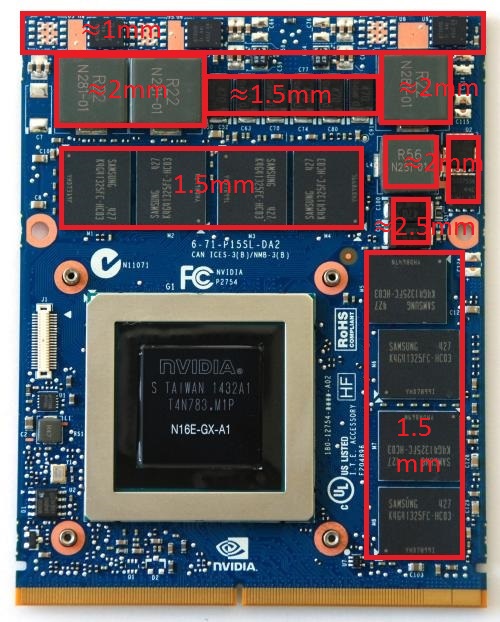

    I just got a 970m to upgrade my m17x r4. I'm currently stuck on how to apply thermal pad properly to make contact with the heatsink. I tried google and it showed me these 2 pictures. I'm not sure if they are correct or not. I just ordered thermal pads with 0.5 and 1.5 thickness from ebay.

    Thanks.


    Attached Files:

    Duck W, Sep 16, 2019
    #1
    Arrrrbol likes this.
  2. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Depends on your heatsink to some extent, but I usually don't bother with those guides and eyeball it until everything fits right. I prefer using the thinnest possible pads on the chokes as they are the highest point of the GPU, then i make sure all the other pads are thinner too to compensate. This gives you the best contact with the GPU die.

    Arrrrbol, Sep 16, 2019
    #2
    Johndill, jc_denton, M18x-oldie and 1 other person like this.
  3. Duck W

    Duck W Notebook Consultant

    Reputations:
    40
    Messages:
    103
    Likes Received:
    80
    Trophy Points:
    41
    Thank you. I will try. :)

    Duck W, Sep 16, 2019
    #3
    Arrrrbol likes this.
  4. 2CPU

    2CPU Notebook Evangelist

    Reputations:
    22
    Messages:
    363
    Likes Received:
    120
    Trophy Points:
    56
    [​IMG]

    2CPU, Sep 16, 2019
    #4
