What CPU heatsinks are you guys running for your Ranger?

So, I have a ranger, that when i bought it third hand, had a 4 heatpipe lapped cpu cooler on it. however, i couldn't use turbo or hyper-threading otherwise the 4800mq would overheat on core 2. so i bought a stock hs, and haven't had an issue and can use turbo and ht just fine. all cores are equal in temps.

Now, i have a 4930mx, that is too powerful for the stock hs.(btw i am using hydronaut paste) when it gets going that thing gets into the 90s under load. I do gaming and virtualization, so this cpu is something that i kinda need. I purchased and installed another 4 pipe all copper hs from china, but to my dismay, its performing worse than the stock hs! can you guys help me out?

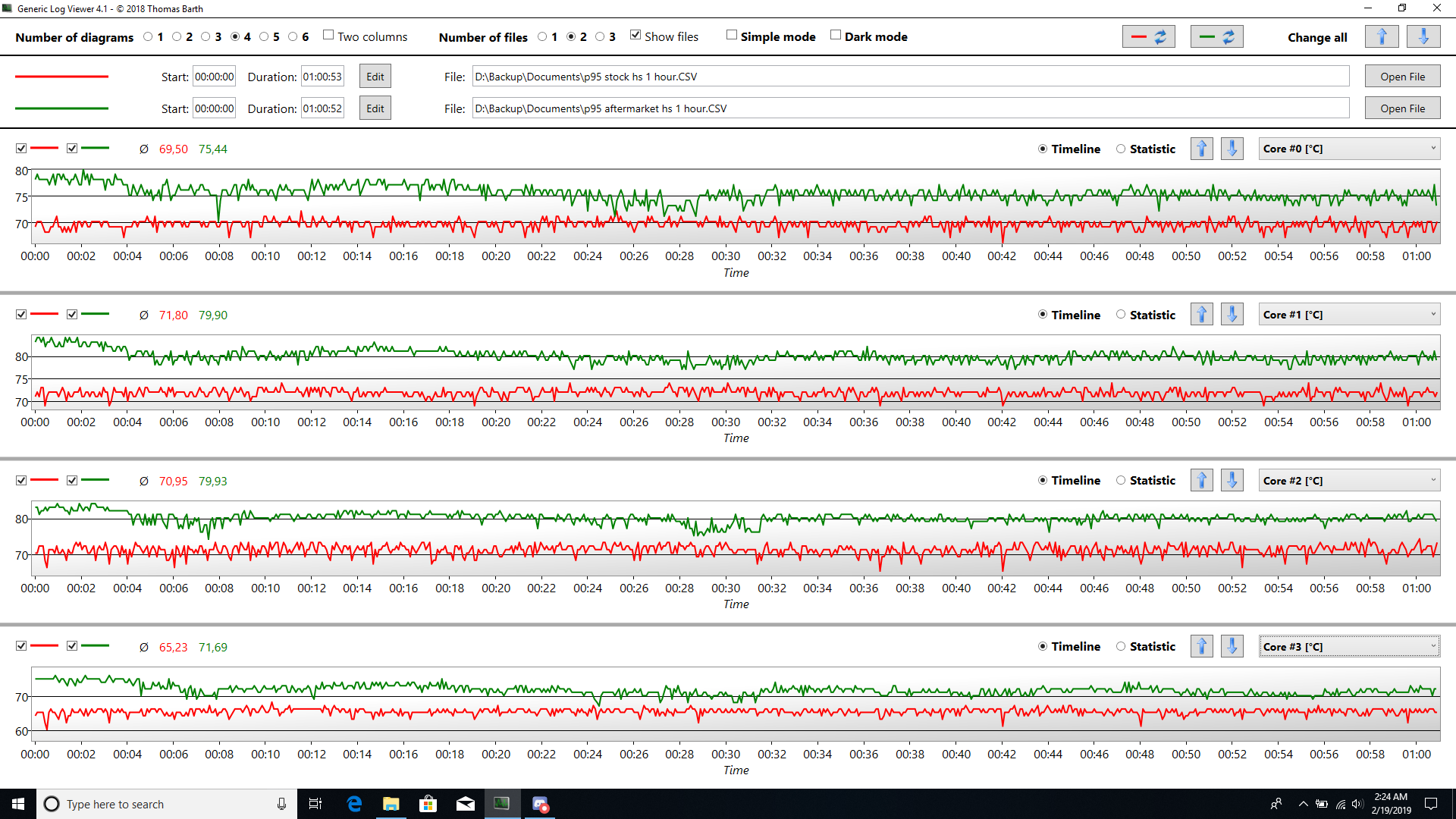

I have ran 2 identical p95 stress tests with max heat for 1 hour. the only difference being the hs. i did repaste both times to ensure accuracy. Attached is a pic of the log viewer of hwi reports for both tests. Thanks!



At the moment stock 2 pipe heatsink.

Though I have a unique heatsink planned for this laptop in the future.



Look forward to seeing it



I have the all copper one. It seems to work well but i think you would benefit from switching to liquid metal. I noticed a big improvement in temps.



I think people have said that the copper heatsink needs to be sanded.



Hmm. Why would I switch to lm on a hs that is 10c hotter than the stock hs using hydronaut? I know lm performs and that's the plan but I need to know why I have 2 of these Hs and they both suck worse than the stock

How would I go about sanding this? Can you link me to someone else who has this hs?

The problem with having this hs, is it's not flat at the screw holes so I'm not sure how to sand this otherwise



The heatsinks i have out perform the stock heatsink but it may be a fluke. I dont know where you got yours from but not all custom heatsinks are the same. Could be that your heatsink is heatsoaking. It may be storeing more heat than the fan can disperse. Stands to reason as the mass is much higher.



I got one from https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.com/ulk/itm/263078220232 and an exact other one from a member in the forum when I bought the alienware. He said he had no issues with it.



I run my 4930mx at 4.3ghz 1.05v with the heatsink you linked and liquid metal and temps stay under 83c. The 4930mx runs hot admittedly but it can be tamed.



Did you have to sand it at all? Can you do me a favor and run p95 for an hour for max heat and send me hwinfo log?



I had no issues with that heatsink, I tried something that worked on my y510p and I warped it, which is why I am not using it right now. Still have it and plan to use it for a mod mockup later.



p95 is a very intensive workload simulation. The most I have run it through is cinebench and multiple hours of gaming. When I convert videos using my laptop I drop my clock speed to 3.8ghz and the voltage to .975 or .950. Unfortunately i've never been able to maintain sustained overclocks under very heavy load on any heatsink using any tim.



Ah That voltage is also pretty low if I'm being honest What are you using for the overclocking? And would you advise that I lm the CPU with stock hs?



You mean on the software end? I use throttlestop. I say you try both and see which works best. The copper hs works best for me but mine is like 3 years old and maybe he makes them differently now. No clue.



I think I aam going to try and lap one of the 2 hs I have that are the all copper ones. But on the other hand. I have also ordered https://www.ebay.com/itm/Turbo-FAN-...h=item3b227d78fc:g:80UAAOSw0d1b7PtA:rk:8:pf:0 for a replacement of the CPU fan

I am going to lm the 4930mx and put the stock hs back on. Before it was usable just really scary temps under load. Hopefully the lm gives a great improvement. Also. Can you tell me what bios version you have? I am on a14+



I have the unlocked bios on my laptop. There is a thread about it on this forum. Pretty easy to do and it gives you more control over your laptop. I think its the a14 unlocked.



You are correct. It's a thread I hold dear to my heart. That's why I said I'm using the a14+ bios xD



Also. Under identical load on all cores, what degree difference between them is ok? Like with stock It can be 5 to 7 but the aftermarket there's like 10 deg difference



Update.

I got the last peice to the liquid metal puzzle which was the conformal coating. I applied a layer of conformal coating to both of my cpus(4800mq and 4930mx) and slapped the 4930mx back in the laptop. Applied a very thin coat of liquid metal to my CPU and hs,(stock) gave that bad boy a spanking, and slapped the two back together.

Turned machine on and got scared of the two beeps I heard(I get that on boot sometimes, and I just changed the CPU sooo idk) held the power button down and booted back up Right into windows.

Started p95 and I havent even gotten over 80 with stock hs! I call this a win!



I bought not one but two of those heatsinks from same seller, thought it might be of real benefit and it wasn't. And damn they weren't even fitting. I have them sitting in the closet, wasted I PMed him no use because of some communication gap or such, I didn't feel to wreck him/her because of the work they are doing and was busy at that time.

Looks like from both @EepoSaurus and yourself @kaibsora the LM is much better than those heatsinks, Also I remember @Papusan was able to bench it quite well still ofc with the same dual heatpipe stock heatsink with Liquid metal, So I guess staying with stock is better then.

Alienware of pre 2013 and until 2014 had one of the best Heatsink fits ever. But as we know they took a nose dive with BGA and the tripod mess and a whole another world of gimpgames. And, one more thing I'd like to mention is Dell Fan profiles, they are WORST, unlike the M17x R4 you cannot control them, Even with the HWInfo Dell EC the max out is *trash* better to leave it auto for both GPU and CPU (Because the RPM read out on HWInfo with Dell EC isn't what when the fans kick in auto, I just tested it while playing COD WWII), the only fix I know is -> custom fan table option which works only with MX CPUs. Maybe you can check it out the thread and it needs DPTF which is available ONLY with the Unlocked BIOS on Ranger.

And the only time when you hear the real fan performance (even without both fans from M17x R4 GPU and M17x R3 CPU) is the BIOS flashing time ( this is same for the Area51M as well now). They run to max boost this is the MAX RPM, I wish they ran like that when we have the Dell EC with the HWInfo maxed-out. Compal EC has problems from what I remember as it maxes out CPU fan, BUT it messes up a lot.

One last thing, that Turbo fan you mentioned is from the same seller, No idea how it will work, factoring all the things above. First time seeing it, please let us know what changes you notice, Thanks.

Edit : Btw can anyone confirm with the Unlocked BIOS about this DPTF feature whether it works for RPM control as well, discussed in the AW18 thread ?



Also wanted to order one of these HS, but didn't, since I read distorted experiences of users, sm say super, sm say bad.

Have one of these "turbo" fans in my r4, HW info with EC reading off and fans set to "maxed" give me 6-7° on CPU and 3-4° on GPU (stock fan) vs auto fan control, when gaming.



Guess I was lucky I had a good one but screwed it up lol



Yeah. Everything you stated is exactly kn point with my heatsinks that I bought from him. With lm, it seems that the hs doesn't even touch the CPU. However. I was able to stop vr throttling and even get 4.3 on all cores without throttling on stock CPU with pads on vrms. Now, That being said, it gets into 90s lol. so I have to get a better fan.

I can test the dptf thing you are talking about. If you PM me, I'm much easier to reach on discord. (I have 4930mx and a14+ bios)



Could you be more specific, I couldn't understand, so this turbo fan shaves off 6-7C on CPU temps vs the M17x R4 stock CPU fan ? About GPU vs Auto fan I didn't get that too, thanks.

Damn shame that this HS fitment is hit or miss, so far only saw @TheReciever and @EepoSaurus got the proper fit.
And regarding the BIOS I do not have the unlocked BIOS flashed onto my machine but this is the post which explains that a bit and needs this driver.



i get "this computer does not meet the minimum requirements for this driver" error on install
