    What the best/top CPU upgrade M17X R4 ??

    Discussion in 'Alienware 17 and M17x' started by Ritz1209, Jun 8, 2019.

  1. Ritz1209

    Ritz1209 Notebook Guru

    Reputations:
    0
    Messages:
    57
    Likes Received:
    6
    Trophy Points:
    16
    Hi everyone,

    What the best/top CPU upgrade M17X R4 I can buy.

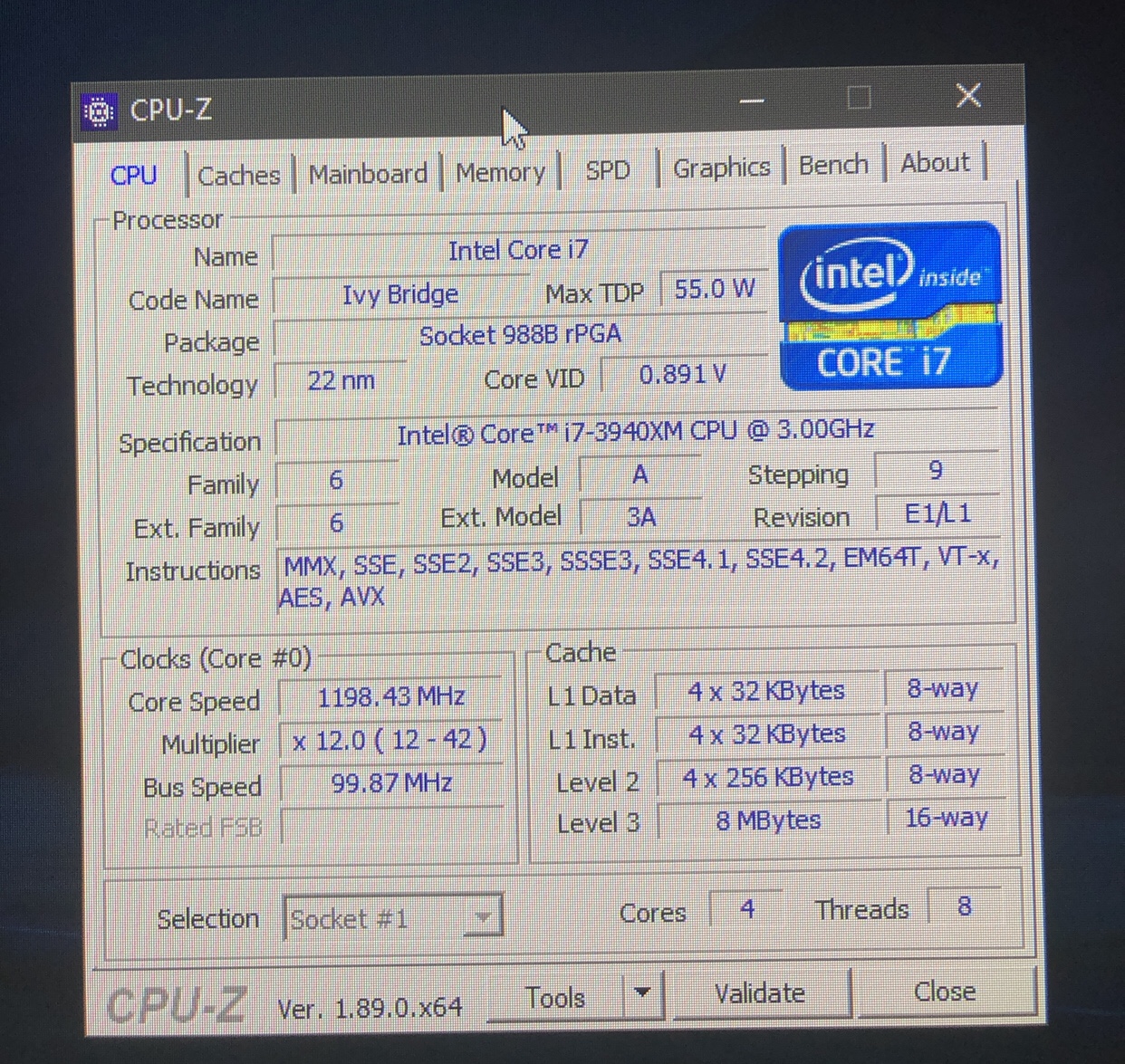

    I'm currently on 17 3940xm [​IMG]


    Or

    Is it best just to overclock my current CPU in the bios?

    Will that help to gain more performance?


    Thanks



    Sent from my iPhone using Tapatalk

    Ritz1209, Jun 8, 2019
    #1
  2. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    That is the best CPU for your system, definitely try overclocking it as you will gain quite a bit more performance.

    Arrrrbol, Jun 8, 2019
    #2
    M18x-oldie, Papusan and Ritz1209 like this.
  3. Ritz1209

    Ritz1209 Notebook Guru

    Reputations:
    0
    Messages:
    57
    Likes Received:
    6
    Trophy Points:
    16
    Cheers pal

    Is there a guide on how to do that within the bios, I know you can overlook CP in the bios to level 1 2 3?

    Never done overclock on alienware before so I'm not to sure the best way here .


    Any help is much appreciated

    Ritz


    Sent from my iPhone using Tapatalk

    Ritz1209, Jun 8, 2019
    #3
  4. M18x-oldie

    M18x-oldie Notebook Evangelist

    Reputations:
    14
    Messages:
    385
    Likes Received:
    129
    Trophy Points:
    56
    Better improve your cooling first, OC brings much excess heat with it ;)

    M18x-oldie, Jun 8, 2019
    #4
    Arrrrbol, Papusan and Ritz1209 like this.
  5. Ritz1209

    Ritz1209 Notebook Guru

    Reputations:
    0
    Messages:
    57
    Likes Received:
    6
    Trophy Points:
    16
    Hi pal,

    How?


    Sent from my iPhone using Tapatalk

    Ritz1209, Jun 8, 2019
    #5
  6. M18x-oldie

    M18x-oldie Notebook Evangelist

    Reputations:
    14
    Messages:
    385
    Likes Received:
    129
    Trophy Points:
    56
    Good paste and a stronger fan, pal.

    M18x-oldie, Jun 8, 2019
    #6
  7. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,727
    Messages:
    29,850
    Likes Received:
    59,668
    Trophy Points:
    931
    Use Grizzly Conductonaut Liquid metal. Google it. Or search within this forum.

    Papusan, Jun 9, 2019
    #7
    M18x-oldie, Arrrrbol and Ritz1209 like this.
  8. Ritz1209

    Ritz1209 Notebook Guru

    Reputations:
    0
    Messages:
    57
    Likes Received:
    6
    Trophy Points:
    16
    Cheers will research about it thanks


    Sent from my iPhone using Tapatalk

    Ritz1209, Jun 9, 2019
    #8
  9. M18x-oldie

    M18x-oldie Notebook Evangelist

    Reputations:
    14
    Messages:
    385
    Likes Received:
    129
    Trophy Points:
    56
    M18x-oldie, Jun 9, 2019
    #9
    Papusan likes this.
  10. mariussx

    mariussx Notebook Evangelist

    Reputations:
    173
    Messages:
    604
    Likes Received:
    190
    Trophy Points:
    56
    mariussx, Jun 11, 2019
    #10
  11. rjtnag

    rjtnag Notebook Evangelist

    Reputations:
    72
    Messages:
    316
    Likes Received:
    53
    Trophy Points:
    41
    Is it an extra powerful fan or just a regular replacement fan?
    Also, do the 39xx XM cpus need a bigger heatsink and a bigger power supply?(Currently have a 240w unit)

    rjtnag, Jul 10, 2019
    #11
  12. M18x-oldie

    M18x-oldie Notebook Evangelist

    Reputations:
    14
    Messages:
    385
    Likes Received:
    129
    Trophy Points:
    56
    It's a more powerful fan (10.x vs. the stock 4.x cfm), and a perfect drop-in, thus fitting better than the one of the m14x r2, which needs modification.

    I'd say depending on the GPU, up to 100w the 240w unit should be sufficient, above that the 330w would be better e.g. when upgraded to a 1070.

    M18x-oldie, Jul 11, 2019
    #12
  13. 2CPU

    2CPU Notebook Evangelist

    Reputations:
    22
    Messages:
    363
    Likes Received:
    120
    Trophy Points:
    56
    I think the CPU fan port is rated at 0.5A

    Does the Intel tool auto load the profile on reboot? What settings are others using for 3940XM?

    2CPU, Aug 7, 2019
    #13
  14. Duck W

    Duck W Notebook Consultant

    Reputations:
    40
    Messages:
    103
    Likes Received:
    80
    Trophy Points:
    41
    I hear some people say that the 3940XM can overclock higher than the 4940MX. Fix me if I'm wrong.

    Duck W, Aug 20, 2019
    #14
  15. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,727
    Messages:
    29,850
    Likes Received:
    59,668
    Trophy Points:
    931
    A larger number of 3940XM can overclock higher. But Haswell have up to 11% Higher IPC vs. Ivy Bridge. Haswell chips run hot and not so easy squeeze out high clocks.

    https://hwbot.org/submission/2666783_mw86_cpu_frequency_core_i7_4940mx_4999.62_mhz

    https://hwbot.org/submission/2347802_johnksss_cpu_frequency_core_i7_3940xm_5008.55_mhz

    https://hwbot.org/submission/2519152_fugger_cpu_frequency_core_i7_4930mx_5095.16_mhz

    Last edited: Aug 20, 2019
    Papusan, Aug 20, 2019
    #15
    M18x-oldie likes this.
