    is it possible for a single GTX570M/Quadro 4000M on M17X R1 ?

    Discussion in 'Alienware 17 and M17x' started by mitsuhide, Feb 28, 2012.

  1. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    hello guys

    I got a Quadro 4000M card in kunshan in a very low price :D
    I tried to do a replacement of GTX280M SLI

    I take out the 280Ms and install it on the MXM1,but I can only see the black screen

    maybe it need BIOS hack

    anyone install a single GTX570M/Quadro 4000M on a M17X R1 ?

    (Quadro 4000M ) HP version
    (GTX570M) MSI version


    [​IMG]

    mitsuhide, Feb 28, 2012
    #1
  2. superdave643

    superdave643 Notebook Geek

    Reputations:
    55
    Messages:
    94
    Likes Received:
    0
    Trophy Points:
    15
    Maybe you got for a really low price because it doesn't work. ;) Seriously, try it by itself without the 570 in there first. I also have my doubts you can SLI a GeForce and a Quadro together because they have different DeviceIDs and driver sets.

    superdave643, Feb 28, 2012
    #2
  3. aarpcard

    aarpcard Notebook Deity

    Reputations:
    606
    Messages:
    1,129
    Likes Received:
    284
    Trophy Points:
    101
    Ouch. You're problem is the fact that it's an HP card.

    HP (and other companies) while they use the MXM interface for their laptops, don't comply to the standards.

    The crazy thing they do to ensure the propriety of their hardware is to have the eprom chip with the vbios, not located on the MXM card but on the motherboard itself.

    Your card doesn't have a vbios. Your card is incapable of having a vbios because it is missing the chip which houses the vbios.

    (Look right under the gpu die, to the right of the traces for the missing SLI connector. You will see the 8 horizontal traces. That is where the vbios chip should be.)

    You can't use that card in any laptop other than the HP laptop is was made for.

    aarpcard, Feb 28, 2012
    #3
  4. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30
    I can make sure the Q4000M does work on HP M6600
    I pulled the card from the M6600

    because the M17X is too heavy, and I'm on a bussiness trip at that time
    so I didn't take the AW to kunshan

    I have a Q4000M in hand and I didn't buy 570M yet

    next,,,I will return this card,,,,and try MSI GTX570M

    mitsuhide, Feb 28, 2012
    #4
  5. mitsuhide

    mitsuhide Notebook Consultant

    Reputations:
    109
    Messages:
    146
    Likes Received:
    0
    Trophy Points:
    30

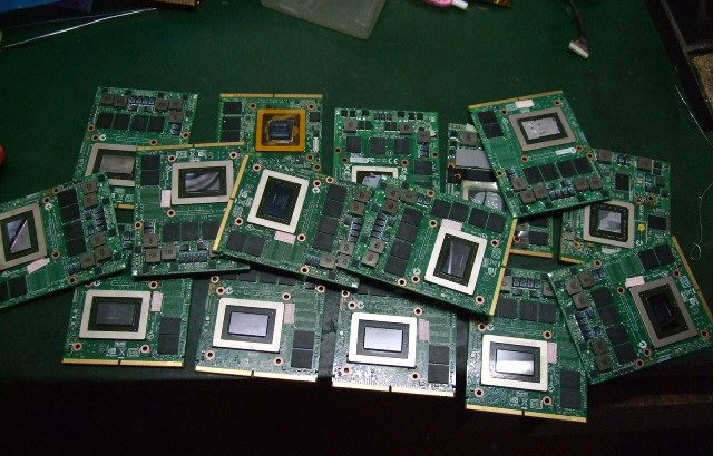

    anyone succeed in installing GTX570M in a M17X R1? :confused:


    [​IMG]


    Attached Files:

    • 570m.jpg
      File size:
      197.5 KB
      Views:
      194
    mitsuhide, Mar 1, 2012
    #5
  6. katalin_2003

    katalin_2003 NBR Spectre Super Moderator

    Reputations:
    14,963
    Messages:
    5,671
    Likes Received:
    1,521
    Trophy Points:
    331
    The 560M has been tested a couple of times, it works but doesn't output on the built in screen, only external.

    katalin_2003, Mar 1, 2012
    #6
  7. dellienware owner

    dellienware owner Notebook Evangelist

    Reputations:
    26
    Messages:
    351
    Likes Received:
    11
    Trophy Points:
    31
    dang id love to have one if it worked fully

    dellienware owner, Mar 1, 2012
    #7
