    m17x and SSDs

    Discussion in 'Alienware 17 and M17x' started by izpirikitik, May 12, 2010.

  1. izpirikitik

    izpirikitik Notebook Guru

    Reputations:
    16
    Messages:
    74
    Likes Received:
    0
    Trophy Points:
    15
    i am supposed to have 2 x 256GB SSD in RAID 0 that came in with my m17x.

    How can i check that i indeed have those drives in my system running win 7?

    on the device manager, all i can see is 1 disk drive and labeled only as "dell".

    on my computer window, all i can see is 1 drive labeled as "c: OS" which has 462GB.

    thanks a bunch guys.

    izpirikitik, May 12, 2010
    #1
  2. claxdog

    claxdog Notebook Evangelist

    Reputations:
    239
    Messages:
    653
    Likes Received:
    0
    Trophy Points:
    30
    install the new intel rapid storage manager.it will tell you the status of each drive.you should also see the info when your pc starts up.

    claxdog, May 12, 2010
    #2
  3. hitokiri1

    hitokiri1 Notebook Evangelist

    Reputations:
    56
    Messages:
    637
    Likes Received:
    0
    Trophy Points:
    30
    you can go into the bios and see each drive individually.

    your setup sounds right, 2x256 in Raid 0 will give you 512GB (minus obvious calculations for storage size. Plus the Alienware Respawn partition.

    hitokiri1, May 12, 2010
    #3
  4. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Run Crystal Disk info. It will tell you every thing you need to know about your SSDs.

    DR650SE, May 12, 2010
    #4
  5. Crocs09

    Crocs09 Notebook Consultant

    Reputations:
    55
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    Download and run the program HWinfo32 or CrystalDisk.. HW32 will show all your hardware and CrystalDisk will give you specific info on your SDD's.

    Crocs09, May 12, 2010
    #5
  6. claxdog

    claxdog Notebook Evangelist

    Reputations:
    239
    Messages:
    653
    Likes Received:
    0
    Trophy Points:
    30

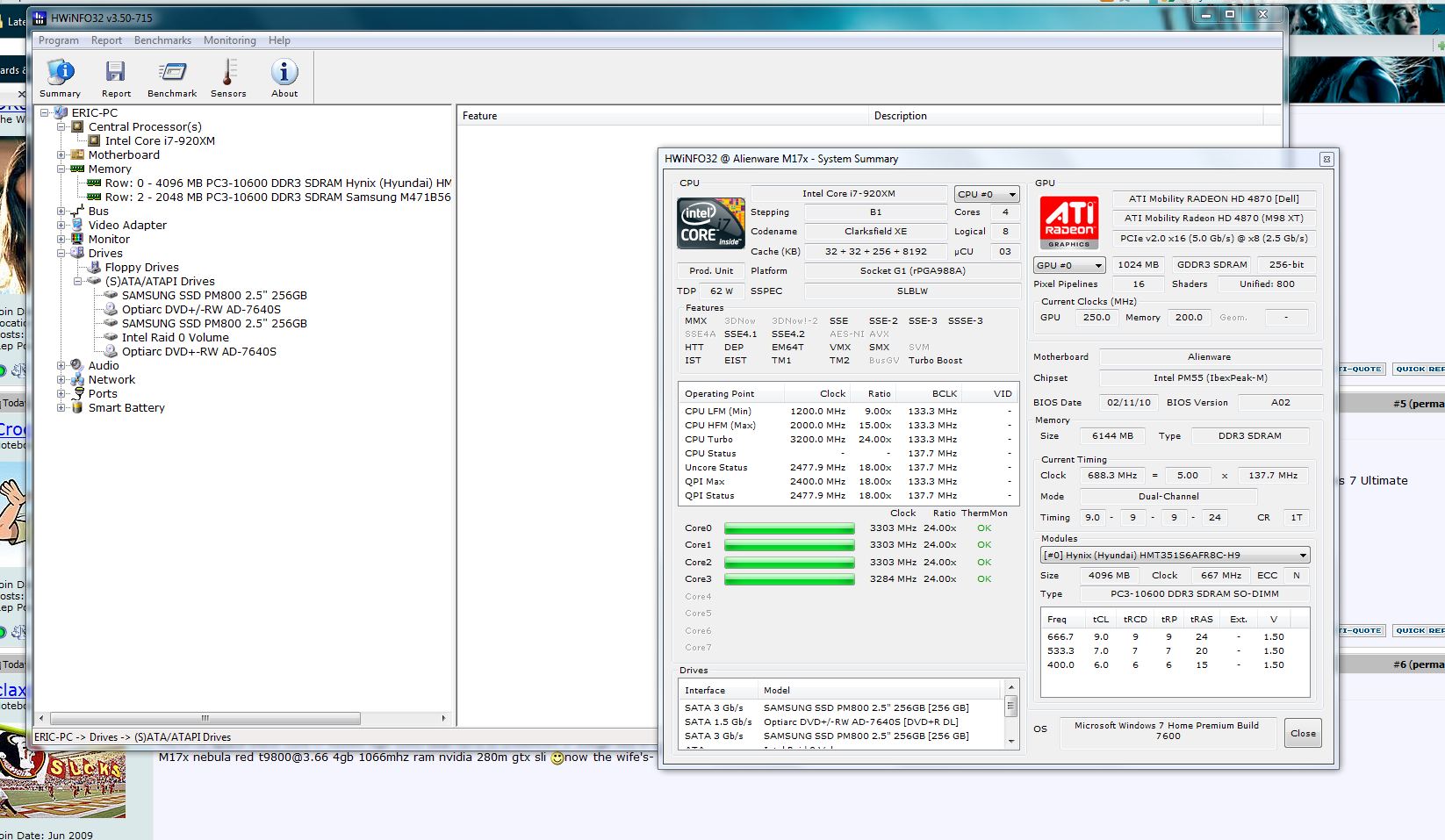

    crystal disk info does not work on ssd raid configurations(at least not on mine)maybe you can test and tell me if it works on yours.this is what hwinfo32 should look like.


    Attached Files:

    claxdog, May 12, 2010
    #6
  7. izpirikitik

    izpirikitik Notebook Guru

    Reputations:
    16
    Messages:
    74
    Likes Received:
    0
    Trophy Points:
    15
    claxdog, i see that you do have the same ssd setup as mine.. on your device manager, do you have only one hard drive labeled as "dell" too?

    thanks guys.

    izpirikitik, May 12, 2010
    #7
  8. claxdog

    claxdog Notebook Evangelist

    Reputations:
    239
    Messages:
    653
    Likes Received:
    0
    Trophy Points:
    30
    yeah mine just says dell also.

    claxdog, May 12, 2010
    #8
  9. hitokiri1

    hitokiri1 Notebook Evangelist

    Reputations:
    56
    Messages:
    637
    Likes Received:
    0
    Trophy Points:
    30
    Doesn't it list your systems drives under the Raid manager through the BIOS. that seems like the simplest way of figuring this out. (aside from opening up the damn case and seeing whats inside).

    hitokiri1, May 12, 2010
    #9
  10. Crocs09

    Crocs09 Notebook Consultant

    Reputations:
    55
    Messages:
    161
    Likes Received:
    0
    Trophy Points:
    30
    I'm curious as to why HWinfo32 doesn't recognize my second SSD? They aren't in raid.. CrystalDisk recognizes them but HW32 doesn't.. One's listed as OS C: and the other as D:

    Crocs09, May 12, 2010
    #10
