    m17x-r2 - 920xm upgrade weird cpu-z

    Discussion in 'Alienware 17 and M17x' started by tb303, Jun 29, 2012.

  1. tb303

    tb303 Notebook Consultant

    Reputations:
    34
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    30
    i just upgraded my laptop to 920xm and when i try cpu-z it shows up as 2 cores 4 threads instead of 4 and 8.
    any ideas please?
    i haven't done any overclocking. also it has a temp of 65 Celsius on idle and i have it on high performance through power settings. i used arctic silver 5 for thermal paste.

    cheers
    tio

    tb303, Jun 29, 2012
    #1
  2. Tsunade_Hime

    Tsunade_Hime such bacon. wow

    Reputations:
    5,413
    Messages:
    10,711
    Likes Received:
    1,204
    Trophy Points:
    581
    Can you screenshot the 920XM? My 920XM idles at like ~53C due to the registry hack for SSDs.

    Tsunade_Hime, Jun 29, 2012
    #2
  3. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Try going to msconfig, then go to the "boot" tab. Advanced options, check the box for # of processors, select the max amount. Then reboot. Go back to that setting and uncheck the # of processors box (this step is the important one).
    Then reboot and see how many cores you get in CPUz.

    Also check your bios settings. Reset them if you have to.

    moral hazard, Jun 29, 2012
    #3
  4. The Revelator

    The Revelator Notebook Prophet

    Reputations:
    5,395
    Messages:
    4,571
    Likes Received:
    2
    Trophy Points:
    105
    That 2 core/4 thread issue is probably a leftover setting from your old i7-620M. Go to Run and enter msconfig.exe and run as Administrator. Click on the Boot tab, then Advanced Options and check the box for Number of Processors and select 8 from the dropdown menu. That will fix that problem.

    The Revelator, Jun 29, 2012
    #4
  5. tb303

    tb303 Notebook Consultant

    Reputations:
    34
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    30
    it only shows 4 processors. not 8. :(

    tb303, Jun 30, 2012
    #5
  6. tb303

    tb303 Notebook Consultant

    Reputations:
    34
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    30

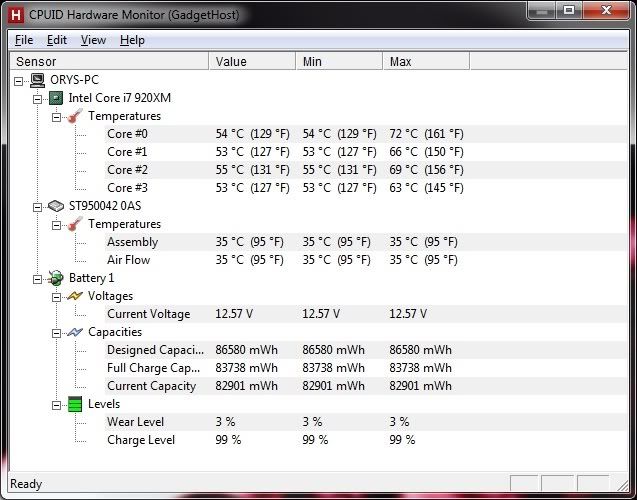

    ok! so it was checked though and by unchecking it it fixed it! Thanks a lot guys. So now this is what i get on idle, high performance setting in power options.

    [​IMG]

    tb303, Jun 30, 2012
    #6
  7. tb303

    tb303 Notebook Consultant

    Reputations:
    34
    Messages:
    134
    Likes Received:
    0
    Trophy Points:
    30
    is there any good hardware monitoring proggie that can help me monitor temps clock speed, of cpu and gpus please? i remember i was using everest years ago..........

    tb303, Jun 30, 2012
    #7
  8. radji

    radji Farewell, Solenya...

    Reputations:
    3,856
    Messages:
    3,074
    Likes Received:
    2,619
    Trophy Points:
    231
    Many people turn to HWiNFO64 for that. I don't need so much info/control so I use Coretemp + AllCPU for my processor, and GPU-Z for my GPU.

    radji, Jun 30, 2012
    #8
