4940mx overclocking help!

Just installed my 4940mx into my AW18. Downloaded throttle stop and XTU, need some help on how to overclock to maybe 4GHz. If anyone can give me a step by step guide on what to do and what figures to change in XTU or throttle stop.


Sent from my iPhone using Tapatalk



These are my Settings I used for 4GHz on my 4930MX, Make sure you set VR Faults and Efficiency Mode off under the other tab. If you want to go higher than 4GHz @Mr. Fox has a Guide for the 4930MX (basically a 4940MX) to go to 4.3GHz, which you can check out here - http://forum.notebookreview.com/thr...ly-have-it-run-full-stock-turbo-speed.734696/ However I recommend tweaking it a tad bit by raising the Core and Current limit to 256A



Hi pal thankyou for a quick reply. I have changed the settings like your picture shows. Before you sent me this I’ve gone into bios and put ovc lvl 2 on. Do I need to turn this off now?


Sent from my iPhone using Tapatalk



I Don't think so the bios should auto configure to XTU set config. mine says OVC LVL1 at 4.6GHz lol, so no I don't think it effects anything



Ok how do I get to keep these settings so I don’t have to configure each time I boot up?


Sent from my iPhone using Tapatalk



no they will auto apply... just apply the settings in XTU, and IF you want save them to a profile and then restart load up CPU-Z you should see 4GHz active and you will then know it is loading up automatically.



When I restart core current limit drops down to 75.00


Sent from my iPhone using Tapatalk



go to bios turn off OVC LVL setting go back into XTU set the config for 4GHz again then restart, and see if you get the same issue



Ok I’ll try it and let you know tomorrow.


Sent from my iPhone using Tapatalk



Ok so still no joy, disabled OVC 1 in bios. Max non turbo boost ratio can’t be saved as I get a pop up message just before XTU opens as well as processor current limit drops again from 256.00 A back to default.


Sent from my iPhone using Tapatalk



Interesting... Since your only at 4GHz you prob won't need the boost of extra power anyway so I don't think it's going to be an issue

Sent from my ONEPLUS A5000 using Tapatalk



Getting power limit throttling now when I do a Stress test, down clocks to 3.8 GHz


Sent from my iPhone using Tapatalk



At 1.2V?! That's extremely odd... One solution is dropping the iGPU to 6.0x and - 0.050V or 4.0x and - 0.100V what if u set the power limit back to 256A without the restart.. Does it power throttle?

Sent from my ONEPLUS A5000 using Tapatalk



Here is my Score at 4Ghz... completes benchmark just fine, I have also added the XTU profile below, see if that helps.
https://mega.nz/#!ERITWbTS!Roa1GP0DQB1Xj0yyZYs7yY0q_ILtpSVAYOag8soBrm4 - here is the link to download my 4GHz XTU Profile



Yes even though I set it again after restart it still power throttles.


Sent from my iPhone using Tapatalk



Without the restart does it throttle? I also sent u my XTU Profile so u can easily apply the settings and see if that works

Sent from my ONEPLUS A5000 using Tapatalk



I’ll give it a go pal. Thanks.


Sent from my iPhone using Tapatalk



working?



Not tried yet pal. Got drunk yesterday instead lol. Going to give it a shot tonight, will keep you updated.


Sent from my iPhone using Tapatalk



Still no joy. Applied the settings you gave me and power limit throttling = Yes and down clocks to 3.09


Sent from my iPhone using Tapatalk



Are u running the unlocked A12 bios?

Sent from my ONEPLUS A5000 using Tapatalk



Nope


Sent from my iPhone using Tapatalk

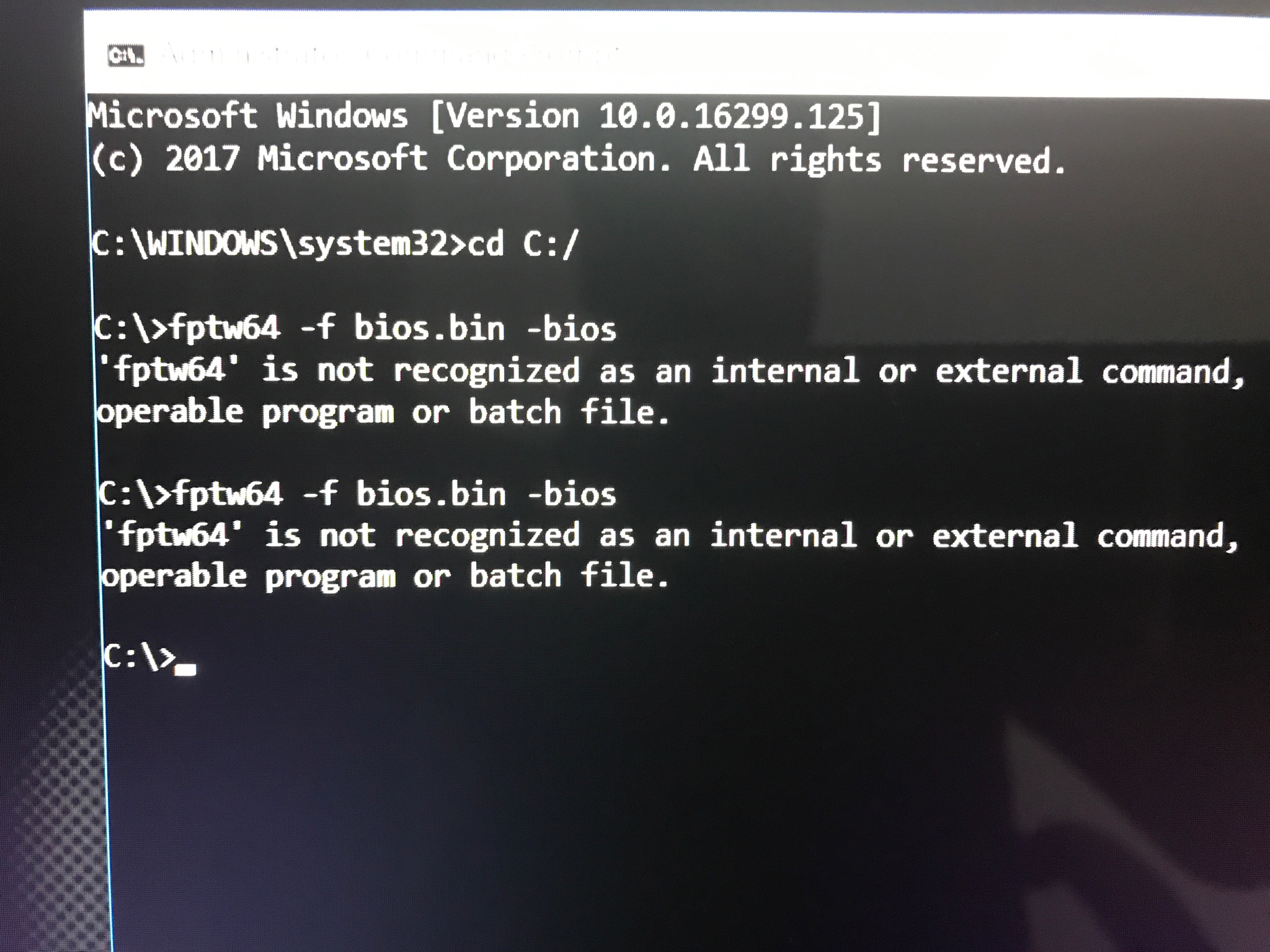

This is what happens when I follow the post on forums for updating bios with the unlocked one.



Sent from my iPhone using Tapatalk



My bad I put the whole file in c/ instead of extracting contents. Done now I think? How can I tell if I’m on the unlocked bios?


Sent from my iPhone using Tapatalk



More menus I'm the bios

Sent from my ONEPLUS A5000 using Tapatalk

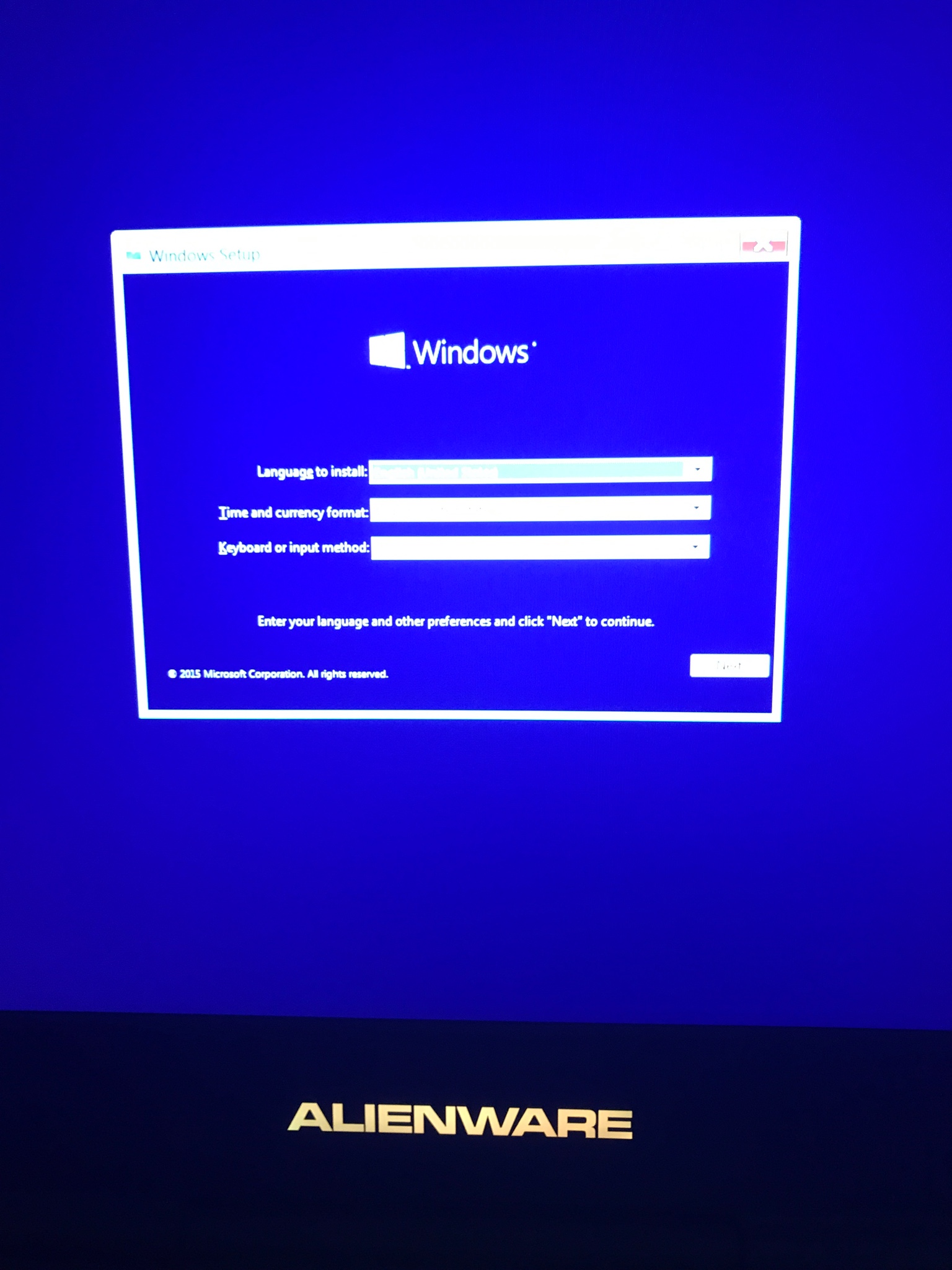

Looks like I soft bricked the laptop, ended up doing the 2 beep ram removal which let me go back into windows but as a new install, so used system repair disc. Now it loads up but keeps taking me to this page?


Sent from my iPhone using Tapatalk



When using a new bios it configures to RAID more for some reason easy fix just go into bios and Set AHCI instead of RAID

Sent from my ONEPLUS A5000 using Tapatalk



This guys a legend, talked me through what to do step by step and helped me get back up and running. +1


Sent from my iPhone using Tapatalk



Not a problem can answer PM anytime
