    Alienware M18x R2 PCIe speed stuck at x1 3.0

    Discussion in 'Alienware 18 and M18x' started by Mikkel Eriksen, Nov 13, 2018.

  1. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hello.

    Been using a GTX 870M for some time and decided to upgrade to a GTX 980M.
    installation went good but i noticed my PCIe speed is stuck at X1 3.0

    • Windows 10
    • Using BIOS A13
    • GPU tested under load.
    • using nvidia driver 416.81
    • 980M VBIOS 84.04.2F.00.79
    • GPU-Z Reports it supports PCIe X16 3.0

    anyone experienced the same issue ?

    Best Regards
    Mikkel E.

    Mikkel Eriksen, Nov 13, 2018
    #1
  2. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Are you in SG or PEG mode?

    Raidriar, Nov 13, 2018
    #2
  3. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Clean off the GPU's mxm connector with rubbing alcohol. The slightest film on the pci-e pins will prevent it from connecting properly.

    Khenglish, Nov 13, 2018
    #3
    Ashtrix likes this.
  4. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Im using stock A13 BIOS. there is no options for either SG or PEG.
    If I want to change those settings i need to flash A12 modded BIOS right ?
    I will try to clean the MXM connector tomorrow :)

    Mikkel Eriksen, Nov 13, 2018
    #4
  5. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Easy way to check, open device manager and see if only Nvidia GPU is present or also intel GPU.

    Raidriar, Nov 13, 2018
    #5
  6. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    only GTX 980M is present

    Mikkel Eriksen, Nov 13, 2018
    #6
  7. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    How are you measuring that the system is running at x1 speeds?

    ssj92, Nov 13, 2018
    #7
  8. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Mikkel Eriksen, Nov 14, 2018
    #8
  9. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Mikkel Eriksen, Nov 15, 2018
    #9
  10. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    Maybe I missed it but how exactly are you determining it's for sure running at x1 speeds?

    ssj92, Nov 17, 2018
    #10
  11. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Using GPU-Z and HWinfo while playing a game (fallout 76).
    I have attached 2 pictures, one from my old GTX 870m and the new 980m


    Attached Files:

    Mikkel Eriksen, Nov 17, 2018
    #11
  12. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    That screenshot is of the 980M at idle.

    Check in the BIOS, there is an option for link speed and gen type.

    ssj92, Nov 17, 2018
    #12
    Mastermind5200 likes this.
  13. Khenglish

    Khenglish Notebook Deity

    Reputations:
    799
    Messages:
    1,127
    Likes Received:
    979
    Trophy Points:
    131
    Seriously just reseat the card, cleaning the connector if you can. Don't mess with bios or drivers. They don't matter.

    Khenglish, Nov 17, 2018
    #13
    Mastermind5200 likes this.
  14. Lumlx

    Lumlx Notebook Consultant

    Reputations:
    38
    Messages:
    205
    Likes Received:
    159
    Trophy Points:
    56
    Open GPU-Z and press that blue question mark. It will open new windows with button "Start render test" You will see your speed changing from 1.1 to 3.0 or something like that.

    Lumlx, Nov 18, 2018
    #14
    Mastermind5200 likes this.
  15. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5

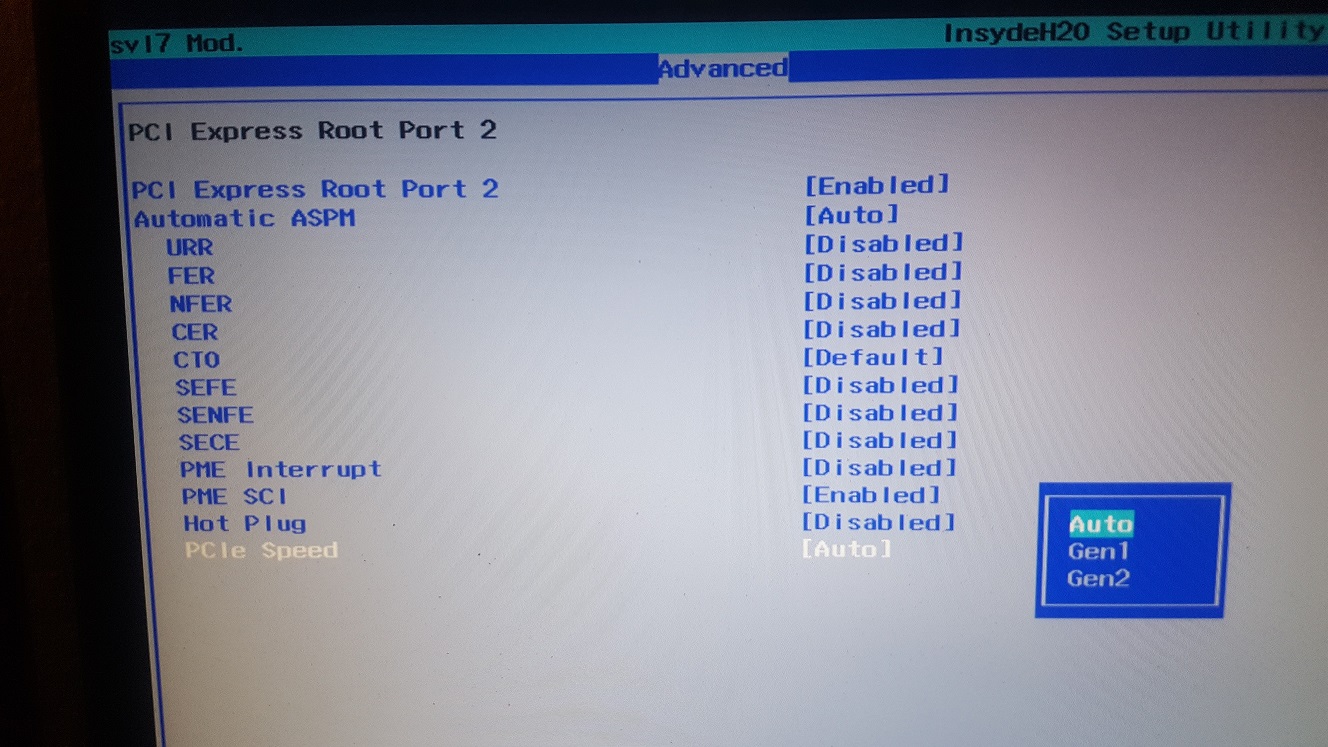

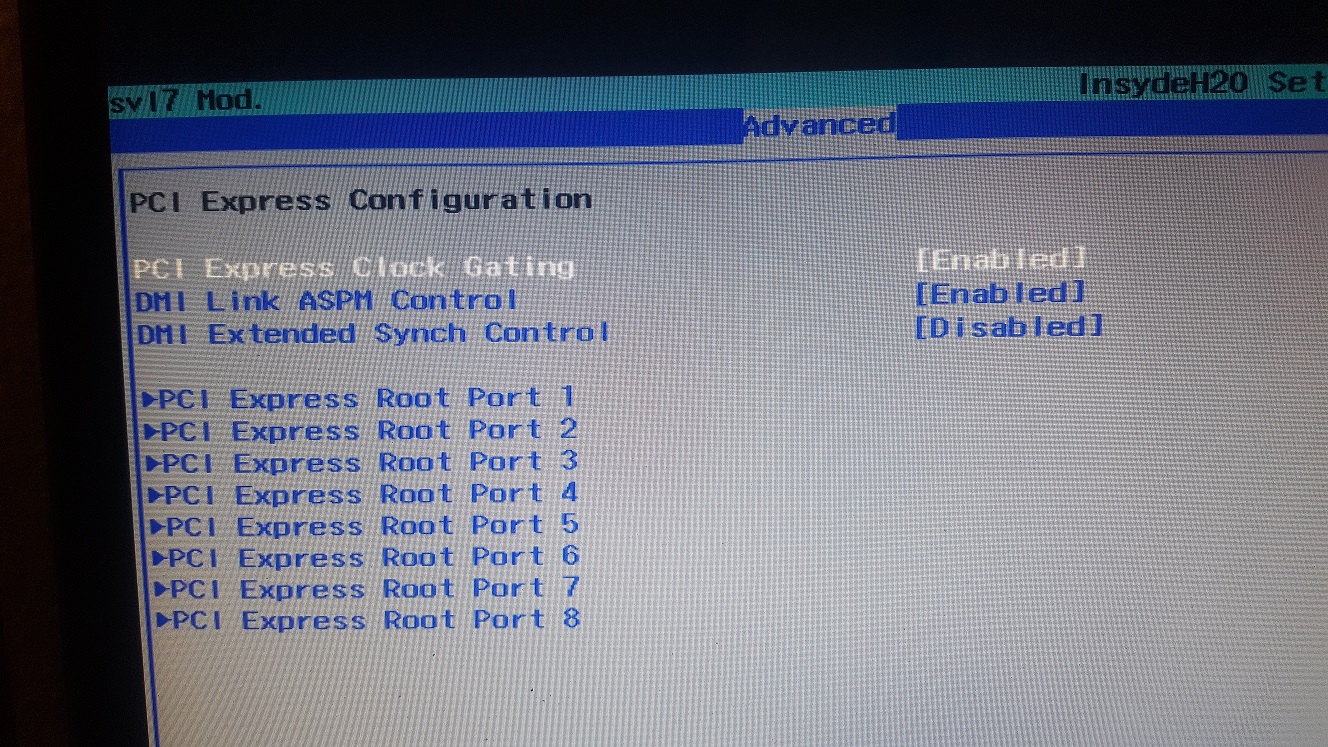

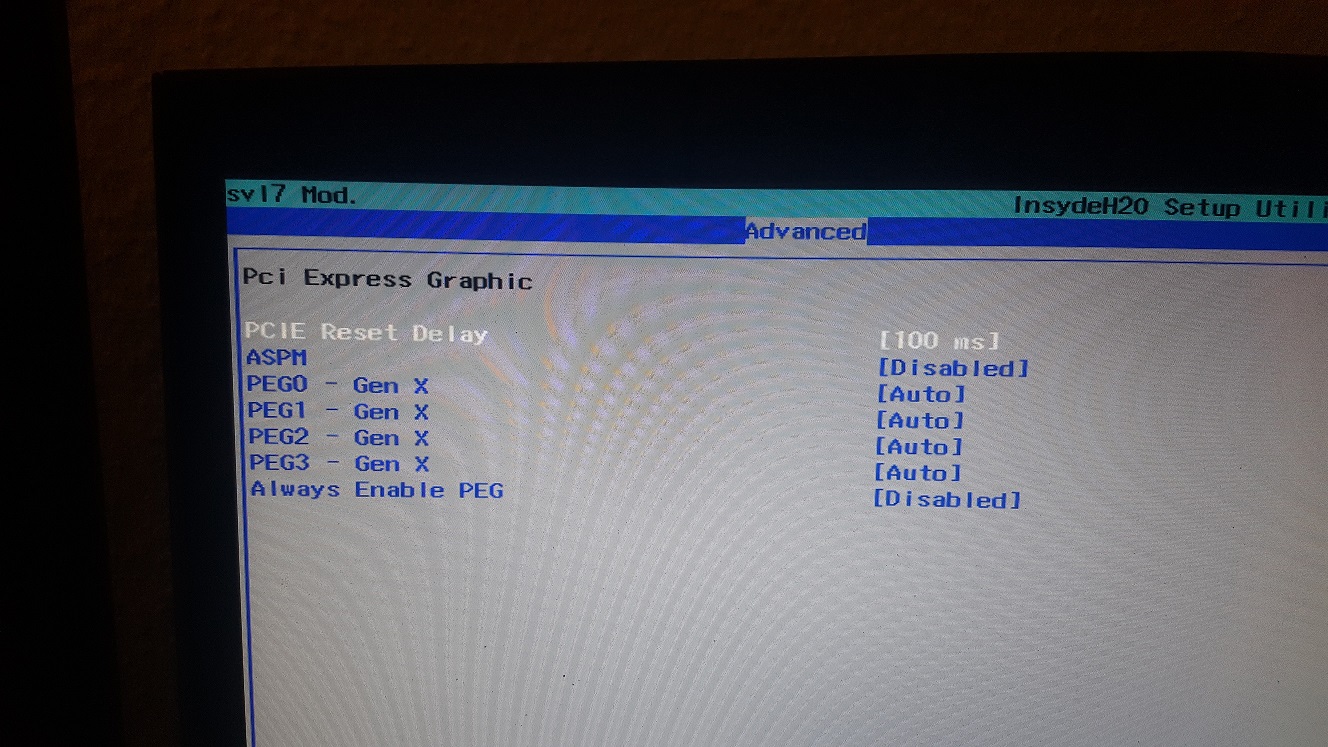

    I looked in the BIOS and didnt found anything for setting speed at x1 or x8 etc. only Gen type.


    Attached Files:

    Mikkel Eriksen, Nov 19, 2018
    #15
  16. Mikkel Eriksen

    Mikkel Eriksen Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Doing so only changes the 1.0 to 3.0... not the x1 :s


    Attached Files:

    Mikkel Eriksen, Nov 19, 2018
    #16
  17. ssj92

    ssj92 Neutron Star

    Reputations:
    2,446
    Messages:
    4,446
    Likes Received:
    5,690
    Trophy Points:
    581
    ssj92, Nov 20, 2018
    #17
