    Alienware M18x R2 missing Audio IC

    Discussion in 'Alienware 18 and M18x' started by Johndill, Aug 11, 2019.

  1. Johndill

    Johndill Notebook Consultant

    Reputations:
    20
    Messages:
    178
    Likes Received:
    117
    Trophy Points:
    56
    Hi, I bought an unknown condition M18x R2 off ebay to fix up and the board seems to work fine (boots to bios).

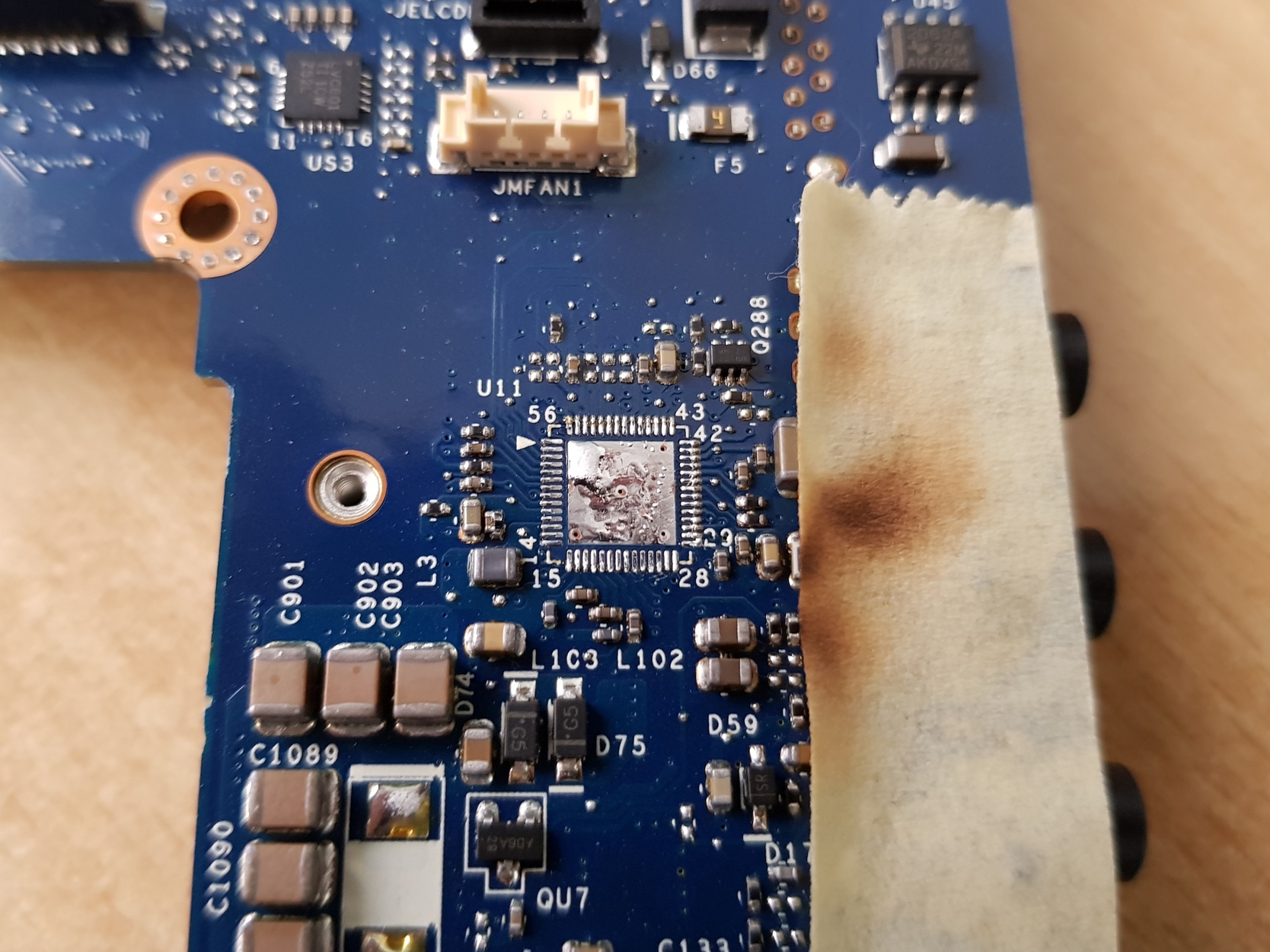

    After removing the board to inspect it I found that the audio IC is missing, I'm assuming it was suspected faulty and removed but not replaced. Picture attached.

    The schematics show the chip to be "malcolm-ex_qfn56_7x7~d" and the only place I've been able to find this chip online is in the schematics for the M14x R2.

    If someone has a broken M18x R2 board around would they be able to send me a close up picture of the audio IC so I can see the markings on the chip?

    Does this Malcolm chip have the same issues as the M17x R4 as the schematics for the M17x R4 lists a different chip.

    Thanks


    Attached Files:

    Johndill, Aug 11, 2019
    #1
  2. nforce4max

    nforce4max Notebook Consultant

    Reputations:
    4
    Messages:
    195
    Likes Received:
    32
    Trophy Points:
    41
    However removed it didn't do a great job as some of the pads look shorted if it didn't desolder itself off.

    nforce4max, Aug 11, 2019
    #2
  3. Johndill

    Johndill Notebook Consultant

    Reputations:
    20
    Messages:
    178
    Likes Received:
    117
    Trophy Points:
    56

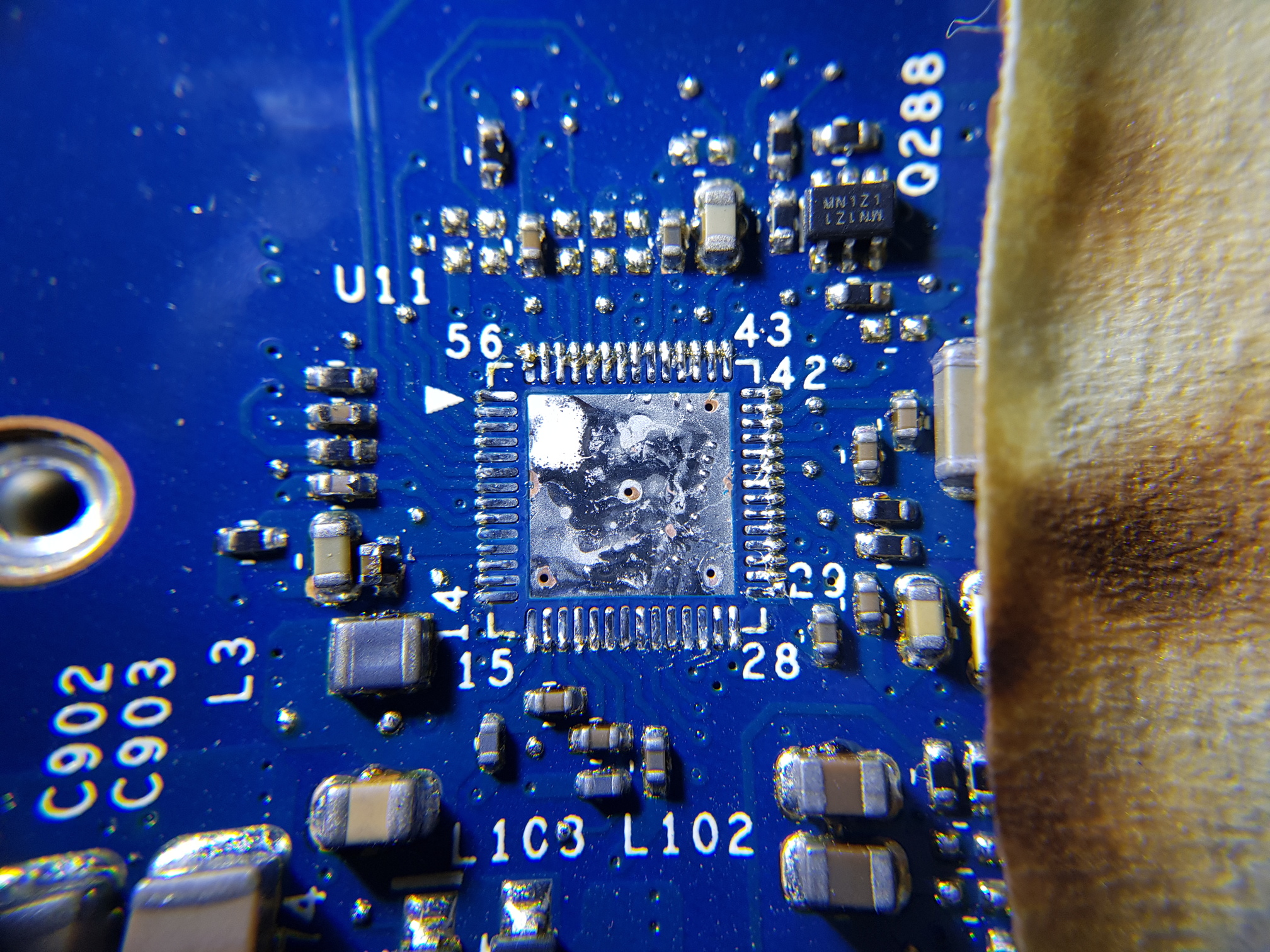

    Yea, there are some solder blobs that look to be crossing and the rest are flux blobs.
