    Burning Smell

    Discussion in 'Alienware 18 and M18x' started by TheDantee, Jan 13, 2018.

  1. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Was playing a game and surprisingly I had disabled all Overclocks the others day as I felt a throttling issue was occurring when gpus reached 100% Usage so I was testing stock clocks (premas vbios)... All the sudden my PC just crashed I turned it back on and u coukd see this burning smell so I turned it off opened up and smell was coming from GPU 1 so I repasted it and loaded back up... Smell still persists ran a GPU Benchmark and the smell was strong... The GPU shows up and runs but smells like it is burning and the smell gives me a horrible headache. Any ideas on what to do?

    Sent from my ONEPLUS A5000 using Tapatalk

  2. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    Errr, let Dell know? :)

    What else could you do?

    Sent from my SM-G935F using Tapatalk

  3. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Smell giving a headache?
    Sounds like a capacitor burned (like a filtering cap). Did you check for any blown caps?

  4. mossesmos

    mossesmos Notebook Enthusiast

    Reputations:
    5
    Messages:
    31
    Likes Received:
    10
    Trophy Points:
    16
    which thermal paste you are using. if liquid metal double check if it is not leaking and shorting anything if not check for metal partial between components.

  5. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Was thinking the same thing... Was 2 in the morning but card looked fine

    Sent from my ONEPLUS A5000 using Tapatalk

  6. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    It's not leaking I checked

    Sent from my ONEPLUS A5000 using Tapatalk

  7. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Can u do that without warranty?

    Sent from my ONEPLUS A5000 using Tapatalk

  8. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

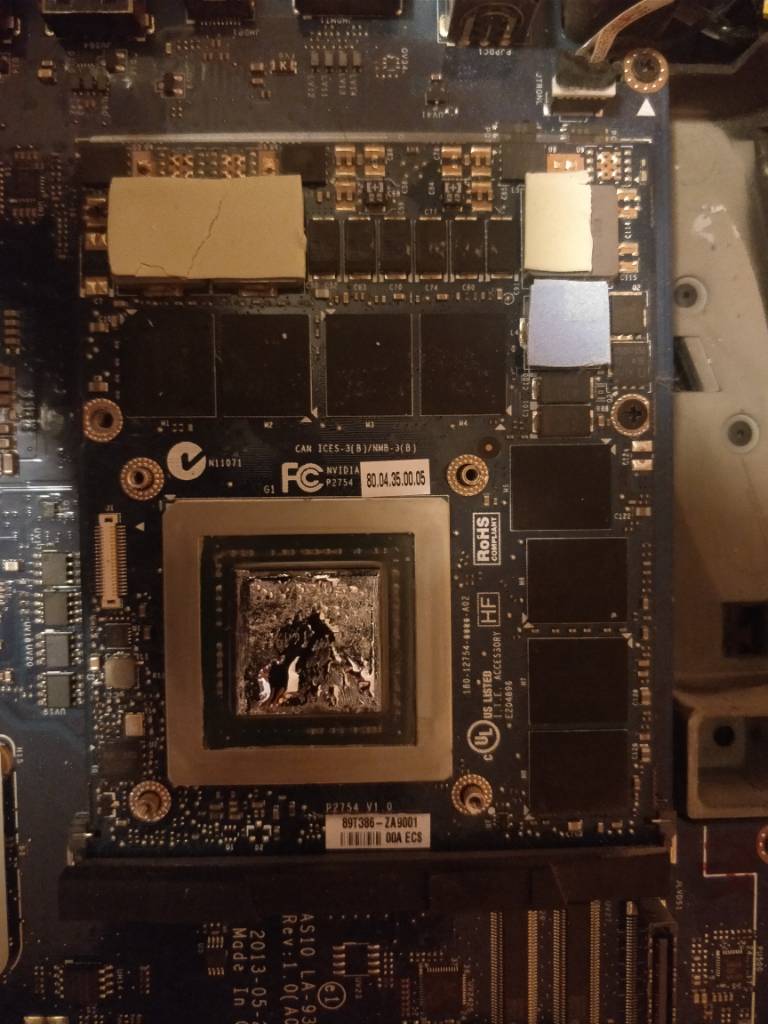

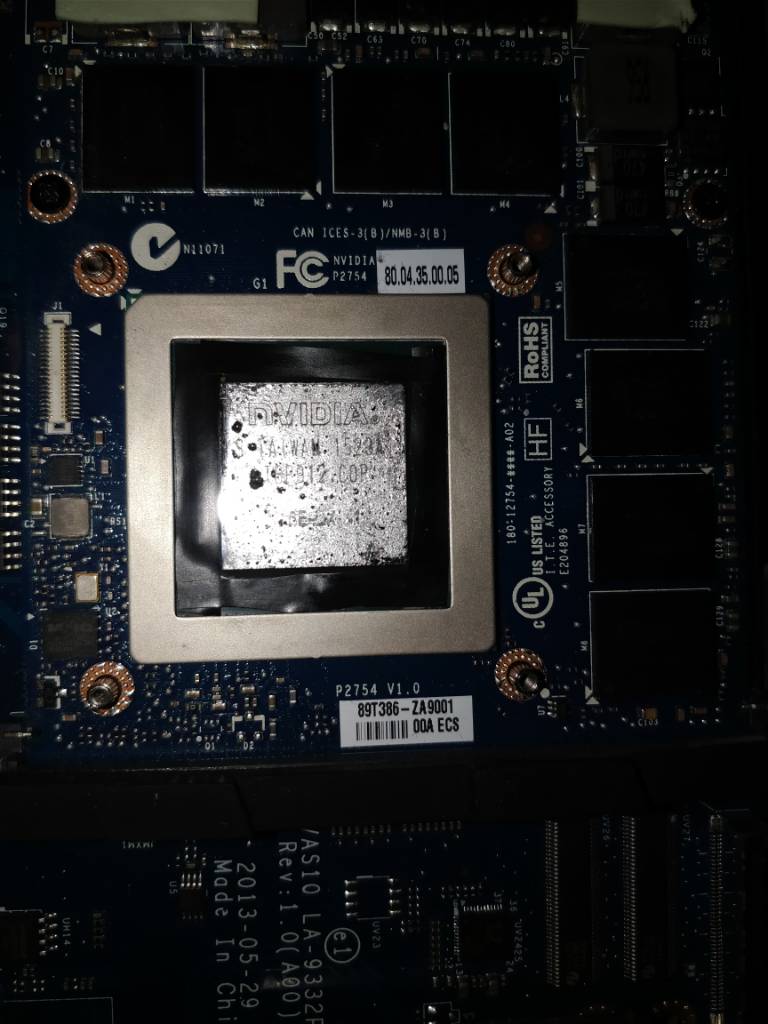

    These help at all? Running benchmark for a good minute or 2 the pc will shut off... [​IMG] [​IMG] [​IMG]

    Sent from my ONEPLUS A5000 using Tapatalk

  9. mossesmos

    mossesmos Notebook Enthusiast

    Reputations:
    5
    Messages:
    31
    Likes Received:
    10
    Trophy Points:
    16
    i am pretty sure that liquid metal is touching some component either directly or via heat sink .... you should have covered the transistors near the die with some insulation. my friend had similar situation a few months back we couldnt track the burning smell later we discovered that the liquid metal from heat sink was making contact with one of the transistors on gpu.

    grab a needle and try to clear the debris between transistors on gpu

    Pete Light and TheDantee like this.
  10. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    I swapped the gpus so if it is still burning on GPU 1 that may be the issue

    Sent from my ONEPLUS A5000 using Tapatalk

  11. wickette

    wickette Notebook Deity

    Reputations:
    241
    Messages:
    1,006
    Likes Received:
    495
    Trophy Points:
    101
    You should use some electrical insulation tape when applying liquid metal like @mossesmos said, pretty sure some transistors are in contact with the liquid metal.

    Take a screenshot of the contact surface of the heatsink too if you can.

  12. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

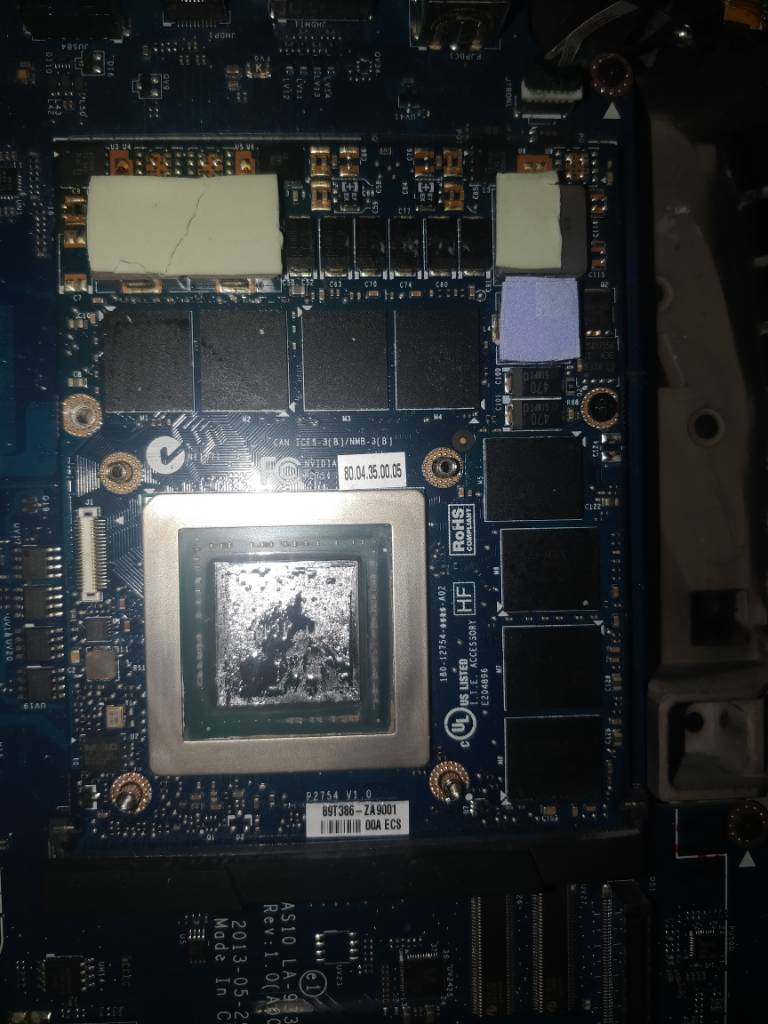

    Tried cleaning the heatsink... Problem still persists on the same side of the pc so it might be like u said the GPU transistors are touching the liquid metal... Broke the fan trying to remove the 2 cables (middle cables to run max speed 100%) so have to re solder that and will get some electrical tape to cover the transistors with and I will post back here after a try these steps

    Sent from my ONEPLUS A5000 using Tapatalk

  13. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

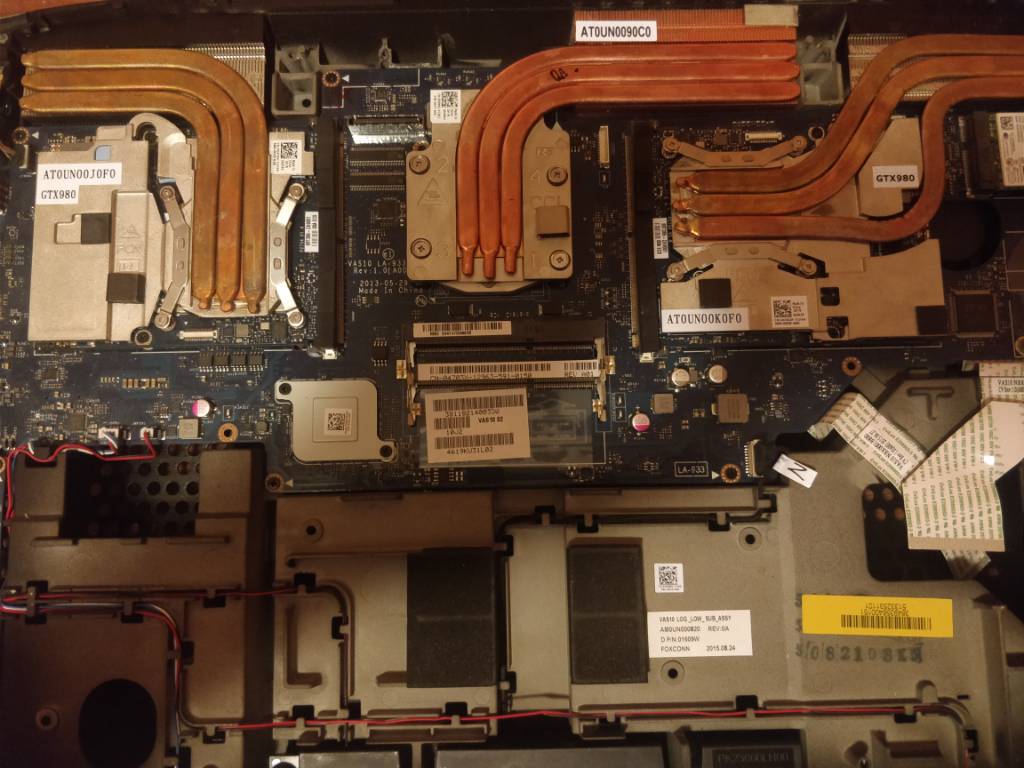

    Heatsink was covered in liquid metal removed as much as I could

  14. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Ok first of all, that is WAYYYY Too much liquid metal to be used without any sort of protection whatsoever! WAYY too much. If you have full protection, it's okay to use a bit more than necessary, since then it can't go anywhere, but the fact that you see pools like that mean you used too much. Now I do not know whether it leaked out and got shorted on something...did you see ANY sign of ANY liquid metal balls that were *OFF* of the GPU, and anywhere around the little SMD contacts? Any at all? Because I would hate to have you waste time on that and then you find that some completely unrelated component wound up dying, which just happens to be one of those red herrings, basically.

    In any event, the right way to rep for liquid metal is basically the following, which can be used safely IF YOUR HEATSINK HAS A GOOD FIT ON THE CHIP(S), meaning full complete even mount and balance. Avoid ANY LM on any badly fitting heatsink, PERIOD.

    1) EITHER:
    a) 3 coats of transparent nail polish, cellulouse based (look in the ingredients) over the SMD resistors--the OCD way is to do a coat over, wait 5 minutes, do another coat, wait 5 minutes, then do a third. The "I'm in a hurry" way is do a complete coat, then start the second coat right away, then the third coat. I've seen no case where the hurry way failed to insulate.

    or b) Scotch Super 33+ or Kapton tape (Do NOT use super 88 tape, too thick), and tape completely over the resistors and SMD's, all the way up to the edge of the CPU or GPU surface and make sure there are no gaps in the tape or "air holes.". This does the job well, but some people swear by nail polish. And using cheap, bad tape might wind up losing adhesion and thus losing protection.

    You do not need do both tape and nail polish. That's obsessive. Just do the nail polish if you feel that way.
    For BGA CPUs and delids, make sure you also nail polish any exposed circle traces or marks too, even if there doesn't seem to be something on top of it.

    2) Then, Foam Dam trick (Free insurance) courtesy of @tijgert . Smart airline pilot who was the first to think of this.
    The foam dam trick is *NOT* EVER to be used in substitution of #1. Do NOT EVER use it in place of nail polish or tape. The purpose of the foam dam is to stop LM runoff from escaping the entire CPU or GPU area and getting onto the MXM or mainboard PCB, where it will then for sure turn into a conductive ball of doom, going where it pleases and taking out what it pleases. Foam dams will trap any spare LM runoff, so it has absolutely nowhere to go. The foam dam trick requires that you get foam that is dense enough to fully block everything when compressed down, AND is compressible and light enough to compress to literally MICROMETERS. Basically it has to be compressible to the width of a few paper sheets, because you don't want resistance from foam causing heatsink pressure issues and thus higher temps! Finding such foam isn't easy, but a hardware or hobby craft store should have something. Some people suggested possibly thermal pads, but they have too much thickness to be used for something like that and will just add resistance, and would be worthless for foaming away LGA processors too.

    Mr Fox has a video of the foam dams he used early in this video here:

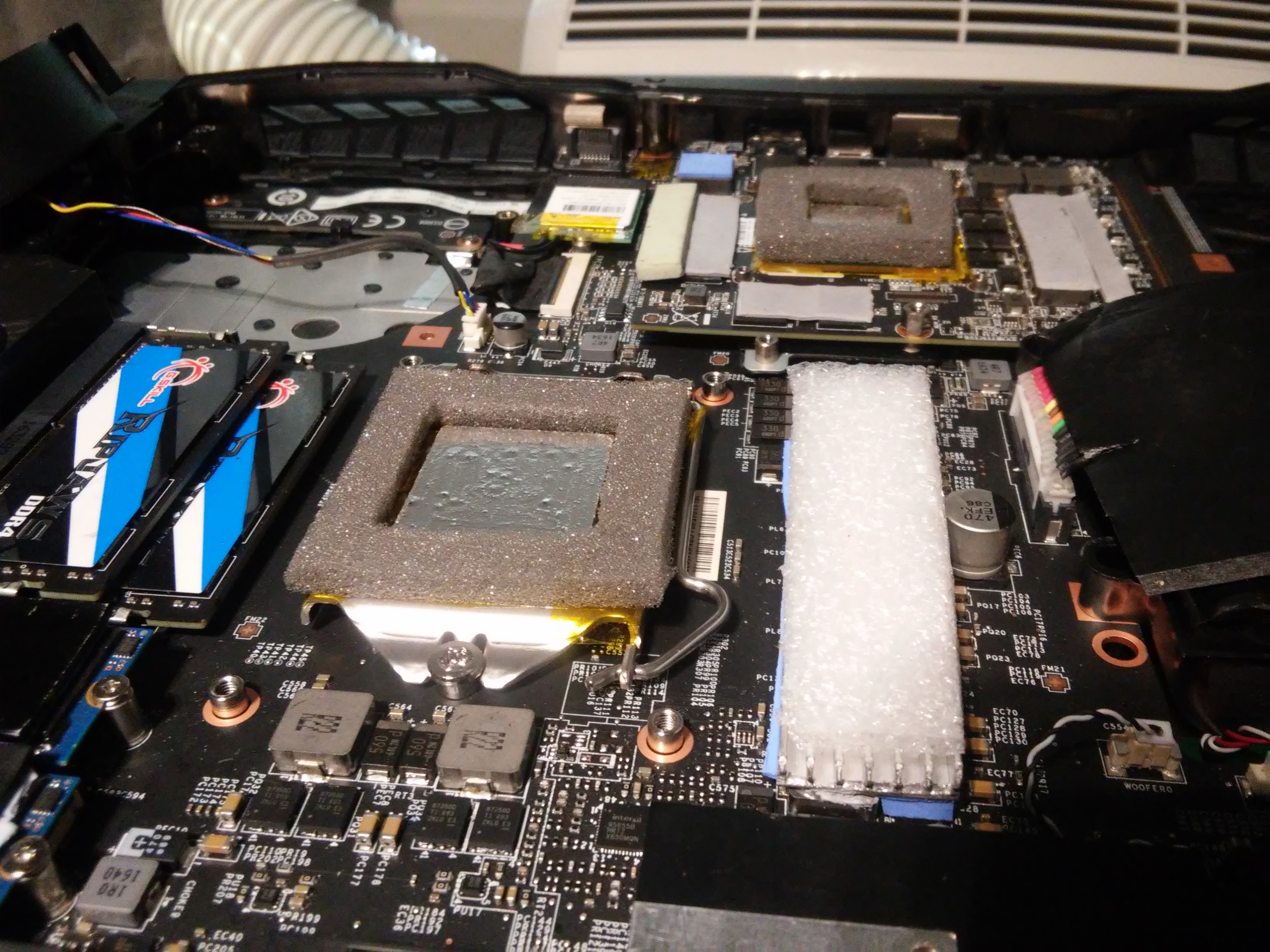

    Here is a good picture of foam dams at work on LGA CPU's and BGA GPU's together. That Liquid Metal ain't going anywhere.
    [​IMG]

    3) then you usually want to 'paint' the heatsink side with a coating also (especially since copper heatsinks will absorb and react with some of the LM, so its good to have a coating on that for good measure right away. Even for the Intel IHS underside (For IHS delids) putting a coat of LM on the underside of the IHS has given people lower temps than just applying it on the CPU die.

    Doing all of that work should stop LM for ever being at fault for a laptop going boom.

    Ashtrix, ll_r1d0_ll and TheDantee like this.
  15. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    There was some that fell off the die onto the transistors but I have cleaned that off.... Currently at the point of it booting to a windows screen it loads for a minute then restarts... Never makes it into windows. I had tape applied like Image 1 but Temps were 90C Idle when loaded. So now the tape looks like image 2. PC boots into safe mode. [​IMG] [​IMG]

    Sent from my ONEPLUS A5000 using Tapatalk

  16. Pete Light

    Pete Light Notebook Deity

    Reputations:
    172
    Messages:
    1,052
    Likes Received:
    643
    Trophy Points:
    131
    This is perfect advice +rep on the way! @mossesmos nailed it as well, you MUST cover those small transistors around the site with something!

    Sent from my SM-G935F using Tapatalk

    TheDantee likes this.
  17. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

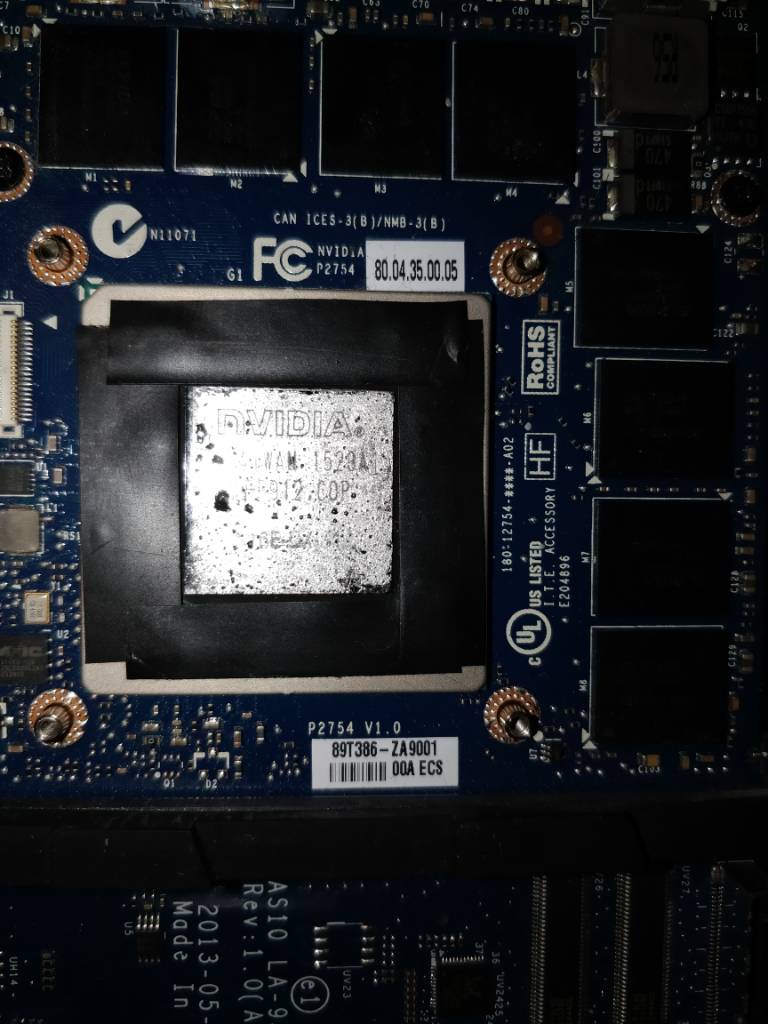

    With the both cards having the tape around the transistors during a benchmark using 100% off the GPU the screen just blacks out

    Sent from my ONEPLUS A5000 using Tapatalk

  18. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Would like to remind everyone helping... That the gpus have been swapped so this is not an issue with the GPU but an issue with the gpus being in slot 1... I have cleaned the heatsink and still Nothing... Applied tape to transistors (raised idle temp from 30 to 45... But worth it if it's makes the pc work properly) and no it's not a temp issue it crashed at 81C last time.... Cards run fine on desktop and browsing web but when u use them for a game or benchmark they die... Any ideas?

    Sent from my ONEPLUS A5000 using Tapatalk

  19. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Remove one of the two video cards and use it as a single card only system, then overclock the card like usual and run the battery of tests then switch cards. This will of course require repasting; never re-use old paste when its mounted to a copper heatsink. Also one reason for high temps with LM is from not completely and fully cleaning the heatsink of any dried or oxidized LM remnants after removing.

    If there's a problem with the slot itself, buy some Deoxit D5 and clean the slot contacts with a spray of that stuff. As far as I know, it does not have to be completely dried up before using the device again but don't quote me on that.

    If even that fails, you could have a blown VRM on the mainboard that delivers power to the MXM...and that's bad.

  20. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    I have swapped the cards there has been 1 GPU the whole time as I broke a fan earlier... I have tried with both gpus.... It's looking more like the MXM Slot is the problem to me at this point.

    Sent from my ONEPLUS A5000 using Tapatalk

  21. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Blown a VRM does make alot of sense since it seems to only shutdown/crash once it needs the extra power for running a game or benchmark...

  22. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Yeah I know right? Usually you hear about blown VRM's on the video cards themselves. But again if SWITCHING the cards doesn't help..

    I STILL say that ONE CARD has to be removed and the system should be run as single card only. I do NOT mean keep both cards installed and disable one, I mean physically REMOVE a card. Then overclock the card to the max stable and bench it. This itself will eliminate problems with the actual primary slot and its power delivery system, and that's important.

    TheDantee likes this.
  23. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    It has one card running... Like I said I broke a fan, was gonna resolder it and put it back it with the other gpu but if it's not booting nopoint in resoldering... 1 GPU this whole time. Swapped with the other 980M but 1 GPU in the system at a time just like 1 ram stick in... Try to keep things basic for troubleshooting

    Sent from my ONEPLUS A5000 using Tapatalk

  24. skindoe

    skindoe Notebook Geek

    Reputations:
    10
    Messages:
    81
    Likes Received:
    13
    Trophy Points:
    16
    Maybe next time you pull it apart, have a smell of the motherboard - follow your nose (literally) to find the area where the bad smell is coming from? Sounds dodgy but it can help - I've done more times than I care to remember ;) But based on the description, sounds like either a VRM or blown cap issue.

  25. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    So what do u think I should do call dell? Or buy a new motherboard off ebay? Or just sell the parts I can like the casing, gpus, cpu, ram etc. And buy a new laptop

    Sent from my ONEPLUS A5000 using Tapatalk

  26. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Probably a component on the motherboard.

  27. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    They told me they can sell me a motherboard for 480$ CAD.... doesnt seem worth it does it?

  28. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Not at all....junk the computer. I'm scrapping mine. I hated the Alienware 18 ever since I got it, and I really should have sold it long ago.

    Ashtrix and Papusan like this.
  29. Raja786

    Raja786 Notebook Consultant

    Reputations:
    5
    Messages:
    290
    Likes Received:
    42
    Trophy Points:
    41
    Check on eBay I’ve seen some that are new but reasonably priced.


    Sent from my iPhone using Tapatalk

  30. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Ye I seen a few gonna be 380-420 CAD with shipping from what I can tell

    Sent from my ONEPLUS A5000 using Tapatalk

  31. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    What to do then? I was gonna go buy a motherboard... What would u suggest doing?

    Sent from my ONEPLUS A5000 using Tapatalk

  32. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Testing what works and what doesn’t and will be parting out the computer. Using that money to build a desktop because the laptop scene is screwed.

    Ashtrix likes this.
  33. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    I had a desktop Ryzen 7 1700x 64GB Ram Fury X traded it for this Alienware 18 as I don't want a desktop and need something more portable

    Sent from my ONEPLUS A5000 using Tapatalk

  34. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Wow....bad trade. I would have kept that desktop

    Ashtrix and TheDantee like this.
  35. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Yeah... Preferred the portability

    Sent from my ONEPLUS A5000 using Tapatalk

  36. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    I can almost assure you, that your board is burning a mosfet near the DC jack, because I’ve had two Alienware 18 boards do this and a couple more Alienware 17 boards do this as well. Not robust systems at all, m17x/M18x were much better built.

  37. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    So what should I do?

    Sent from my ONEPLUS A5000 using Tapatalk

  38. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,727
    Messages:
    29,852
    Likes Received:
    59,675
    Trophy Points:
    931
    Not much has changed with the newer Alienware’s Burned DC cables in loads

    Ashtrix likes this.
  39. mossesmos

    mossesmos Notebook Enthusiast

    Reputations:
    5
    Messages:
    31
    Likes Received:
    10
    Trophy Points:
    16
  40. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Last edited: Jan 15, 2018
  41. mossesmos

    mossesmos Notebook Enthusiast

    Reputations:
    5
    Messages:
    31
    Likes Received:
    10
    Trophy Points:
    16
    dont know its opening fine for me here you can get the motherboard for 249$.

  42. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    From china.... Which will take forever to get here... also its 249$ USD not CAD

    Sent from my ONEPLUS A5000 using Tapatalk

  43. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Is it worth it to buy a barebones Clevo 870DM-G? would I be able to throw my 980Ms in there?

  44. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Probably the better route by far

  45. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    does it need G-Sync 980Ms? cuz the Dell ones are not G-Sync

  46. Raja786

    Raja786 Notebook Consultant

    Reputations:
    5
    Messages:
    290
    Likes Received:
    42
    Trophy Points:
    41
    If you really want to keep the AW18. I’d just buy the motherboard.


    Sent from my iPhone using Tapatalk

  47. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    One flaw I hate about the AW18 is the stupid 330W PSU

  48. Raja786

    Raja786 Notebook Consultant

    Reputations:
    5
    Messages:
    290
    Likes Received:
    42
    Trophy Points:
    41
    It’s ok for a slight overclock. But if you want to amp it up it’s not enough.


    Sent from my iPhone using Tapatalk

  49. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    I love overclocking to the limit of the Chip, not a limit of a Power Supply.... Looking at a few Clevos..... I'll try to make my mind up today or tomorrow hopefully. If anyone has any barebones systems, alienware 18 Motherboards, or any Clevo Laptops (that support 980M SLI... doesnt have to have it As I can throw my current gpus) or better (1070 or 1080 SLI or not SLI) for sale I'm interested...

    Falkentyne likes this.
  50. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,727
    Messages:
    29,852
    Likes Received:
    59,675
    Trophy Points:
    931
    TheDantee likes this.
 Next page →
