    GPU Fans at 0 RPM?! (When gaming they do kick in).

    Discussion in 'Alienware 18 and M18x' started by Annie the Eagle, Sep 14, 2012.

  1. Annie the Eagle

    Annie the Eagle Notebook Consultant

    Reputations:
    127
    Messages:
    138
    Likes Received:
    3
    Trophy Points:
    31

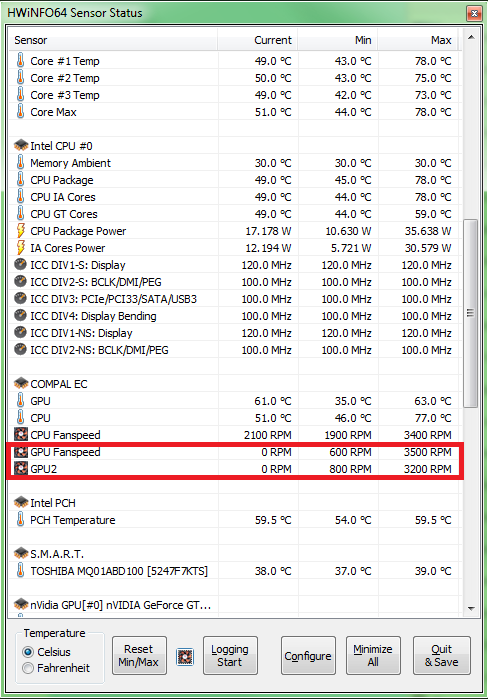

    I am not really sure what is going on here but is this normal for GTX 680Ms? Could it be the custom vBIOS I have installed

    After the temperature hits 64 degrees on the COMPAL EC sensor, the fans activate and cool it down to 45 degrees and then they go off to 0 RPM again.

    [​IMG]

    Annie the Eagle, Sep 14, 2012
    #1
  2. littleone562

    littleone562 Notebook Deity

    Reputations:
    1,417
    Messages:
    993
    Likes Received:
    59
    Trophy Points:
    66
    VBIOS does not touch bios EC behavior which controls fans. That behavior is normal.

    littleone562, Sep 14, 2012
    #2
  3. mikecacho

    mikecacho Notebook Evangelist

    Reputations:
    447
    Messages:
    603
    Likes Received:
    118
    Trophy Points:
    56
    Don't take that as they are not actually running, HWinfo will show zero value for a few seconds inbetween reading/updating values, it is actually running.

    mikecacho, Sep 14, 2012
    #3
  4. Annie the Eagle

    Annie the Eagle Notebook Consultant

    Reputations:
    127
    Messages:
    138
    Likes Received:
    3
    Trophy Points:
    31
    Ah okay, all good then =)

    Annie the Eagle, Sep 14, 2012
    #4
  5. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,255
    Messages:
    39,354
    Likes Received:
    70,777
    Trophy Points:
    931
    You probably should disable the Compal EC sensor with HWiNFO64. It can cause some issues when it is enabled. It's not needed and the info it reports is redundant with other sensors anyway.

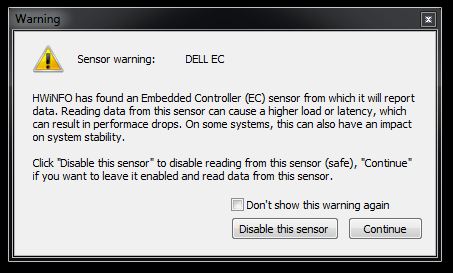

    The Dell EC should also be disabled. If it is not, when HWiNFO64 is launched you will see this message, and should choose to disable it when prompted.

    [​IMG]


    Attached Files:

    Mr. Fox, Sep 15, 2012
    #5
  6. Annie the Eagle

    Annie the Eagle Notebook Consultant

    Reputations:
    127
    Messages:
    138
    Likes Received:
    3
    Trophy Points:
    31
    Does that apply also if it's called COMPAL EC? I Don't have that window come up. Anyway I can force it

    Annie the Eagle, Sep 15, 2012
    #6
  7. NiNoDuKEz

    NiNoDuKEz Notebook Evangelist

    Reputations:
    77
    Messages:
    309
    Likes Received:
    42
    Trophy Points:
    41
    Another thing i noticed Annie is GPU 2 for my system atleast, once around 69-71c GPU1 Fan will get up to about 3600ish, and GPU2 will get up to about 3400 then down to 2800 and stay there while GPU 1 stays at 3600, and it makes for about a 10c difference roughly for me, if i manually set them to 3600 they are within 1-3c difference, about normal for GPU2 to run alittle warmer with the Heatsink design etc.

    NiNoDuKEz, Sep 15, 2012
    #7
  8. alcaloide

    alcaloide Notebook Geek

    Reputations:
    0
    Messages:
    96
    Likes Received:
    0
    Trophy Points:
    15
    I have the same issue here and this happens, I believe, after the a05 bios update.

    And I can say for sure that the fans are really in zero rotation. I did open the bottom and looked at them while running Windows. They turn on during post and right after the windows logo the fans turn off and stay this way until a game is launched... Before a05, they worked during windows...

    alcaloide, Sep 26, 2012
    #8
