    It's Official. M18x R1 Running Memory at 2133 mhz

    Discussion in 'Alienware 18 and M18x' started by Johnksss, Mar 24, 2012.

  1. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931

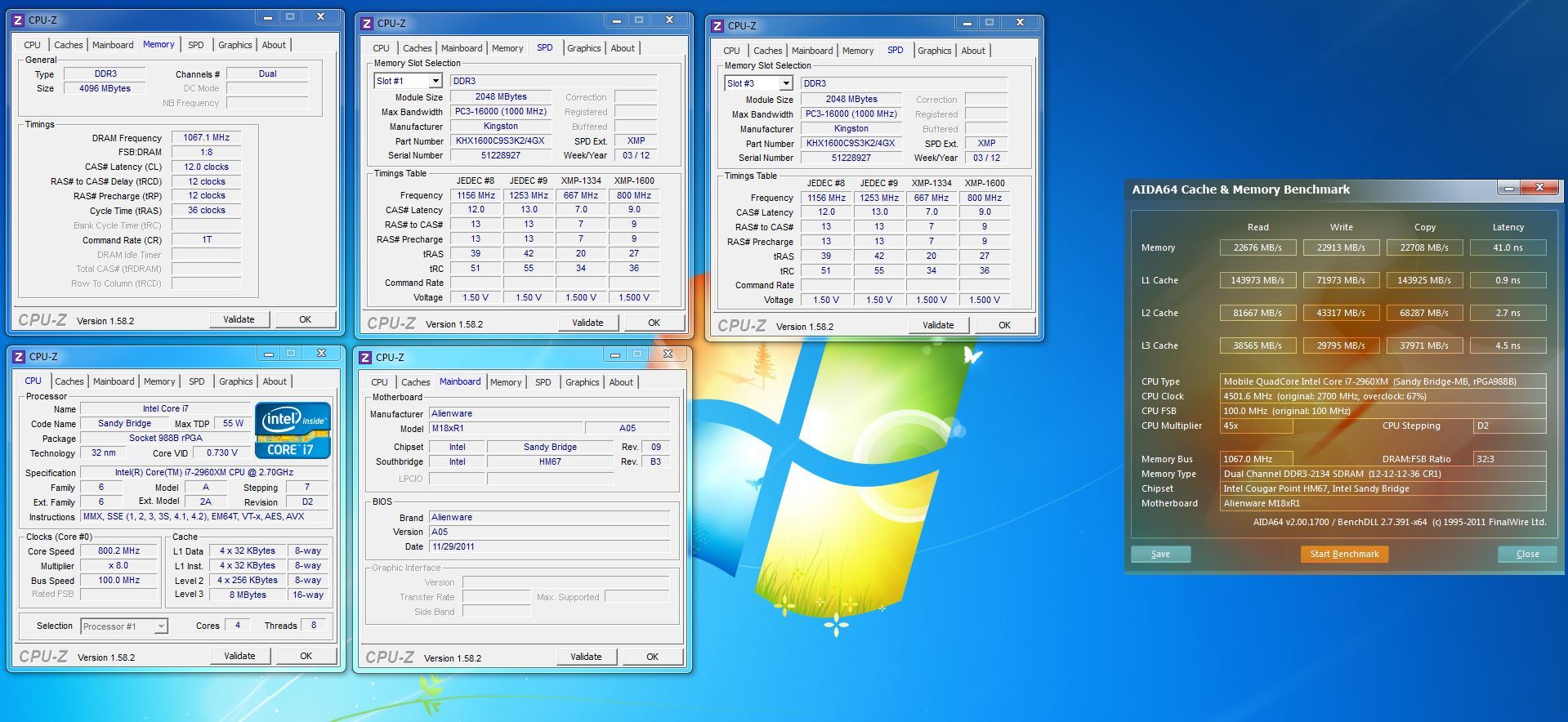

    Just as the title suggest... :)
    [​IMG]

    Johnksss, Mar 24, 2012
    #1
  2. DanXbix

    DanXbix Notebook Deity

    Reputations:
    434
    Messages:
    827
    Likes Received:
    6
    Trophy Points:
    31
    What ram did u use dude! That is awesome

    DanXbix, Mar 24, 2012
    #2
  3. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Thanks.

    Im still using my Kingston HyperX 1600 mhz ram.

    Johnksss, Mar 24, 2012
    #3
  4. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    Man, that's SWEET Brother John.

    Mr. Fox, Mar 24, 2012
    #4
  5. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Thanks Brother Fox. Trying to get 12 GB to run now.

    Johnksss, Mar 24, 2012
    #5
  6. bigtonyman

    bigtonyman Desktop Powa!!!

    Reputations:
    2,377
    Messages:
    5,040
    Likes Received:
    277
    Trophy Points:
    251
    Thats awesome, good luck on getting all 12 gigs working. :)

    bigtonyman, Mar 25, 2012
    #6
  7. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Thanks Brother Tony.


    Now that's another story.... but if i had 1866 ram, it would be super easy. haha
    1600 is seriously working at a 550 mhz over clock. :D

    Johnksss, Mar 25, 2012
    #7
  8. TheMacs

    TheMacs Notebook Consultant

    Reputations:
    68
    Messages:
    235
    Likes Received:
    7
    Trophy Points:
    31
    Honest question here, what's the gain you see in your RAM running at an overclock? Overclocking CPUs and GPUs make a lot of sense, but I've never understood OCing RAM.

    TheMacs, Mar 25, 2012
    #8
  9. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Honest answer.
    Price. And a willingness to know the ram i bought 2 years ago is still competing with the ram of today..... Would be my Honest answer... :)

    Johnksss, Mar 25, 2012
    #9
  10. TheMacs

    TheMacs Notebook Consultant

    Reputations:
    68
    Messages:
    235
    Likes Received:
    7
    Trophy Points:
    31
    I meant in the sense of performance gains.

    TheMacs, Mar 25, 2012
    #10
  11. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Let me ask you this....Do you see any difference between 1333 and 1600 mhz ram you have now?

    As to benching...yes you can actually see it...as to gaming...you would never notice it 95 percent of the time.

    Johnksss, Mar 25, 2012
    #11
  12. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist

    Reputations:
    37,213
    Messages:
    39,333
    Likes Received:
    70,624
    Trophy Points:
    931
    So, was the only thing you needed to do is set the BIOS at 2133 for the RAM, or did you need to adjust memory voltage as well?

    Mr. Fox, Mar 25, 2012
    #12
  13. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    I wish it was that easy...lol
    You need thaiphoon burner. Once set then you can use the settings in the bios.

    Johnksss, Mar 25, 2012
    #13
  14. Mitchrapp

    Mitchrapp Notebook Geek

    Reputations:
    5
    Messages:
    82
    Likes Received:
    4
    Trophy Points:
    16
    Now that is cool, nice job. Good luck on 12GB.

    Mitchrapp, Mar 25, 2012
    #14
  15. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Hummm, 12 GB is giving me problems at the moment, but i did get 8 Gb up and running. And the second 4 gb is Samsung 1600 mhz/cl11 ram from dell.

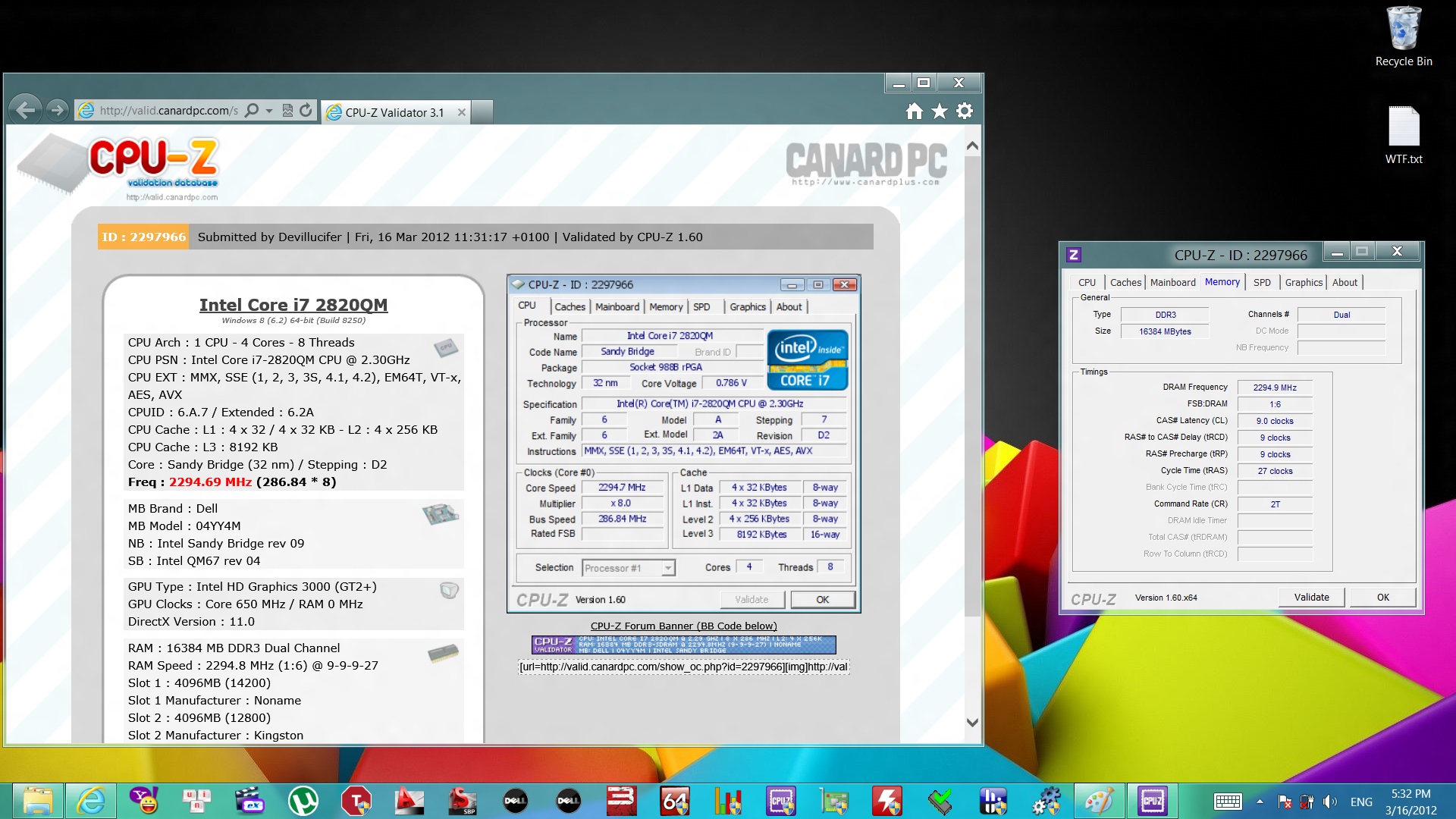

    Running at 2154 mhz

    [​IMG]

    Edit:
    Running at 2204 mhz

    [​IMG]

    Johnksss, Mar 25, 2012
    #15
  16. dttran83

    dttran83 Notebook Deity

    Reputations:
    272
    Messages:
    837
    Likes Received:
    7
    Trophy Points:
    31
    Do you need a 2960xm to run it at 2133mhz?

    dttran83, Mar 25, 2012
    #16
  17. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    I don't think so, but you do need thaiphoon burner, that's for sure.

    Johnksss, Mar 25, 2012
    #17
  18. steviejones133

    steviejones133 Notebook Nobel Laureate

    Reputations:
    7,172
    Messages:
    10,077
    Likes Received:
    1,122
    Trophy Points:
    581
    Question. Can you use the demo version then or do you have to buy the full version of Thaiphoon Burner? - only thinking of off-setting the cost of the software vs the cost of higher clocked ram in the first instance...

    steviejones133, Mar 25, 2012
    #18
  19. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    You have to buy the full version, but it's well worth it. 22 bucks vs hundreds is pretty much a no brainier Brother Stevie.

    But I will say this...My 2 gb chips are far easier at getting them above 2133 than my 2 4gb chips. I think i need a better formula for that or the Kingston 4GB just aren't as good as the 2GB are....
    All chips are factory 1600 mhz

    Johnksss, Mar 25, 2012
    #19
  20. steviejones133

    steviejones133 Notebook Nobel Laureate

    Reputations:
    7,172
    Messages:
    10,077
    Likes Received:
    1,122
    Trophy Points:
    581
    I guess that there are some massive savings to be made by tweaking the cheaper modules for only $22. Great thread btw Bro.....

    steviejones133, Mar 25, 2012
    #20
  21. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Thanks.

    Im still partial to buying 1866, but since this is working far better than i expected....I may just let it play out to see how long they last.

    1333
    [​IMG]
    1600
    [​IMG]
    1867
    [​IMG]
    2133
    [​IMG]

    Johnksss, Mar 25, 2012
    #21
  22. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    WOW very nice. i love it when new potential arises from the m18x \ :D/

    Zero989, Mar 25, 2012
    #22
  23. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Same here! And to think, all this time it could have been done sooner.. :D

    Johnksss, Mar 25, 2012
    #23
  24. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    178
    Trophy Points:
    231
    Pure speculation: John, is it possible the 4GB has issues overclocking because you are trying to overclock more gigs for the voltage? If you could up the voltage on the ram then you could probably overclock.

    DR650SE, Mar 26, 2012
    #24
  25. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    I'm confident I could bring my 16gb dell 1600mhz ram cas 11 to 1866. straight up because its cas 11 and has 0 problems going from 800/850 with 1.5v.

    you inspire me to play around with this toy :p.

    Zero989, Mar 26, 2012
    #25
  26. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    It may be because im pushing it from 1600 mhz to 2133 and the 4gig sticks just cant hang...

    I pushed the 2 (8 gigs total) gig sticks of Kingston and Samsung up to 2220+ mhz, while it wont even post pushing 2 4 gig chips, but i can make one post and run by itself....So could be voltage but i up the voltage as well...still no dice..ran a cl15 and it still wouldn't fly. I'll play with it some more later on tonight.

    Yours is super easy. Just flash any 1866 sodimm profile and boot and your done.
    Or edit your own ram up to 1866 and your done.

    Johnksss, Mar 26, 2012
    #26
  27. dttran83

    dttran83 Notebook Deity

    Reputations:
    272
    Messages:
    837
    Likes Received:
    7
    Trophy Points:
    31
    Is the program easy to use? Is there a guide for it? When you said flash, does it mean I have to use a separate program to do that? Very temping to turn my 1866mhz to 2133mhz. Thank!

    dttran83, Mar 26, 2012
    #27
  28. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    They have video guides for it on thier site.
    As to ease of use...once you feel comfortable flashing and get a feel for what you need to change..usually just the timings you see in cpuz for the most part....It is, but when you make that first mistake flashing the wrong profile...don't panic.... it can be fixed. :)

    Johnksss, Mar 26, 2012
    #28
  29. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    Zero989, Mar 26, 2012
    #29
  30. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    congratz!!

    Johnksss, Mar 27, 2012
    #30
  31. iPhantomhives

    iPhantomhives Click the image to change your avatar.

    Reputations:
    791
    Messages:
    1,665
    Likes Received:
    48
    Trophy Points:
    66
    Question , do you need to overclock every window reboot? or its permanent?

    I was wondering if a 2133 ram oc , what would be the x amount? 2399mhz?

    awesome babies.

    iPhantomhives, Mar 27, 2012
    #31
  32. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    its software-permanent. with 2133mhz memory as long as youre not using 1.65v from the get go... 2300mhz should be plausible.



    my ram seems to have some kind of auto-rewrite-protection. in other words, i cant change my SPD profiles. i can only "ADD" XMP profiles because theres space there to do so, and there was never one to begin with so no re-write protection was necessary.

    there are a lot of problems ive encountered. the program thaiphoon burner is pure genius. im rarely impressed with anything at all. this program actually impressed me. it has a massive database of SPD profiles AND XMP profiles. the list of XMP profiles is small though.

    the issue with the XMP profiles seems to be when i change timings or dividers that the whole XMP self-destructs and doesnt allow me to use it. its almost like it has its own internal protection? its really weird.

    the profile im using right now is from G.Skill 1600Mhz memory desktop memory. not all xmp profiles seemed to have worked. im looking for a 12-12-12-3x/4x timing so i can break the 1ghz barrier.

    Zero989, Mar 27, 2012
    #32
  33. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    You dont even need to get super high tech with this...just start with your own settings then add the 933 set to yours and read adjust a few things and it will show your own memory and timings....trial and error may be in order, but it will at least read your real memory as is.

    Johnksss, Mar 27, 2012
    #33
  34. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    ohh add an additional/higher spd profile? ive been modifying my current ones...

    thats what ive been doing wrong? : /

    edit -- i now see space for more profiles "doh"

    40/50/60 are all free

    Zero989, Mar 27, 2012
    #34
  35. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    1: Read Memory
    2: Click editor
    3: DDR3 Speed bins
    4: Cas Latency - scroll up and down to add more cas timings or drop cas timings.
    5: Set trcd and trp to usually the same as cas.
    Now the interesting part...Cas has about 10 to 15 numbers before it goes up to the next class. This is where the playing comes in. If you check that corsair profile...You'll notice it's one click before it would be cl11 (They are not slick! - LOL)
    6: Click next and tick Update hex Editir with new SPD data and click apply
    7: Click write and write to all SPD devices. (They have to be the same size ram 4g with 4g).
    8: Reboot and hope for the best. :D

    Keep at least one extra 4 gig chip just incase you messup flashing. that one chip will default everything to the loewst setting and come back on. then go in the bios and change the 2133 or 1866 down to 1333 and shut down. swap ram and your good.

    Johnksss, Mar 27, 2012
    #35
  36. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    it never lets me write anything to my ram spd profiles though? it looks like it writes it then it swaps back to what it was. the settings in the bios for memory overrides dont work. the only thing that works is XMP profiling.

    im using hyundai ram, maybe thats it?

    edit -- spd still not working, still forced to use XMP profiles:

    http://valid.canardpc.com/show_oc.php?id=2311483

    989Mhz 10-11-10-34 4x4GB 16GB total DDR3 (custom modified timings by myself from G.Skill's SniperX XMP profile)

    broke 5100 KB/s barrier in Winrar

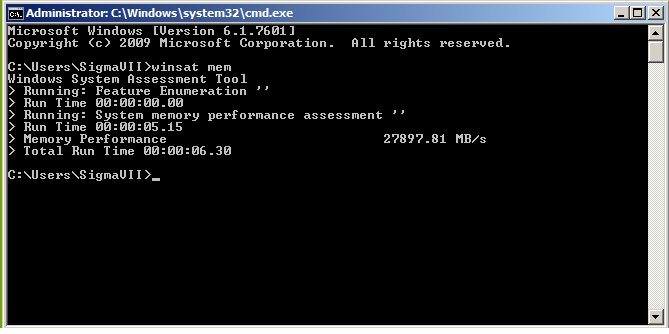

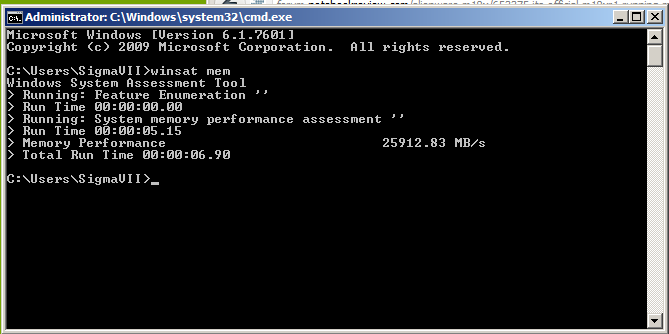

    windows 7: winsat mem benchmark

    [​IMG]

    this memory is running circles around my old hyperx 1866

    best $22 of my life

    <3 JOHNKSSS

    Zero989, Mar 27, 2012
    #36
  37. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    178
    Trophy Points:
    231
    Hmm... makes me wish the M17x R2 wasn't capped at 1333MHz. Though I may just get curious...

    DR650SE, Mar 27, 2012
    #37
  38. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    send me a copy of your original ram profile so i can have a look.

    What did you do with your old hypers??
    edit:
    Also, i did 6100kb on the winrar test.
    You would have to flash the memory option to go higher than 1333. if such an option is in your bios....

    Johnksss, Mar 28, 2012
    #38
  39. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    I it added as a zipped-attachment.

    I sold my hyperx 1866Mhz because I was to receive a replacement m18x with full 16gb 4x4gb 1600mhz. they were really cute pieces of tech but needed 1.55v to hit 973mhz at 11-11-11-xx. i only had a 8gb 2x4gb kit. it cost me $140 O_O.

    this ram is SOOOOO much better. all thanks to you :p.

    anddddd ill never be able to beat you in most benchmarks either, your cpu is just too fast :p.


    Attached Files:

    Zero989, Mar 28, 2012
    #39
  40. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    yeah, i was thinking the cpu was doing a bit more.... so unfair advantage there...

    as to your profile...you don't have xmp profiles in it. it should look something like this.


    Attached Files:

    Johnksss, Mar 28, 2012
    #40
  41. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    ohhh I gave you my original. I have no trouble saving 1866K/J speed bin dumps to flash to my memory, they just don't work.

    Here is what I'm using right now. (attached)

    Also ignore profile 1, it doesn't work at all. I'm currently using profile 2.

    I'm also still tweaking the timings. I might be able to squeeze out a few more MB/s. Ultimately, it's prob not worth my time : p.


    Attached Files:

    Zero989, Mar 28, 2012
    #41
  42. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    here is one of mine...


    Attached Files:

    Johnksss, Mar 28, 2012
    #42
  43. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    hmmm I just can't seem to get SPD profile modifications to stay :/. that's why I think it's write-protection built-in. I have learned something though from your screenshot, I overshot my TRRD timing, thanks!

    Zero989, Mar 28, 2012
    #43
  44. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    no problem.

    I think they have a setting to remove that protection if it exists..(speculation of course)

    ill investigate your memory later today. after i get up..

    Johnksss, Mar 28, 2012
    #44
  45. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    Ok, thanks. I even followed this guide but no dice.

    http://forum.notebookreview.com/alienware-m11x/576475-how-update-spd.html

    (from what I know write-protection is physical to the RAM)

    edit-- getting major BSODs with your settings + looser timings to get 1066Mhz


    2nd edit -- ITS NOW REALLY OFFICIAL! -- 2133Mhz 12-12-12-37

    timings are really bad but those prior BSODs raped my OS so im playing it carefully.

    http://valid.canardpc.com/show_oc.php?id=2311953

    3rd edit -- im catching up -- 1.55v needed for this clock; voltage obviously having its role now

    http://valid.canardpc.com/show_oc.php?id=2311975

    who ever said alienware certified memory is crap? :D

    [​IMG]

    Zero989, Mar 28, 2012
    #45
  46. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    Zero989, Mar 28, 2012
    #46
  47. devillucifer

    devillucifer Notebook Consultant

    Reputations:
    202
    Messages:
    119
    Likes Received:
    0
    Trophy Points:
    30
    Very nice indeed ! :D

    you gotta see this ! validated in the ss
    actually it got replaced now because of the crazy cpu freq when i tried to work up the cpu.. kinda funny cpu-z bug lolz

    [​IMG]

    devillucifer, Mar 28, 2012
    #47
  48. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    outstanding job!!

    Johnksss, Mar 28, 2012
    #48
  49. Zero989

    Zero989 Notebook Virtuoso

    Reputations:
    910
    Messages:
    2,835
    Likes Received:
    583
    Trophy Points:
    131
    haahahh oh wow. you scared me there for a second :p.


    the cool thing about it is that i can go even higher :D

    its korean pride day today, i always thought hyundai memory was crap lolz

    Zero989, Mar 28, 2012
    #49
  50. Johnksss

    Johnksss .

    Reputations:
    11,531
    Messages:
    19,452
    Likes Received:
    12,819
    Trophy Points:
    931
    Im sure allot of folks thought the same.. :D

    side note:
    ~World's Highest 6970M 3DM-11 Graphics Score & SO-DIMM DDR3 O/C 2266Mhz!~
    You sure about that? :D :D

    Johnksss, Mar 28, 2012
    #50
 Next page →
