    M18x R2. What goes here??

    Discussion in 'Alienware 18 and M18x' started by Maxware79, Dec 22, 2019.

  1. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131

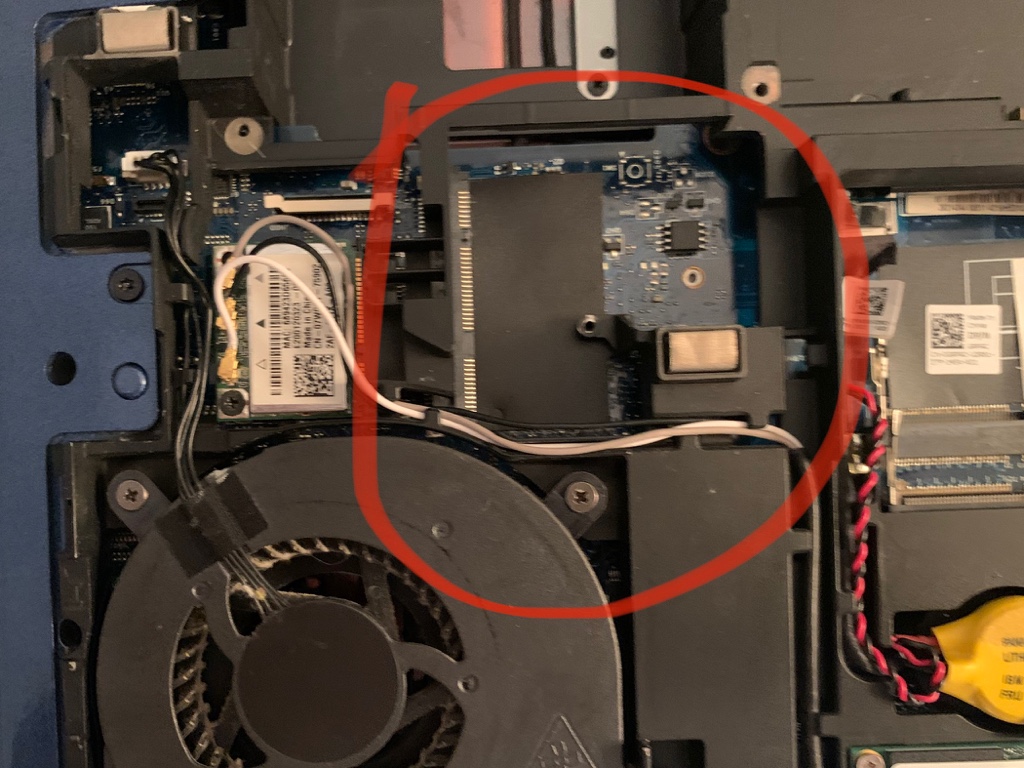

    Hey. Just wondering what goes in here. Anyone know? I’ve already got the mSata filled so I have no idea.
    [​IMG]


    Sent from my iPhone using Tapatalk

    Maxware79, Dec 22, 2019
    #1
  2. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    It's meant for WiDi display cards, its basically a spare MPCIE slot (x1 2.0+USB 2) and a DP lane wired to it. Most people that use it use it for a MPCIE to SATA port card for spare HDDs, or a MPCIE to USB card.

    Mastermind5200, Dec 22, 2019
    #2
    Maxware79 and M18x-oldie like this.
  3. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    Thanks. I had a feeling it was for the mystical WiDi card.


    Sent from my iPhone using Tapatalk

    Maxware79, Dec 22, 2019
    #3
  4. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    Does anyone know if the feature is supported in the R2? I don’t think they gave it as an option when they released the M17x R4 and M18x R2 even though the port it there. It would be great to get it working


    Sent from my iPhone using Tapatalk

    Maxware79, Dec 22, 2019
    #4
  5. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    WiDi is supported afaik. In theory, might be able to put a WiGiG card and use a WiGiG dock

    Mastermind5200, Dec 22, 2019
    #5
  6. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    I think I’ll try and grab a widi card and antenna and see how it goes.


    Sent from my iPhone using Tapatalk

    Maxware79, Dec 22, 2019
    #6
  7. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    Ordered the card, antenna and a Netgear PTV3000 all for a little over $100AUD. Most of that was shipping and import duty from the US.

    Maxware79, Dec 26, 2019
    #7
    MagicMike likes this.
  8. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    Not WiDi, but Wireless HD protocol made by SiBEAM. Requires the card in the DMC slot + transmitter in the LCD housing.

    The slot itself is known as a DMC slot - Digital Media Card

    Encoder: https://www.ebay.com/itm/NEW-USA-De...405988?hash=item3fc898f0e4:g:jjQAAOSwcg9ZtEqD

    Transmitter:
    https://www.ebay.com/itm/Dell-Alien...98AAOSw8-lcbtfX:sc:USPSFirstClass!23233!US!-1

    Compatible receiver:
    https://www.ebay.com/itm/Vizio-XWH2...527255&hash=item3d8f14aac2:g:bwwAAOSwAgVdJZVa

    Raidriar, Dec 30, 2019
    #8
    Maxware79 likes this.
