    delidding notebook cpu - testimonials?

    Discussion in 'Alienware 18 and M18x' started by anarky321, Sep 4, 2015.

  1. anarky321

    anarky321 Notebook Deity

    Reputations:
    65
    Messages:
    1,190
    Likes Received:
    49
    Trophy Points:
    66
    im considering doing this but have never done something like this...would i be able to use liquid ultra between the lid and the core? the cpu i have is 2960xm...is this doable?

    anarky321, Sep 4, 2015
    #1
    Mr. Fox likes this.
  2. octiceps

    octiceps Nimrod

    Reputations:
    3,147
    Messages:
    9,944
    Likes Received:
    4,194
    Trophy Points:
    431
    There is no such thing as delidding a notebook CPU because there is no heatspreader to remove in the first place. You would simply spread CLU on the die and put the heatsink back on like with any other thermal paste.

    octiceps, Sep 4, 2015
    #2
    Mr. Fox likes this.
  3. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,344
    Likes Received:
    70,712
    Trophy Points:
    931

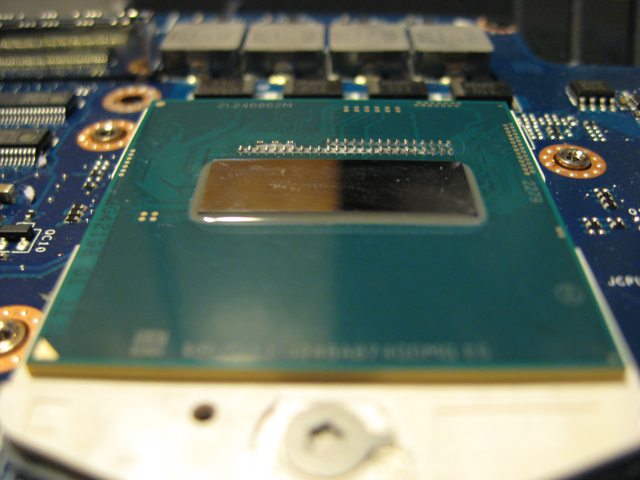

    Mobile CPU
    [​IMG]
    Desktop CPU w/ IHS (lid)
    [​IMG]
    Same Desktop CPU w/ IHS (lid) removed
    [​IMG]

    Mr. Fox, Sep 4, 2015
    #3
  4. anarky321

    anarky321 Notebook Deity

    Reputations:
    65
    Messages:
    1,190
    Likes Received:
    49
    Trophy Points:
    66
    ok then =)

    anarky321, Sep 5, 2015
    #4
