    m18xr2 Gpu Running Hot, Thermal pads?

    Discussion in 'Alienware 18 and M18x' started by Jango666, Dec 31, 2019.

  1. Jango666

    Jango666 Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    1
    Trophy Points:
    5
    My younger brother is running an M18xr2 with a gtx 770m that we purchased and installed. When gaming on demanding titles the temps run up to 95 degrees pretty quickly and I assume is throttled from there.
    Is there a guide to placing thermal pads on because I'm pretty sure they weren't put on properly when we got this replacement gpu.

    Jango666, Dec 31, 2019
    #1
    Mr. Fox likes this.
  2. Homer S

    Homer S Notebook Evangelist

    Reputations:
    11
    Messages:
    314
    Likes Received:
    86
    Trophy Points:
    41
    I remember seeing one from @Mr. Fox IIRC. You would have to do some serious digging through the threads here.

    Homer

    Homer S, Jan 17, 2020
    #2
    Papusan and Mr. Fox like this.
  3. Mr. Fox

    Mr. Fox BGA Filth-Hating Elitist®

    Reputations:
    37,250
    Messages:
    39,344
    Likes Received:
    70,712
    Trophy Points:
    931

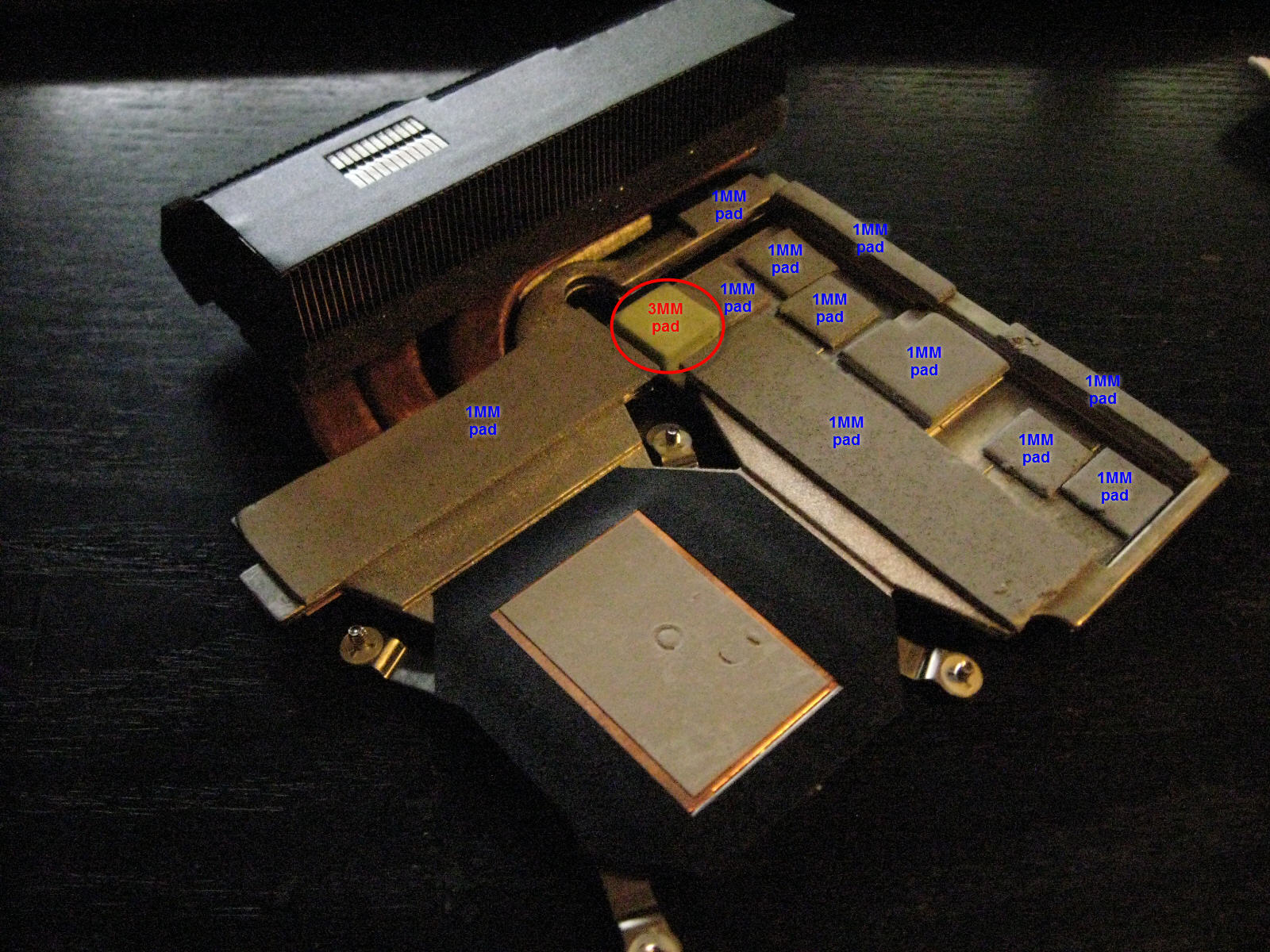

    Here you go. Had to do some digging in my Imgur archive. Uploaded 6 years ago to Imgur, LOL.
    [​IMG]

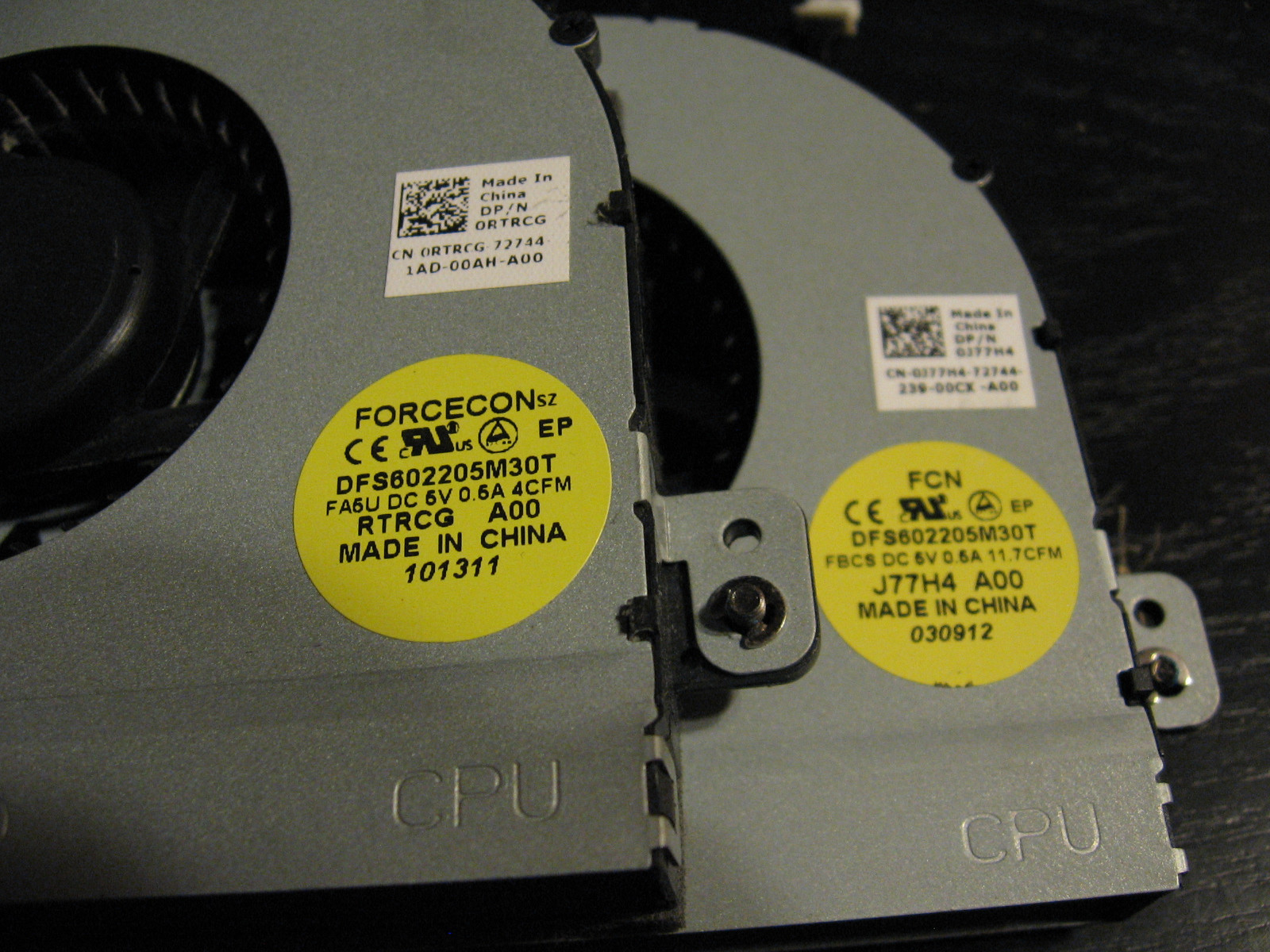

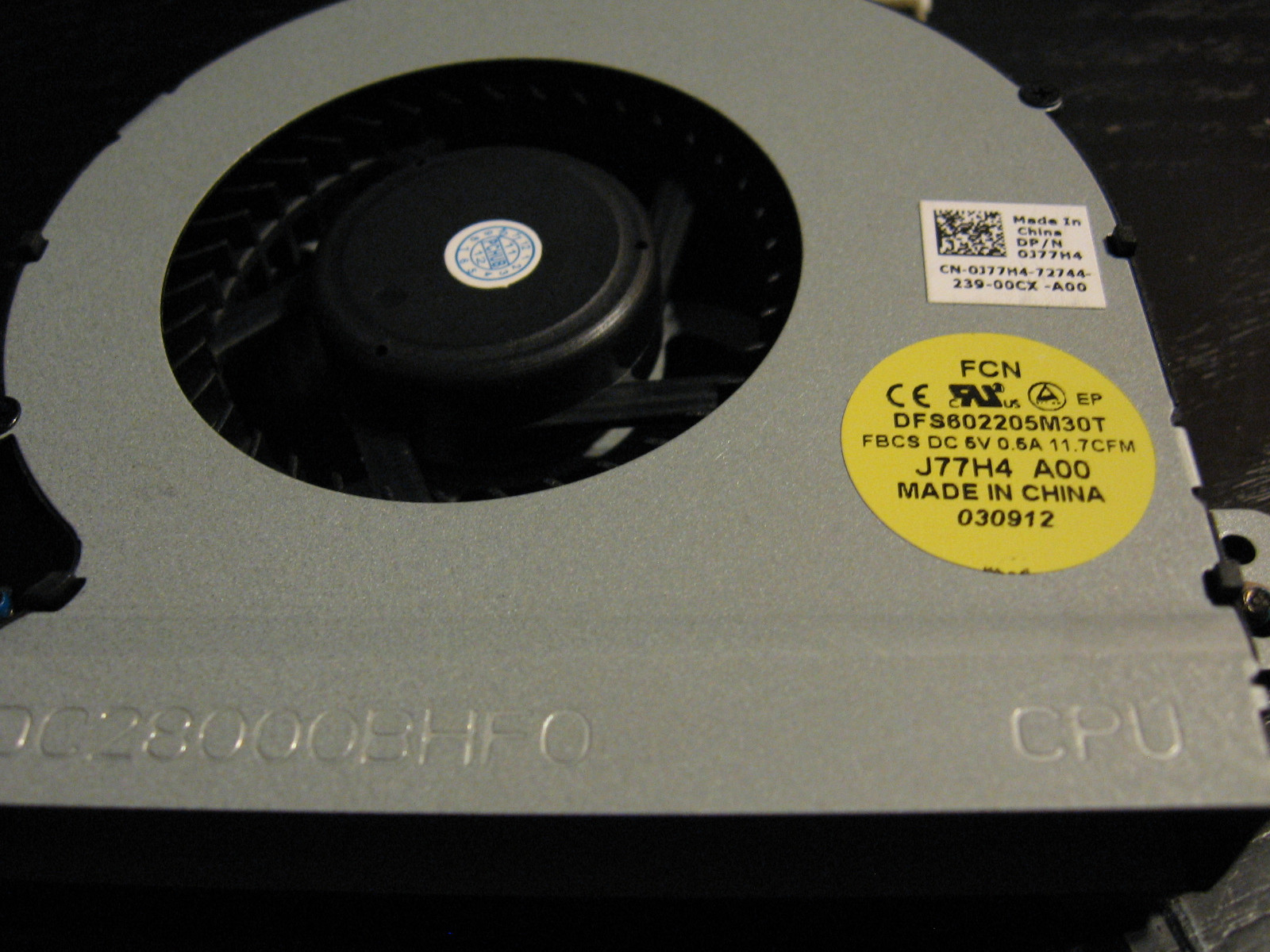

    If you want a better CPU fan, if you don't already have the more powerful 11.7 CFM fan (Dell P/N J77H4), get one. The other option is only 4 CFM.
    [​IMG]
    [​IMG]

    Last edited: Jan 17, 2020
    Mr. Fox, Jan 17, 2020
    #3
    hankaaron57, ll_r1d0_ll, M18x-oldie and 4 others like this.
  4. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    @Mr. Fox comes through again! I'm pretty sure my pads aren't right so this will help me out a lot. Thanks for keeping an eye on us Alienware tragics.

    Maxware79, Jan 18, 2020
    #4
    M18x-oldie, Mr. Fox, Papusan and 1 other person like this.
  5. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    I got the pads right (as per the pic above) and my top temps in Fire Strike went from the mid 80's to now in the low to mid 70's. I also used a heatsink from another machine that looked brand new. I even pulled a better score in FS than previously.


    Maxware79, Jan 27, 2020
    #5
    MagicMike, M18x-oldie and Mr. Fox like this.
  6. Homer S

    Homer S Notebook Evangelist

    Reputations:
    11
    Messages:
    314
    Likes Received:
    86
    Trophy Points:
    41
    Sweet!

    I need to take a peek at my CPU fan...

    Homer

    Homer S, Jan 27, 2020
    #6
  7. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    I’m still not running cool enough apparently. Some guy doesn’t get much past 60 degrees which sounds really low. What are your temps Homer?


    Sent from my iPhone using Tapatalk

    Maxware79, Jan 27, 2020
    #7
  8. senso

    senso Notebook Deity

    Reputations:
    565
    Messages:
    1,645
    Likes Received:
    789
    Trophy Points:
    131
    Keep in mind that ambient temps play a significant role in system temp, one guy with 20ºC ambient temp will have a cooler running system than if you have 25ºC or 30ºC ambient temp..

    senso, Jan 30, 2020
    #8
  9. Maxware79

    Maxware79 Alienware died in 2014

    Reputations:
    218
    Messages:
    1,277
    Likes Received:
    944
    Trophy Points:
    131
    That's a good point. The upstairs bedroom it's in does get warm even when the AC is on.

    Maxware79, Jan 30, 2020
    #9
  10. Homer S

    Homer S Notebook Evangelist

    Reputations:
    11
    Messages:
    314
    Likes Received:
    86
    Trophy Points:
    41
    Replaced my sad 4 CFM fan with a 12 CFM (rounded up). Makes me wonder if there is a option for the GPU fan(s)...

    Homer

    Homer S, Apr 27, 2020
    #10
  11. hankaaron57

    hankaaron57 Go BIG or go HOME

    Reputations:
    534
    Messages:
    1,642
    Likes Received:
    2
    Trophy Points:
    56
    Will these pad sizes be accurate across all the nvidia GPUs?

    hankaaron57, May 4, 2020
    #11
  12. imest

    imest Notebook Consultant

    Reputations:
    6
    Messages:
    121
    Likes Received:
    28
    Trophy Points:
    41
    Short answer: NO

    Long answer, if you pay attention to the spacing of the actual chips, you can discern the gap placement for other cards.


    -imest

    imest, May 5, 2020
    #12
    hankaaron57 likes this.
  13. hankaaron57

    hankaaron57 Go BIG or go HOME

    Reputations:
    534
    Messages:
    1,642
    Likes Received:
    2
    Trophy Points:
    56
    Most of the ones I saw on eBay have "CPU" engraved on them, but some are clearly designated for left/right place on the GPUs. So I think they should work.

    hankaaron57, May 5, 2020
